The MSM310-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g product. The
Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The MSM310-R is
certified under the SpectraLink Voice Interoperability for Enterprise Wireless (VIEW)
Certification Program when it operates in autonomous mode or in controlled mode in
VIEW
conjunction with an MSM7xx Controller.
Certified
This Quickstart shows you how to get started using the MSM310-R Access Point (US J9380A/B, WW J9383A/B).
After reading this Quickstart, you can visit www.hp.com/go/procurve/manuals and download documents of particular interest such as the MSM3xx / MSM4xx
Access Points Management and Configuration Guide and the MSM7xx Controllers Management and Configuration Guide.

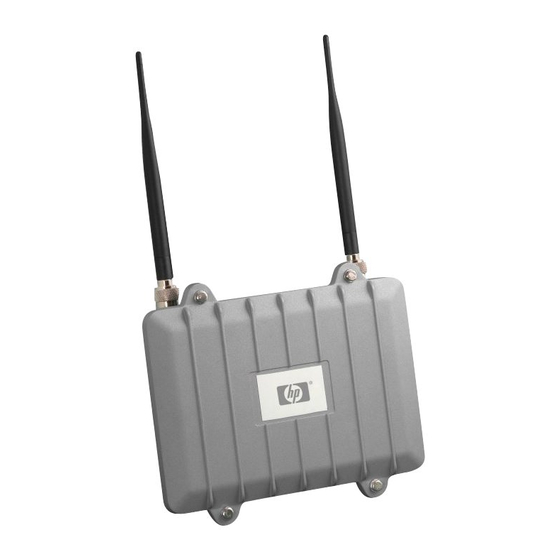

Hardware overview

Package contents

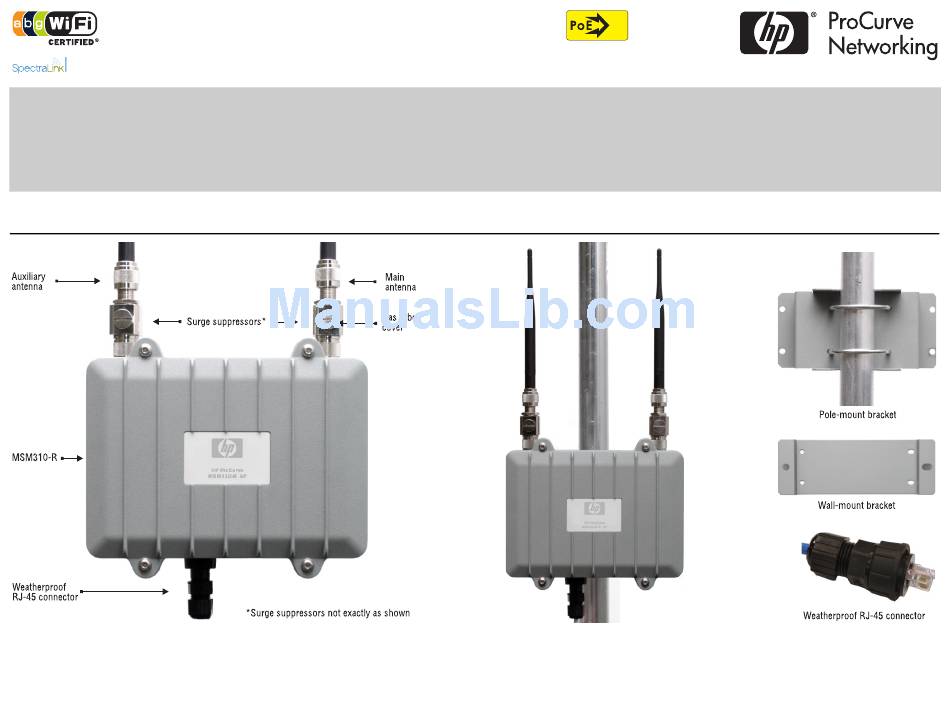

MSM310-R featuring a die-cast aluminum enclosure with three-point silicone gasket, two
2.4 GHz (5.5 dBi) 802.11b/g omnidirectional antennas, weatherproof quick-disconnect
RJ-45 Ethernet connector, wall-mount bracket, pole-mount bracket assembly, grounding lug,
two antenna adapters (for use with optional external antennas only), documentation.
MSM310-R Access Point Quickstart
In
Radio and antennas
The MSM310-R has a single radio with two antennas. The antenna connectors are
weatherproof straight-polarity N-type female bulkhead antenna connectors. Optional external
antennas are available from HP ProCurve. On the HP ProCurve Website, see the Accessories
section for the MSM310-R.
