Sony ECM-HW1 Service Manual

SERVICE MANUAL
Ver 1.0 2006. 01
ECM-HW1
9-876-928-11
(Receiver)
SPECIFICATIONS
Wireless communication
Communication system Bluetooth specification Ver.1.2
Output Bluetooth specification Power Class 1
Compatible Bluetooth Profile Advanced Audio Distribution Profile
Working range* Approx. 30 m (100 ft.) (line of sight)
* Depending on recording location, such as if obstacles or reflective surfaces are
between Bluetooth devices, radio wave conditions, etc.
Receiver
Power requirements Supplied via Active Interface Shoe (approx. 7.2 V)
Power consumption Approx. 0.7 W (When the receiver is attached, the
operating time of the camcorder's battery is
reduced by about 20%.)
Approx. 48 × 71 × 53 mm
Dimensions (w/h/d)
15
(1 /
16
Mass Approx. 58 g (2 oz.)
Microphone (transmitter)
System Monaural, non-directional
Power requirements 3.0 V (two size AAA alkaline dry batteries or two
size AAA Ni-MH rechargeable batteries**)
** Batteries not included. Manganese dry batteries
should not be used.
Power consumption Approx. 0.6 W
Frequency response 300 - 9,000 Hz
Continuous operating time Approx. 3 hours
(With Sony alkaline dry batteries at 25 ºC (77 ºF))
When used at low temperature, the operating time
with alkaline dry batteries will shorten. Use of Ni-
MH rechargeable batteries is recommended.
Approx. 34 × 65 × 23 mm
Dimensions (w/h/d)
× 2
3
(1 /
8
Mass Approx. 25 g (0.9 oz.) (excluding the batteries and
the clip)
Receiver/microphone (transmitter)
Operating temperature 5 - 40 ºC (41 - 104 ºF)
Storage temperature –20 - 60 ºC (–4 - 140 ºF)
Included items
Receiver (ECM-HW1R) (1), Microphone (transmitter) (ECM-HW1T) (1), Clip
(attached to the microphone) (1), Neck strap (1), Wind screen (1), Carrying pouch
(1), Arm band (1), Set of printed documentation
Design and specifications are subject to change without notice.
Sony EMCS Co.
ECM-HW1
(Microphone)
× 2 × 2
7 1
/ / in.)
8 8
×
5 29
/ / in.) (excluding the clip)
8 32

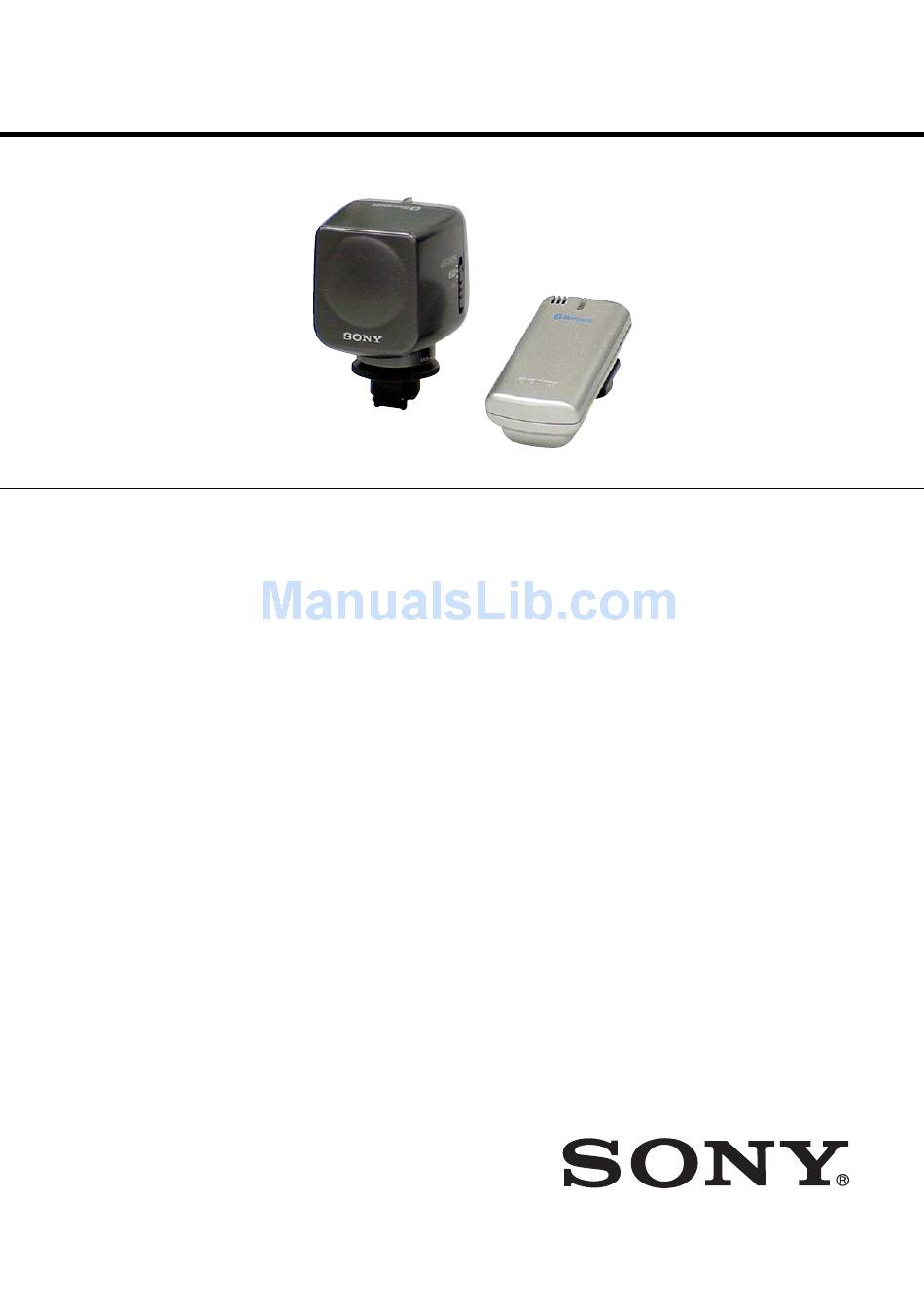

WIRELESS MICROPHONE
Published by DI Technical Support Department
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Korea Model
2006A1600-1
©2006.01
