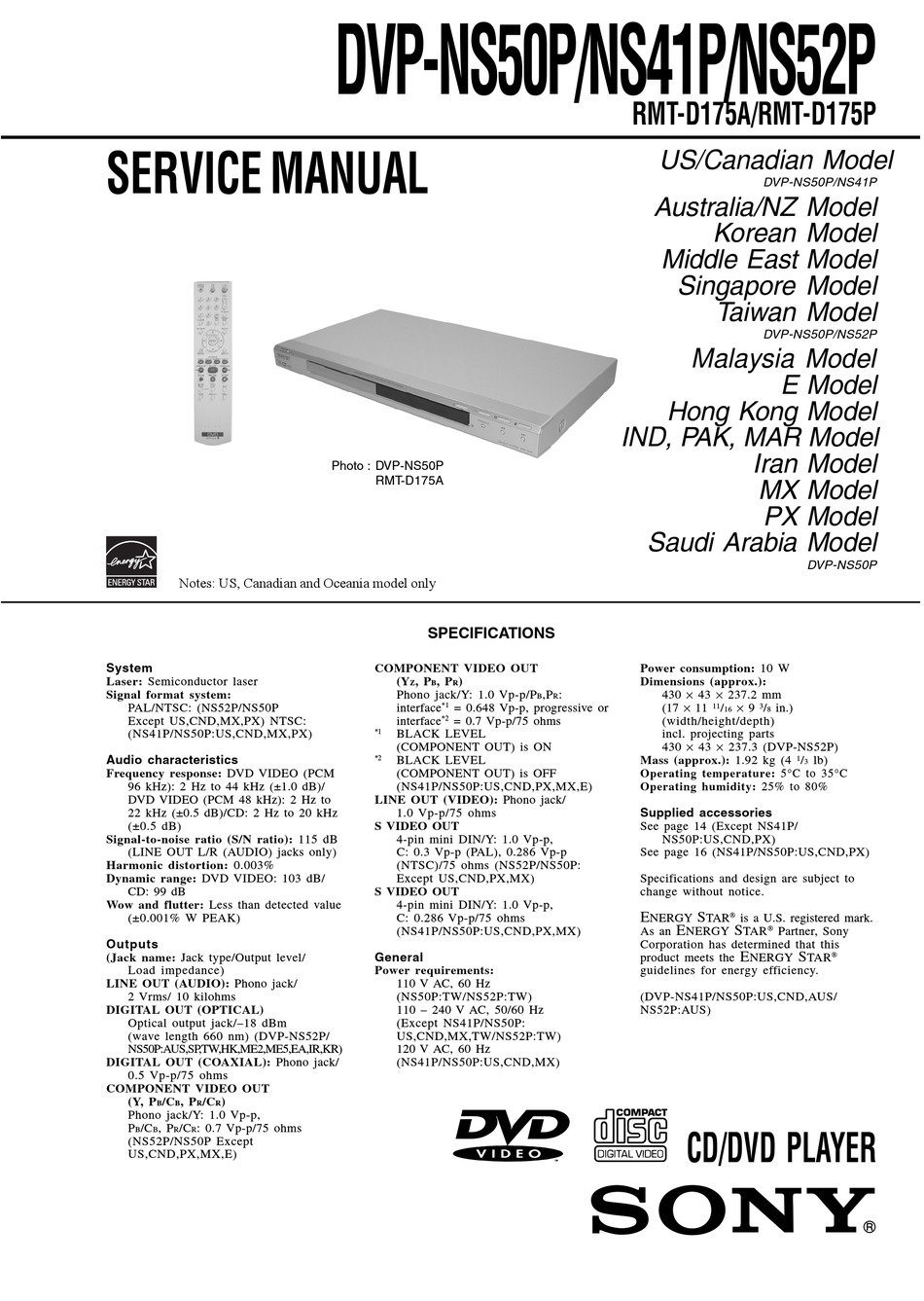

SERVICE MANUAL
Notes: US, Canadian and Oceania model only
System
Laser: Semiconductor laser
Signal format system:
PAL/NTSC: (NS52P/NS50P
Except US,CND,MX,PX) NTSC:
(NS41P/NS50P:US,CND,MX,PX)
Audio characteristics
Frequency response: DVD VIDEO (PCM
96 kHz): 2 Hz to 44 kHz (±1.0 dB)/
DVD VIDEO (PCM 48 kHz): 2 Hz to
22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz
(±0.5 dB)
Signal-to-noise ratio (S/N ratio): 115 dB
(LINE OUT L/R (AUDIO) jacks only)
Harmonic distortion: 0.003%
Dynamic range: DVD VIDEO: 103 dB/
CD: 99 dB
Wow and flutter: Less than detected value
(±0.001% W PEAK)
Outputs
(Jack name: Jack type/Output level/
Load impedance)
LINE OUT (AUDIO): Phono jack/
2 Vrms/ 10 kilohms
DIGITAL OUT (OPTICAL)
Optical output jack/–18 dBm
(wave length 660 nm) (DVP-NS52P/
NS50P:AUS,SP,TW,HK,ME2,ME5,EA,IR,KR)
DIGITAL OUT (COAXIAL): Phono jack/
0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P
/C
, P
/C
)
B
B
R
R
Phono jack/Y: 1.0 Vp-p,
P
/C
, P
/C
: 0.7 Vp-p/75 ohms
B
B
R
R
(NS52P/NS50P Except
US,CND,PX,MX,E)
DVP-NS50P/NS41P/NS52P

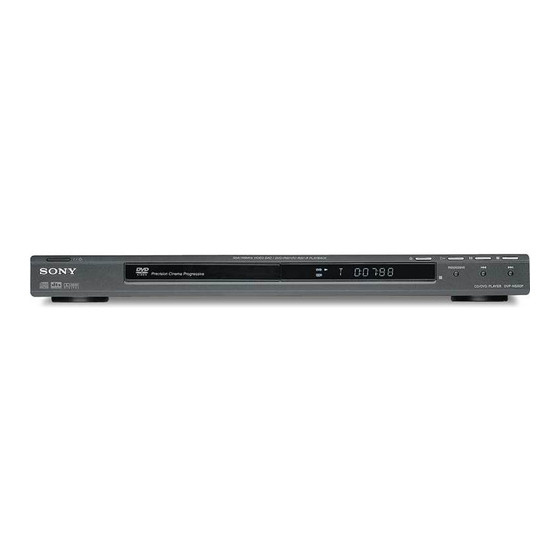

Photo : DVP-NS50P
RMT-D175A
SPECIFICATIONS
COMPONENT VIDEO OUT
(Y
, P
, P
)
Z
B
R
Phono jack/Y: 1.0 Vp-p/P
interface
*1
= 0.648 Vp-p, progressive or
*2
interface
= 0.7 Vp-p/75 ohms
*1
BLACK LEVEL
(COMPONENT OUT) is ON
*2
BLACK LEVEL
(COMPONENT OUT) is OFF
(NS41P/NS50P:US,CND,PX,MX,E)
LINE OUT (VIDEO): Phono jack/
1.0 Vp-p/75 ohms
S VIDEO OUT
4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.3 Vp-p (PAL), 0.286 Vp-p
(NTSC)/75 ohms (NS52P/NS50P:
Except US,CND,PX,MX)
S VIDEO OUT
4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.286 Vp-p/75 ohms
(NS41P/NS50P:US,CND,PX,MX)
General
Power requirements:
110 V AC, 60 Hz
(NS50P:TW/NS52P:TW)
110 – 240 V AC, 50/60 Hz
(Except NS41P/NS50P:
US,CND,MX,TW/NS52P:TW)
120 V AC, 60 Hz
(NS41P/NS50P:US,CND,MX)
RMT-D175A/RMT-D175P
US/Canadian Model
Australia/NZ Model
Middle East Model
Singapore Model
Malaysia Model
Hong Kong Model
IND, PAK, MAR Model
Saudi Arabia Model
Power consumption: 10 W
Dimensions (approx.):
430 × 43 × 237.2 mm
,P
:
B
R
(17 × 11
(width/height/depth)
incl. projecting parts
430 × 43 × 237.3 (DVP-NS52P)
Mass (approx.): 1.92 kg (4
Operating temperature: 5°C to 35°C
Operating humidity: 25% to 80%
Supplied accessories
See page 14 (Except NS41P/
NS50P:US,CND,PX)
See page 16 (NS41P/NS50P:US,CND,PX)
Specifications and design are subject to
change without notice.
E
S
NERGY
TAR
E
As an
NERGY
Corporation has determined that this
product meets the
guidelines for energy efficiency.
(DVP-NS41P/NS50P:US,CND,AUS/
NS52P:AUS)
CD/DVD PLAYER
DVP-NS50P/NS41P
Korean Model
Taiwan Model
DVP-NS50P/NS52P
E Model
Iran Model
MX Model
PX Model
DVP-NS50P
× 9
11
/
3
/
in.)
16
8
/
lb)
1
3
is a U.S. registered mark.
S
TAR
Partner, Sony
E
S
NERGY
TAR
