Bosch OR80 OT Operating Instruction

Wall hung boiler room thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

COMFORT
MON
Wall Hung Boiler Room Thermostat
OR80 OT Thermostat
Operating Instruction

Advertisement

Table of Contents
loading

Related Manuals for Bosch OR80 OT

Summary of Contents for Bosch OR80 OT

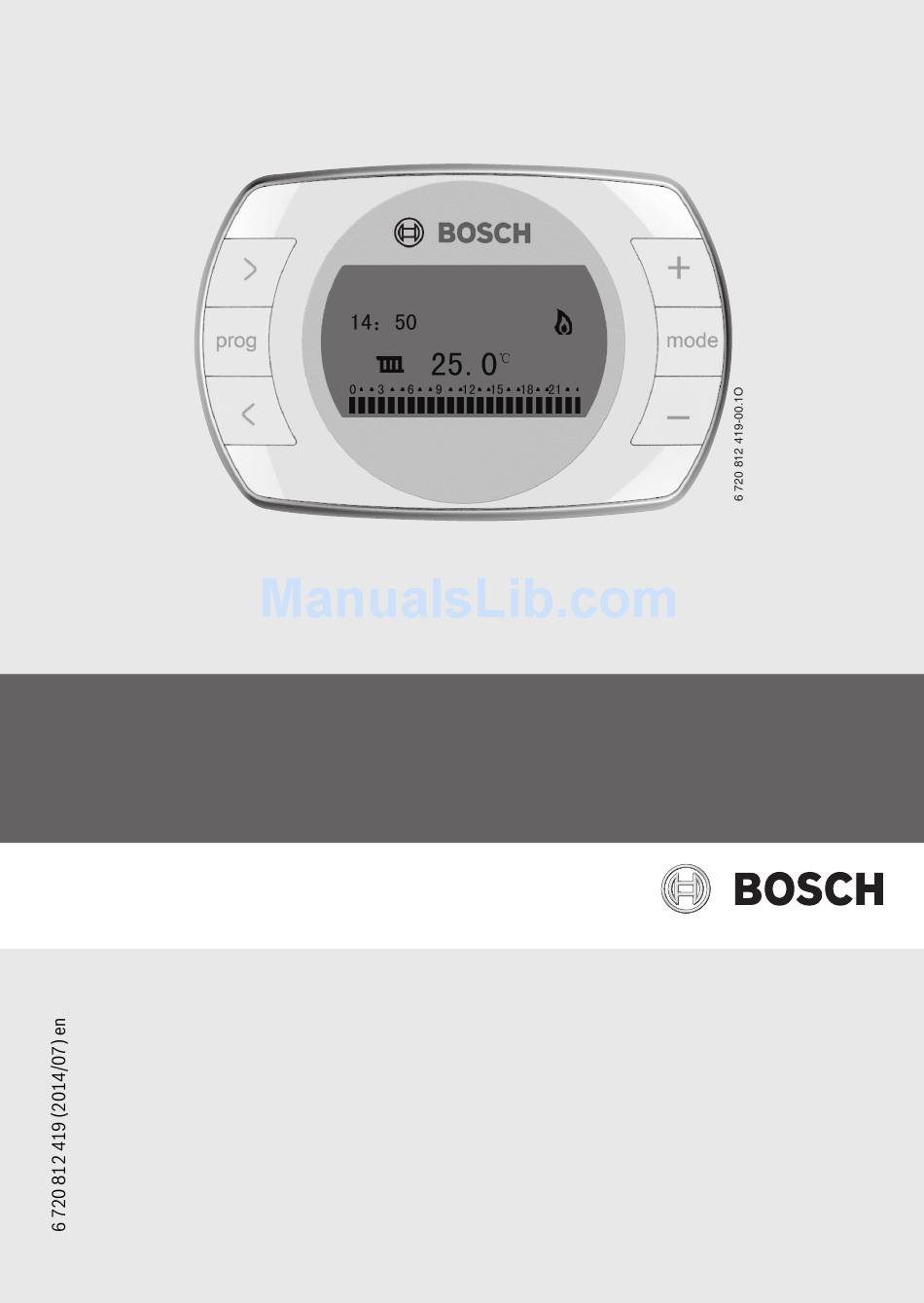

  • Page 1 COMFORT Wall Hung Boiler Room Thermostat OR80 OT Thermostat Operating Instruction...

  • Page 2: Table Of Contents

    Program ............18 OR80 OT Thermostat...
  • Page 3 13 Applicable models ..........27 OR80 OT Thermostat...

  • Page 4: Symbols And Safety Precautions

    This symbol indicates important information where there is no risk to people or property. Additional symbols Symbol Explanation ▶ Step in an action sequence  Cross-reference to another part of the document • List entry – List entry (second level) Table 1 OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 5: Safety Instructions

    – The damage caused during product dismantling and modification by the user or mountainer not authorized by our company; – Immersion in water, damp, collisions, extrusion which destroy the product. ▶ If you have any questions, please contact our manufacturer and agents. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 6: Product Instruction

    2.2 Electric parameters Temperature setting range 5~35 °C Measurement precision 0.1 °C Hysteresis temperature ± 1 °C Display LCD Dot matrix Temperature sensor Power supply OT low voltage Table. 2 OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 7: Main Functions And Features

    • 1 user program function,7 fixed modes • Program preview • Fault display function • Reset, quit operation function 2.4 Cleaner ▶ Use wet cleaning cloth to wipe the housing of controller. Must not use irritant or corrosive detergent. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 8: Product Description

    [3] Mode/Return key [4] – (decrease)/ Down key [5] Current mode [6] Week date [7] Current room temperature [8] Program preview [9] Heating working condition [10] DHW water working condition [11] Left key OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 9: Product Appearance Dimensions

    Product appearance dimensions 21 0.3 135.4 8733201143-02.1O Fig. 2 The back plate of room thermostat is a standard 86*86 design and can be mounted in standard junction box or fixed on the wall. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 10: Installation

    5.2 Installation steps ▶ Plug flathead screwdriver into recesses at product bottom, and move up to open back cover, as shown in Fig. 3. 8733201143-03.1O Fig. 3 OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 11 Fig. 4 ▶ Connect wire to wire holder of PCB, and align four positioning buckles with four square holes, then fix product onto the back cover, as shown in Fig. 5. 8733201143-05.1O Fig. 5 OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 12: Operation Instruction

    12 Operation instruction Operation instruction There are 6 function keys on OR80 OT room thermostat. Press the Prog key to enter into main menu, press “+” and “-” key to choose function, and press “Prog” key to set this function.

  • Page 13: Time Setting

    • “Sensor setting” option is for selecting indoor temperature sensor and outside temperature sensor; • “Boiler function” option is used for setting “CH” and “DWH” working condition; • “Restore factory defaults” can restore all temperatures and functions to default values. OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 14 14 Operation instruction Fig. 8 Function setting OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 15: Weekly Program

    User-defined mode is a custom program mode (see part 7), other modes are set as follows: office worker Time period Temperature 08:00-12:00 Frost temperature 12:00-13:30 Comfort temperature 13:30-17:30 Frost temperature 17:30-08:00 Comfort temperature Table. 4 OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 16 16 Operation instruction Comfort Time period Temperature 00:00-00:00 Comfort temperature Economy Time period Temperature 00:00-00:00 Economy temperature Outing Time period Temperature 00:00-00:00 Frost temperature Table. 5 OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 17 Operation instruction | 17 Morning Time period Temperature 07:30-16:00 Frost temperature 16:00-07:30 Comfort temperature Middle shift 15:30-00:00 Frost temperature 00:00-15:30 Comfort temperature Night shift 23:30-08:00 Frost temperature 08:00-23:00 Comfort temperature Table. 6 Fig. 9 Weekly program OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 18: Program

    23 30-03 00 Comfort temperature 03 00-06 00 Table. 7 Fig. 10 Program ▶ Press “Prog” to enter main menu; ▶ Press ( - ) to select “User prog.”and press “Prog” to enter interface; OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 19 06:00 and 06:30 are required the same, users can easy set by directly pressing “+”. ▶ Save the last step and press “prog” to quit program. All program points will be automatically save in “User Prog”; ▶ End programming. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 20: Basic Operation Procedure

    (such as: working hours).Setting temperature range:5-35 °C.Default point: 17 °C. – Comfort temperature: this temperature is suitable for the situation when people stay at home. Setting temperature range:7-35 °C.Default point: 20 °C. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 21: Main Menu

    “up” and “down” key. Press “Prog” key to save settings, and return to main menu. Main menu Setting temp. Time/week Set time/week User prog Hour Sys settings 00 MON Weekly prog Holiday mode Boiler Info exit Fig. 14 OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 22 Main menu Sys setting Setting temp. language Time/week Temp calibrate User prog. Sensor setting Sys setting Boiler function Boiler func Weekly prog Holiday Factory set √ mode Info Return Boiler Exit Exit Fig. 15 OR80 OT Thermostat 6 720 812 419(2014/07)
  • Page 23 “mode” key. All setting periods can be previewed at the top of the LCD screen. Fig. 16 ▶ Press “Prog” key to return main display interface or automatically exit after 10 seconds. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 24: Temperature Calibration

    Temp cali Weekly prog Boiler-func Holiday Factory-set Cur Temp mode Info Return Boiler- Exit Exit 29.0 Fig. 17 The operation of “Temp calibrate” is not suggested if deviation of room thermostat is not obvious. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 25: Holiday Mode

    This mode is selected for the situation when people stay out for a long time (such as: on vacation). Main menu Holiday length Temp setting Time/week Time User prog Sys setting 00 day00 hour Weekly prog Holiday mode Boiler- Info Exit Fig. 18 OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 26: Boiler Information

    Sys setting Exit View temp Weekly prog Holiday DWH 00.0 mode Boiler- Info Exit CH 00.0 Outdoor 00.0 FIg. 19 12 Safety instructions This room thermostat is driven by low voltage, please be free. OR80 OT Thermostat 6 720 812 419(2014/07)

  • Page 27: Applicable Models

    Eurosmart MINI 7716482003 N1P17 WBN6000-15S L1P20-WBN6000 -18CRN 0T1010044700023338 S5500 N1P20-WBN6000 -18HRN 0T1010044700023332 S5500 L1P27-WBN6000 -24CRN 0T1010044700023339 S5500 “New” Eurostar N1P27-WBN6000 -24HRN 0T1010044700023333 S5500 L1P31-WBN6000 -28CRN 0T1010044700023340 S5500 N1P31-WBN6000 -28HRN 0T1010044700023334 S5500 Table. 9 OR80 OT Thermostat 6 720 812 419(2014/07)
