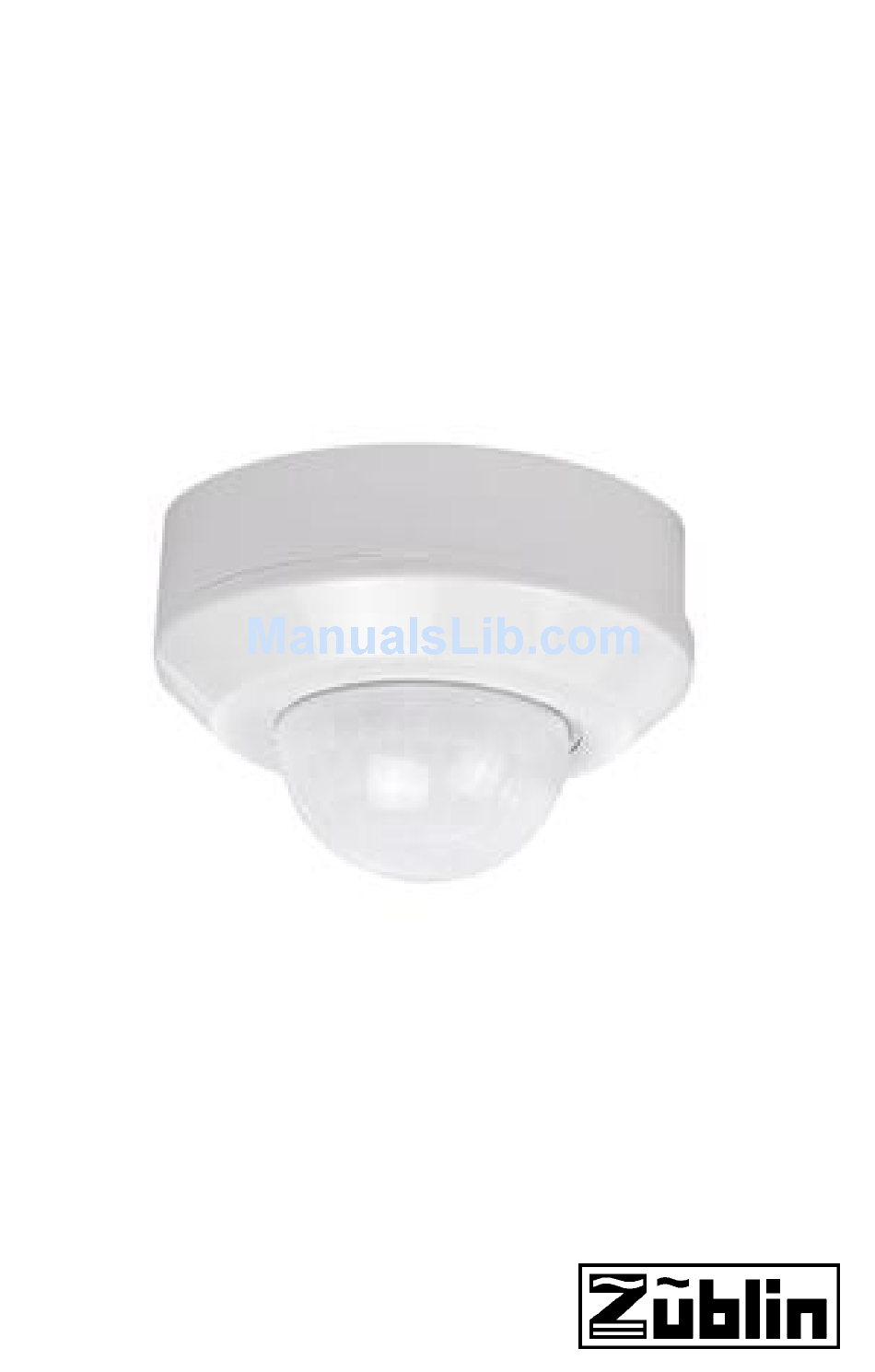

- Page 1 User Manual Ceiling-Mounting Motion Detector 360° Swiss Garde 360 Premium (25050)
- Page 2 Warning! - Any work on the main power supply must only be completed by trained specia- lists. - The product must be installed in accordance with installation guidelines/stan- dards specific to your country. - Disconnect the 230V power supply before starting the installation process. - As a precautionary measure, the power supply of the light should always be fit- ted with a (250VAC, 10A) type C fuse in accordance with EN60898-1.
- Page 3 Connecting electrical loads High inrush currents will considerably shorten the lifetime of the detector’s in-built relay. Please verify the technical data provided by the lamp or luminaires manufacturer concerning inrush currents, specifically with compact fluorescent, fluorescent lamps, electronic ballast, etc. in order not to overload the internal relay.
- Page 4 Installation of an RC element, (between neutral conductor (N) and switched phase L‘) in case of interferences by fluorescent lamps (switch-off sparks) or by several detectors connected in parallel (caused by capacitive current in the wires). Varistor (between neutral conductor (N) und phase (L)) to reduce mains voltage peaks. Accessory: 3-button remote control Functions: Auto = automatic operation (default)
- Page 5 Potentiometer controls overview Red LED, flashing once upon detection, three times upon adjusting TIME or LUX, or receiving a command from the remote control. Accessory: P-IR remote control For functions please refer to separate remote control manual. Attention! Manipulating LUX or TIME VR during a stable working condition, values will be stored and become valid.
- Page 6 Detection range The 360° omnidirectional detection zone and the dense detection field guarantee an optimal function. The range depends on the installation height and walking direction (high sensitivity when cutting or changing a switching segment). Since the detector reacts to temperature differences between heat source and ambient temperature, the response may vary depending on the installation site (floor heating, hot environment, etc.).
- Page 7 Troubleshooting error cause/amendment light does not turn on: - twilight adjustment value too low - connected lamp defective - check mains power / fuses detector triggers without - check detection area for potential reason / light never turns causes of false triggering: draught, ani- off: mals, heating, etc.
- Page 8 Technical data Nominal power: 230V / 50Hz 2300W / 10A max. (cos φ = 1) Switching power: 1150VA / 5A max. inductive (cos φ = 0,5) Time adjustment: short impulse approx. 1 sec. (20/60 sec. break) approx. 10 sec. to 20 min. Twilight switch: 5 to 2000 lux or lux memory (via remote ctrl) IR remote control:...
