INTRODUCTION
INTRODUCTION
This Shop Manual covers the following BRP made
2013 Can-Am side by side vehicles.
ENGINE
MODEL
TYPE
Commander
6CDA, 6CDB, 6CDC, 6TDA,
810
800R
6ADA, 6ADB, 6PDA, 6BDA,
Commander
1010
1000
6EDB, 6EDC, 6EDD, 6GDA,
The information and component/system descrip-
tions contained in this manual are correct at time
of writing. BRP however, maintains a policy of
continuous improvement of its products without
imposing upon itself any obligation to install them
on products previously manufactured.
Due to late changes, there may be some differ-
ences between the manufactured product and the
description and/or specifications in this document.
BRP reserves the right at any time to discontinue
or change specifications, designs, features, mod-
els or equipment without incurring obligation.

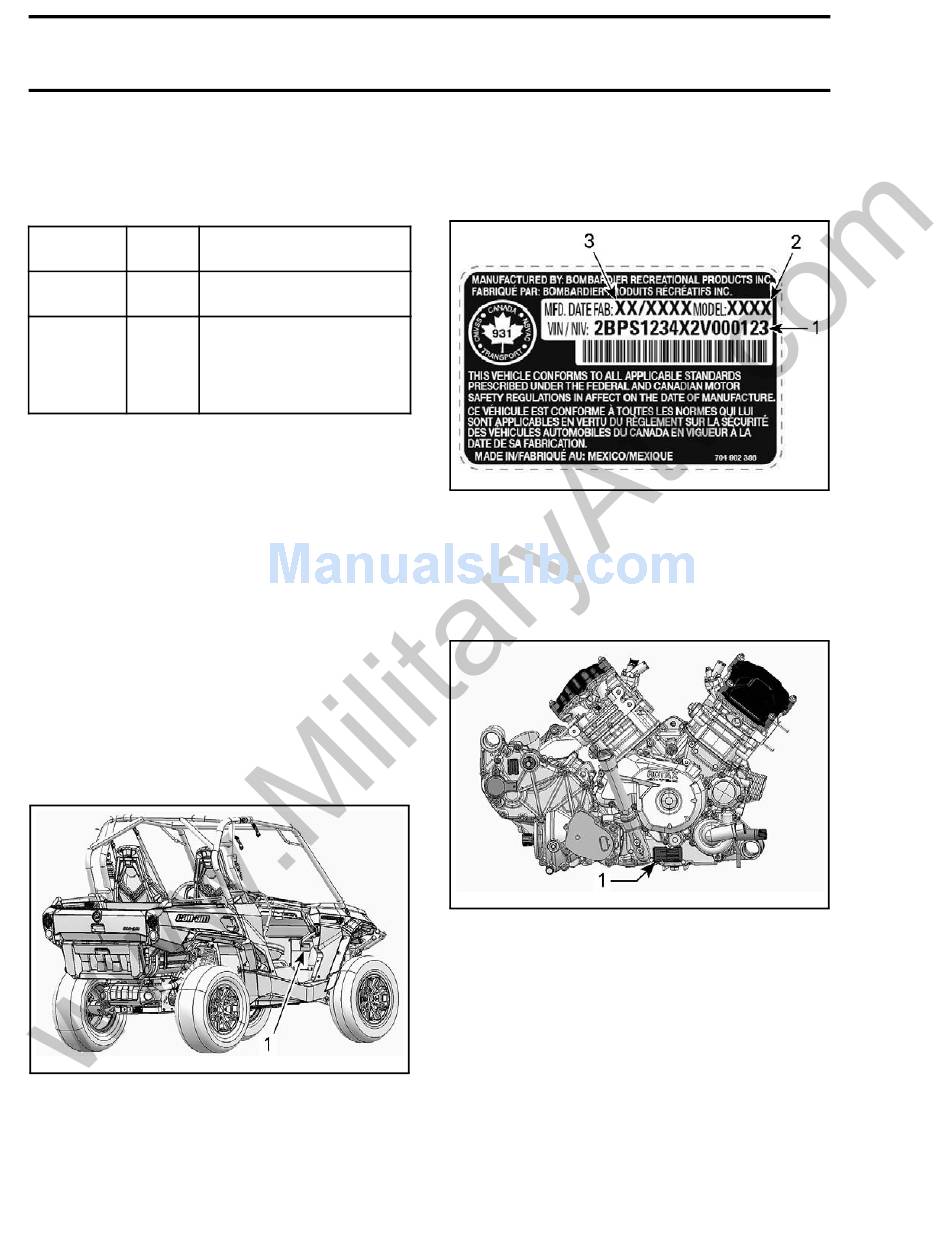

VEHICLE INFORMATION

VEHICLE IDENTIFICATION
NUMBER (VIN)
tmr2011-002-001_a
TYPICAL
1. VIN (Vehicle Identification Number) location
The VIN (Vehicle Identification Number) decal is lo-
cated under the glove box on the passenger side.
X
MODEL NUMBER
6DDA, 6DDB, 6DDC
6BDB, 6BDD, 6BDE, 6BDF,
6BDG, 6BDH, 6EDA,
6GDB, 6GDC, 6GDD
VIN Decal Description
tmr2011-002-005_a
TYPICAL — VEHICLE IDENTIFICATION NUMBER LABEL
1. VIN (Vehicle Identification Number)
2. Model number
3. Manufacturing date
ENGINE IDENTIFICATION
NUMBER (EIN)
tmr2011-002-002_a
TYPICAL - RH SIDE OF ENGINE
1. Engine Identification Number (EIN)
LIFTING AND SUPPORTING THE
VEHICLE
Front of Vehicle
1. Place vehicle on a flat non slippery ground.
2. Ensure vehicle shift lever is set to PARK.
3. Install an hydraulic jack under front skid plate.
4. Lift front of vehicle and install a jack stand on
each side under frame section in front of the lip
for center skid plate.
tmr2013-002
