Unit installation
Install the compressor on a level surface in a well-ventilated room with adequate space.
Room temperature should not exceed 35°C.
1. Remove the protectors (without photo).
2. Connect the airbrush with the straight air hose to the compressor.
2
Beginning of operation
Connect the compressor to the power supply system. Turn the on/off switch to I (on)
The compressor is fitted with an automatic shut-off switch. The shut-off switch automatically deacti-
vates the motor after it has build up the maximum pressure required.
The motor is automatically reactivated when the pressure reaches 40psi (2.8 bar) in the event of air
being removed from the pressure tank.

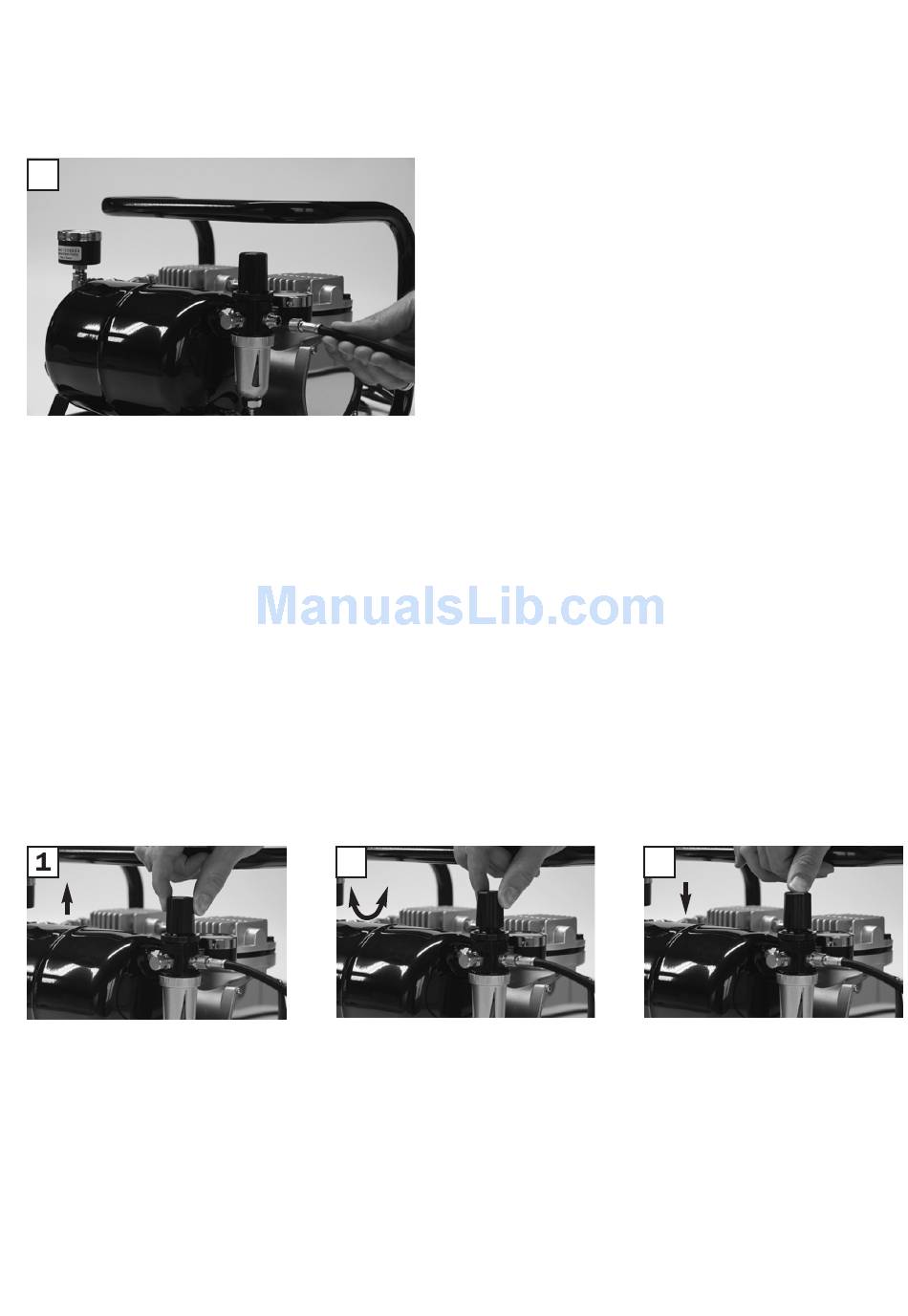

Setting the working pressure
The desired working pressure can be set using the pressure regulator with the airbrush trigger depres-
sed. The working pressure is indicated on a pressure gauge.
1. Pull the knob upwards.
2. Increasing the pressure: Turn the knob in a clockwise direction.
Reducing the pressure: Turn the knob in an anticlockwise direction.
3. Push the knob downwards again after the desired working pressure has been set.
2 3
