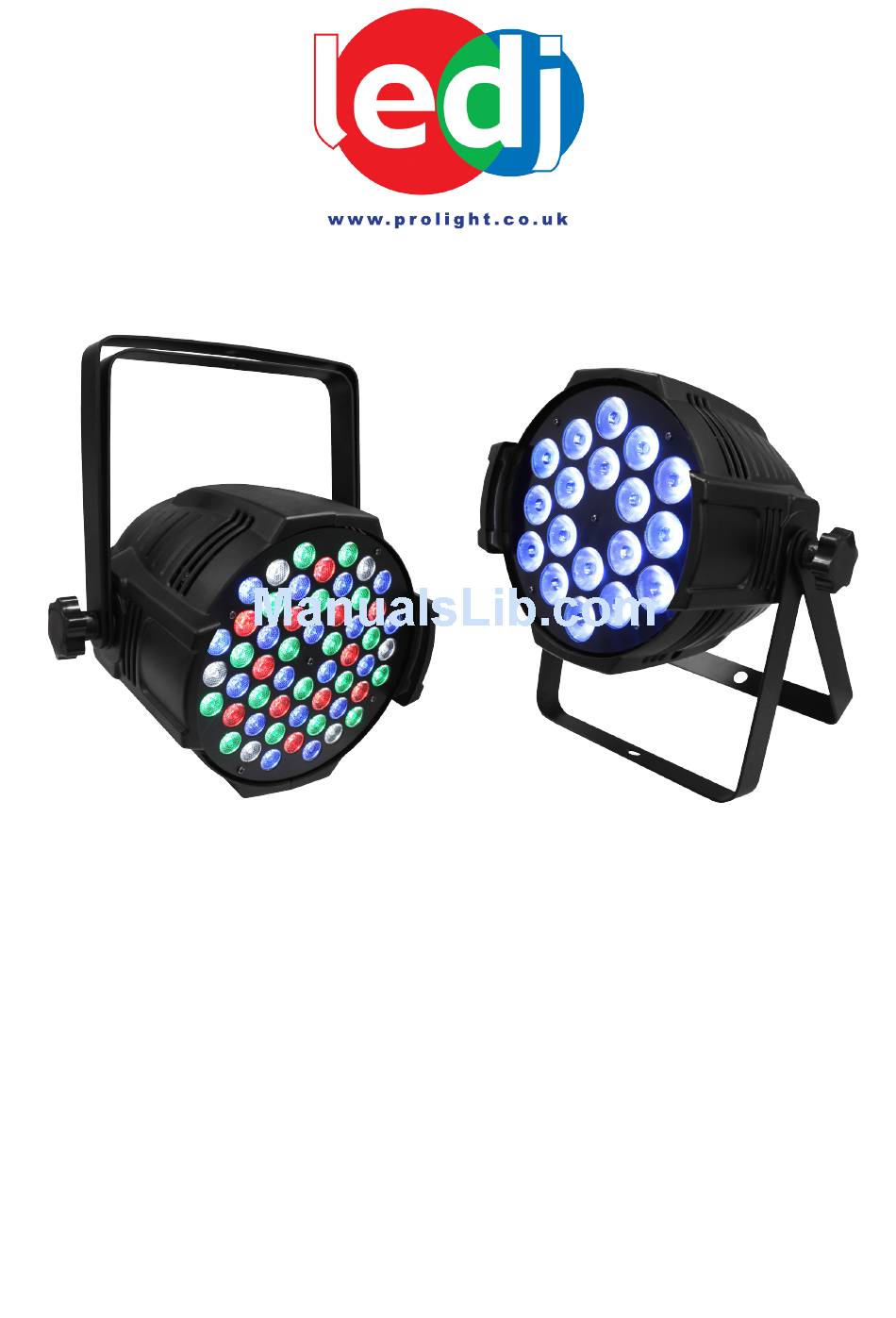

Page 1: User Manual
18 QUAD 54 RGBW PERFORMER 54 RGBW Order code: LEDJ250 PERFORMER 18 QUAD Order code: LEDJ252 USER MANUAL... -
Page 2: Safety Instructions
Performer 54 RGBW/18 Quad Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Performer 54 RGBW/18 Quad Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Setup Operating Instructions The Performer 54 RGBW and 18 Quad are a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency LED’s. There are three colour groups (red, blue and green) whose intensity can be controlled individually allowing the creation of an unlimited range of colours.
- Page 5 Performer 54 RGBW/18 Quad Operations DMX mode: To select DMX mode, press the “MENU” button to show “D001” on the display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512.
- Page 6 Performer 54 RGBW/18 Quad Operations Master/slave mode To set the unit as a master, simply select any of the above modes and set the slave units into DMX mode, address 001. The slave units will now follow in sequence with the master unit.
- Page 7 Performer 54 RGBW/18 Quad DMX setup DATA Cable (DMX cable) requirements (for DMX operation): • The Performer Series can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
