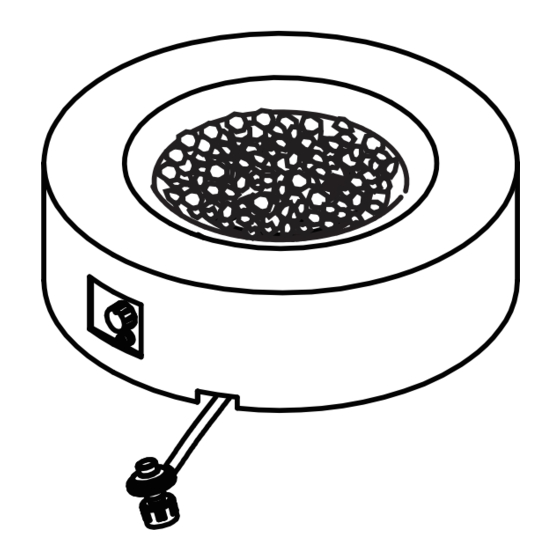

OWNER'S MANUAL
READ BEFORE USE!
WARNING:
• Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
• An LP cylinder not connected for
use should not be stored in the
vicinity of this or any other appliance.
• Service must be performed by a
qualified installer, service agency or
the gas supplier.
DANGER
IF YOU SMELL GAS:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department .
C
US
Design certified under ANSI Z21.97 •
CSA 2.41-(2014) Requirements for
Outdoor Gas Fireplaces
DANGER
Model No.: HYFP50095-3 Item No.: 68163
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
WARNING:
For Outdoor Use Only!
Use Liquid Propane Gas (LP-Gas) Only !
Propane cylinders sold separately.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
owner's manual thoroughly before
installing or servicing this equipment. If the
information in this manual is not followed
exactly, a fire or explosion may result
causing property damage, personal injury
or loss of life. Save these instructions for
future use. If you are assembling this unit
for someone else, give this manual to him
or her to read and save for the future.
WARNING:
Turn off gas supply when the appliance
is not in use.
If the appliance is stored indoors,
detach and leave LP-Gas cylinder outdoors.
WARNING:
This appliance must be attended at all
times!
WARNING:
Battery may contain mercury. Do not
deposit in fire or put in trash. Recycle the
battery as hazardous waste.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYFP50095-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOND MANUFACTURING HYFP50095-3

  • Page 1 OWNER’S MANUAL READ BEFORE USE! Model No.: HYFP50095-3 Item No.: 68163 WARNING: For Outdoor Use Only! Use Liquid Propane Gas (LP-Gas) Only ! Propane cylinders sold separately. WARNING: Improper installation, adjustment, WARNING: alteration, service or maintenance can • Do not store or use gasoline or cause injury or property damage.
  • Page 2 DANGER: Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. During ignition procedure, one should NEVER get his/her face close to and/or above the burner in a case an unnoticed flame were to suddenly light up and cause injury.
  • Page 3 • Never lean over the open appliance or place hands or fingers on the upper portion of an operational unit. • Do not rest feet on the appliance. • Do not enlarge valve orifices or burner ports when cleaning the valve or burner. •...
  • Page 4 • Place the hose out of pathways where someone might trip over it or it where it may be subjected to accidental damage. FOR LIQUID PROPANE GAS UNITS WARNING This outdoor appliance is for use with liquid propane (LP) gas only. The conversion to or attempted use of natural gas in this appliance is dangerous and will void your warranty.
  • Page 5 • Never store your LP gas tank where temperatures can reach over 125°F. • Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape. •...
  • Page 6 Fix or replace the hose as required before using the appliance. For assistance with repair or replacement of the hose, call Bond Manufacturing at 1-866-771-2663. Use only replacement parts from the manufacturer.
  • Page 7 ACCESSORIES__________________________________ ITEM DESCRIPTION LAVA ROCKS 3 boxes BODY BATTERY AAA COVER TANK SEAT ASSEMBLY INSTRUCTIONS____________ ___________ *Please keep the owner’s manual for future reference *If you have opened the carton and removed all packages, please disregard STEP 1. See STEP 2 directly. STEP 1 Unpack and identify all parts using the parts list provided.
  • Page 8 WARNING ** DO NOT COVER THE IGNITION SCREEN when placing the lava rocks into the firebowl. Always keep Ignition Screen visible. This screen must be clear and free of obstructions at all times to insure proper operation. The burner of the appliance must be covered by lava rocks completely.
  • Page 9 VISUAL CHECK Prior to each use, check the hose and valve for excessive wear, abrasions or any damage. LEAK TEST 1.Perform a leak test in a well-ventilated area outside. 2.Make sure any open flames or cigarettes are extinguished. 3.Remove the battery. 4.Ensure the burner control knob is in the "OFF"...
  • Page 10 USING A LONG MATCH OR LIGHTER 1. Connect propane (LP) cylinder (See above pages). 2. Before lighting, move the lava rocks with a small shovel to allow access to the burner. WARNING: Lava rocks can become very hot. DO NOT touch unless they are completely cooled.
  • Page 11 TROUBLESHOOTING PROBLEM CAUSE CORRECTIVE ACTION Igniter pin and burner are wet Wipe dry with a cloth Igniter battery is incorrectly Check that battery is correctly inserted inserted. Call customer service for replacement Igniter pin cracked or broken part Appliance won't Electrode wire is loose or Reconnect wire to the igniter light...
  • Page 12 IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US customer.service@bondmfg.com OR VISIT OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street, Antioch, CA 94509...
