Optional Cast Iron Fret Installation; Optional Bottom Cover Installation - Miles Industries RETROFIRE RF24XBN Installation And Owner's Manual

QUALIFIED
INSTALLER
Important: The fret retainer brackets are designed to
maintain the required space in front of the window to
allow the window to move and relieve during a hard
start. It is very important to ensure this area in front
of the window is kept clear at all times.

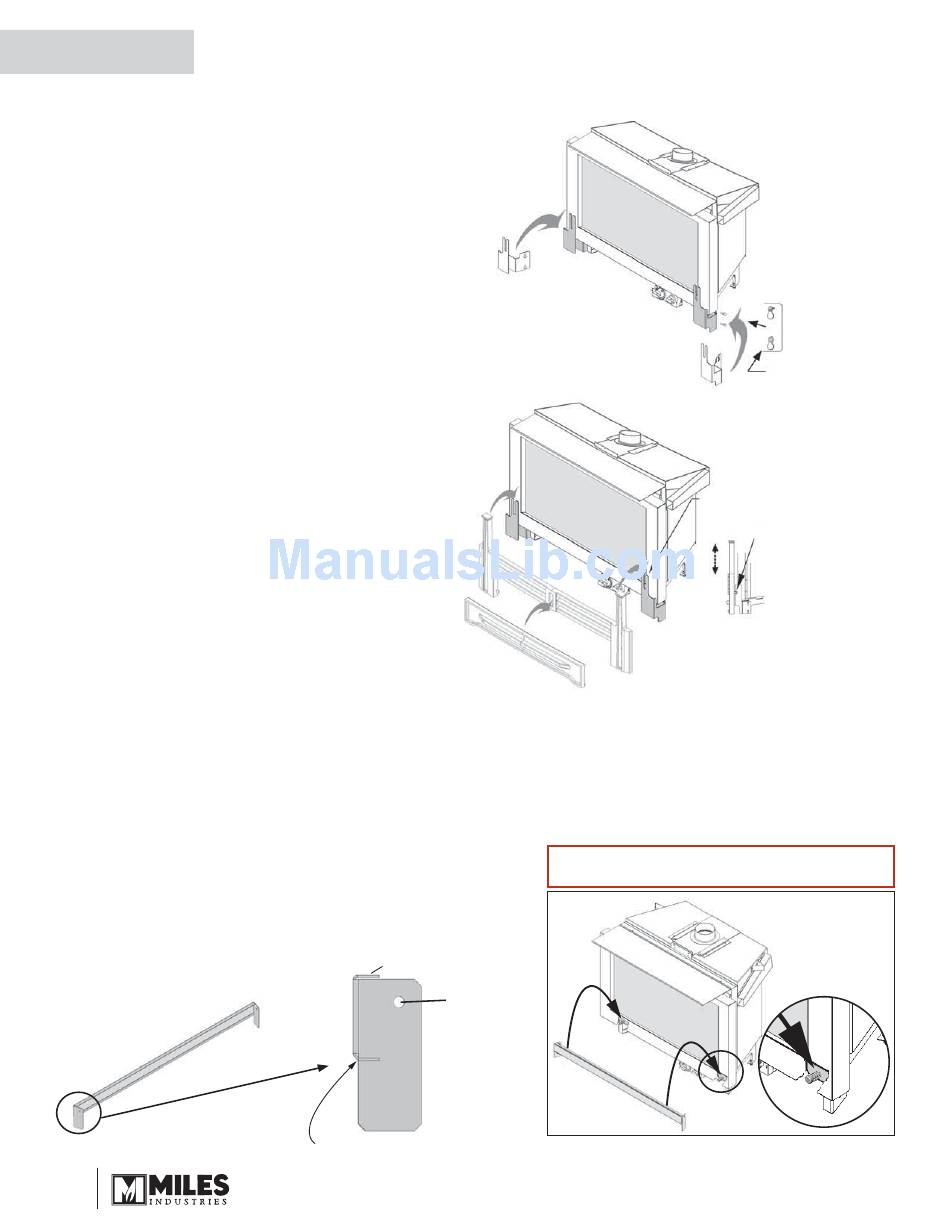

Fret Retainer Brackets Installation
Screw 2 thumbscrews into sides of each support
leg if not done previously when support legs were
installed. Fit the slotted holes in the fret retainers over
the thumbscrews, push fret retainers downwards and
tighten screws.
Cast Iron Fret Installation
Adjust screw heads on back of fret to the thickness of
the retainer bracket and drop the fret into place while
guiding the screw heads into the slots in the bracket.
Clip the ash pan cover onto the fret.
Important: When the bottom cover is used instead of a fret,
a space is required in front of the window to allow the window
to move and relieve during a hard start. It is therefore very
important to ensure that an area of 3/4 inch (19 mm) in front
of the window is kept clear at all times.
Hook the upper fl ange of the bottom
cover onto the window bolts.
Rear View
Top
Bottom
24

Optional Cast Iron Fret Installation

Optional Bottom Cover Installation

Top flange
Top
DO NOT use
this hole
Side View
Front Rear
Bottom
(end plates longer
than front plate)
Bottom flange
(bends here)
Drop fret with bolt into
slotted retainer (fret
adjusts up or down to suit)
An area of 3/4 inch (19 mm) in front of the
window MUST be kept clear at all times!
Slip Fret Retainer
over thumbscrews
and tighten screws
Hook the top
flange of the
bottom cover
to the window
retaining pins
