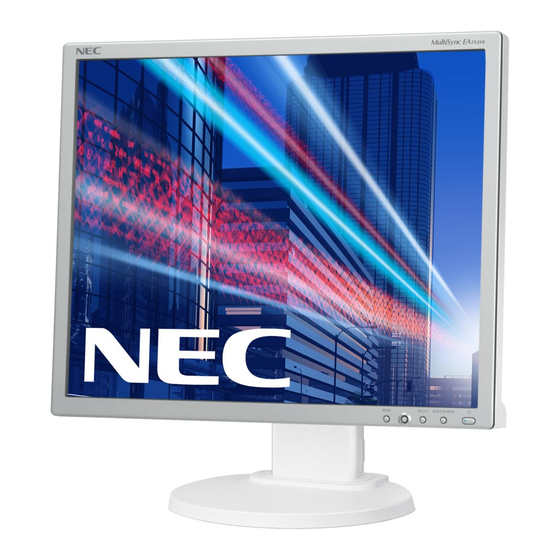

NEC MultiSync EA193Mi User Manual
  1. Manuals
  2. Brands
  3. NEC Manuals
  4. Monitor
  5. MultiSync EA193Mi
  6. User manual

NEC MultiSync EA193Mi User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MultiSync EA193Mi
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiSync EA193Mi and is the answer not in the manual?

Questions and answers

Related Manuals for NEC MultiSync EA193Mi

Summary of Contents for NEC MultiSync EA193Mi

  • Page 1 MultiSync EA193Mi User’s Manual...

  • Page 2: Table Of Contents

    Index Warning, Caution ..........................English-1 Registration Information .......................English-2 Recommended use ........................English-3 Contents ............................English-5 Quick Start ............................English-6 Controls ............................English-11 Specifi cations ..........................English-16 Features ............................English-17 Troubleshooting ..........................English-18 Using the Auto Brightness function ....................English-20 TCO Certifi ed Displays 6 ......................English-21 Manufacturer’s Recycling and Energy Information ...............English-22...

  • Page 3: Warning, Caution

    This product can only be serviced in the country where it was purchased. Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K.

  • Page 4: Registration Information

    C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specifi ed cables with the MultiSync EA193Mi (L193QJ/EA193Mi/EA193Mi-BK) monitor so as not to interfere with radio and television reception.

  • Page 5: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 6 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: • For optimum performance, allow 20 minutes for the display to warm up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

  • Page 7: Contents

    Contents Your new NEC monitor box* should contain the following: • MultiSync monitor • Power Cord* • Base • Video Signal Cable (DVI-D to DVI-D cable) • Video Signal Cable (Mini D-SUB 15 pin to Mini D-SUB 15 pin) •...

  • Page 8: Quick Start

    Quick Start To attach the Base to the LCD stand: 1. Place the monitor face down on a non-abrasive surface (Figure 1). NOTE: Handle with care when monitor facing down, for avoiding damage to the front control buttons. 2. Please rotate the stand 90 degrees as shown in Figure 1. NOTE: Handle with care when pulling the stand.

  • Page 9: Raise And Lower Monitor Screen

    5. Position the Video Signal Cable and power cord between the holes on the Stand, as indicated in Figure B.2/Figure B.3. Figure B.2 Figure B.3 6. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet. NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.

  • Page 10: Screen Rotation

    Screen Rotation Before rotating, disconnect power cord and all cables, then the screen must be raised to the highest level and tilt to avoid knocking the screen on the desk or pinching your fi ngers. To raise the screen, place a hand on each side of the monitor and lift up to the highest position (Figure RL.1). To rotate screen, place a hand on each side of the monitor screen and turn clockwise from landscape to portrait or counter- clockwise from portrait to landscape (Figure R.1).

  • Page 11: Flexible Arm Installation

    Flexible Arm Installation This LCD monitor is designed for use with a fl exible arm. To prepare the monitor for alternate mounting purposes: • Follow the instructions provided by the manufacturer of the display mount. • To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and be UL-certifi ed. Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1.

  • Page 12: English

    Mount Flexible Arm This LCD monitor is designed for use with a fl exible arm. 1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand. 2. Use the 4 screws removed from the stand to attach the arm to the monitor (Figure F.1). Caution: Use ONLY the screws (4 pcs) that were removed from the stand to avoid damage to the monitor or stand.

  • Page 13: Controls

    Controls OSD (On-Screen Display) control buttons on the front of the monitor function are as follows: To access OSD menu, press any of the control buttons (MENU, Left, Right, Down, Up). To change signal input, press the SELECT button. To change ECO MODE, press the RESET/ECO MODE button. NOTE: Exit OSD in order to change signal input.

  • Page 14: Auto Brightness

    AUTO BRIGHTNESS OFF: No function. 1 (AMBIENT LIGHT): Automatically adjusts the brightness to the optimal setting by detecting the brightness level of the environment* *1: Please refer to page 20 for full “Auto Brightness” information. 2 (WHITE CONTENT): Automatically adjusts the brightness to the optimal brightness setting based on the white display area.
  • Page 15 H.SIZE Adjusts the horizontal size by increasing or decreasing this setting. If the “AUTO ADJUST” function does not give you a satisfactory picture setting, a further tuning can be performed by using the “H.SIZE” function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of the picture.

  • Page 16: Off Timer

    RESPONSE IMPROVE Turns the Response Improve function ON or OFF. Response Improve may reduce blurring that occurs in some moving images. OFF TIMER Monitor will automatically power down when you have selected a pre-determined amount of time. Before powering off, a message will appear on the screen asking if you want to delay the turn off time by 60 minutes. Touch any OSD key to delay the power-down time.

  • Page 17: Eco Information

    ECO Information CARBON SAVINGS: Displays the estimated carbon savings information in kg. CARBON USAGE: Displays the estimated carbon usages information in kg. This is the arithmetic estimation, not actual measurement value. COST SAVINGS: Displays the electricity cost savings in balance. CARBON CONVERT SETTING: Adjusts the carbon footprint factor in the carbon saving calculation.

  • Page 18: Specifi Cations

    1152 x 870* at 75 Hz 1280 x 960* at 60 Hz to 75 Hz 1280 x 1024* at 60 Hz to 75 Hz......NEC DISPLAY SOLUTIONS cites recommended resolution for optimal display performance. Active Display Area Landscape: Horiz.: 374.8 mm/14.8 inches Vert.:...

  • Page 19: Features

    Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC for its monitors, and are accurate at the time of printing. NEC reserves the right to publish updated carbon footprint values. HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).

  • Page 20: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 21 No Sound • Make sure the speaker cable is proper connected. • Check to see if mute is activated. • Check the VOLUME in the OSD menu. • Check selected OSD’s Tools to “SOUND INPUT”, when DisplayPort is in use. Brightness variations over time •...

  • Page 22: Using The Auto Brightness Function

    Using the Auto Brightness function The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions.

  • Page 23: Tco Certifi Ed Displays 6

    TCO Certifi ed Displays 6 Congratulations! This product is TCO Certifi ed – for Sustainable IT TCO CertiÞ ed is an international third party sustainability certiÞ cation for IT products. TCO CertiÞ ed ensures that the manufacture, use and recycling of IT products reß ect environmental, social and economic responsibility.

  • Page 24: Manufacturer's Recycling And Energy Information

    Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
