iHome iBN43 Instruction Manual

Nfc bluetooth wireless fm clock radio with usb charging
Hide thumbs
Table of Contents

Advertisement

Quick Links

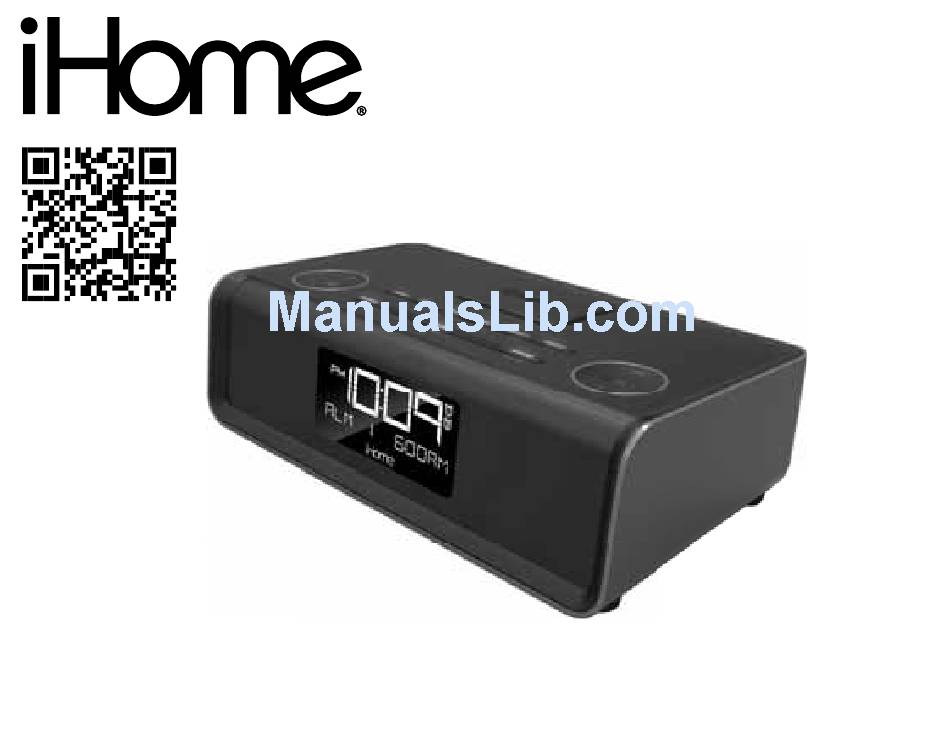

iBN43
NFC Bluetooth Wireless
FM Clock Radio
with USB Charging
instruction manual
l
Questions? Contact Customer Service at 1-800-288-2792

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBN43 and is the answer not in the manual?

Questions and answers

Related Manuals for iHome iBN43

Summary of Contents for iHome iBN43

  • Page 1 NFC Bluetooth Wireless FM Clock Radio with USB Charging instruction manual Questions? Contact Customer Service at 1-800-288-2792...
  • Page 2 Bluetooth audio device. The dual alarms on this iHome clock radio can be set and used independently, so you can program each alarm to wake you up to a paired Bluetooth device, 4 separate alarm tones, the FM stereo radio, or a buzzer alarm.

  • Page 3: Table Of Contents

    Table of Contents Meet Your iBN43......................1-3 The Display/Setting Up the Unit ..................4 Setting the Clock/ FM Radio ....................5 Setting and Using FM Presets....................6 Setting and Using the Alarms ................... 7-8 Previewing and Turning Alarm Off/Setting Gentle Wake Timer ..........8 Snooze/Dimmer Button/Sleep and Nap Modes ..............9...
  • Page 4 Included • iBN43 system • 100V-240V universal AC adaptor iBN43 100V-240V universal AC adaptor...
  • Page 5 Meet Your iBN43 Wakeup/Alarm Skip Landscape insert area Button Alarm 1 & Alarm 2 Nap/Pairing Button Buttons Sleep Button ® Power Button NFC Antenna Area Equalizer/ Microphone Time Set Button Volume Up Button Plus Setting Button Play/Pause/ Mode Button...

  • Page 6: Meet Your Ibn43

    Meet Your iBN43 Back USB Charging Port Aux-in Jack DC Jack FM Antenna DC 9V 3A Bottom AA x 2 Backup Battery Compartment Pull Tab Remove the pull tab before initial use to activate the SureAlarm battery backup system.

  • Page 7: The Display/Setting Up The Unit

    Using the The Display Time Display Alarm Active Indicator PM/AM Indicators Bluetooth Indicator Low Backup Battery Indicator Date, Alarm time, Mode Indicator: Radio, Bluetooth, Aux-in Setting Up the Unit Connect the included AC adaptor to RESET TEST the DC jack located on the back of...

  • Page 8: Setting The Clock/ Fm Radio

    Using the Setting the Clock 1. Press and hold the Equalizer/Time Set Button for 2 seconds until the clock display flashes and unit beeps. 2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting).

  • Page 9: Setting And Using Fm Presets

    Using the FM Radio (cont’d) 3. Press the Buttons to adjust the volume on the unit. To adjust the tone, press and release the Equalizer/Time Set Button as needed to cycle to Treble, Bass, or Balance, then press the – or + Buttons to adjust for best sound.

  • Page 10: Setting And Using The Alarms

    Using the Setting and Using the Alarms This unit has 2 separate alarms, each set the same way. Below we explain how to set alarm 1. To set alarm 2, follow the same steps using the Alarm 2 Button.

  • Page 11: Previewing And Turning Alarm Off/Setting Gentle Wake Timer

    Using the Setting and Using the Alarms (cont’d) 8. Press the – or + Buttons to adjust the alarm volume on the unit. Note that the alarm volume setting is stored separately from other volume settings. 9. Press the Alarm 1 Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete.

  • Page 12: Snooze/Dimmer Button/Sleep And Nap Modes

    Using the Snooze/Dimmer Button 1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no alarm is sounding). 2. Press the – or + Buttons to select the desired snooze time (between 1 and 29 minutes).

  • Page 13: Using Bluetooth: Pairing & Playing Your Device Using Nfc

    The Bluetooth icon will flash on the display, indicating pairing attempt. “iHome iBN43” should appear on your device’s menu. If your device asks if you wish to pair, accept (select “Yes” or similar).Once paired with a device, the Bluetooth indicator on the iBN43 display will stop flashing then the Bluetooth icon will remain.

  • Page 14: Pairing Your Device Manually

    If “Not Paired”, “Not Connected” or similar message appears on your device, select “iHome iBN43” on the device to connect it. If your device asks for a password, enter 1234 on device’s keypad.

  • Page 15: Playing Audio Via Bluetooth/Using The Speakerphone

    Using the Playing Audio Via Bluetooth 1. Press and release the Mode Button as needed until ”BLUETOOTH” appears on the display. 2. Press the Play/Pause/Presets Button on the unit to play audio from your linked Bluetooth device. 3. Press the – or + Buttons on the unit to go to the previous or next track. (This function may be disabled on some devices).

  • Page 16: Playing Audio Via Aux-In/Charging Devices Via Usb Port

    Using the Playing Audio via Aux-In 1. Connect one end of a standard stereo 3.5mm audio cable (not included) into the aux-in jack on the back of the unit and the other end into the headphone or output jack of your audio device 2.

  • Page 17: Using Fm Radio In Other Countries

    Using the Using FM Radio in Other Countries Different areas of the world use different FM frequency steps and ranges. By default, this unit is set to USA frequency steps. To use the radio outside the USA: 1. Make sure unit is OFF. Press and hold the Mode Button for 5 seconds until “USA” appears in the display.

  • Page 18: Replacing And Installing Clock Backup Batteries

    Using the Replacing and Installing Clock Backup Batteries Note: 2 AA batteries are included in the unit. Please pull out the battery pull tab before you use the unit. This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of a temporary power interruption.

  • Page 19: Troubleshooting

    Unit doesn’t respond (no power) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBN43. • Make sure the Power is ON. Unit doesn’t respond (locked up or frozen) The unit may need to be reset.

  • Page 20: Consumer Product Safety Guide

    Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference.
  • Page 21 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1–800–288–2792 Toll Free...

  • Page 22: Fcc Information

    FCC Information FCC ID: EMOIBN43 IC: 986B-IBN43 FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 23: Warranty

    Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
