BioLogic ReeCharge Owner's Manual

Power pack
Hide thumbs

Advertisement

Quick Links

Download this manual
Biologic
™
ReeCharge Power Pack
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ReeCharge and is the answer not in the manual?

Questions and answers

Summary of Contents for BioLogic ReeCharge

  • Page 1 Biologic ™ ReeCharge Power Pack Owner’s Manual...
  • Page 2 ™ CAUTION Carrying the ReeCharge The ReeCharge contains delicate components. Do not bend, drop, or crush the ReeCharge Power Pack. Using connector ports Never force a connector into a port. Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port.
  • Page 3 The ReeCharge can be charged using a USB port. When charging the ReeCharge with alternative power sources, use only 5V DC output charging devices rated at less than 1A. The ReeCharge and its adaptor may become warm during normal use. Always allow adequate ventilation around the ReeCharge.

  • Page 4: Limited Product Warranty Information

    Choking hazard The ReeCharge contains small parts, which may present a choking hazard to small children. Keep the ReeCharge and its accessories away from small children. Do not throw in trash The built-in lithium-ion battery can be recycled. Please dispose of the battery at the nearest recycling location in your area.
  • Page 5 Apple products. 6. The ReeCharge can be used as an extra power source for a wide variety of electronic devices. Its built-in 1600 mAh lithium ion polymer rechargeable battery gives you extra battery capacity when you need it.
  • Page 6 1. Charge In Button • Push this button to start or stop charging the ReeCharge. • The ReeCharge is being charged when the green light on the side of the device is lit. 2. Battery Status Button • Push this button to turn the Battery Status/...
  • Page 7 • Red light On indicates that ReeCharge is ready to charge external devices. NOTE: When the red light is on the ReeCharge is releasing its charge no matter if a device is connected or not, so turn off the ReeCharge to maintain battery charge.
  • Page 8 - No lights lit: Empty • The lights also serve as a safety light at night. 8. Self Opening Sealing Flaps • The ReeCharge has water sealing flaps in front of the cable connecting ports. These flaps open inwards when pushing the cable into the socket.

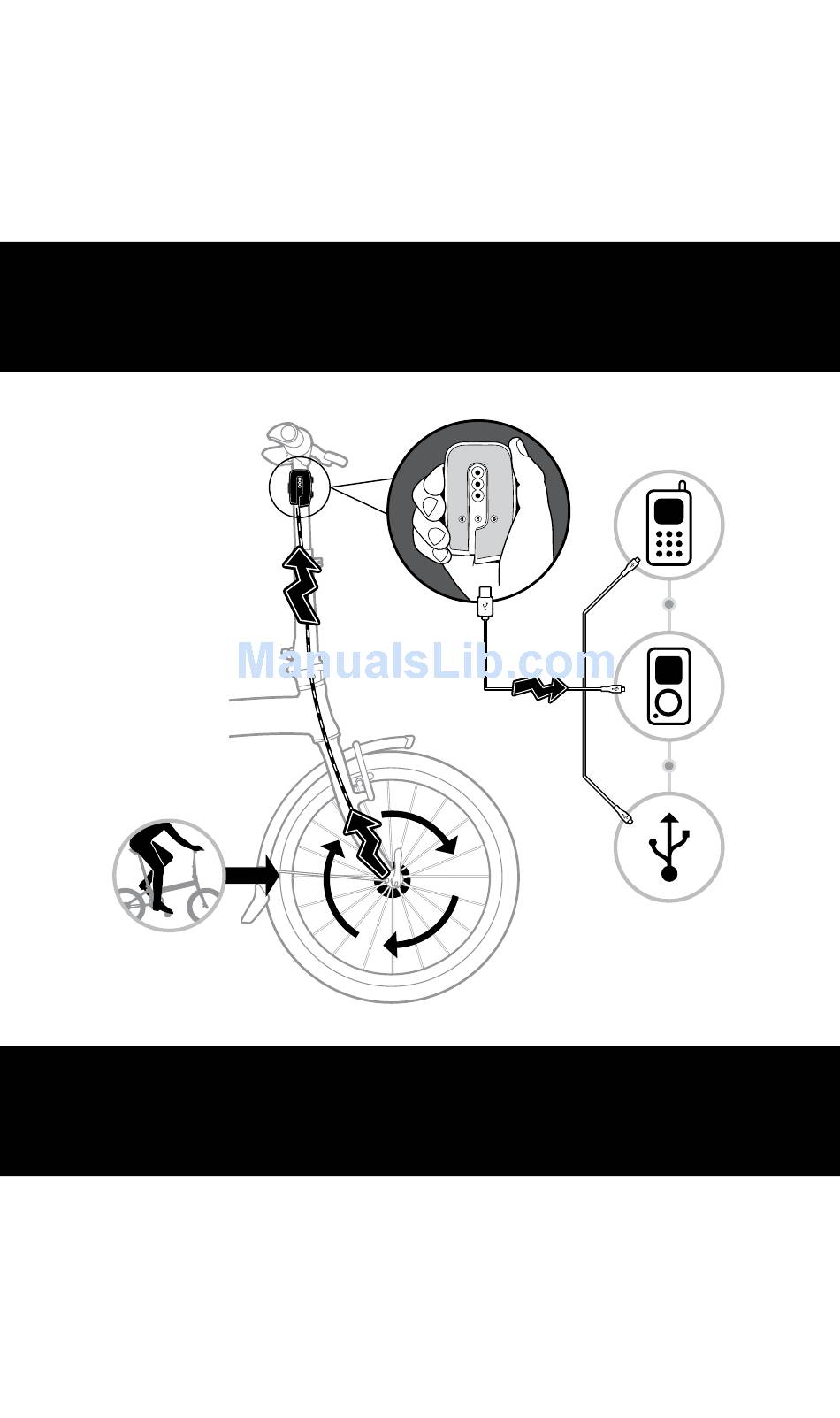

  • Page 9 3. Press the Charge In Button to enable charging. 4. The ReeCharge is charging when the green light on the side of the ReeCharge is lit. • NOTE: The green light is only on when the wheel rotates fast enough to provide the ReeCharge with a current for charging.
  • Page 10 Charge In Button. This enables the device to be charged. NOTE: If charging is not enabled with the Charge In Button the ReeCharge will not charge, even when the bike is in motion. The ReeCharge itself is charging when the green light on the side of the device is lit.
  • Page 11 3. Press the Charge In Button to enable charging. 4. The ReeCharge is charging when the green light on the side of the ReeCharge is lit. NOTE: If the green light on the side is not lit the ReeCharge is not charging even if the cable is connected to the PC´s USB port.
  • Page 12 3. Press the Charge In Button to enable charging. 4. The ReeCharge is charging when the green light on the side of the ReeCharge is lit. NOTE: If the green light on the side is not lit the ReeCharge is not charging even if the cable is connected to the electic outlet.
  • Page 13 3. Press the Charge Out Button on the ReeCharge to begin charging the device. The red light on the side of the ReeCharge will light up. 4. The external device is now being charged.
  • Page 14 Mounting the ReeCharge Power Pack If the ReeCharge came with your bike, it is already completely mounted and installed on your bike. Please refer to the following instructions if you bought the ReeCharge separately or if for some reason the ReeCharge was removed from your bike and you want to remount it.
  • Page 15 Connecting the ReeCharge Power Pack to the dynamo hub together with a front light The ReeCharge can be connected to a dynamo hub that already has a light unit connected to it. The ReeCharge can also be connected to dynamo hub without the light cable.
  • Page 16 4. Twist the ends of 5. Put the connected the ReeCharge light and ReeCharge cable with that of wires back into the the light cable. grey wire holder. 6. Fix the wires into...
  • Page 17 9. Fasten the power regulator with zipties to the front fork. Connect the cable to the fork so that it does not go between the spokes when cycling. 10. Connect the free end of the ReeCharge cable to the Charge In Socket of the ReeCharge.
  • Page 18 NOTE: Cycling can cause strong shaking of the handlebar, which might make any attached device fall out of the elastic fastening strap causing serious damaged to the device. BioLogic and MINIWIZ are not liable for any damages caused by the failure of this fastening strap.

  • Page 19: Technical Specifications

    Technical Specifications Size: • Height: 85 mm/ 3.3 inches • Width: 60 mm/ 2.4 inches • Depth: 30 mm/ 1.2 inches • Weight: 3 ounces (~90 g) Battery: Built-in 1600mAh lithium-ion polymer rechargeable battery Input current: less than 1A or 1000mA and 5V Minimum operating speed: 15 km/h (based on a 20”...
  • Page 20 * MINIWIZ and BioLogic accept no responsibility for damages of other devices charged by the BioLogic™ ReeCharge. Mobility Holdings, Ltd. 9F-2, #6, Lane 609, Chung Hsin RD., Sec 5 San Chung, Taipei Hsien ROC 241, Taiwan +886-2-2999-5623 * Specification is subject to change.
  • Page 21 BioLogic BikeBrain ™...
