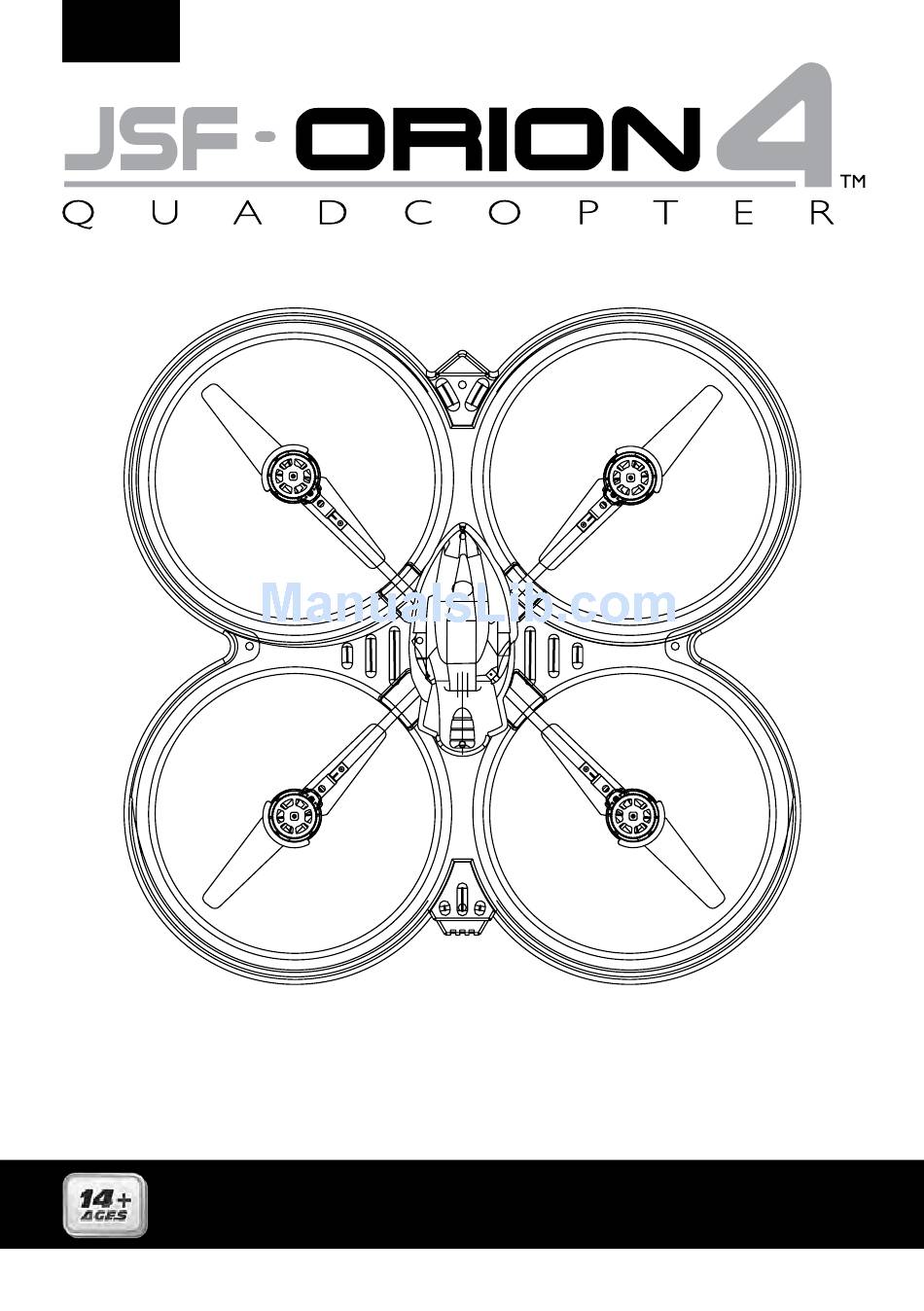

TY5628
4 CH 2.4G CONTROL WITH SIX AXIS GYRO
• Intelligent R/C System
• Smooth flight performance
• The four-motor drive gives stable flight.
• The Orion can complete several manoeuvres.
• A 6-axis gyro and integrated altitude control ensures fine control in the air.
Please read the instructions carefully before use.
Please keep the instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for JSF Orion 4

  • Page 1 TY5628 4 CH 2.4G CONTROL WITH SIX AXIS GYRO • Intelligent R/C System • Smooth flight performance • The four-motor drive gives stable flight. • The Orion can complete several manoeuvres. • A 6-axis gyro and integrated altitude control ensures fine control in the air. Please read the instructions carefully before use.
  • Page 2 ORION maIN TechNIcal INdex NO.TY5628 2.4G main technical index ORION: L:520mm x W:520mm x H:125mm Fuselage weight: 295 g Flight range: 30-50 M Charging time: 100-120 mins Flying time: Approx 5-7 mins Using Battery/Charger 1. Orion’s battery (built in): 7.4V/650 mAh Li-poly 2.
  • Page 3 Tail Blade Replacement: 1. If a blade needs to be replaced, it is important to make sure that the same type of blade is used. Only replace type A blades with other type A, and type B with type B. 2.

  • Page 4: Battery Charging Instructions

    baTTeRY chaRGING INSTRUcTIONS 1. To use the Orion, connect the battery using the fitting with two wires. 2. When charging, disconnect the battery from the Orion. Connect the three wire fitting to the charger (figure 2). The red LED is illuminated while charging. When fully charged (after approx.

  • Page 5: Safety Warning

    SafeTY WaRNING: Do not pick up the Orion when the rotors are spinning. When turning the Orion on, be careful to keep long hair away from the rotors. WaRNING: NOT SUITable fOR chIldReN UNdeR 14 YeaRS Old. Take Off Instructions: Connect the Orion’s power, and place on level ground.

  • Page 6: Special Controls

    auto flip To make the Orion flip automatically, press the auto flip button In plenty of space, hold the right stick forward forward and press the roll button. The roll Orion will do a forward roll. In plenty of space, hold the right backward stick back and press the roll button.

  • Page 7: Troubleshooting

    flYING PRacTIce Below are some flying patterns that will help you practice flying your Orion Spin on fly in a rectangle. When make a landing spot fly in a figure the spot! you can go one way, try and see how close of eight! going the other! you can get!
  • Page 8 maINTeNaNce & RePaIR: Clean with a soft, damp cloth. Remove the battery before storing. Do not submerge in water. aTTeNTION: Picture refers to the actual product. PaRTS Part - 01 Part - 02 Part - 03 Foam Set Bottom Cover 2.4G Remote Controller Part - 04 Part - 05...
