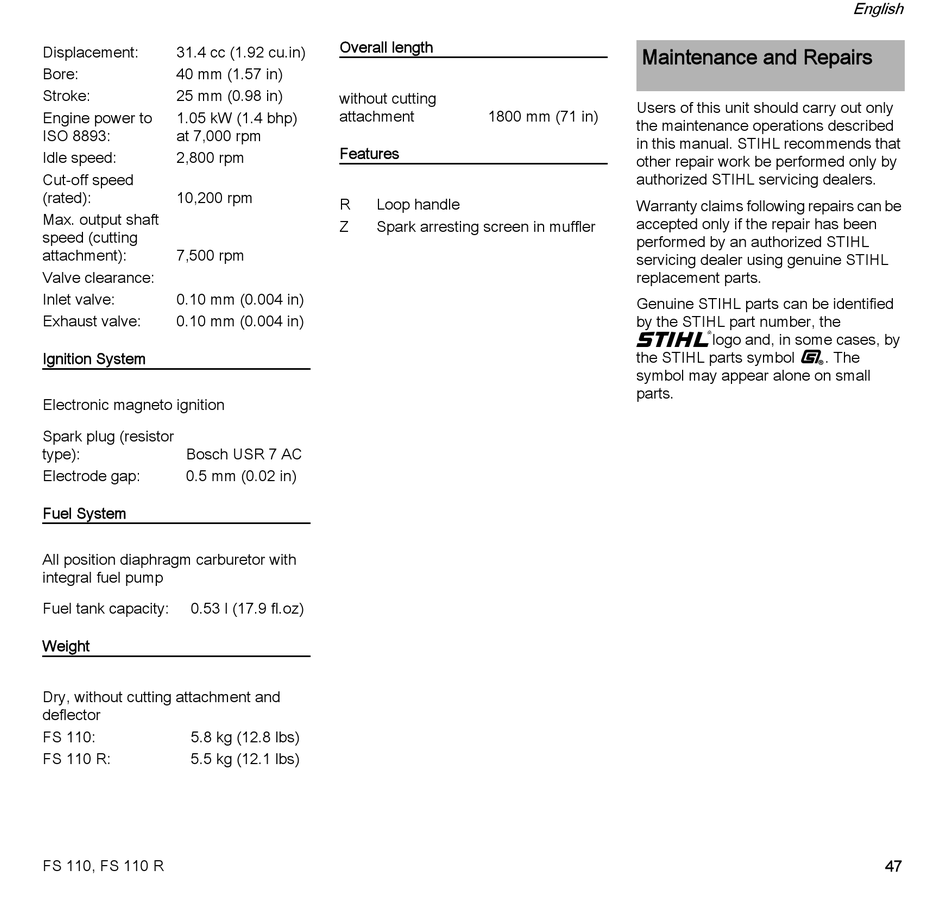

Maintenance And Repairs - Stihl FS110 Instruction Manual

Displacement: 31.4 cc (1.92 cu.in)
Bore: 40 mm (1.57 in)
Stroke: 25 mm (0.98 in)
Engine power to 1.05 kW (1.4 bhp)
ISO 8893: at 7,000 rpm
Idle speed: 2,800 rpm
Cut-off speed
(rated): 10,200 rpm
Max. output shaft
speed (cutting
attachment): 7,500 rpm
Valve clearance:
Inlet valve: 0.10 mm (0.004 in)
Exhaust valve: 0.10 mm (0.004 in)
Ignition System
Electronic magneto ignition
Spark plug (resistor
type): Bosch USR 7 AC
Electrode gap: 0.5 mm (0.02 in)
Fuel System
All position diaphragm carburetor with
integral fuel pump
Fuel tank capacity: 0.53 l (17.9 fl.oz)
Weight
Dry, without cutting attachment and
deflector
FS 110: 5.8 kg (12.8 lbs)
FS 110 R: 5.5 kg (12.1 lbs)
FS 110, FS 110 R
Overall length
without cutting
attachment 1800 mm (71 in)
Features
R Loop handle
Z Spark arresting screen in muffler

Maintenance and Repairs

Users of this unit should carry out only
the maintenance operations described
in this manual. STIHL recommends that
other repair work be performed only by
authorized STIHL servicing dealers.
Warranty claims following repairs can be
accepted only if the repair has been
performed by an authorized STIHL
servicing dealer using genuine STIHL
replacement parts.
Genuine STIHL parts can be identified
by the STIHL part number, the
{ logo and, in some cases, by
the STIHL parts symbol K. The
symbol may appear alone on small
parts.
