Summary of Contents for Grasshopper Classic
- Page 1 The Grasshopper Golf Buggy Owners Manual Classic - Cobra - Junior (Twin Motor Models)
- Page 2 TECHNICAL SPECIFICATION Model: CLASSIC , COBRA & JUNIOR Power: Twin 24 Volt Permanent Magnet 300 Watt D.C. Motors Transmission: Direct Drive Through 30:1 Reduction Gearboxes Speed Control: Twist grip step-less control for smooth operation up to max. 8mph. Direction Control: Forward/Reverse switch conveniently located on the main control panel.
- Page 3 Some household insurance companies will give extended cover. We can supply details of ‘Fish Insurance’ an independent insurance company recommended by Grasshopper Golf Buggies Ltd. The Grasshopper Junior, Cobra & Classic Page 3...
- Page 4 CONTROL PANEL Ignition Switch Power LED (Green) Battery Charge Indicator (Design may vary see insert) Forward / Reverse LED (Red) Forward / Reverse Switch Speed Control Adjustment Ignition Switch Main On/Off Power Switch. Ensure that this is switched off before dismounting to prevent accidental use of the accelerator.
- Page 5 Battery Charge/Power Indicator There are two different types, both consist of a series of LED lights., when fully charged the top or right hand light (dependant on type), will be illuminated As battery charge is used, the light will move either down or to the left. It is advis- able to leave the course when the final light is illuminated.
- Page 6 BRAKING SYSTEM Regenerative Braking System: When you release the accelerator grip, for example when travelling down slopes or up hills, the motor provides a reverse pull effect, rapidly bringing your vehicle to a stop. Electro Magnetic Brake: This is an automatic safety device, which locks the motor once the vehicle has stopped moving, it prevents it from rolling even if the power is switched off.
- Page 7 BATTERIES Your new Grasshopper Golf Buggy is fitted with SEALED GEL batteries. Please ensure that the correct maintenance is carried out as per the infor- mation below to prolong their life. DO NOT fit other types of battery without first checking compatibility with Leisure Karts.
- Page 8 Battery Maintenance Your batteries are the heart of your vehicle and the better you take care of them the longer they will last. Charge your Buggy nightly when in daily use. Connect the charger to the Buggy before switching on the ...
- Page 9 TRANSPORTING YOUR BUGGY One of the main design criteria for the Grasshopper Classic, was ease of transportation. There are two options dependant or the type of vehicle used to carry your buggy. Firstly, if you have a large family hatchback, MPV or estate car, then you...

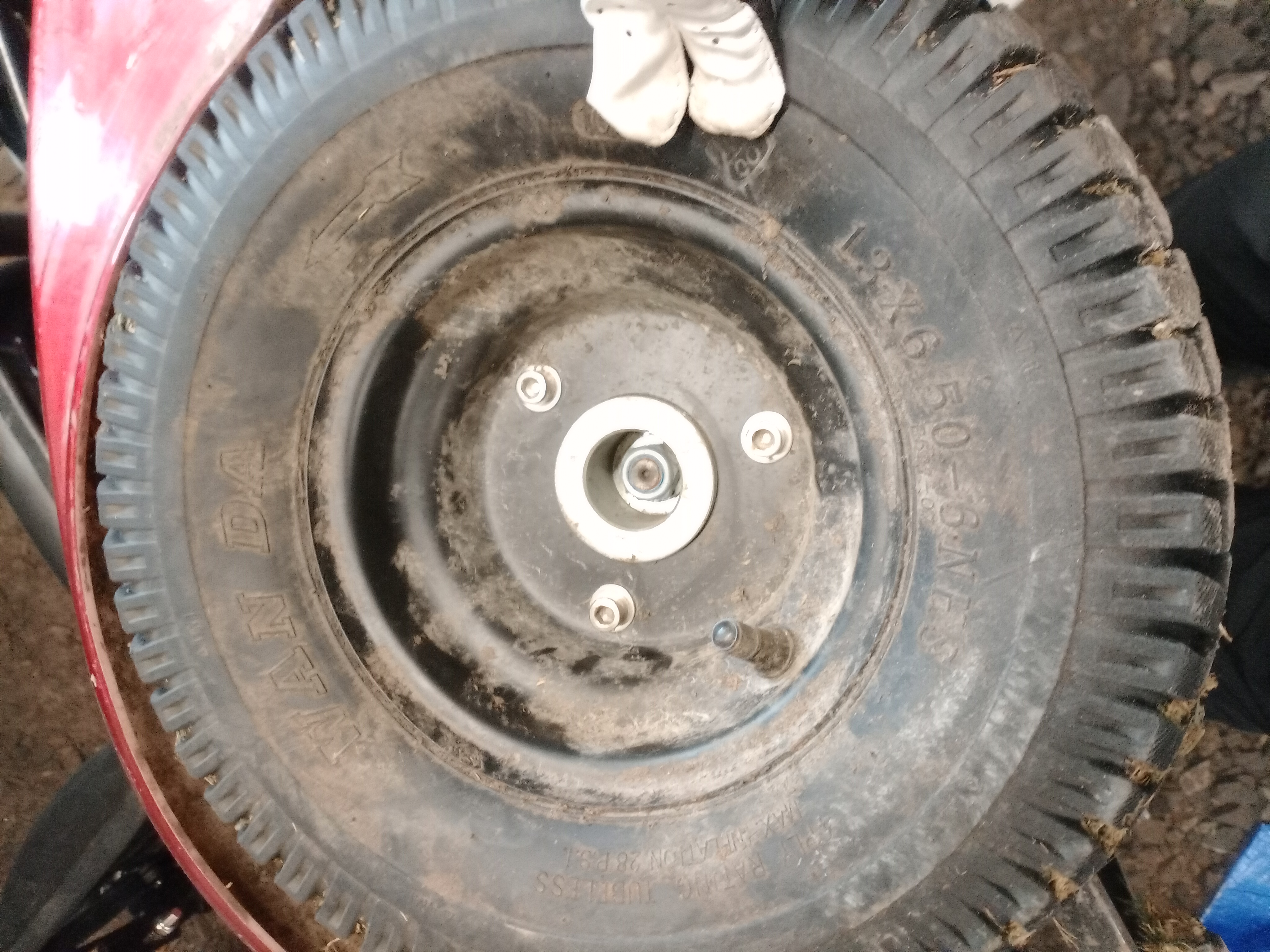

- Page 10 HOW TO DISMANTLE THE BUGGY Remove the Seat - On the base of the seat stem you will find the seat locking bolt. Turn this counter clockwise to loosen the seat from the frame. however the lever can only rotate 180 degrees because of the body of the buggy, to overcome this, the lever has a ratchet system to allow further...
- Page 11 Disconnect The Power Plug This is the plug that carries power from the rear to the front of the buggy. It is located at the bottom left side near the foot tray or between the batteries. There are two types of plug. One simply pulls away from the socket, there is a locating grove to ensure correct pin alignment on re-assembly.
- Page 12 Replace Batteries – One at a time, place the batteries into the chassis. On Junior model the terminals should be towards the centre. On Classic and Classic SE Models the terminals should be towards the rear.
- Page 13 HOW TO KEEP YOUR BUGGY IN GOOD CONDITION Apart from having your buggy serviced by an authorised Grasshopper Dealer, you can help its condition by observing the following home maintenance guidelines. Bodywork: Wash with a sponge and car shampoo. Clean regularly with a general purpose spray or cream but not an abrasive cleaner.
- Page 14 TROUBLE SHOOTING The Buggy has no Power Indication. Check the front to rear connector is pushed home correctly. Check that the battery connectors are clean and securely fastened. Check the ignition is switched on. Check the batteries are fully charged. ...
- Page 15 If after any of the above actions the buggy still does not function correctly, contact your supplying dealer to arrange an inspection or contact Grasshopper Golf Buggies directly on (+44) 01623 514700 WARNING: The wiring, drive motors, electronic controller and gearbox all require specialist training to service or repair.
- Page 16 Grasshopper Golf Buggies Ltd 86‐88 Mason Street Sutton‐in‐Ashfield Nottinghamshire NG17 4HP Tel: (+44) 01623 404730 email: enquiries@grasshopper.gb.com web: www.grass‐hopper.co.uk ...
