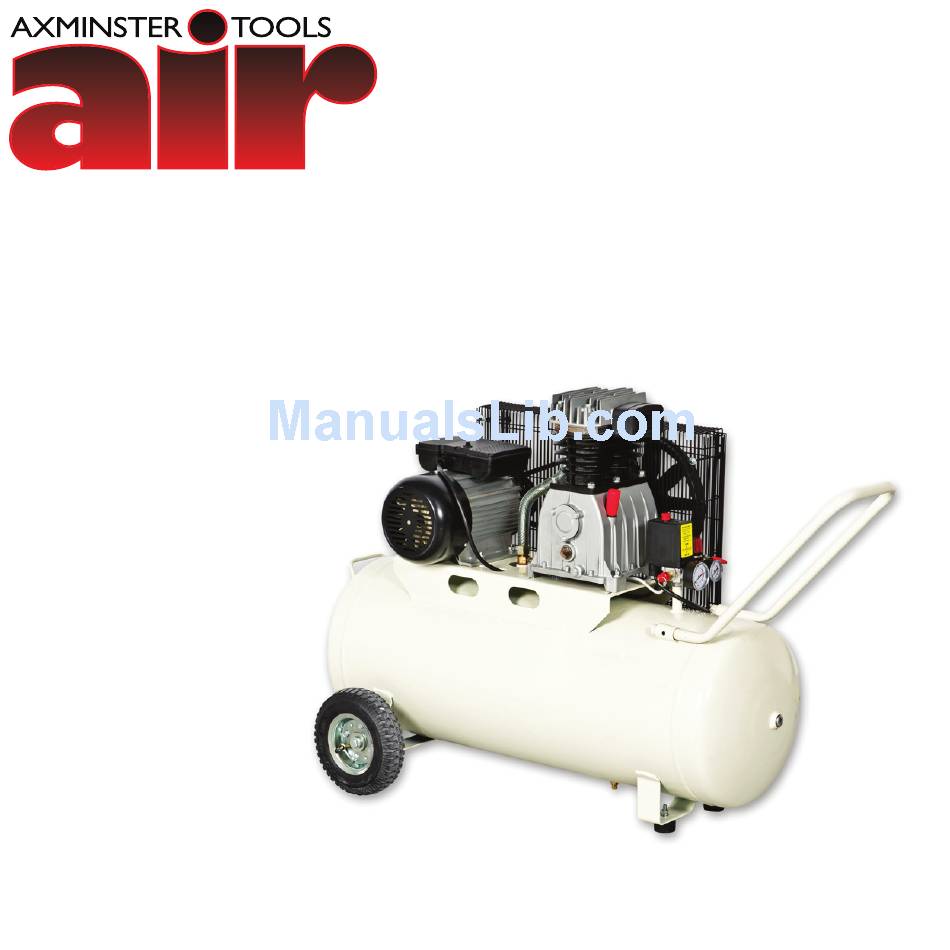

- Page 1 Code 501276 AWBD30100 Compressor Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 4: Specifications
Specifications Power: 2.2kw Voltage: 220 -240Vac ~ 50Hz No load speed: 937 min Current: 8.8A Discharge pressure: 0.8Mpa (115psi) Restart pressure: 0.6Mpa (80psi) Tank capacity: 100L Air outlet size: 6.35mm (1/4") Net weight: 79kg Cut-in pressure(factory set): 0.6Mpa (80psi) Cut-out pressure(factory set): 0.8Mpa (115psi) Maximum output pressure: 0.8Mpa (115psi) - Page 9 1.Handle 2.Pressure switch cover 3.On / off switch 4.Crank case cover 5.Tank pressure gauge 6.Regulating knob 7.Safety valve 8.Non-return valve 9.Drain cock 10.Air tank 11.Wheel (x2) 12.Belt guard 13.Oil filling cap with breathing hole 14.Air filter assembly 15.Oil level glass 16.Oil drain plug 17.Rubber feet 18.Belt...
- Page 16 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
