Angelcare AC403 Owner's Manual

Movement & sound monitor
Hide thumbs Also See for AC403:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

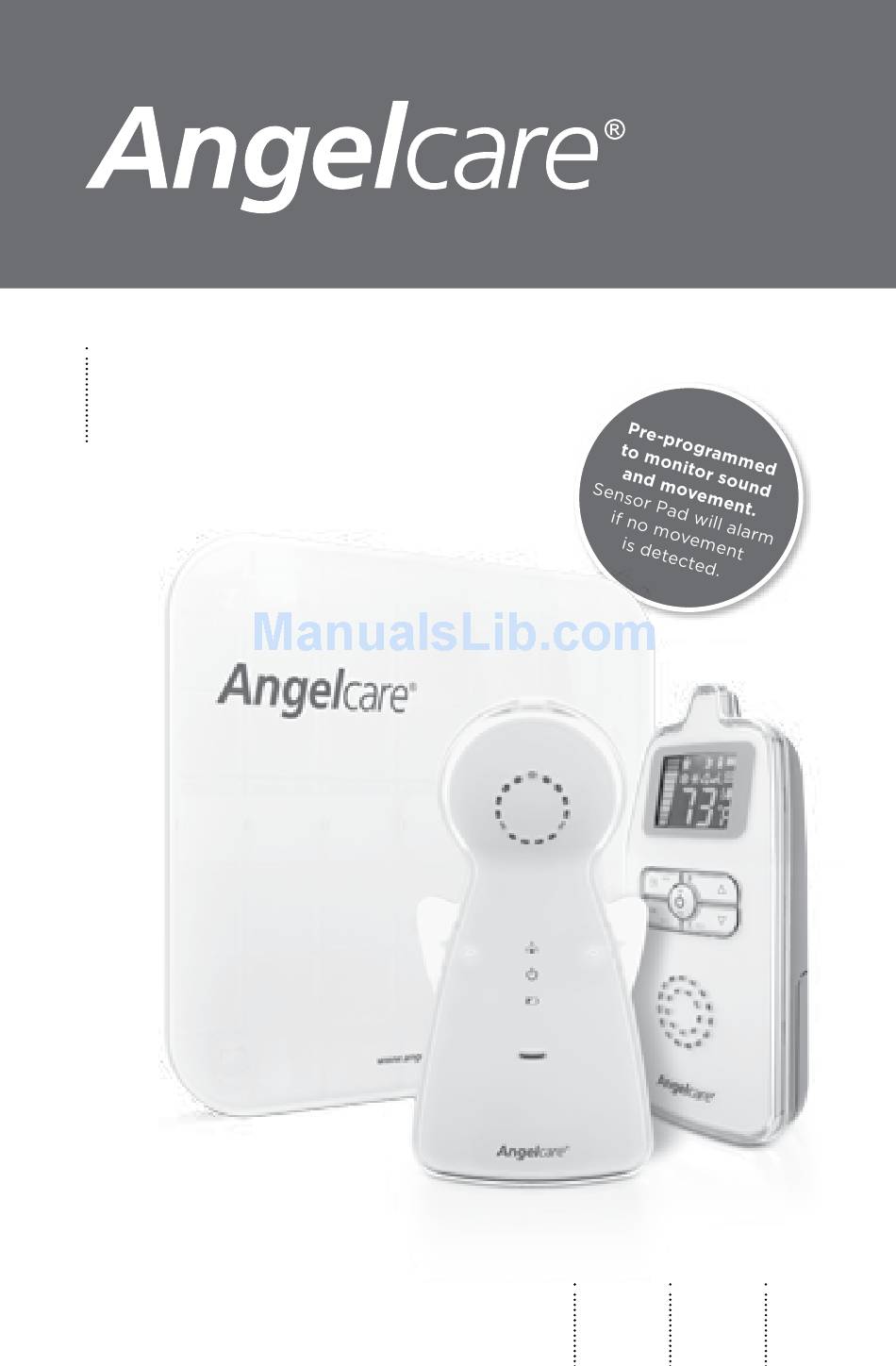

FOR YOUR PEACE OF MIND
OWNER'S MANUAL
MOVEMENT & SOUND MONITOR
Model AC403
EN
FR
ES
2
29
59

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC403 and is the answer not in the manual?

Questions and answers

Related Manuals for Angelcare AC403

Summary of Contents for Angelcare AC403

  • Page 1 FOR YOUR PEACE OF MIND OWNER’S MANUAL MOVEMENT & SOUND MONITOR Model AC403...

  • Page 2: Table Of Contents

    Keep small parts away from children when assembling. We, at Angelcare , stand behind all of our products. ® If you are not completely satisfied or have any questions, United States and Canada: please contact us at: angelcare@cdecinc.ca Other countries: please contact your local distributor.

  • Page 3: Warnings

    WARNINGS 1. THIS PRODUCT CANNOT REPL ACE CAUTION RESPONSIBLE ADULT SUPERVISION. This product is designed to aid in the monitoring RISK OF ELECTRIC SHOCK of your child. When using the monitor, you DO NOT OPEN must still provide the supervision necessary DO NOT EXPOSE TO RAIN OR MOISTURE for the continued safety of your child.
  • Page 4 15. IMPORTANT SAFETY INSTRUCTIONS 15.10 Accessories - Only use attachments/ accessories specified by the manufacturer. DO NOT place this product on an unstable 15.1 Read these instructions - All the safety cart, stand, tripod, bracket or table. The instructions should be read before the product may fall, causing serious injury product is operated.
  • Page 5 Sensor Pad measuring at least 13” x 13” (33 x 33 cm) and 1/4 inch (6 mm) thick. Only use your Angelcare monitor in a stationary ®...
  • Page 6 17.2 NOTE: This equipment has been tested 16.10 DO NOT attempt to rejuvenate the and found to comply with Part 15 of the batteries provided with or identified for FCC Rules and the Industry Canada licence- use with this product by heating them. exempt RSS standard(s).

  • Page 7: Ac403 Setup Requirements

    1 Parent Unit (AC403) Nursery Unit Sensor Pad with pre-installed cord covers or 2 Parent Units (AC403-2PU) 2 AC Adapters (AC403) or 3 Rechargeable AAABatteries (AC403) or 3 AC Adapters (AC403-2PU) 6 Rechargeable AAA Batteries (AC403-2PU) for Parent Unit WHAT YOU WILL NEED (NOT INCLUDED):...

  • Page 8: Step 1 - Charging The Parent Unit (15 Hours)

    STEP 1 - CHARGING THE PARENT UNIT (15 HOURS) IMPORTANT Never use regular alkaline batteries in the Parent Unit; they may explode. 1) Remove the battery cover and insert the Rechargeable Batteries (included). 2) Connect the AC Adapter to the Parent Unit and into an electrical outlet.
  • Page 9 HOW TO CHARGE THE BATTERIES IN THE PARENT UNIT: Plug the AC into the Parent Unit and a working electrical outlet. Your Parent Unit can function with the batteries at 1/2 capacity but it is recommended that they are fully charged before unplugging from the AC Adaptor and power outlet for maximum use.

  • Page 10: Step 2 - Installing The Sensor Pad

    STEP 2 - INSTALLING THE SENSOR PAD Cord covers 1, 2, 3, 4: Position on floor Cord cover 4: Contains double sided tape to securely install beneath crib leg Cord cover 5: Position vertically between mattress support and floor Sensor Pad with pre-installed cord covers Cord cover 6: Place under the mattress...
  • Page 11 2.2 SELECT THE CRIB LEG YOU WILL BE USING TO SECURE THE CORD COVERS RECOMMENDED 1) Use the crib leg by the wall closest to the Nursery Unit (Fig 1). In cases where the Nursery Unit is across the room, use the leg closest to the Nursery Unit to position the covered wire (Fig 2).
  • Page 12 3” 6) Place the 6 cord cover approximately 3 inches (8 cm) from the edge of the mattress support. 7) Snap together the remaining cord covers that will run along the floor. CLIC! 8) Remove any cord slack to make sure no parts of the cord are loose.

  • Page 13: Step 3 - Setting Up The Nursery Unit

    STEP 3 - SETTING UP THE NURSERY UNIT 1) Remove the battery cover and insert 4 AAA Alkaline Batteries (not included). 2) Place the Nursery Unit at a minimum of 3 ft (0.9 m) away from the crib. 3) Connect the AC Adapter to the Nursery Unit and plug into an electrical outlet.

  • Page 14: Step 4 - Turning On Your Monitor

    STEP 4 - TURNING ON YOUR MONITOR 1) Press the Parent Unit ON/OFF button for 2 seconds. 2) Slide ON the Nursery Unit Power ON/OFF button. NOTE: The screen of the Parent Unit will show the channel of transmission (C1 to C8) and after 5 seconds the room temperature and function icons.
  • Page 15 IMPORTANT ICONS SOUND TRANSMISSION (VOX) Detection Mode Icons: Indicates selected dectection mode: Nursery Unit: Movement Only Appears when options are being set for the Nusery Unit Sound only Out-of-Range: Indicates the loss of connection ‘TIC’, Sound & Movement between the Parent Unit and Nursery Unit.

  • Page 16: Step 5 - Testing And Getting To Know Your Monitor

    STEP 5 - TESTING AND GETTING TO KNOW YOUR MONITOR The Angelcare monitor can be used with the pre-program factory settings ® or you can also customise your settings to your preference. IMPORTANT All changes and adjustments When in MENU or SUB-MENU modes,...
  • Page 17 5.3 - CHANGING THE MOVEMENT AND SOUND MONITORING FUNCTIONS TO SET DETECTION MODE: 1) Press the MENU button once and the flashing icons will appear. 2) Use the UP and DOWN Arrows to select your preferred detection mode. 3) Press the SELECT button to confirm your choice.
  • Page 18 TO STOP THE ALARM Shut the Nursery Place your hand Press Unit OFF back on the any key mattress. to put on Hold (see section 5.8) TO ADJUST THE SENSOR PAD SENSITIVITY LEVEL: You can adjust the Nursery Unit sensitivity dial to change your Sensor Pad from less sensitive to very sensitive.
  • Page 19 TO ACTIVATE THIS FUNCTION: 1) Press MENU button 2 times. The Out-of-Range Indicator will blinks. 2) Using the UP and DOWN Arrows, turn the function ON or OFF. 3) Press the SELECT button and then EXIT to confirm your choice. OUT-OF-RANGE ALARM •...
  • Page 20 TO ACTIVATE VOX MODE: 1) Press Menu button 3 times. The Vox icon will appear. VOX ON (VOX) 2) Using the arrows, to turn the function ON or OFF. NOTE: VOX OFF By selecting OFF the unit will go to (Continuous) VOX mode.
  • Page 21 5.6 - TEMPORARY MUTE Allows you to put your monitor in temporary MUTE mode. TO ACTIVATE MUTE: Press the SOUND/OFF button. TO DEACTIVATE MUTE: Press the SOUND/OFF button again to hear sounds. After 2 minutes the sound function will be automatically reactivated. NOTE: The Sound Icon will blink on the Parent Unit whilst...
  • Page 22 5.8 - HOLD Allows you to put your Angelcare monitor on HOLD. 1) Press and hold the Down Volume arrow for 2 seconds. The Hold Icon will appear on the screen. The Parent Unit will emit a double beep every minute to remind you that your monitor is on HOLD.
  • Page 23 The relevant icon will flash on the Parent Unit screen to alert you. YOU ARE NOW READY TO USE YOUR MONITOR The Angelcare ® monitor can be used with the pre-program factory settings or you can also customise your settings to your preference.

  • Page 24: Step 6 - Activating And Deactivating Additional Functions

    • Test your monitor regularly to ensure it is functioning correctly. • Test your monitor every time you move the Sensor Pad to a different place. STEP 6 - ACTIVATING AND DEACTIVATING ADDITIONAL FUNCTIONS The Angelcare monitor can be used with the pre-program factory settings ®...

  • Page 25: Troubleshooting

    TROUBLESHOOTING TAKING CARE OF YOUR RECHARGEABLE BATTERIES • Ensure that you fully charge your batteries for 15 hours before their first use. • To maintain maximum battery life it is recommended that you fully discharge your batteries periodically. Battery performance can be diminished by leaving the batteries constantly charging.
  • Page 26 FALSE ALARMS • Verify the connection between the Sensor Pad and the Nursery Unit. Unplug and reconnect the cord. • Make sure there is no bedding between the mattress and the Sensor Pad. • If the crib has a spring or slat base, place a hardboard between the crib base and the Sensor Pad measuring at least 13”...

  • Page 27: Limited Warranty

    ® ® sound monitor (model AC403) is free from any material and workmanship defects, for a period of one (1) year (rechargeable batteries not included) from the date of the original purchase. If this monitoring system fails to function properly when used as directed under...

  • Page 28: Technical Specifications

    927 MHz frequency for North for the Parent Unit. America/Ecuador/Oceania. Caution: To reduce the risk of electric Hereby, Angelcare Monitors Inc, declares shock, do not expose this product to rain this baby monitor is in compliance with the or moisture.

  • Page 29: Français

    www.angelcarebaby.com...
