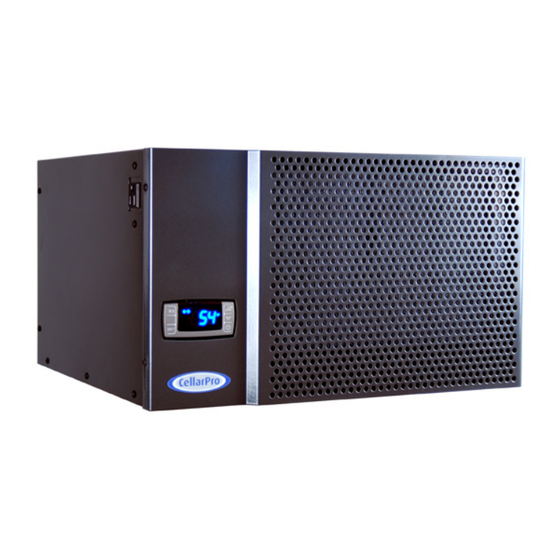

- Page 1 C o n t r o l t h e E l e me n t s Ow n e r ’ s Ma n u a l F i n e F u r n i t u r e f o r F i n e Wi n e s V9.14...
- Page 2 Owner’s Manual, at www.cellarpro.com/customer-service If you still have questions, please don’t hesitate to contact your dealer or CellarPro directly. We can be reached during normal business hours at 1.877.726.8496. You also may contact us anytime via email at info@cellarpro.com.
- Page 3 [This page left blank] V9.14...
-
Page 4: Table Of Contents
T a b l e o f C o n t e n t s Prior to Installation Overview III. Installation Instructions – Wine Cellars IV. Replacement Instructions – Wine Cabinets V. Operating Instructions VI. Troubleshooting VII. Limited Warranty V9.14... -
Page 5: Prior To Installation
7. Turn the unit “off”, install the unit, and wait 24 hours before operating your CellarPro cooling unit. This will protect the unit from internal damage that could arise if the unit was shipped, stored or tilted on its side. - Page 6 To figure out whether a CellarPro unit will work in your space, make sure that the cooling unit’s BTUH for a given cellar temperature (at the top of the table) is equal or greater than the thermal load shown in the body of the table.
- Page 7 95°F. Except for the 1800XTSx cooling unit, all cooling units are designed for internal use only, and are not designed for exposure to the exterior. CellarPro cooling units are not designed to generate heat inside the cellar, so if temperatures inside the cellar drop below proper wine storage temperatures, the cooling unit cannot increase the temperature inside the cellar.
- Page 8 recessed lighting, which can allow air to leak into the cellar. Please note: The R-values above are the MINIMUM recommended amounts of insulation. It is advisable to use as much insulation as possible inside your walls, ceiling and floor. It is critical that all walls, joints, doors and windows, electrical outlets and/or switches, pipes, vents and light fixtures be sealed to prevent air and moisture from entering the cellar.
- Page 9 CellarPro cooling units must always be mounted in the upright position and located as close to the ceiling as possible inside the cellar. As warm air rises to the top of the cellar, the cooling unit pulls the warm air through the evaporator coils and removes the heat from the warm air.
- Page 10 Alternatively, the front of the cooling unit can be supported by a shelf and a diagonal brace. The shelf can be up to 13.25” inches wide, and should be positioned on the right side of the cooling unit so that it doesn’t restrict the exhaust vent below the cooling unit, as follows: V9.14...
- Page 11 Proper ventilation is critically important for the proper operation of your CellarPro cooling unit. The CellarPro cooling unit blows a significant amount of hot air through the top or the rear of the cooling unit, and the hot air must be exhausted into a space that is at least as large as the wine cellar in order for the heat to properly dissipate.
- Page 12 2. Condenser Air Exhaust (Rear or Top). Condenser air can be exhausted either through the top or the rear of the cooling unit. CellarPro units have interchangeable vent panels that can be swapped between the top and the rear of the cooling unit to match the configuration of your cellar and exhaust space.
- Page 13 • 50’ (2 x 25’) of insulated 6” ducting. With our duct kit, CellarPro 1800 cooling units can be ducted up to 50 equivalent feet per duct. When calculating equivalent feet, each 90 degree turn in the ducting approximately equals 8’...
- Page 14 The cooling unit uses approximately 3 amps during its “on” cycle. The cooling unit also offers a grounded 115V AC outlet, which is rated for 3 amps. A number of variables, including the minimum set point, the temperature in the ambient environment, the insulation of the cellar, and the thermal mass inside the cellar, will affect the cooling unit’s runtime.
- Page 15 HA2 alarm will be triggered. • CellarPro 1800 cooling units require a dedicated 15-amp circuit Under these conditions, the unit’s internal components may become damaged, the expected useful life of the wine cooling unit may be adversely affected, and the product’s warranty may become null and void.
- Page 16 2. If your cellar comes with a grill(s), remove and discard the grill(s) on top of the cellar. You do not need a grill with the CellarPro cooling unit. 3. Pull the power cord through the back of the cellar.
- Page 17 5 minutes. Check that cold air is being produced by the unit. PLEASE NOTE: CellarPro cooling systems are programmed with a 3-minute delay at start-up to protect its internal components.
- Page 18 6. If your wine cabinet has three pieces of foam located on the bottom and on each side of the black metal bracket that supports the rear of the cooling unit (attached to the rear wall in most top-vented units), place these foam pieces along the bottom and sides of the metal bracket.
-
Page 19: Overview
V . O p e r a t i n g I n s t r u c t i o n s Overview Please follow the instructions in Chapter I prior to turning on your CellarPro cooling unit. CellarPro cooling units are designed to maintain optimal conditions for wine storage and aging. - Page 20 Minimum Set Point to reduce the cycle “on” time. Most wine collectors store their wine in the range of 55 - 60°F. CellarPro cooling units are designed to maintain appropriate levels of humidity, ranging from 50 to 70 percent, inside wine cellars. In order to increase or decrease humidity inside the cellar, the Fon setting can be changed as described in the “Advanced...
- Page 21 Power On/Off Button Press “Power On/Off” to turn the unit on and off When the “Compressor On” indicator light is on, the Compressor is running. When the “Fan On” indicator light is on, the Fan is running Up and Down Buttons To view the “High Temp”...
- Page 22 (anywhere from 3 to 9 months depending on the conditions in your location. When replacing the filter, the blue fibers should face the cooling unit, and the white fibers should face away from the cooling unit. Replacement filters may be purchased at www.cellarpro.com. V9.14...
- Page 23 Remote Control / Display Instructions Digital Display The temperature displayed on the control is red instead of blue. Quick Chill Button To activate the “Quick Chill” mode, press the “Up” button for three seconds Button To deactivate “Quick Chill”, press the “Up” button for three seconds again The “Quick Chill”...
- Page 24 Advanced Operation CellarPro cooling systems can be programmed with advanced settings to achieve more control over conditions inside the cellar. Conditions like humidity, the Temperature Differential, and alarm settings all can be modified for custom applications. To access the advanced settings, do the following: •...
- Page 25 8 minutes. Optional Protection Mechanisms CellarPro cooling systems can be programmed to turn off the compressor and condenser fan in the event of an HA2 alarm, as described below. If you’d like to turn on this protection mechanism, please call us toll-free at 877.726.8496 P3 >...
- Page 26 The control panel also will flash a code for each alarm, as follows: Alarm Code What it means What to do P1, P3 Probe Failure Call CellarPro at 877.726.8496 The temperature inside Check seals; the cellar is too warm Check if door was left open; (above 70°F for more...
-
Page 27: Troubleshooting
If your CellarPro wine cooling unit runs constantly, try the following: Clean the condenser coils or, if using a filter, replace it with a clean filter •... - Page 28 140°F for more than 2 hours, the HA2 alarm will display on the control panel. If this alarm happens when you first receive and start operating your CellarPro cooling unit, check for appropriate installation and ventilation (Chapter II). Also, make sure that there aren’t any obstructions to the intake and/or exhaust vents.
- Page 29 3. If the unit is ducted at the front, make sure the ducting is tight against the face of the cooling unit and well-sealed. 4. If your wine cooling unit came with a condensate fitting and drain line, make sure you properly setup the condensate trap (Chapter II). If the cooling unit continues to drip, contact us at 1.877.726.8496 for further assistance.
-
Page 30: Limited Warranty
V I I . L i m i t e d W a r r a n t y 1800 QTL / QT / XT / XTS: For five years from the date of original delivery, your CellarPro warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the cooling unit.
