Summary of Contents for IDEAL SecuriTEST

  • Page 2: Table Of Contents

    SecuriTEST User’s Manual Table of Contents Before Using SecuriTEST........2 SecuriTEST Safety Precautions ......3 Battery Charging Precautions ......5 Standard Accessories.......... 8 Names & Functions..........9 General Specifications ........14 Meter Specifications .......... 15 Digital Multi-Meter ..........23 PTZ Controller............. 30 UTP Cable Tester..........

  • Page 3: Before Using Securitest

    WARNING Read the “Safety Information” portion of the manual before using the SecuriTEST CCTV tester. This manual is for users of the IDEAL SecuriTEST multi- function CCTV tester. The manual describes the operation and function of the various features of SecuriTEST.

  • Page 4: Securitest Safety Precautions

    WARNING SecuriTEST Safety Precautions When using the Digital MultiMeter function to measure voltage or current, be sure that the input does not exceed the capabilities of the tester. Overloading the tester can cause damage or personal injury. When measuring current of unknown values, always begin with the 10A mode, then step down to the 400mA input if necessary.
  • Page 5 1. S AFETY NFORMATION Do not use the unit in damp conditions or environments where explosive gases may be present. Do not handle the unit with wet hands. Avoid dropping or causing mechanical shock to the unit. Do not expose the ports to liquids and avoid exposure to dust.

  • Page 6: Battery Charging Precautions

    1. S AFETY NFORMATION WARNING Battery Charging Precautions SecuriTEST is capable of recharging NiMH batteries installed in its battery compartment. To charge the batteries attach the included 12V adapter to the handset and set the main power switch position. Charging time takes 8 hours.
  • Page 7 - Battery Precautions - The following batteries can be used with SecuriTEST: > AA size alkaline batteries > AA size rechargeable nickel metal hydrogen (Ni-MH) batteries When charging batteries in SecuriTEST: Place both the MAIN POWER and the CHARGE SWITCH to the “ON” position. The charge LED will light...

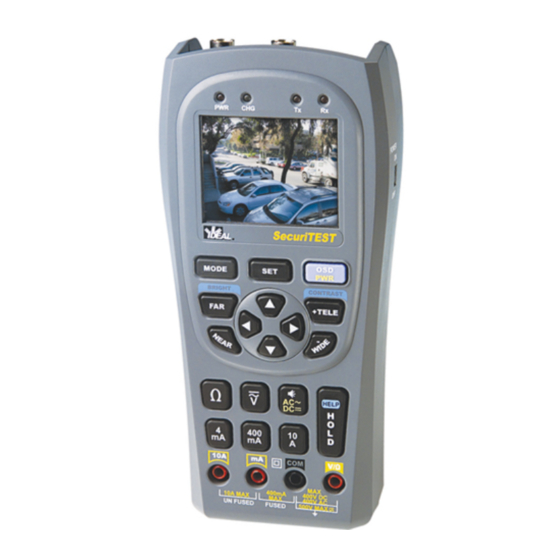

  • Page 8 EATURES SecuriTEST is a portable device for testing and troubleshooting various functions of CCTV cameras. It includes functions to test video image quality, control operation, analyzes various protocols, generates video test patterns, test UTP cables and includes a full-function Digital MultiMeter.

  • Page 9: Standard Accessories

    UPT Cable Tester ►The cable check tests unshielded cables for continuity, opens, shorts and mis-wired pairs. Standard Accessories The following items are included with the SecuriTEST CCTV Tester. • SecuriTEST Handset • User’s Manual • DMM Test Lead Set (Red, Black) •...

  • Page 10: Names & Functions

    Names & Functions...
  • Page 11 Transmitting LED transmitted Data Receiving Red LED is on when PTZ data is received 2.5” Color TFT LCD Main keypad for SecuriTEST Keypad operation Mode Select: Video, MultiMeter, PTZ MODE Button Control, UTP Test (press and hold to display main menu)
  • Page 12 Part Name Function Selects functions of Digital MultiMeter MultiMeter Keys Resistance Selects Resistance Mode Button Voltage Button Selects Voltage Mode Setup Change Toggles AC/DC Mode & Button Selects Continuity Test Current Selects low Current (below 4mA) Measuring Mode Button 1 Current Measuring Selects Current (below 400mA) Mode...
  • Page 13 UNCTION Connect to camera output to display Input BNC image on screen Use as pass-through port for camera Output BNC image or to output video test signal to external monitor Communication Input & Output of PTZ Port communications signals Kickstand Holds unit upright when extended Neck-strap Hook Connect neck-strap here to hang unit Can be used to hang the unit upside...
  • Page 14 UNCTION UTP Jack Test jack for UTP Cable w/ RJ45 plug Audio, AUX Input Port AUX Jack (for future use) DC Power Input Jack DC Power Jack (DC12V, 1A) Power Switch Main Power Supply ON/OFF switch...

  • Page 15: General Specifications

    3. S TEST S ECURI PECIFICATIONS General Specifications Input Voltage 12V ± 10% above 1A Rechargeable Ni-MH battery Battery 6ea (AAsize) Electric Characteristics Charging Above 8 hrs Time Built-in Charger Operation > 3 hrs Time TV Type NTSC / PAL Image Image Level 1 Vpp, 140IRE...

  • Page 16: Meter Specifications

    3. S TEST S ECURI PECIFICATIONS Meter Specifications Measuring Measured Minimum Accuracy Item Value Measuring 400mV 100uV ± (0.8% + 2dgts) DC Voltage ± (1.0% + 2dgts) 10mV 400V 100mV ± (1.2% + 3dgts) AC Voltage 10mV (40Hz ~ 500Hz) 400V 100mV 400uA...
  • Page 17 Measuring Measured Minimum Accuracy Item Value Measuring 400uA 0.2uV ± (1.5% + 5dgts) (40Hz ~ 500Hz) 40Hz ~ 500Hz AC Current 40mA 20uV ± (1.8% + 5dgts) 400mV (40Hz ~ 500Hz) 40Hz ~ 500Hz 400mA 200uV ± (3.0% + 4dgts) 40Hz ~ 500Hz 400 Ω...
  • Page 18 OSD Setup Screen When Power is ON When power is turned on, the OSD is displayed, and it automatically changes to the video test mode after 3 seconds. The initial OSD displays the SecuriTEST version and the initial setup on the screen. Product Version: 2.02 Firmware Version: 2.03...
  • Page 19 In this mode, the image quality of the external input picture signal is tested. Unlike most monitors, SecuriTEST does not have a video input amplifier, thus picture quality problems caused by long cable runs or poor connectors will be seen. The same signal...
  • Page 20 In this mode, the basic information of SecuriTEST can be seen (firmware version, battery level, communications protocol and speed). Main Setting Mode: In this mode, the basic setup of SecuriTEST can be changed (user’s name, auto power off time, beeper, brightness, contrast, etc). HELP information relevant to the...
  • Page 21 Connect the output of video output system to the video input BNC of SecuriTEST. Connect the video output BNC of SecuriTEST to the video input terminal of the CCTV system. The image that is displayed on SecuriTEST is passed through to the external monitor.
  • Page 22 NTSC or PAL, using the keys. B [][][][]: Indicates screen brightness. The brightness of the SecuriTEST LCD increases gradually by +1 when key is pressed, and decreases gradually by -1 when the key is pressed. Returns to the initial setup value when one of the two keys is pressed for more than 3 sec.
  • Page 23 Pattern Generation Mode To enter the PATTERN GENERATION MODE press the key while in the VIDEO mode. Output is changed between NTSC or PAL, using keys. Output patterns can be cycled between COLOR BAR, RED, BLUE, GREEN using keys. COLOR BLUE GREEN Press...

  • Page 24: Digital Multi-Meter

    WARNING To prevent an electric shock, injury or damage to SecuriTEST, turn off the power supply of the circuit and discharge all the high-voltage capacitors before testing resistance and continuity. When using the meter function of your SecuriTEST,...
  • Page 25 Description of Meter Mode LCD Window UNCTION ESCRIPTION - Resistance test - Continuity test Test Mode - Set-up tests of DC/AC voltage, current - Ω unit of resistance test is indicated - Indicator of AC or DC value of Test Value voltage or current - AC voltage &...
  • Page 26 UNCTION ESCRIPTION DC Voltage test AC Voltage test Resistance test (Measuring unit: Ω) Voltage test VOLT (Measuring unit: V) Current test (Measuring unit: mA, A) Continuity test (Beeps below 80 Ω) Measuring Resistance The unit of measurement is Ω. The meter sends low current into the circuit to measure its resistance.
  • Page 27 Testing Continuity Continuity indicates the presence of a complete path for current flow. The continuity test features a beeper that sounds when a circuit is complete. The beep allows users to quickly test continuity without having to watch the display. How to test: The resistance mode changes to the continuity mode, when is pressed.
  • Page 28 Measuring AC & DC Voltage Voltage means the difference in electrical potential between two points. The polarity of AC voltage varies over time, while the polarity of DC is constant over time. The meter displays AC voltage value as RMS (root mean square) readings.
  • Page 29 Measuring AC & DC Current Current is simply defined as a flow of electrons running through a conductor. To measure current, you must break the circuit under test, and place the meter in series with the circuit. The current measuring range of the meter is 10A max.
  • Page 30 WARNING Check the position of the test lead set in current test mode. Place the red lead at mA only when below 400mA, and place it at 10A when the value to be tested is over 400mA, or the value is unknown. WARNING Do not attempt to measure voltage when the test leads are connected to the mA or 10A port.

  • Page 31: Ptz Controller

    PTZ Controller Connecting Camera and Monitor PTZ Operation Test: Up, Down, Left, Right, Zoom and Manual focus control are possible. The tester can also be set to various protocols and transmission speeds (baud rates). - PTZ Control Setup Screen Press and hold the SET button for 3 seconds until PTZ protocol menu activates.
  • Page 32 GPST: Short for GO TO PRESET - Moves the camera view to the designated preset location. SecuriTEST can address up to 99 stored positions in the camera. The camera goes to the GPST position after the key is pressed.
  • Page 33 SPST function. To program the camera tour, the camera must support programming via the SecuriTEST interface. This is accessed by using the MENU function on the SecuriTEST PTZ screen. If the camera already has tours programmed, use the TOUR mode to recall and activate a tour that was previously saved in the camera.
  • Page 34 SecuriTEST to program various functions of the camera including day/night mode, focus settings, and tours. When a tour is programmed into the camera it can be activated with SecuriTEST using the TOUR function in the menu.
  • Page 35 CAUTION Make sure to check communications protocol, transmission speed, and ID. PTZ Control Setup PTZ ADDR is activated on the upper part of the LCD screen, when key is held for more than 3 seconds. The menu also controls the PTZ Protocol and Baud rate.
  • Page 36 Camera manufacturer use various communications protocols to control the PTZ functions of the camera. Use the PROTOCOL menu to set the output of SecuriTEST to match the protocol of the camera system in use. * BAUDRATE: Select TRANSMISSION SPEED The initial setup is 2.4kbps, it can be set from 2.4kbps to 38.4kbps.

  • Page 37: Utp Cable Tester

    UTP Cable Tester Connect one end of the UTP cable to be tested to the UTP Cable Test port of SecuriTEST and the other end to the yellow UTP Cable terminator. The condition of the cable can be tested by...
  • Page 38 Crossover Cable Short-circuit & Disconnection Direct Cable...

  • Page 39: View Information

    Each setup value can be changed by pressing the & keys. A user can enter the name he or she wants by editing USER NAME. SLEEP TIME sets the time that SecuriTEST will remain on when no button presses are detected.
  • Page 40 IDEAL Industries, INC. Becker Place Sycamore, IL 60178 Customer Service: 800-435-0705 www.idealindustries.com www.idealindustries.co.uk www.idealindustries.de Printed in Korea Rev 2.0 May 2007...
