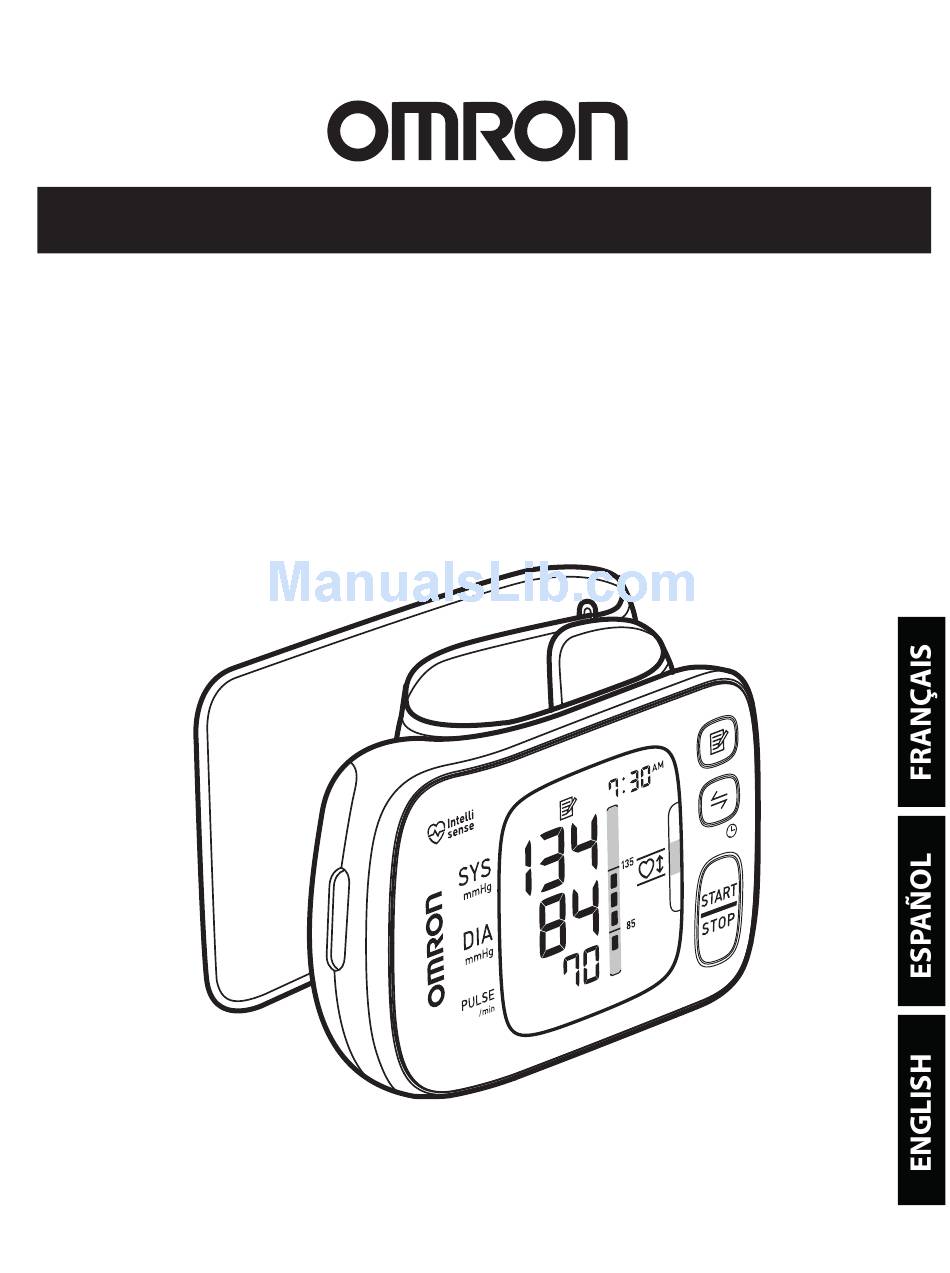

- Page 1 INSTRUCTION MANUAL Wrist Blood Pressure Monitor Model BP654...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before using the monitor Introduction ....................... 3 Safety information ..................... 4 Intended use ..................4 General usage................... 4 Battery usage..................5 Data transmission................5 General usage................... 5 Battery usage..................5 General precautions ................. 6 Operating instructions Before taking a measurement ................7 Know your unit.................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the OMRON BP654 Wrist Blood Pressure Monitor. Fill in for future reference. DATE PURCHASED: __________________ SERIAL NUMBER: ____________________ • Staple your purchase receipt here • Register your product on-line at www.register-omron.com The monitor is compact and easy-to-use at home, at work, and portable for travel. -
Page 4: Safety Information
SAFETY INFORMATION INTENDED USE The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population with wrist circumference ranging from 5 1/4 inches to 8 1/2 inches (13.5 cm to 21.5 cm). The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings. -
Page 5: Battery Usage
Do not use the device in a moving vehicle (car, airplane). Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. Although this device is waterproof (IP22), please be careful about the operating environment. -
Page 6: General Precautions
SAFETY INFORMATION GENERAL PRECAUTIONS Do not subject the monitor to strong shocks, such as dropping the unit on the floor. Do not submerge the device or any of the components in water. Store the device and the components in a clean, safe location. Changes or modification not approved by the manufacturer will void the user warranty. -
Page 7: Before Taking A Measurement
BEFORE TAKING A MEASUREMENT To ensure a reliable reading, follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 5 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. 3. -
Page 8: Know Your Unit
Pressure Monitor STARTED BP654 Model 5371240-6A Wrist Blood Pressure Monitor INTRODUCTION Thank you for purchasing the OMRON BP654 Wrist Blood Pressure Monitor. Fill in for future reference. DATE PURCHASED: __________________ BP654 SERIAL NUMBER: ____________________ • Staple your purchase receipt here 5371245-7A •... -
Page 9: Unit Display
UNIT DISPLAY Average reading symbol Memory symbol Date/Time display Blood pressure level Systolic blood indicator (bar) pressure Positioning indicator Diastolic blood pressure Positioning symbol Battery symbol (low/depleted) Movement error symbol Heartbeat symbol Irregular heartbeat symbol (Flashes during measurement) Deflation symbol Pulse display / Memory number OK symbol... -
Page 10: Display Symbols
DISPLAY SYMBOLS HEARTBEAT SYMBOL ( The Heartbeat symbol flashes on the display at every heartbeat during the measurement. AVERAGE READING SYMBOL ( The Average Reading Symbol is displayed when you press and hold the button for more than 2 seconds. The most recent average reading appears on the display screen. IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol will appear on the display with the... -
Page 11: Blood Pressure Level Indicator (Bar)
DISPLAY SYMBOLS BLOOD PRESSURE LEVEL INDICATOR (BAR) Blood pressure level indicator (bar) will light up between the systolic blood pressure and the diastolic blood pressure. 2013 ESH/ESC Guidelines for the management of arterial hypertension Definitions of hypertension by office and home blood pressure levels Office Home Systolic Blood Pressure... -
Page 12: Battery Installation
BATTERY INSTALLATION 1. Push down the hook of the battery cover and pull downward. 2. Install 2 “AAA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated. 3. Replace the battery cover. NOTE: Make sure that the battery cover is securely in position. -
Page 13: Setting The Date And Time
• The date and time can be automatically set when you transfer your readings to the Omron Wellness App. However, the date/time will only be set for future measurements taken after the reading that was transferred, it will not be saved to the reading that was just transferred. -
Page 14: Applying The Wrist Cuff
APPLYING THE WRIST CUFF APPLYING THE CUFF ON THE LEFT WRIST 1. Roll up sleeve. Make sure your sleeve is not rolled up too tightly on your arm. This may constrict the flow of blood in your arm. 2. Put your arm through the cuff loop. Your palm should face upward. -
Page 15: Applying The Cuff On The Right Wrist
APPLYING THE WRIST CUFF NOTES: • Make sure the wrist cuff does not cover the protruding part of the wrist bone on the outside of the wrist. • If the wrist cuff comes off, re-assemble as shown in the figure. APPLYING THE CUFF ON THE RIGHT WRIST When taking a measurement using the right wrist position the cuff as shown in the illustration. -
Page 16: Taking A Measurement
TAKING A MEASUREMENT 1. Sit comfortably on a chair with your feet flat on the floor. Keep your back straight. Place your elbow on a table and elevate cuff wrist to heart level. NOTES: • The distance from the top of your seat measuring to the top of the table you are sitting at, should be 12 ±... - Page 17 TAKING A MEASUREMENT Positioning Indicator - The monitor has a built-in positioning indicator that is used as an aid in determining if the monitor is at the correct height. It has been designed to work with most people so that when your wrist is at the correct position relative to your heart, the positioning indicator will be blue.
- Page 18 TAKING A MEASUREMENT As the cuff inflates, the monitor automatically determines your ideal inflation level. This monitor detects your blood pressure and pulse rate during inflation. The Heartbeat Symbol ( ) flashes at every heartbeat. Remain still and do not move until the entire measurement process is completed.
-
Page 19: Turn Off (On) The Positioning Indicator
TAKING A MEASUREMENT TURN OFF (ON) THE POSITIONING INDICATOR The positioning indicator is set “on” as default. 1. When the unit is off, press and hold the button for more than 5 seconds to set the positioning indicator. 2. Press the START/STOP button to store the positioning indicator setting. -
Page 20: Using The Memory Function
USING THE MEMORY FUNCTION The monitor automatically stores up to 100 readings. It can also calculate an average reading based on the last 3 readings taken within 10 minutes. TO VIEW THE READINGS STORED IN MEMORY Alternating 1. Press the button. -
Page 21: To View The Average Reading
TO PAIR THIS DEVICE WITH A SMARTPHONE To begin using the OMRON Wellness software for the first time, please visit www.omronwellness.com for the initial set-up instructions. 1. Download and install onto your smartphone, the free “Omron Wellness” App. - Page 22 USING THE MEMORY FUNCTION 3. Press and hold the button for more than 2 seconds. The transfer symbol ( ) will appear on the display. 4. Open the App on your smartphone and follow the device pairing instructions shown on your smartphone, while the transfer symbol is flashing on the display.
-
Page 23: To Transfer The Data
Lit: 100 readings have been stored. If the memory is full, the monitor will delete the oldest reading. Please transfer your readings to the Omron Wellness App to help ensure your data is saved before old readings are deleted from the memory. -
Page 24: To Delete All Readings And Settings
USING THE MEMORY FUNCTION TO DELETE ALL READINGS AND SETTINGS You can delete all readings and settings when you want to dispose of the device or present it to others. 1. While holding the button down, press the START/STOP button for more than 5 seconds. 2. -
Page 25: Care And Maintenance
Remove the batteries if the unit will not be used for three months or longer. Always replace all the batteries with new ones at the same time. CAUTION Use only OMRON authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. CAUTION Changes or modification not approved by the manufacturer will void the user warranty. -
Page 26: Error Messages
ERROR MESSAGES SYMBOL CAUSE CORRECTION Please remove the wrist cuff, and wait 2-3 minutes. Reapply the wrist cuff and take another measurement. Irregular heartbeats are Repeat the steps in section “Taking a detected. Measurement”. If this error continues to appear, contact your physician. - Page 27 ERROR MESSAGES SYMBOL CAUSE CORRECTION Remain still until the measurement is Arm position changed complete. Refer to “Taking a during measurement. Measurement”. Device error. Contact Customer Service. Recommend to replace the batteries with new ones ahead of time. Batteries are low. Refer to “Battery Installation”.
-
Page 28: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM CAUSES AND SOLUTIONS Replace both batteries with new ones at the No power. same time. Check the battery installation for No display appears on the unit. proper placement of the battery polarities. Review the section “Battery Installation”. Blood pressure varies constantly. -
Page 29: Fcc/Ic Statement And Trademarks
FCC/IC STATEMENT AND TRADEMARKS FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 30 Smart word mark and logos are registered ® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co.,Ltd. is under license. Other trademarks and trade names are those of their respective owners. Apple, the Apple logo, iPad, and iPhone are trademarks of Apple Inc., registered in the U.S.
-
Page 31: Limited Warranty
LIMITED WARRANTY Your BP654 Wrist Blood Pressure Monitor, excluding the batteries, is warranted to be free from defects in materials and workmanship appearing within 5 years from the date of purchase, when used in accordance with the instructions provided with the monitor. -
Page 32: Specifications
SPECIFICATIONS BP654 HEM-6320T-Z Model: LCD Digital Display Display: Pressure: 0 mmHg to 299 mmHg Measurement Range: Pulse: 40 beats/min to 180 beats/min Pressure: ±3 mmHg or 2% of reading Accuracy: Pulse: ±5% of reading Automatic by electric pump Inflation: Automatic rapid deflation... - Page 33 SPECIFICATIONS NOTES: • These specifications are subject to change without notice. • In the clinical validation study, the 5th phase was used on 85 subjects for determination of diastolic blood pressure. • This device has not been validated for use in pregnancy. •...
-
Page 34: Guidance And Manufacturer's Declaration
IEC60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: • The use of accessories and cables other than those specified by OMRON, with the exception of cables sold by OMRON as replacement parts for internal components, may result in increased emission or decreased immunity of the device. - Page 35 (Table 1) Guidance and manufacturer’s declaration – electromagnetic emissions OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. Electromagnetic environment...
- Page 36 (Table 2) Guidance and manufacturer’s declaration – electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601...
- Page 37 GUIDANCE AND MANUFACTURER’S DECLARATION IEC 60601 Compliance Electromagnetic environment Immunity test Test level level – guidance <5 % U (>95 % dip in U for 0.5 cycle 40 % U Voltage dips, (60 % dip in short interruptions for 5 cycles and voltage Not Applicable.
- Page 38 (Table 4) Guidance and manufacturer’s declaration – electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601...
- Page 39 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the OMRON BPM is used exceeds the applicable RF compliance level above, the OMRON BPM should be observed to verify normal operation.
- Page 40 Recommended separation distance between portable and mobile RF communications equipment and the OMRON BPM OMRON BPM is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this OMRON BPM can help prevent electromagnetic interference by maintaining a...
- Page 41 Manufactured for : OMRON HEALTHCARE Co., Ltd 53, Kunotsubo, Terado-cho Muko, Kyoto, 617-0002 JAPAN Distributed by : OMRON HEALTHCARE, INC. 1925 West Field Court Lake Forest, IL 60045 U.S.A. www.omronhealthcare.com © 2014 OMRON HEALTHCARE, INC. 5371240-6A Made in Vietnam...
