DSC COMMUNIQUE Installation Instructions

COMMUNIQUÉ
The Communiqué internal intercom station has a handsfree microphone and speaker
so that two-way communication can occur throughout the premises. The door station
can be mounted at any entrance point, acting as a doorbell which can also facilitate
two-way communication with anyone inside the premises. For more information
regarding the functions and operation of the intercom and door stations, please consult
the Communiqué Operation Manual.

Installation

1. Loosen the screw on the bottom of the unit and separate the backplate and
mounting plate from the main unit. See Figure 1.
2. Feed the station wires through the large square holes in the backplate and
mounting plate.
3. Fasten the backplate and the mounting plate to the wall with screws through the
large oval shaped holes in the plates.
4. Connect the wires as shown in Figure 2 or 3.
5. Fasten the front portion of the unit to the backplate and tighten the bottom screw
to secure it into place.
For programming instructions and Communiqué Wiring Diagram, please refer to the
Installation and Operation Manuals.

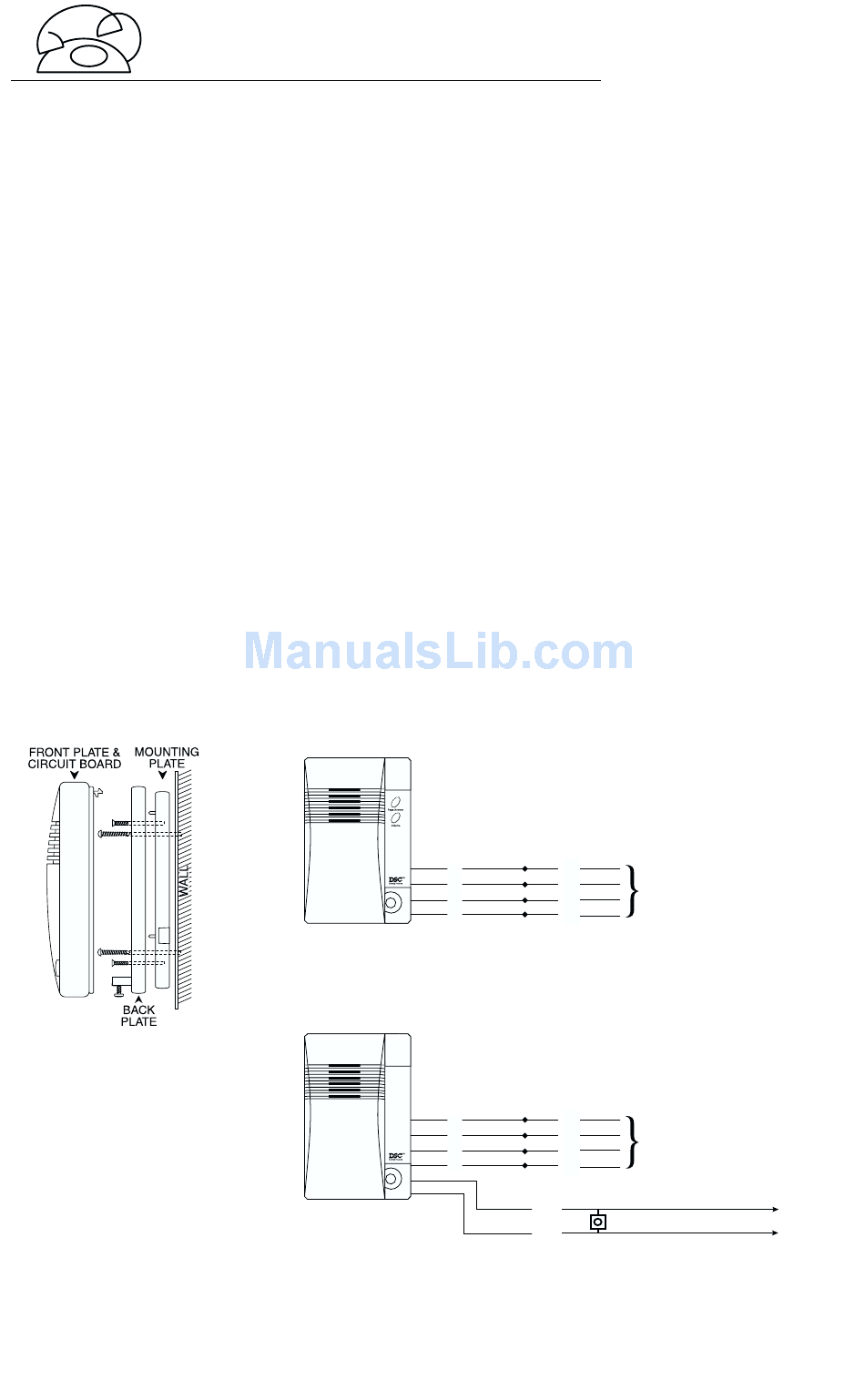

Figure 1
®
Figure 2: Intercom Station Wiring
Intercom Station
Figure 3: Door Station with Optional Connections to Existing Door Chimes
Door Station
Intercom/Door Station
Installation Instructions
G
G
R
R
B
B
Y
Y
G G
R
R
B
B
Y
Y
OR
Existing Door Chime Button
BR
To Communiqué
Control Unit
To Communiqué
Control Unit
To existing
door chimes
To chimes
{Parallel Connection}
transformer
(16-24 V )
AC
