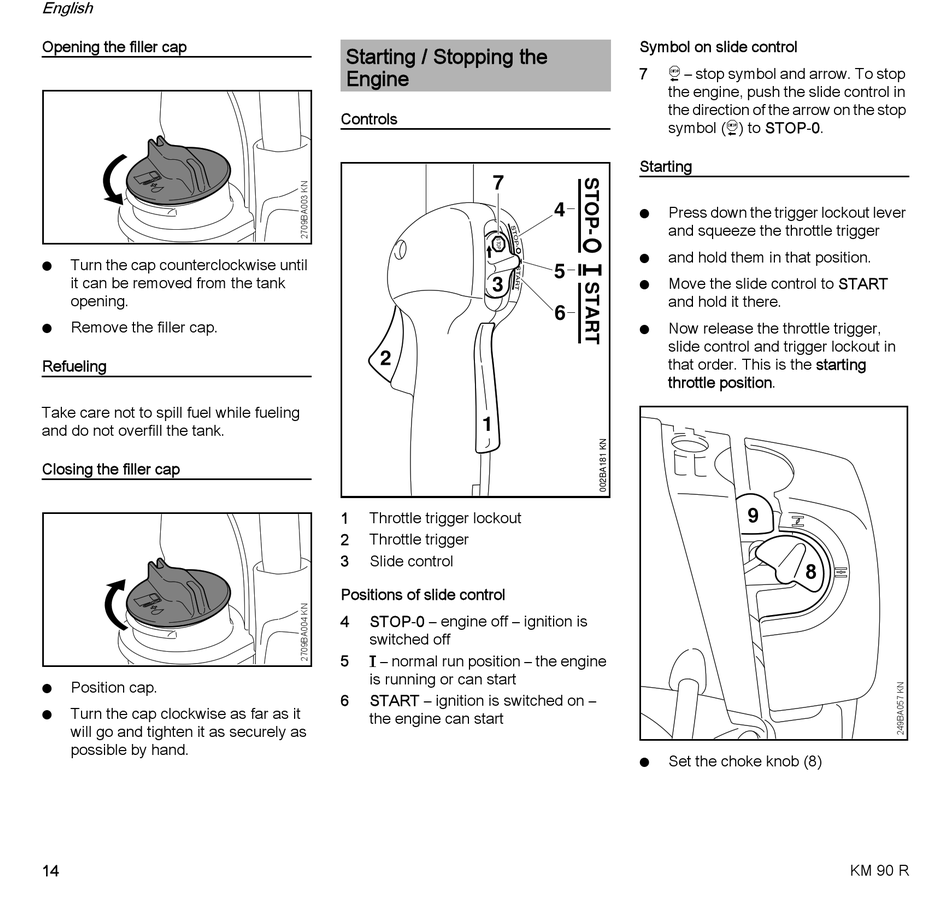

Starting / Stopping The Engine - Stihl KM 90 R Instruction Manual

English
Opening the filler cap
Turn the cap counterclockwise until
N
it can be removed from the tank
opening.
Remove the filler cap.
N
Refueling
Take care not to spill fuel while fueling
and do not overfill the tank.
Closing the filler cap
Position cap.
N
Turn the cap clockwise as far as it
N
will go and tighten it as securely as
possible by hand.
14
Starting / Stopping the
Engine
Controls
7
3
2
1
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Positions of slide control
4 STOP-0 – engine off – ignition is
switched off
5 F – normal run position – the engine
is running or can start
6 START – ignition is switched on –
the engine can start
Symbol on slide control
7 h – stop symbol and arrow. To stop
the engine, push the slide control in
the direction of the arrow on the stop
symbol (h) to STOP-0.
Starting
4 Press down the trigger lockout lever
N
and squeeze the throttle trigger
and hold them in that position.
N
5
Move the slide control to START
N
and hold it there.
6
Now release the throttle trigger,
N
slide control and trigger lockout in
that order. This is the starting
throttle position.
Set the choke knob (8)
N
9
8
KM 90 R
