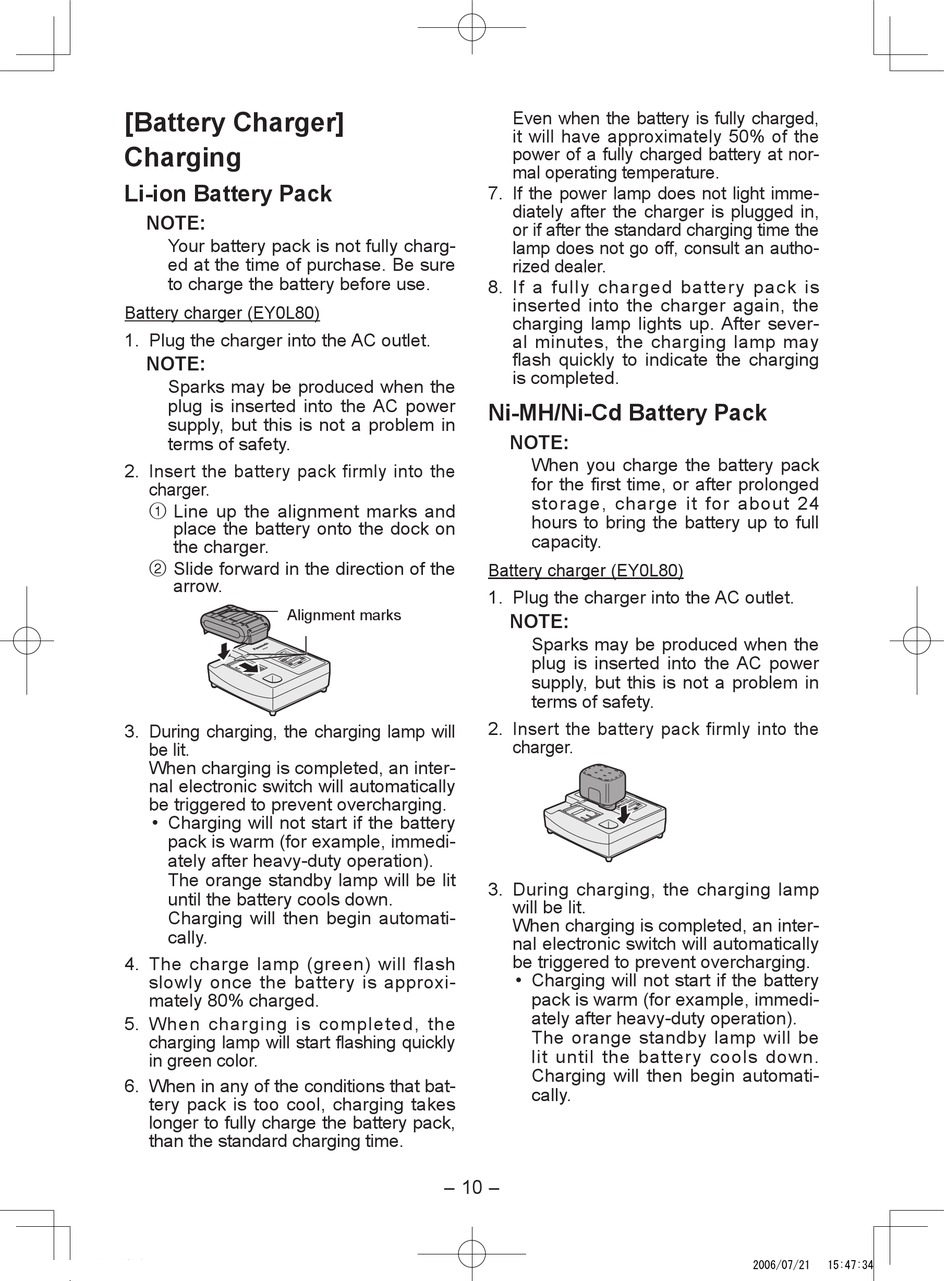

[Battery Charger]

Charging

Li-ion Battery Pack

NOTE:
Your battery pack is not fully charg-
ed at the time of purchase. Be sure
to charge the battery before use.
Battery charger (EY0L80)
1. Plug the charger into the AC outlet.
NOTE:
Sparks may be produced when the
plug is inserted into the AC power
supply, but this is not a problem in
terms of safety.
. Insert the battery pack firmly into the
charger.
1 Line up the alignment marks and
place the battery onto the dock on
the charger.
2 Slide forward in the direction of the
arrow.
. During charging, the charging lamp will
be lit.
When charging is completed, an inter-
nal electronic switch will automatically
be triggered to prevent overcharging.
• Charging will not start if the battery
pack is warm (for example, immedi-
ately after heavy-duty operation).
The orange standby lamp will be lit
until the battery cools down.
Charging will then begin automati-
cally.
4. The charge lamp (green) will flash
slowly once the battery is approxi-
mately 80% charged.
5. When charging is completed, the
charging lamp will start flashing quickly
in green color.
6. When in any of the conditions that bat-
tery pack is too cool, charging takes
longer to fully charge the battery pack,
than the standard charging time.
EY7440(EU).indb 10
Alignment marks
- 10 -
Even when the battery is fully charged,
it will have approximately 50% of the
power of a fully charged battery at nor-
mal operating temperature.
7. If the power lamp does not light imme-
diately after the charger is plugged in,
or if after the standard charging time the
lamp does not go off, consult an autho-
rized dealer.
8. If a fully charged battery pack is
inserted into the charger again, the
charging lamp lights up. After sever-
al minutes, the charging lamp may
flash quickly to indicate the charging
is completed.
Ni-MH/Ni-Cd Battery Pack
NOTE:
When you charge the battery pack
for the first time, or after prolonged
storage, charge it for about 4
hours to bring the battery up to full
capacity.
Battery charger (EY0L80)
1. Plug the charger into the AC outlet.
NOTE:
Sparks may be produced when the
plug is inserted into the AC power
supply, but this is not a problem in
terms of safety.
. Insert the battery pack firmly into the
charger.
. During charging, the charging lamp
will be lit.
When charging is completed, an inter-
nal electronic switch will automatically
be triggered to prevent overcharging.
• Charging will not start if the battery
pack is warm (for example, immedi-
ately after heavy-duty operation).
The orange standby lamp will be
lit until the battery cools down.
Charging will then begin automati-
cally.
