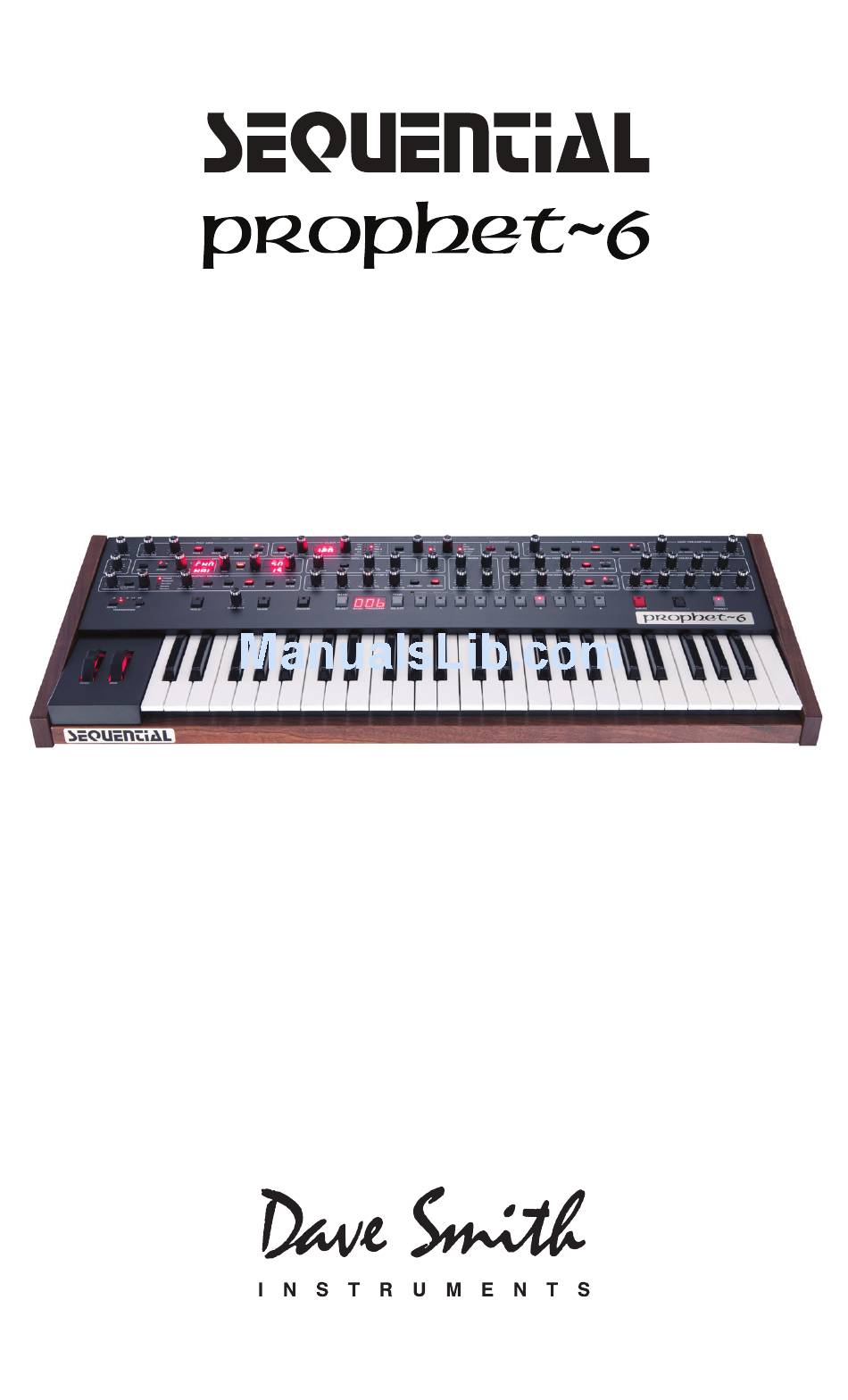

  • Page 1 Operation Manual...
  • Page 3 Operation Manual Version 1.0 June 2015 Dave Smith Instruments/Sequential 1527 Stockton Street, 3rd Floor San Francisco, CA 94133 ©2015 Dave Smith Instruments www.davesmithinstruments.com...
  • Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

  • Page 5: Table Of Contents

    Table of Contents A Few Words of Thanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Getting Started .
  • Page 6 Low Frequency Oscillators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Poly Mod .
  • Page 7 Calibrating the Prophet-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 How and When to Calibrate the Oscillators and Filters .
  • Page 8 Credits and Acknowledgements Sound Design Joseph Akins Kurt Kurasaki Robert Rich John Bowen Matia Simovich Kevin Lamb Richard Devine Jason Lindner James Terris Peter Dyer Cord Mueller Mitch Thomas Tim Koon Drew Neumann Taiho Yamada The DSI Crew Ashley Bellouin, Fabien Cesari, Bob Coover, Carson Day, Chris Hector, Tony Karavidas, Mark Kono, Andrew McGowan, Joanne McGowan, Tracy Wadley, and Mark Wilcox.

  • Page 9: A Few Words Of Thanks

    Sequential’s most famous instrument, the Prophet-5, the poly synth that started it all. The Sequential Prophet-6 takes the best qualities of the Prophet-5 and adds some nice touches that the original never had, such as stereo outputs, velocity and aftertouch sensitivity, dual digital effects, a high-pass filter, a polyphonic step sequencer, an arpeggiator, and of course, MIDI.

  • Page 11: Getting Started

    Getting Started The Prophet-6 is a six-voice, polyphonic analog synthesizer with voltage-controlled oscillators, filters, and amplifiers. It was designed to provide all of the warmth and presence of a vintage-era synth with the added convenience and stability of a state-of-the-art, modern instrument. The Prophet-6 is first and foremost a performance instrument.

  • Page 12: Sound Banks

    To choose program 123, for example: 1. Hold and press 1. Then release the button. bank bank 2. Hold and press 2. Then release the button. tens tens 3. Press button 3. program selector Getting Started Dave Smith Instruments...

  • Page 13: Editing Programs

    It’s not always necessary to enter all 3 digits of a program number to recall it. For example: • If the current program is 100 and you want to recall program 101, simply press “1.” • If the current program is 100 and you want to recall program 110, hold down the button and press “1.”...

  • Page 14: Creating A Program From Scratch

    • Press the button to toggle it off. Note that you can’t change preset programs or banks with Preset off. To return to preset mode: • Press the button again to toggle it on. preset Getting Started Dave Smith Instruments...

  • Page 15: Saving A Program

    PRESET Toggling off the button enables “live panel” mode preset Saving a Program If you’ve created a sound that you like, you’ll probably want to save it. Saving a program overwrites a previously saved program. Sound design- ers often save many incremental versions of a program as they continue to refine it.

  • Page 16: Canceling Save

    The sound is saved. 6. Alternatively, if you want to cancel saving and continue editing, press button. It stops flashing and saving is canceled. write Getting Started Dave Smith Instruments...

  • Page 17: Moving To The Next Level

    Moving to the Next Level The Prophet-6 is filled with possibilities for sound creation. Although we realize that you’d rather spend your time exploring its capabilities, we’d like to point you toward a few things that will help you tailor the instrument to your needs.

  • Page 18: Connections

    6 . Expression Pedal-Volume— that has a variable resistor on a TRS (tip-ring-sleeve) ¼ inch phone plug. Once connected, you can use the pedal to control volume to add expres- siveness and dynamics to live performance. Connections Dave Smith Instruments...
  • Page 19 Accepts a standard expression pedal 7 . Expression Pedal-LP Filter— that has a variable resistor on a TRS (tip-ring-sleeve) ¼ inch phone plug. Once connected, you can use the pedal to control the cutoff frequency of the low-pass filter to add expressiveness to live performance. Unbalanced, ¼...

  • Page 20: Global Settings

    MIDI Out Alt Tuning Vel Response AT Response Stereo/Mono Pgm Dump Globals 5-9 Decrement Increment BANK TENS SELECT BANK PROGRAM SELECT Use the Bank and Tens buttons to scroll forward and backward, respectively, through parameter settings Global Settings Dave Smith Instruments...

  • Page 21: Globals - Top Row

    To set a Global parameter: 1. Press the button. Pressing it once activates the upper set of globals parameters. Pressing it a second time enables the lower set of param- eters. 2. Press the program selector button (0 - 9) that corresponds to the desired parameter.
  • Page 22 Sets the port by which MIDI data will be trans- 9 . MIDI Out: MID, USB— mitted (MIDI or USB). Global Settings Dave Smith Instruments...

  • Page 23: Globals - Bottom Row

    Globals - Bottom Row When on (the default), the keyboard and 0 . Local Control: Off, On— front panel controls directly affect the Prophet-6. When off, the controls are transmitted via MIDI but do not directly affect the “local” synth (that is, the Prophet-6).
  • Page 24 Sets one of 6 . AT Response: 0-3 (Curve 0, Curve 1, Curve 2, Curve 3)— four pressure curves to adjust the keyboard’s aftertouch response to your playing style. Global Settings Dave Smith Instruments...

  • Page 25: Oscillators

    The Prophet-6 defaults to 7 . Stereo/Mono: Ste, Mon (Stereo, Mono)— stereo operation. When set to Mono, this parameter defeats all pan settings and modulation, effectively making each of the outputs a mono output. 8 . Pgm Dump: Prg, Ten, Ban, usr, All (Program, Tens, Bank, User Transmits the current program, ten programs from the Banks, All)—...

  • Page 26: Oscillator Parameters

    Applying pulse width modulation using or the poly mod low frequency oscillator is a great way to add movement and thickness to a sound, especially when creating pad or string-like sounds. Oscillators Dave Smith Instruments...
  • Page 27 —Turns Oscillator 1 hard sync on. Sync forces Oscillator Sync: Off, On 1 (the slave) to restart its cycle every time Oscillator 2 (the master) starts a cycle. This provides a way to create more complex, harmonically rich shapes from simple waveforms—especially when the frequency of Oscil- lator 1 is set to a different interval than Oscillator 2.

  • Page 28: Slop

    Slop amount is adjustable from subtle, barely perceptible amounts to wildly out of tune. The global Master Tune settings affect the pitch of all oscillators. See “Globals - Top Row” on page 11 for more information. SLOP AMOUNT Oscillator Slop Slop Dave Smith Instruments...

  • Page 29: Mixer

    Mixer The Mixer section is where you set the levels of the various sound generators on the Prophet-6. These include Oscillator 1, Oscillator 2, Sub Octave (Oscillator 1 sub oscillator) and the white noise generator. You must turn up at least one of these in order to make sound with the Prophet-6.

  • Page 30: Filters

    “high-pass.” Emphasizes a narrow band of frequencies around the cutoff Resonance: frequency. On the Low-Pass Filter, high levels of resonance can cause the filter to self oscillate and generate its own pitch. Filters Dave Smith Instruments...
  • Page 31 High levels of resonance can sometimes cause the Prophet-6 outputs to clip if its sound generators are also set to high output in the Mixer. Monitor your outputs carefully to ensure optimal, clean signal levels. If you experience signal clipping, try reducing the levels of the oscillators in the section, the parameter in...

  • Page 32: Filter Envelope

    In other words, their harmonic content changes over time. This is exactly what the filter envelope is designed to emulate. FILTER ENVELOPE ATTACK DECAY SUSTAIN RELEASE Filter envelope Time A typical 4-stage envelope Filter Envelope Dave Smith Instruments...

  • Page 33: Changing The Filter Envelope's Response Curve

    Sets the attack time of the envelope. The higher the setting, the Attack: slower the attack time and the longer it takes for the filter(s) to open to the level set with the filter knob. Percussive sounds typically have cutoff sharp (short) attacks.

  • Page 34: Amplifier Envelope

    It would begin immediately, remain at its full volume for the duration of the note, then end immediately when the note was released. Again, that’s not very interesting sonically and it’s not typi- cally how instruments behave in the real world. Amplifier Envelope Dave Smith Instruments...
  • Page 35 To give you a real-world example, the main difference between the sound of the wind and the sound of a snare drum is that they have very different volume envelopes. Otherwise, they are essentially both white noise. Wind has a relatively slow attack, a long sustain, and a long decay and release.

  • Page 36: Effects

    Effects settings are saved individually with each program. Time-based effects such as the Delays can be synchronized to the arpeggiator, sequencer, or MIDI clock to produce repeats that occur on the beat. Effects Dave Smith Instruments...
  • Page 37 EFFECTS CLOCK ON/OFF EFFECT SYNC TYPE The Effects section Effects are divided into sets A and B. You can choose a single effect from each set. Effect A and B are applied one after another, in series. For this reason, reverb effects are only available as Effect B, since it’s the last stage in the serial effects chain —...

  • Page 38: Main Parameters

    —When a delay effect is chosen, this enables syncing Clock Sync: On, Off of the timed delay repeats (feedback) to the Arpeggiator, Sequencer, or MIDI clock. When Sync is on, delay time provides the following values: Effects Dave Smith Instruments...
  • Page 39 Value Delay Time 4 beats 3 beats 2 beats 1 beat 1 1/2 beat 1 beat 3/4 of 1 beat 1/2 of 1 beat 1/2 of 1 beat 3/8 of 1 beat 1/4 of 1 beat Maximum delay time is 1 second. The combination of longer synced delay times with slower tempos can result in delay times that would be greater than 1 second.
  • Page 40 Adjustable parameters are rate and depth. This is a Hall reverb. It’s the largest of the available reverbs. Adjust- HAL: able parameters are reverb time and early reflection amount. Effects Dave Smith Instruments...

  • Page 41: Low Frequency Oscillators

    This is a Room reverb. It’s the second largest of the available reverbs. rOO: Adjustable parameters are reverb time and early reflection amount. This is a Plate reverb. It emulates a classic reverb plate. Adjustable PLA: parameters are reverb time and early reflection amount. This is a Spring reverb.
  • Page 42 Use a triangle wave as a source to create vibrato. Use a square wave to create trills. Selects the frequency of Oscillator 2 as a modulation destination. Freq 2: Use a triangle wave as a source to create vibrato. Use a square wave to create trills. Low Frequency Oscillators Dave Smith Instruments...

  • Page 43: Poly Mod

    When Oscillator 1 and/or 2 is set to square wave, this modu- PW 1+2: lates the pulse width of the wave. Use a triangle wave LFO to create a chorus-like effect often used to emulate strings. Selects the amplitude level as a modulation destination. Use a Amp: triangle wave LFO to create a tremolo effect.

  • Page 44: Poly Mod Parameters

    This will animate the timbre of Oscillator 1 in interesting ways. Selects the Low-Pass Filter cutoff frequency as a modulation LP Filter: destination. Selects the High-Pass Filter cutoff frequency as a modulation destination. HP Filter: Poly Mod Dave Smith Instruments...

  • Page 45: Arpeggiator

    Arpeggiator The Prophet-6 has a full-featured Arpeggiator. Turn it on, hold a chord and the Prophet-6 will play a pattern based on the individual notes held. Choose a mode (up, down, random, etc.), an octave range (1, 2, or 3), and a tempo, then pair it with an appropriately percussive sound, and you’ll be surprised at the number of creative things you can do.

  • Page 46: Arpeggiator Parameters

    Set to 3 Octaves, the keyed notes and the notes one and two octaves above them arpeggiate. Sets the order in which notes play when Arpeggiator is on. See the table. Mode: Arpeggiator Dave Smith Instruments...

  • Page 47: Sequencer

    Arp Mode Behavior Plays from lowest to highest note Down Plays from highest to lowest note Up + Down Plays from lowest to highest and back to lowest Random Plays notes in random order Assign Plays notes in the order the keys were pressed Sequencer The Prophet-6’s sequencer is similar to a classic step sequencer.
  • Page 48 MIDI start/stop messages sent from a DAW or other MIDI device. See “Seq Jack” on page 13 for more information. Use the , or controls to adjust sequencer playback speed. value tap tempo Sequencer Dave Smith Instruments...

  • Page 49: Sequencer Parameters

    To transpose a sequence: 1. Press . The sequence begins playback. play 2. Press and hold and press a key on the keyboard. “Middle C” record is the reference point. Playing a note above middle C transposes the sequence higher by that interval. Playing a note below middle C trans- poses the sequence lower by that interval.
  • Page 50 3. Save the program. (See “Saving a Program” on page 4.) MIDI volume can also influence the overall volume of the Prophet-6 if you are controlling it from an external MIDI source. Sequencer Dave Smith Instruments...

  • Page 51: Distortion

    Distortion The Prophet-6 provides stereo analog distortion. This can be used to add warmth, harmonic complexity, and an aggressive edge to sounds. The character of the distortion is affected by the harmonic content of a program. Sounds with more high-end will sound different than sounds with fewer harmonics.

  • Page 52: Hold

    Fixed Rate A (FRA): when playing legato. That is, glide only occurs when a note is held until the next note is played. This effectively allows glide to be turned on and off from the keyboard. Hold Dave Smith Instruments...

  • Page 53: Unison

    Glide is set to a fixed time, regardless of the interval Fixed Time (FT): between notes. The same as Fixed Time, but glide only occurs Fixed Time A (FTA): when playing legato. To select a glide mode: 1. Press and hold the switch.

  • Page 54: Using Chord Memory

    3. If you save the program, the unison chord memory is saved with it. To clear chord memory: 1. Turn off Unison. 2. Hold down a single note. 3. Press the button. unison 4. Save the program again. Unison Dave Smith Instruments...
  • Page 55 Key Assign Modes Key Assign (sometimes called note priority) determines what note has priority when more than one note is played on the keyboard or via MIDI: • Low-note priority (LO) is most common in vintage synths and is often used for playing trills by holding a note and repeatedly tapping a lower note.

  • Page 56: Write

    “hundreds” bank of the program. You can only save to Banks 0-4. 3. Hold down the button then press a button (0-9) tens program selector to specify the “tens” digit of the program. Write Dave Smith Instruments...

  • Page 57: Canceling Save

    4. Press a button (0-9) to specify the “ones” digit of the program selector program. 5. The button LED stops blinking and the program is saved. write Canceling Save Sometimes you may want to cancel saving a program before you commit.

  • Page 58: Globals

    4. When finished, press again to exit. globals Pressing the button three times in a row saves the current program as globals the default program that appears when you turn on the Prophet-6. Globals Dave Smith Instruments...

  • Page 59: Preset

    Preset switch toggles “live panel” mode on and off. In live panel preset mode the Prophet-6 ignores the currently active preset and reverts to the current front-panel settings of its knobs and switches. In other words, what you see on the front panel is what you hear. This is a great mode for learning, experimentation, and instant gratification.

  • Page 60: Pitch And Mod Wheels

    2. With the button still held down, use the bank decrement tens switches to choose the number of semitones (up to 12) for increment the pitch bend range, then release the button. p whl range Pitch and Mod Wheels Dave Smith Instruments...

  • Page 61: Modulation Wheel

    Modulation Wheel The Mod wheel controls the amount of modulation applied to any destina- tions chosen in the section. This allows you to frequency oscillator “perform” LFO modulation in real time by moving the Mod wheel. This is a great way to add expressiveness to a sound or performance. To choose a modulation destination for the Mod wheel: 1.

  • Page 62: Misc Parameters

    , clipping distortion may occur. If this happens, try lowering the program volume , the levels of the oscillators in the m , the VCA , or program volume ixer envelope amount parameter of the low-pass or high-pass filter. resonance Misc Parameters Dave Smith Instruments...

  • Page 63: Aftertouch

    Aftertouch Aftertouch is a performance feature that allows you to add modulation to a sound by applying additional pressure to a key after the key is already down. The greater the pressure applied, the more modulation is applied. The Prophet-6 provides monophonic (or “channel”) aftertouch, which means that applying pressure to any key within a chord will apply modu- lation to all notes currently held.
  • Page 64 With a negative setting, pressing the keys harder will close the filter more and amount make a sound more muted. Aftertouch Dave Smith Instruments...

  • Page 65: Exporting Programs And Banks

    Selects the High-Pass Filter cutoff frequency as a modulation HP Filter: destination. With a positive setting, pressing the keys harder will amount increase the high-pass cutoff frequency, reducing the low-end of a sound. With a negative setting, pressing the keys harder will decrease amount the high-pass cutoff frequency allowing more low frequencies to pass.

  • Page 66: Calibrating The Prophet-6

    2. The front panel LEDs and display begin flashing as the Prophet-6 performs its auto-calibration procedure. Don’t turn off the power while it’s doing this. 3. When finished, the front panel controls will return to normal and you can play the Prophet-6 again. Calibrating the Prophet-6 Dave Smith Instruments...

  • Page 67: Calibrating The Pitch And Mod Wheels

    Calibrating the Pitch and Mod Wheels In general, the Pitch and Mod wheels shouldn’t require re-calibration. However, if you experience what seems like a persistent problem with either of them, the Prophet-6 has built-in auto-calibration procedure that you can use to remedy the problem. To calibrate the Pitch and Mod wheel’s low position: 1.

  • Page 68: Using Usb

    — and clicking OK. If Prophet-6 Keyboard is no longer listed in the Device Manager, power the Prophet-6 down and back up again while it is connected via USB. It should be detected on power up. Using USB Dave Smith Instruments...

  • Page 69: Appendix A: Alternative Tunings

    Appendix A: Alternative Tunings By default, the Prophet-6 is set to standard, chromatic western tuning. Additionally it supports up to 16 additional alternative tunings, which you can access using the button in the section. alt tuning globals From the factory, the Prophet-6 ships with 16 preset alternative tunings ranging from Equal temperament to Indonesian Gamelan tunings.
  • Page 70 Some of the intervals are very close together, offering several choices for the same nominal chords. A=1/1 (440 Hz) 1/1 9/8 8/7 7/6 9/7 21/16 4/3 3/2 32/21 12/7 7/4 63/32 Appendix A: Alternative Tunings Dave Smith Instruments...
  • Page 71 11. Other Music 7-Limit Black Keys in C Created by the group Other Music for their homemade gamelan, this offers a wide range of interesting chords and modes. C=1/1 (261.625 Hz) 1/1 15/14 9/8 7/6 5/4 4/3 7/5 3/2 14/9 5/3 7/4 15/8 12.
  • Page 72 64 = Cents +355. 65 = Cents +498. 66 = Cents +649. 67 = Cents +702. 68 = Cents +853. 69 = Cents +906. 70 = Cents +996. 71 = Cents +1057. 72 = Cents +1200 Appendix A: Alternative Tunings Dave Smith Instruments...

  • Page 73: Appendix B: Troubleshooting And Support

    Appendix B: Troubleshooting and Support Troubleshooting If you’re experiencing problems or unexpected behavior from your Prophet-6, here are a few typical scenarios and their solutions: The sequencer or arpeggiator has stopped running. Check the MIDI Clock setting in the Globals to ensure the Prophet-6 is set to or, if set to , make sure the Prophet-6 is receiv-...

  • Page 74: Contacting Technical Support

    If you have not already reset the Global parameters and run the calibration routines (see Troubleshooting, above), you should do it before contacting Technical Support. It’s probably the first thing they’ll ask you to do. Appendix B: Troubleshooting and Support Dave Smith Instruments...

  • Page 75: Appendix C: Midi Implementation

    Appendix C: MIDI Implementation The Prophet-6 receives MIDI data according to the settings you have chosen in the settings. In addition, there is interaction between global some of the Program parameters that determine the overall response of Prophet-6 to MIDI data. Following are the Global parameters that affect response to MIDI: Selects which MIDI channel to send and MIDI Channel: All, 1…16—...

  • Page 76: Midi Messages

    0vvvvvvv Pitch Bend LS Byte then MS Byte Notes: 0kkkkkkk Note number 0 — 127 nnnn Channel number 0 to 15 (MIDI channel 1-16). Ignored if MIDI channel set to ALL 0vvvvvvv Value Appendix C: MIDI Implementation Dave Smith Instruments...
  • Page 77 Received Controller Messages Status Second Third Description 1011 nnnn 0vvvvvvv Mod Wheel: directly assignable controller 1011 nnnn 0vvvvvvv Foot Controller: directly assignable controller 1011 nnnn 0vvvvvvv Volume: Combined with Master Volume and Voice Volume 1011 nnnn 0vvvvvvv Brightness: Added to low-pass filter cutoff frequency 1011 nnnn 0vvvvvvv Bank Select: 0 - 4 select user banks 0 - 4;...
  • Page 78 Damper pedal: Sends 0 if off, 0111 1111 when on 1011 nnnn 0000 0111 0vvvvvvv Volume knob See sections that follow for additional Continuous Controller (CC) and Non-registered Parameter Number (NRPN) messages transmitted. Appendix C: MIDI Implementation Dave Smith Instruments...
  • Page 79 Additional Continuous Controllers Transmitted/Received The following table details how MIDI Continuous Controllers (CCs) are mapped to Prophet-6 controls. They are transmitted when Param Xmit is set to CC, and recognized/received when MIDI Rcv Receive is set to CC. Param Param Bank Select MSB Osc 1 Pulse Width Mod Wheel...

  • Page 80: Nrpn Messages

    Increment and Decrement commands, which some controllers utilize. Finally, it responds to one RPN (Registered Parameter Number) command, the RPN/NRPN Reset command, which can be handy for resetting the currently selected parameter to a known state. Appendix C: MIDI Implementation Dave Smith Instruments...

  • Page 81: Global Parameter Data

    Received NRPN Messages Status Second Third Description 1011 nnnn 0110 0011 0vvvvvvv NRPN parameter number MSB CC 1011 nnnn 0110 0010 0vvvvvvv NRPN parameter number LSB CC 1011 nnnn 0000 0110 0vvvvvvv NRPN parameter value MSB CC 1011 nnnn 0010 0110 0vvvvvvv NRPN parameter value LSB CC 1011 nnnn...
  • Page 82 Dest On/Off High-pass Vel On Pressure Low-pass 0-127 Voice Volume Dest On/Off 0-127 Pan Spread Pressure High-pass Dest On/Off 0-127 Distortion Amt 0-127 VCA Env Amt Pressure VCA Dest On/Off 0-127 VCA Env Attack Appendix C: MIDI Implementation Dave Smith Instruments...
  • Page 83 NRPN Value Description NRPN Value Description Pressure LFO Amt 236-255 32 - 125 Name 0-19 Dest On/Off 256-319 12-108 Seq Step 1-64 FX 1 Select Note 1 0-127 FX 1 Mix 320-383 0-127 Seq Step 1-64 Vel 1 0-255 FX 1 Param 1 384-447 12-108 Seq Step 1-64...

  • Page 84: Control Nrpn Data

    0000 0001 Family MS 0000 0000 Family Member LS 0000 0000 Family Member MS 0jjj nnnn Main Software version: jjj - Minor rev; nnnn - Major rev 1111 0111 End of Exclusive (EOX) Appendix C: MIDI Implementation Dave Smith Instruments...
  • Page 85 Request Program Dump Status Description 1111 0000 System Exclusive (SysEx) 0000 0001 DSI ID 0010 1101 Prophet-6 ID 0000 0101 Request Program Transmit 0000 00vv Bank Number, 0 - 9 0vvv vvvv Program Number, 0 - 99 1111 0111 End of Exclusive (EOX) The Prophet-6 will respond by sending out the Program Data in the format described below in Program Data Dump.
  • Page 86 50 nibbles (LS then MS) for 25 Global parameters 1111 0111 End of Exclusive (EOX) The Global Parameters Data Dump is not recognized when received; it is only transmitted when requested. NRPN messages are used to change Globals. Appendix C: MIDI Implementation Dave Smith Instruments...

  • Page 87: Packed Data Format

    Packed Data Format Data is packed in 8 byte “packets”, with the MS bit stripped from 7 param- eter bytes, and packed into an eighth byte, which is sent at the start of the 8 byte packet. Example: Input Data Packed MIDI data 1 A7 A6 A5 A4 A3 A2 A1 A0 00 G7 F7 E7 D7 C7 B7 A7...
  • Page 92 Dave Smith Instruments 1527 Stockton Street, 3rd Floor San Francisco, CA 94133 www.davesmithInstruments.com DSI-10079R 06-15...
