INDEX
Page
Contents
2
Safety information
4
Unpacking and preparation
5
Installation and start-up
6
Control panel
8
Menu setting
18
Maintenance
19
Cause and solution of problems
20
Technical information
21
Channel functions

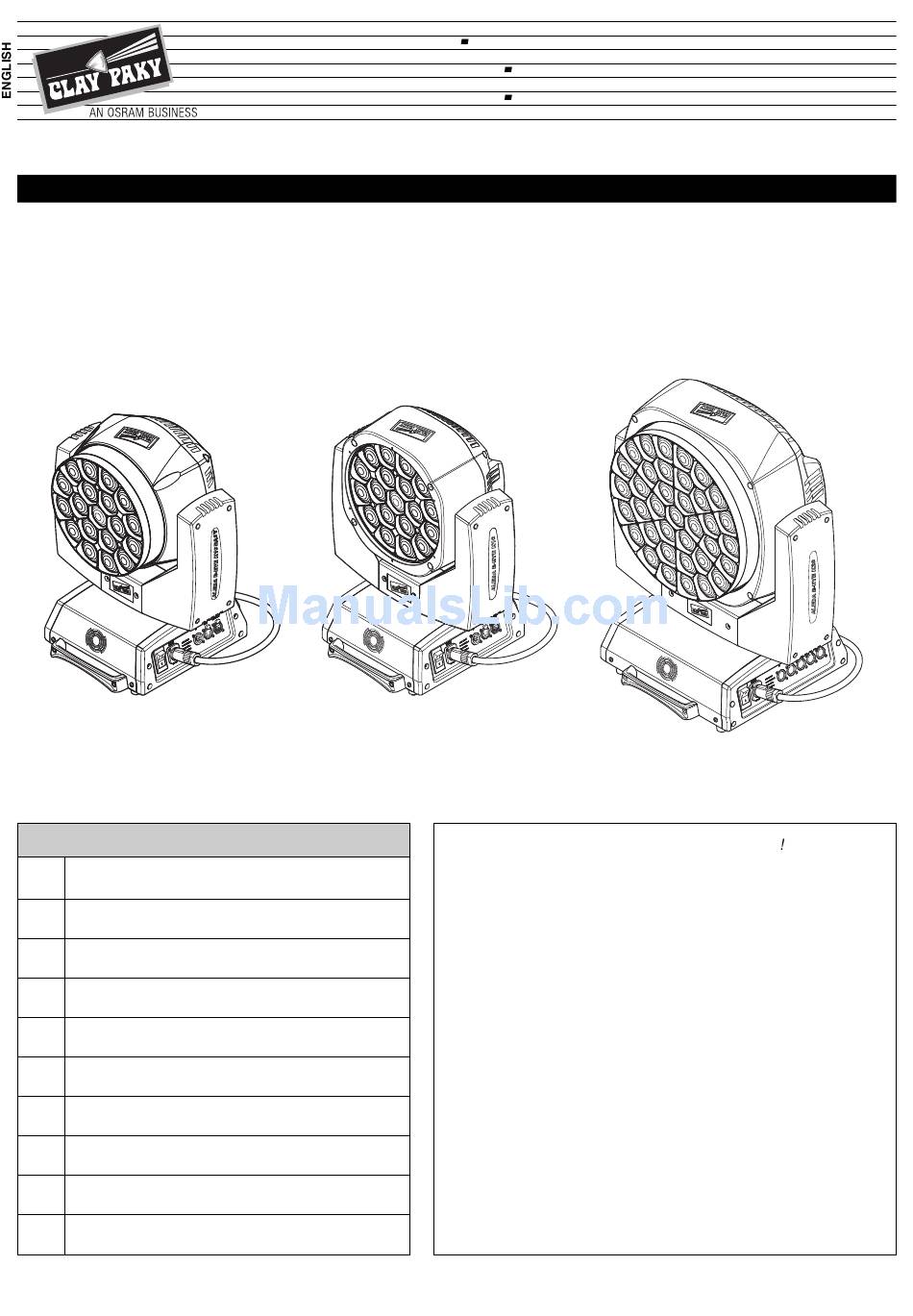

A.LEDA B EYE K10 EASY
A.LEDA B EYE K10
A.LEDA B EYE K20
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61415
C61419
C61420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A.LEDA B-EYE K10 EASY and is the answer not in the manual?

Questions and answers

Summary of Contents for Clay Paky A.LEDA B-EYE K10 EASY

  • Page 1 Control panel the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Menu setting or to other property or persons deriving from installation, use and...
  • Page 2: Safety Information

    SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.
  • Page 3 • Battery This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 • Disposing This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic Equipment (WEEE).
  • Page 4: Unpacking And Preparation

    UNPACKING AND PREPARATION IST009/001 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 A.LEDA B EYE...
  • Page 5 INSTALLATION AND START-UP Installing the projector - Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
  • Page 6: Control Panel

    CONTROL PANEL Mains Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line (DMX) - Fig. 6 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
  • Page 7 Reversal of the display - Fig. 8 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
  • Page 8 MENU SETTING XXX = default value Main Menu Level 1 Level 2 Level 3 Choices / Values Standard Mode Shape Source Basic Engine Art-net 0 - 255 Universe DMX Address 1 - 512 Disabled Mode RGBW Pixels Engine Source Art-net 0 - 255 Universe 1 - 512...
  • Page 9 Main Menu Level 1 Level 2 Level 3 Choices / Values Invert Pan On / Off Invert Tilt On / Off Swap Pan-Tilt On / Off Encoder Pan-Tilt On / Off Standard P/T Homing mode Sequenced 0 degree Pan / Tilt 90 degrees Pan Home Def Pos 180 degrees...
  • Page 10 Main Menu Level 1 Level 2 Level 3 Choices / Values System Errors Read / Reset Total Hours Read Fixture Hours Partial Hours Read / Reset Total Hours Read LED Energy Tot Partial Hours Read / Reset Aleda fw Fw.rev. CPU board Hw.rev.
  • Page 11 NOTE: On grey the default options SET UP MENU For greater programming ease using the DMX control unit and Media- server Art-net, channel mapping is divided into BASIC ENGINE and Set Up PIXEL ENGINE (see details in Channel Function). BASIC ENGINE Basic Mode Mode...
  • Page 12 OPTIONS MENU PAN / TILT Invert Invert pan Option Pan / Tilt Used for reversing Pan movement. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) PAN inversion.
  • Page 13 DISPLAY Display Used for automatically reduce brightness on the display after about 30 seconds in idle. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) the decreasing of display brightness.
  • Page 14: Information Menu

    By pressing the RIGHT key and the LEFT key simultaneously Option once entered in the main menu it is possible to quickly (short cut) reset the default settings (DEFAULT PRESET). Used for restoring default values on all options menu items and relevant submenus.
  • Page 15: Manual Control

    NETWORK PARAMS Network Allows the Network parameters of the projector to be displayed or: params IP address: Internet Protocol address (two projectors must not have the same IP address) IP mask: 255.0.0.0 Mac address: Media Access Control: the projector’s Ethernet Address. MANUAL CONTROL RESET Manual...
  • Page 16 - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. - General visual check of the internal components, cabling, mechanical parts, etc. - Electrical, photometric and functional checks; eventual repairs.
  • Page 17 Battery removal - Fig. 10 This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 A.LEDA B EYE...
  • Page 18 MAINTENANCE Opening the covers - Fig. 11 Removing/Assembling the lens unit - Fig. 12 A.LEDA B EYE...
  • Page 19: Cause And Solution Of Problems

    Replacing the line actuator - Fig. 13 CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician.
  • Page 20: Technical Information

    • High efficiency die-cast aluminium • Forced ventilation Inputs • DMX 512 • Ethernet Working position Working in any position. (13.39") A.Leda B-EYE K10 easy Zoom OUT Moving Head (9.06") (11.42") Zoom OUT • Movement by means of two stepper motors, controlled Zoom IN (9.76")
  • Page 21 CHANNEL FUNCTION A.LEDA B-EYE K10 EASY BASIC ENGINE PIXEL ENGINE STANDARD SHAPES RGBW CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red LED 1 Red LED 1 Green LED 1 Red fine Red fine Green LED 1...
  • Page 22 A.LEDA B-EYE K10 BASIC ENGINE PIXEL ENGINE STANDARD SHAPES RGBW CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red LED 1 Red LED 1 Green LED 1 Red fine Red fine Green LED 1 Blue LED 1 Green Green Blue LED 1...
  • Page 23 A.LEDA B-EYE K20 BASIC ENGINE PIXEL ENGINE STANDARD SHAPES RGBW CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red LED 1 Red LED 1 Green LED 1 Red fine Red fine Green LED 1 Blue LED 1 Green Green Blue LED 1...
  • Page 24 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 128 bit - Tilt 128 bit ) all the others channels stay at 0 bit. • RED • MACRO COLOUR GREEN BLUE BIT VALUE...
  • Page 25 • STOP STROBE - FOREGROUND STROBE - BACKGROUND STROBE • TILT • TILT FINE EFFECT 252 - 255 OPEN RANDOM FAST STROBE 239 - 251 226 - 238 RANDOM MEDIUM STROBE 213 - 225 RANDOM SLOW STROBE 208 - 212 OPEN FAST PULSATION (25 flash/sec) SLOW PULSATION (0,5 flash/sec)
  • Page 26 • RESET • RED LED 1 to… GREEN LED 1 to… EFFECT BLUE LED 1 to… COMPLETE RESET WHITE LED 1 to… EFFECT Complete reset is activated passing throug the unused range and staying 5 seconds in complete reset levels LED ON COMPLETE RESET PAN / TILT RESET...
  • Page 27 SHAPE SPEED - SHAPE OFFSET - SHAPE FADE - BACKGROUND SELECT Shape Shape Random BACKGROUND SHAPE OFFSET Macro Name Description Selection Slot colors *1 SELECT (*3)(*4) Macro OFF N.a. Pixel 1 N.a. For K10: Ring 1 0-7 = wash Ring 2 Static effects.
  • Page 28 Shape Shape Random BACKGROUND SHAPE OFFSET Macro Name Description Selection Slot colors *1 SELECT (*3)(*4) 0-255 → select Bar 2 (Variable N.a. Linear fade size) shape width 0-255 → select Random Linear fade and wake explosion random distribution 0-255 → select length Segment 2 shape width...
  • Page 29 • SHAPE FADE • SHAPE TRANSITION EFFECT EFFECT 4 sec 246-255 Smooth, fading curve with automatic gamma * Smooth, fading curve gamma 2 Smooth, fading curve gamma 1,986 Smooth, fading curve gamma 1,993 3 sec 2 sec 1 sec 0,5 sec Smooth, fading curve gamma 0,513 100 ms Smooth, fading curve gamma 0,506...
  • Page 30 A.LEDA B-EYE K10 & K10 EASY LED reference number for pixel mapping TILT: channel 16 @ 200 bit A.LEDA B-EYE K20 LED reference number for pixel mapping TILT: channel 16 @ 200 bit A.LEDA B EYE...
  • Page 32 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
