Please observe the following instructions:
Quality of wood pellets:
Depending on the manufacturer there are light, dark, shorter and longer pellets. And the quality of one delivery may
differ from another even from the same supplier. The standards for wood pellets are becoming more and more strict
but wood is wood and has its own characteristics regarding ash and clinker.
Your HAAS+SOHN stove
Cleaning requirements:
As soon as you find ash and clinker deposits in the cold combustion pot, it must be cleaned. See operating
instructions! If this is not done, there will be more and more clinker. Then the device will no longer be able to ignite
properly. Pellets may pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet
chute. Backfire in the pellet container and smouldering in the pellet tank might possibly result. This will destroy
your device and is not covered by the guarantee.
For maximum working life:
•
Arrange for commissioning by your trained stove supplier.
•
Observe the daily check as described and more frequently if you have received new pellet deliveries or when
the device is brought back into use after the summer.
•
Carefully read through all the operating instructions and retain them.
Space for type number and manufacturer's number:
Type number:
Manufacturer's number:
Installation and operating instructions
Important manufacturer's instructions
Art. no. 0541708009030

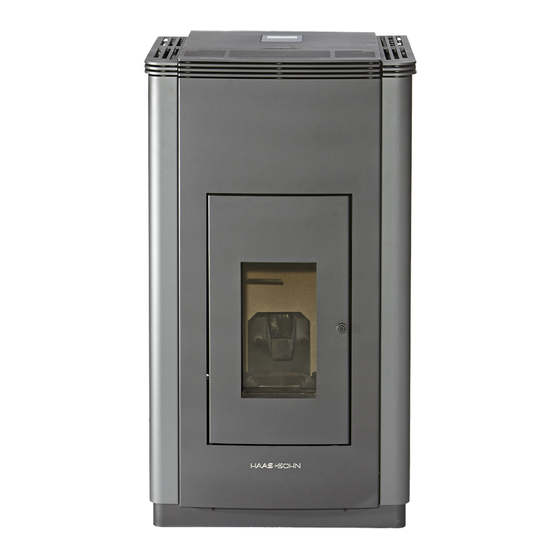

Pelletto / Pallazza Stove
417.08 / 432.08 / 517.08
!
V11 D19
Advertisement
Table of Contents
Related Manuals for HAAS + SOHN 417.08
Summary of Contents for HAAS + SOHN 417.08
- Page 1 Art. no. 0541708009030 V11 D19 Pelletto / Pallazza Stove 417.08 / 432.08 / 517.08 Installation and operating instructions Important manufacturer’s instructions Please observe the following instructions: Quality of wood pellets: Depending on the manufacturer there are light, dark, shorter and longer pellets. And the quality of one delivery may differ from another even from the same supplier.
-
Page 2: Table Of Contents
Index of contents 8.2 Cleaning the glass panel 8.3 Cleaning the combustion pot Description 8.4 Removing the ash from the combustion General instructions, safety instructions 3 chamber Installation of the pellet stove and 8.5 Cleaning the pellet container connection to the chimney 8.6 Cleaning the flue gas passes and the flue tubes The pellet stove’s functional characteristics... -
Page 3: Description
Congratulations! You are the owner of a HAAS + SOHN pellet stove, a quality product. Please read through these instructions carefully. They will tell you all about rooms that have been unheated for a lengthy period. the functions and operation of this stove, which will... -
Page 4: Installation Of The Pellet Stove And Connection To The Chimney
• • The chimney (fireplace or flue) must be made of Do not lay any laundry on the stove to dry! stainless steel or ceramics (glazed internally) and • suitable for wet operation so that it cannot rot. Clotheshorses for drying clothes and the like must be positioned at sufficient distance from the heating •... - Page 5 Since excess pressure may build up at the smoke outlet Floor protection because of the way that the pellet stove works with an The floor is to be protected from the radiant heat from induced draught fan, all fume outlet pipes as far as the the area of the viewing window (combustion chamber).
-
Page 6: The Pellet Stove's Functional Characteristics
minimum diameter of 5 cm. (The bigger, the better). If the combustion behaviour of the pellet stove for the the pipe goes to the open air, it must end with a situation in the room where it is installed without downward 90°... -
Page 7: Burner Test
for the relationship of the “energy level in the grate” and 1. The room temperature must be at least 1.0ºC the combustion air volume taken in, which ensures “ideal below the set target room temperature. combustion” and a high level of efficiency. 2. -
Page 8: Switching Off - Operating Status Off
6. Description of operator console keys 5.8. Switching off – operating status OFF Procedure: Press the left key on the operator console until the 6.1. Operator console information screen appears. As can be seen in the figure, the display is divided into Press the right key (Menu), then move the cursor to five areas. -
Page 9: Information Screens
Functions of the keys: Left: Display Info screen 1 6.2. Information screens Middle top: Selection up Middle bottom: Selection down 6.2.1 Info screen 1 (Standard screen) Right: Save the selected operating status This screen is always displayed after switching on. Information 6.2.4 Setting the time and date Operating mode:... -
Page 10: Fault Screen
6.2.7 Fault screen In the main menu, place the cursor on “Heating profile” Press the right “Select” key. Fault screen Adjust the value with the two middle keys Thermosensor flue gas Then press the right “Save” key. If you would like to quit this menu screen without saving, Interruption press the left “Back”... -
Page 11: Commissioning Your Pellet Stove
of its position as a result of the transportation or Important: Your HAAS+SOHN Pelletto pellet installation of the stove). • stove may only be operated with standardised wood Check that the combustion pot fits perfectly in its pellets with a 6 mm diameter. frame. -
Page 12: Heating" Operating Mode
7.3.1 “Heating” operating mode Press the right key (Select) The keys on the operator console are explained in Now the programming window for the date and Section time appears In this operating mode the operator may set the desired In the programming window, press right key target room temperature (between 10°C and 30°C) by (Edit). -
Page 13: Example Of Programming For "Monday
between the relevant switch on and switch off We therefore recommend checking and/or times. cleaning the flue gas passes after 1,000 kg of After the completion of the day of the week pellets at the latest. (See Figure 8 a+d). programming, the programming window for this day of the week can be saved and quitted by pressing the left key (Back). -
Page 14: Removing The Ash From The Combustion Chamber
Cleaning the Press the left key on the operator console repeatedly combustion pot may only be done until the Info screen appears – then press the right key with a cooled down stove in “OFF” operating mode. (Menu) – with the two middle keys move the cursor to Otherwise there is a risk of burns! Operating Modes –... -
Page 15: Cleaning The Flue Gas Passes And The Flue Tubes
8.6 Cleaning the flue gas passes and the flue in the right positions. It is essential to replace defective seals. tubes Normally it is sufficient to clean the flue gas passes and the flue tubes once a year. First pull the stove away from the wall so as to create enough room to work at the back. -
Page 16: Description Of The Components
9. Description of the components 9.3 Combustion pot with tray: The combustion pot is made of high-grade stainless 9.1 Storage container (pellet tank) steel. The special design of the combustion pot 17 kg of wood pellets can be stored in the storage guarantees clean and extremely efficient combustion of container. -
Page 17: Control Unit
The pellet stove’s electrical fuses are incorporated into the control unit. To change these fuses you must remove the left side wall. Figure 12: Electrical components 1 = Pellet tank 2 = Flame temperature sensor 3 = Screw conveyor motor 4 = Bottom temperature sensor 5 = Ignition 6 = Control unit... -
Page 18: Backlighting
• 9.8 Flame or combustion chamber temperature Select “Heating” or “Auto” operating mode • sensor (combustion chamber thermosensor) Set up a weekly programme with the desired target room temperature and the associated The flame temperature is measured in “Heating switch on and off times in “Auto” operating mode”... -
Page 19: Oc Overheat Cutout
Figure 17 : Combustion chamber 1 = Combustion chamber cladding, left 2 = Combustion chamber cladding, back 3 = Combustion chamber cladding, right 4 = Flame temperature sensor 5 = Bottom temperature sensor 6 = Combustion pot 7 = Combustion tray 8 = Pellet chute 9 = Door contact switch 9.13 Flue tube connection... - Page 20 T 0.315 A, 250 V T 0.315 A, 250 V Fuses for the ignition, screw conveyor motor, induced draught, (F1,) (F2 reserve) T 3,12 A, 250 V T 3,12 A, 250 V T 3,12 A, 250 V Figure 19: Dimensions of Pelletto 417.08...
- Page 21 Figure 20: Dimensions of Pelletto 432.08 Figure 21: Dimensions of Pallazza 517.08...
-
Page 22: Faults, Causes, Correction
11. Faults, causes, correction You can correct simple faults yourself with the following guide. For further information please consult your specialist dealer. Attention! All devices are equipped with a large number of safety devices. If a fault occurs, you will be shown this on the display. In the event of a fault, leave the mains plug in so that the internal safety functions can continue to operate fully. - Page 23 7. Shutoff, combustion chamber door open 5. Shutoff flue gas temp. in Heating mode too (6) or (9) low (21) Cause: Cause: • The door is open for longer than 1 minute • Temperature fell below the minimum during operation temperature in Heating mode operating •...
- Page 24 Flame temp. sensor interruption (23) power cut Cause: Correction: • Flame temperature sensor defective or Clear the fault on the operator console not connected and restart the device Correction: Bottom flame temp. sensor 2 Contact the service engineer interruption ( 24 ) Cause: •...
- Page 25 back to “Standby” mode, the stove can no longer Correction: be automatically ignited before the combustion Check that the connection cable is chamber has been cleaned. connected to the LED board and to the To clean the combustion chamber, the stove has to central unit be switched to “Off”...
- Page 26 Error, Amtel version ( D6 ) (6102) Correction: Cause: Contact the service engineer • Component fault in the central unit 11.2 General faults Fault: Cause: Correction: Stove will not ignite 1. The set target room Increase the target temperature. temperature is lower than the current room temperature (actual temperature);...
-
Page 27: Type Plate: Symbol
1. Power cut Ventilate room 2. Flue tubes or chimney Clean flue tube or chimney (fireplace) (fireplace) very dirty 12. Type plate: Symbol HAAS + SOHN OFENTECHNIK GMBH Urstein Nord 67, A-5412 Puch Pellet-Kaminofen Pelletto 417.08 Typenbezeichnung: 2,0 - 8,0 kW Wärmeleistungsbereich:... - Page 28 HAAS + SOHN OFENTECHNIK GMBH Urstein Nord 67, A-5412 Puch Pellet-Kaminofen Pallazza 517.08 Typenbezeichnung: 2,0 - 8,0 kW Wärmeleistungsbereich: 8,0 kW Nennwärmeleistung Zugelassener Brennstoff: Holzpellets Ø 6mm (DIN 51731, ÖNorm M 7135, EN14961-2), Bauart: EN 14785 Registrier Nr. RRF-85 10 2533 Prüfstellenkennziffer: 1625...
- Page 29 Figures 22: Replacement parts 417.08/432.08 Figures 23: Replacement parts 517.08...
-
Page 30: Replacement Parts List
13. Replacement parts list 417.08 417.08- C 432.08 517.08 Front plate cast iron grey 0561008046120 0561008046120 Front plate anthracite 0561008006120 0561008006120 0543208006120 0551708016200 Complete combustion chamber 0561008045300 0561008045300 0561008045300 door cast iron grey Complete combustion chamber 0561008005300 0561008005300 0561008005300 door anthracite... -
Page 31: Circuit Diagram
14. Circuit diagram... - Page 32 No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught 35/36 Flue gas temperature sensor 37/38 Flame temperature sensor 39/40 Room temperature sensor 41/42 Bottom flame temperature sensor 43/44 Door contact switch 48-50 Flue gas fan rotation speed Fuse T 3,15A ignition, induced draught fan, screw conveyor motor Fuse T 3,15A reserve Fuse T 0,315A operator console...
-
Page 33: Guarantee
Then you will always have all the important information to hand. HAAS + SOHN gives no guarantee for damage to Please also note the drawings and tables in these or defects in devices or parts there of that have instructions. - Page 34 We accept no liability for changes made after going to press with these instructions. We reserve the right to make changes. Our product range: Oil stoves Stoves Pellet stoves Tile stoves and slow combustion stoves for wood and coal Slow combustion stoves and auxiliary ranges for wood, coal and oil Fireplace inserts for wood Accessories for stoves and fireplaces Accessories for central oil supply...
