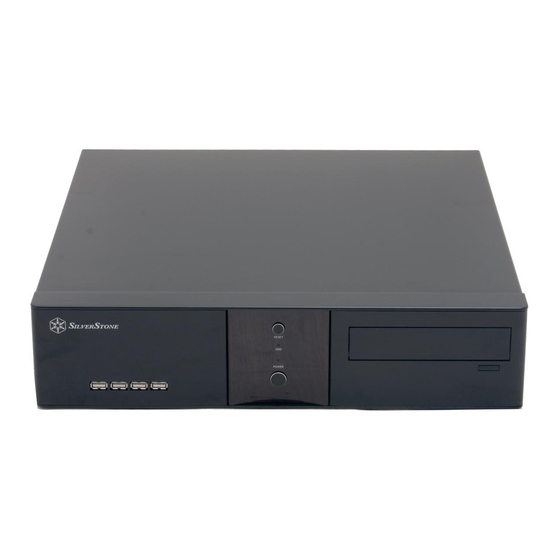

Summary of Contents for SilverStone Lascala LC11
- Page 1 LC11 / LC11M...
-
Page 2: Specification
Product Overview LC11 Specification: Material: Aluminum front panel, 0.8mm SECC body Color: Black & Silver Motherboard: Micro ATX Drive Bay: External - 5.25" x 1 Internal - 3.5" x 3 Cooling System: Front - 80mm intake, 2050rpm, 21dBA Left side - 80mm exhaust, 2050rpm, 21dBA Oversized mesh grill CPU air intake vent Riser Cards: 1 AGP + 2 PCI Expansion Slot: 3... - Page 3 Product Overview LC11M Specification: Material: Aluminum front panel, 0.8mm SECC body Color: Black & Silver Motherboard: Micro ATX Drive Bay: External - 5.25" x 1 Internal - 3.5" x 3 Cooling System: Front - 80mm intake, 2050rpm, 21dBA Left side - 80mm exhaust, 2050rpm, 21dBA Oversized mesh grill CPU air intake vent Riser Cards: 1 AGP + 2 PCI Expansion Slot: 3...
- Page 4 1. Remove LC11 from the carton 2. Remove bottom cushion and plastic bag 3. Rest case on the top cushion with the 4. Remove two lower screws to slide the 5. Unscrew screws securing the 3.5" drive 6. Use #6-32 X 6 screw for securing hard drive from the case (do not peel off the protective bottom of the case facing up bottom cover off the case...
- Page 5 Insert the 4 pin USB connector from the VFD/IR module to your motherboard USB pin header. You can also use the included USB adapter to connect to an external USB port header on the motherboard From the front panel VFD/IR module, locate two Refer to your motherboard manual and connect female single wire leads colored in black and red.
- Page 6 ation...
- Page 7 December , 2005 NO:11400208...
