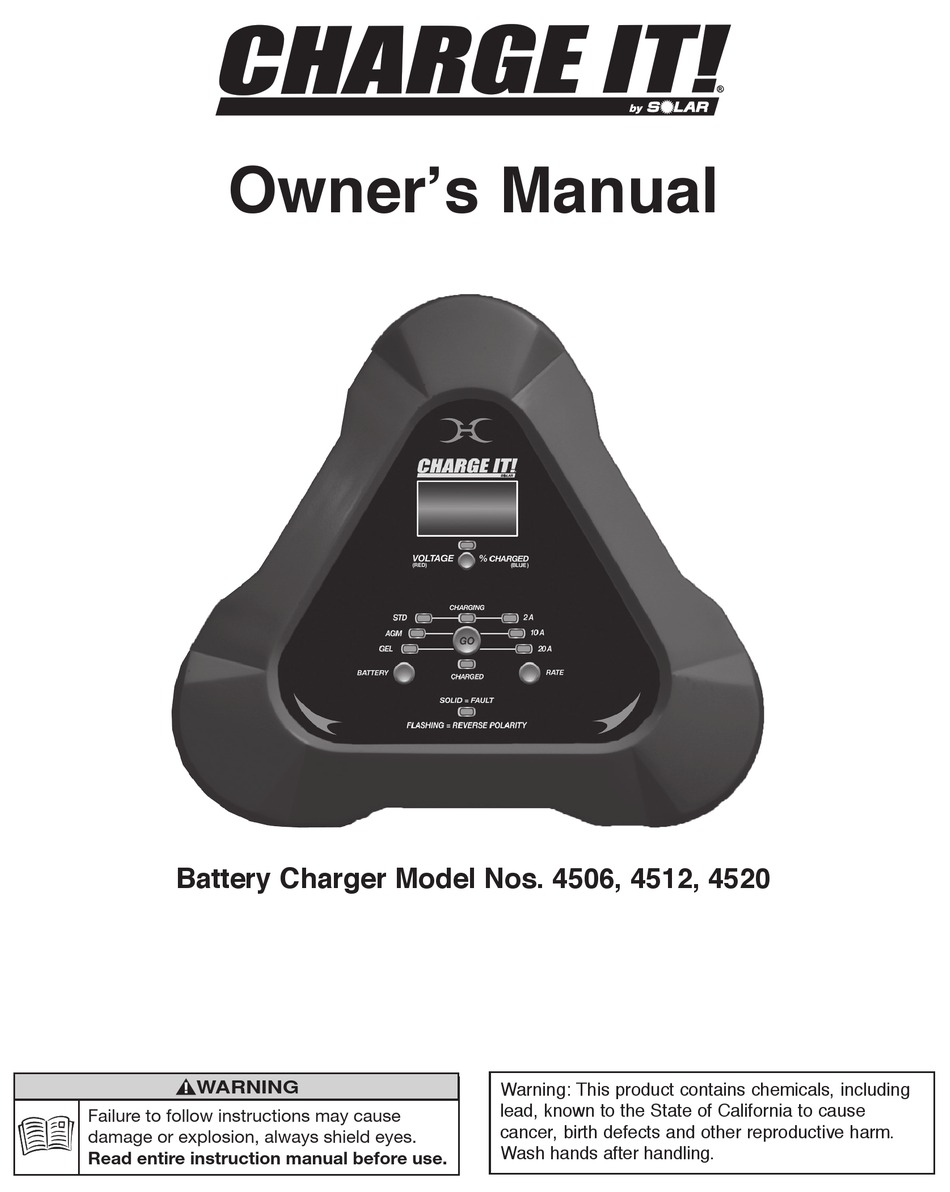

Owner's Manual
Read these instructions completely before using the SOLAR Battery Charger and save them for
future reference. Before using the SOLAR Battery Charger to charge a battery, read these
instructions and the instruction manual/safety information provided by the car, truck, boat or
equipment manufacturer. Following all manufacturers' instructions and safety procedures will
reduce the risk of accident.
Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases
during normal operation, charging and jump starting. Carefully read and follow these instructions for
safe use. Always follow the specific instructions in this manual and on the SOLAR Battery Charger
each time you use the SOLAR Battery Charger.
All lead-acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in
the presence of fire or sparks. Do not smoke, use matches or a cigarette lighter while near
batteries. Do not handle the battery while wearing vinyl clothing because static electricity sparks
are generated when vinyl clothing is rubbed. Review all cautionary material on the SOLAR Battery
Charger and in the engine compartment.
Always wear eye protection, appropriate protective clothing and other safety equipment when
working near lead-acid batteries. Do not touch eyes while working on or around lead-acid batteries.
Always store clamps away from each other or common conductors. Improper storage of clamps
may cause the clamps to come in contact with each other, or a common conductor, which would
be hazardous if the charger was plugged into an AC outlet.
Use extreme care while working within the engine compartment, because moving parts may cause
Battery Charger Model Nos. 4506, 4512, 4520
severe injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
Batteries being charged with the SOLAR Battery Charger unit likely contain liquid acids which are
hazardous if spilled.
WARNING
Failure to follow instructions may cause
damage or explosion, always shield eyes.
Read entire instruction manual before use.
WARNING
Warning: This product contains chemicals, including
lead, known to the State of California to cause
cancer, birth defects and other reproductive harm.
Wash hands after handling.
Advertisement
Table of Contents
Related Manuals for Charge IT 4506
Summary of Contents for Charge IT 4506
- Page 1 AC outlet. Use extreme care while working within the engine compartment, because moving parts may cause Battery Charger Model Nos. 4506, 4512, 4520 severe injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS - READ THESE FIRST WARNING Read these instructions completely before using the Battery Charger and save them for future reference. Before using the Battery Charger to charge a battery, read these instructions and the instruction manual/safety information provided by the car, truck, boat or equipment manufacturer. Following all manufacturers’...
- Page 3 6. To prevent electric shock - Dispose of battery charger contains important safety and operating instructions if cord becomes defective. for Model Nos. 4506, 4512 and 4520. 7. Do not operate charger if it has received a sharp blow, 2. Do not expose charger to rain or snow.
- Page 4 PREPARATION GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS Charger should be grounded to reduce risk of electric shock. Charger is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.
- Page 5 Do not twist or rock clip on the battery after the second clip connection is made. CHARGING A BATTERY THAT IS INSTALLED IN A VEHICLE CAUTION: A MARINE (BOAT) BATTERY MUST BE REMOVED AND CHARGED ON SHORE. TO CHARGE IT ON BOARD REQUIRES EQUIPMENT SPECIALLY DESIGNED FOR MARINE USE.
- Page 6 1. Choose a battery voltage charge setting these are no other hindrances that caused the fault (Model No. 4506 only). The default setting is the 12V indication, will complete the charging process and mode, which will apply to most charging applications.
- Page 7 CHOOSING THE CHARGING RATE For the small batteries found in motorcycles, jet For large batteries found in cars, trucks, vans, SUVs, skis, snowmobiles and lawn tractors, always charge agricultural equipment and commercial vehicles, higher on the lowest possible charge rate setting. It is not charging rates are appropriate.
- Page 8 For best service and to receive periodic product updates, please visit www.cloreregistration.com, click on the CHARGE IT! logo, complete the information in the web form and click “submit.” It’s that easy! For answers to questions concerning use, out-of-warranty service, or warranty/service information on this or other Clore Automotive products, contact Clore Automotive Technical Service at 800.328.2921;...
- Page 10 Manual Del Usario 4506, 4512 y 4520 Cargador de batería INSTRUCCIONES IMPORTANTES DE SEGURIDAD-LEA ESTO PRIMERO...
- Page 11 4506, 4512 and 4520. 7. No opere el cargador se ha sufrido algún impactso 2. No exponga el cargador a la lluvia o nieve.
- Page 12 PREPARACIÓN INSTRUCCIONES DE LA CONNEXION DEL ENCHUFE CON CONNEXION A TIERRA. El cargador debe ser conectado a un enchufe con conexión a tierra para reducir el riesgo de una descarga eléctrica. El cargador viene equipado con un cable y enchufe con conexión a tierra. El enchufe tiene que ser conectado con un toma corriente con conexión a tierra en acuerdo a todas las reglas locales.
- Page 13 CARGA DE UNA BATERÍA INSTALADA EN EL VEHÍCULO ADVERTENCIA: LAS BATERIAS MARINAS (DE EMBARCACIONES) DEBEN SER RETIRADAS PARA CARGARLAS EN TIERRA. SI SE LAS CARGA A BORDO, SE NECESITA UN EQUIPO ESPECIALMENTE DISEÑADO PARA USO MARINO. ADVERTENCIA: SI SE PRODUCEN CHISPAS CERCA DE LA BATERIA SE PUEDE OCASIONAR UNA EXPLOSION. PARA EVITAR EL RIESGO DE CHISPAS CERCA DE LA BATERIA: 1.
- Page 14 (si realiza la carga con la batería en el vehículo) y carga más baja posible. la batería, en secuencia inversa al procedimiento de conexión. 4. Presione el botón “IR” y se encenderá el LED indicador Modelo No. 4506 Modelos No. 4512, 4520 Indicador de carga completa 100%...
- Page 15 SELECCIONAR LA VELOCIDAD DE CARGA Para las pequeñas baterías que se encuentran en Para baterías grandes que se encuentran en autos, motocicletas, motos acuáticas, motonieves y tractores camiones, camionetas, utilitarios, equipos de agricultura de jardín, realice siempre la carga a la menor velocidad y vehículos comerciales, es apropiado utilizar mayores posible.
- Page 16 Para obtener un mejor servicio y recibir actualizaciones periódicas del producto, visite www.cloreregistration.com, haga clic en el logotipo de CHARGE IT! , complete con la información que le solicita el formulario del sitio y haga clic en “Submit” (Enviar). ¡Es así de fácil! Para obtener respuestas acerca del uso, el servicio luego de la garantía o información acerca de la garantía y el servicio...
- Page 17 Manuel De L’utilisateur 4506, 4512, et 4520 Chargeur de batterie CONSIGNES DE SÉCURITÉ IMPORTANTES – À LIRE EN PREMIER This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
- Page 18 6. Pour éviter un choc électrique – Mettez le chargeur de contient d’importantes consignes de sécurité et batterie au rebut si le cordon s’avère être défectueux. l’utilisation de la batterie du modèle chargeur 4506, 4512 and 4520. 7. Ne pas utiliser le chargeur s’il a reçu un choc violent, 2.
- Page 19 PRÉPARATION NSTRUCTIONS DE MISE À LA TERRE ET DE CONNEXION DU CORDON C.A. Le chargeur doit être mis à la masse afin de réduire le risque d’électrocution. Le chargeur est muni d’un cordon électrique pourvu d’un conducteur de mise La fiche doit être branchée dans une prise adéquatement installée et mise à la terre conformément aux règlements et codes en vigueur.
- Page 20 CHARGE D’UNE BATTERIE INSTALLÉE DANS UN VÉHICULE ATTENTION : UNE BATTERIE MARINE (SUR UN BATEAU) DOIT ÊTRE DÉPOSÉE ET CHARGÉE À TERRE. À BORD DU BATEAU, CETTE OPÉRATION NÉCESSITE UN ÉQUIPEMENT SPÉCIALEMENT CONÇU POUR LES APPLICATIONS MARINES. ATTENTION : LA PRODUCTION D’ETINCELLES AUTOUR D’UNE BATTERIE PEUT EN PROVOQUER L’EXPLOSION. POUR RÉDUIRE LES RISQUES D’ÉTINCELLES PRÈS DES BATTERIES: 1.
- Page 21 1. Choisissez un réglage de tension de batterie (modèle provoque la situation de « défaut » est une tension 4506 uniquement). Le réglage par défaut est le mode de batterie inférieure à 1 V, vous pouvez annuler 12 V, qui s’applique à la plupart des applications de la protection du chargeur en maintenant le bouton charge.
- Page 22 CHOIX DU TAUX DE CHARGE Pour les petites batteries que l’on trouve dans les Pour les grosses batteries que l’on trouve dans les motocyclettes, les motomarines, les motoneiges, les voitures, les camions, les fourgons, les SUV, le matériel tracteurs de jardin, chargez toujours sur le réglage de agricole et les véhicules commerciaux, des taux de tour de charge le plus bas possible.
- Page 23 Pour recevoir le meilleur service et des mises à niveau périodiques du produit, veuillez visiter www.cloreregistration.com, cliquez sur le logo CHARGE IT!, renseignez les informations sur le formulaire Web et cliquez sur « soumettre ». Ce n’est pas plus compliqué que cela ! Pour obtenir à...
- Page 24 Battery Charger Model Nos. 4506, 4512, 4520 Warning: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects and other reproductive harm. Wash hands after handling. ©2011 Clore Automotive 842-453-000...
Need help?
Do you have a question about the 4506 and is the answer not in the manual?
Questions and answers
How to charge a completely dead battery.
To charge a completely dead battery (with voltage below 1V) using the Charge IT! 4506 charger, follow these steps:
1. Ensure all connections are correct and check for any faults.
2. If the ERROR Indicator LED lights up, it may indicate a battery fault.
3. If the battery voltage is below 1V, the charger will indicate a fault.
4. To override this protection, hold down the “GO” button for 3 seconds.
5. The charger will start the charging sequence.
6. If no other issues are present, the charger will complete the charging process and automatically turn off when the battery is fully charged.
