IF YOU NEED TO REPLACE THE BATTERIES
1.
Contact your local authorized Clarke distributor for proper batteries.
2.
Set the machine and the on-board charger (if equipped) according to the type of batteries (WET or GEL/AGM). Follow battery installation
instructions as outlined below.
INSTALLING BATTERY AND SETTING BATTERY TYPE (WET OR GEL/AGM)
According to the battery type(WET or GEL/AGM) set the electric circuit board on the on-board charger. The procedures are as follows:
1.
Make sure the battery connector (9) is disconnected. If the machine is based on "AGM" battery
at the factory, go directly to Step 8; otherwise, complete Steps 2, 3, and 4.
2.
Remove drain hose (15)
3.
If equipped with on-board charger, please take off the charge wire from the reel.
4.
Take off the control cover (5), and the battery cover screws (10). Remove the screws on the
PCB stand. The DIP switch (B) for setting the battery model can be seen when fl ipping over the
PCB board. (See Figure 5)
5.
Adjust the micro DIP switch (B) to the position of "WET",
6.
Complete Steps 3, 4 and 5 in reverse order.
INSTALLING BATTERIES
7.
Disconnect the battery connector (9).
8.
Open the recovery tank cover (25) and check if the recovery tank is empty or not; if not, empty
it through drain hose (15).
9.
Unscrew the squeegee mount knob (16), remove the squeegee vacuum hose (11), and then
remove the squeegee.
10.
Unscrew the screws of the battery cover (10) and remove the cover.
11.
Unscrew the squeegee lift cable (12) connecting to the squeegee bracket (19), and place the cable to the side.
12.
Hang drain hose (15) and the vacuum hose (11) upwards.
13.
According to the size of the battery, push the fi xation board in the battery box all the way inwards.
NOTE
The dimension of the battery must not exceed: H x W x H: 330mm x 170mm x 260mm.
According to the varying dimensions of batteries, the requirements for the selection of fi xed batteries are as follows:
1)
For battery with length below 270mm, use 2 pieces of the fi xation board (B, Figure 6) and place them side by side inside the water tank
battery;
2)
For battery with length between 310mm-270mm, use 1 piece of the fi xation board (B, Figure 6) and place it in the water tank battery;
3)
For battery with length between 330mm -310mm, there is no need for the fi xation board to fi x the position.
7/2014
INSTRUCTIONS FOR USE

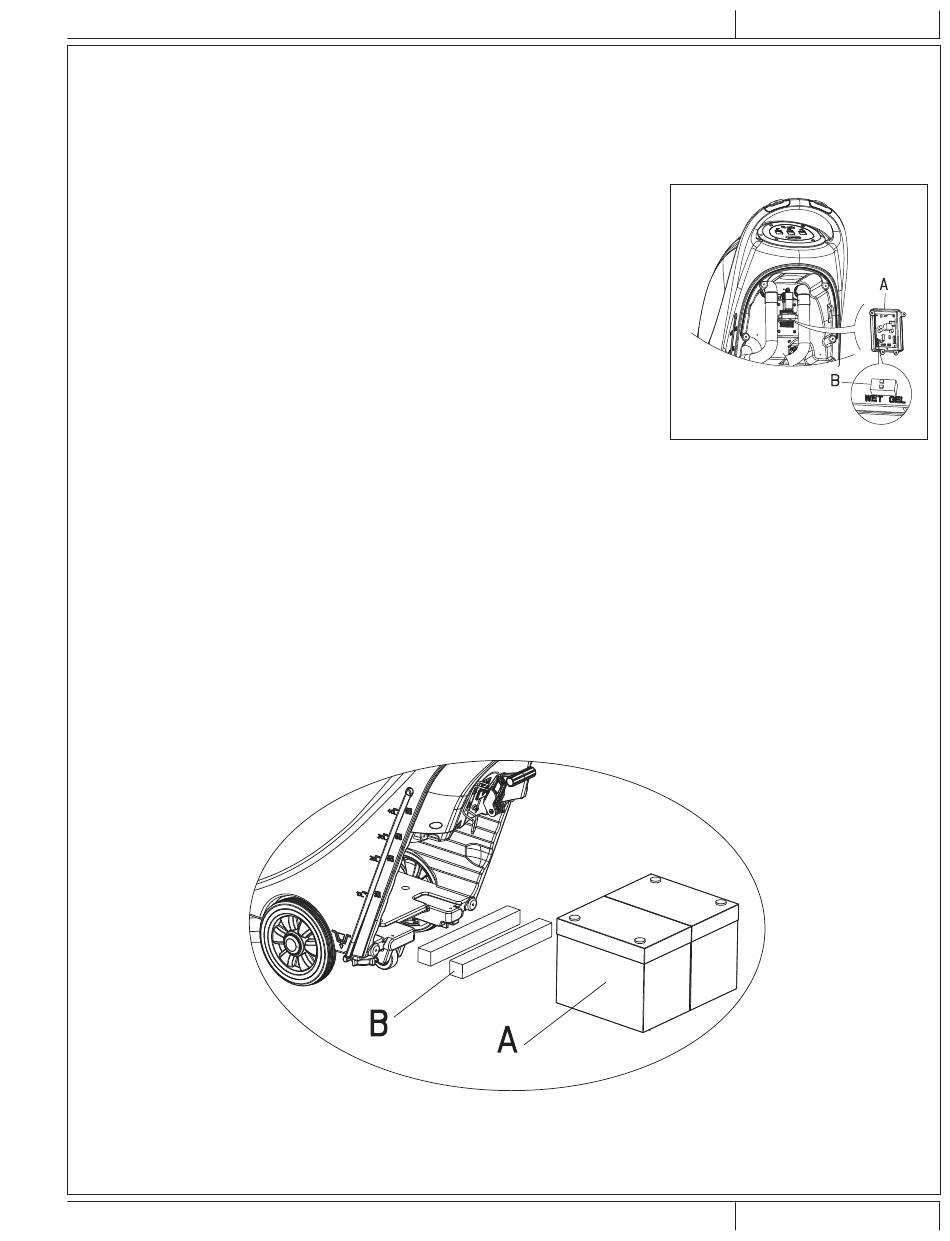

FIGURE 6
56091130 - CA30 20B
ENGLISH - A
FIGURE 5
A - 9
