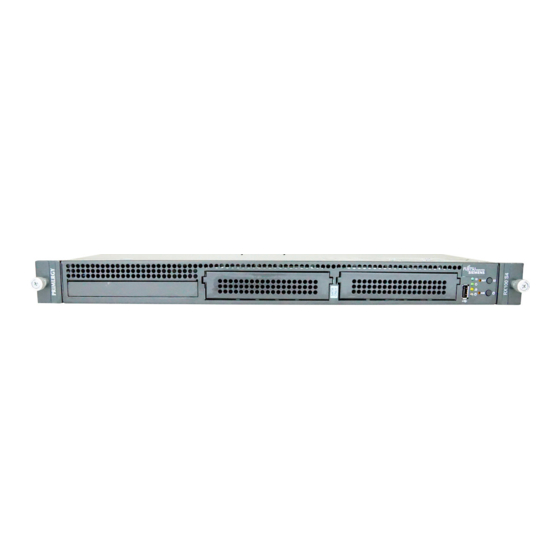

PRIMERGY RX100 S4 Server
Operating manual
Edition November 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMERGY RX100 S4 Server and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu PRIMERGY RX100 S4 Server

Summary of Contents for Fujitsu PRIMERGY RX100 S4 Server

  • Page 1 PRIMERGY RX100 S4 Server Operating manual Edition November 2006...

  • Page 2: Copyright And Trademarks

    Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2006 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.

  • Page 3: Table Of Contents

    Contents Introduction ......7 Documentation overview ....7 Features .
  • Page 4 Contents Starting up and operation ....49 Controls and displays ..... . 49 5.1.1 Front of server .
  • Page 5 Contents Literature ....... . . 77 Index ........79 Operating manual RX100 S4...

  • Page 7: Introduction

    Thanks to its highly developed hardware and software components, the PRIMERGY RX100 S4 server offers a high level of data security and availability. These include the ServerView server management software, Prefailure Detection and Analysing (PDA) and Automatic Server Reconfiguration and Restart (ASR&R).
  • Page 8 – “Returning used devices” manual (PDF file available on the ServerBooks DVD supplied) – “Helpdesk” (leaflet with worldwide helpdesk telephone numbers) – “PRIMERGY RX100 S4 Server System Options Guide” (PDF file available on the ServerBooks DVD supplied) – Technical Manual for the D2532 system board (PDF file available on the ServerBooks DVD supplied) –...

  • Page 9: Features

    Introduction Features Further sources of information: – Technical Manual for the relevant rack – Manual for the monitor – Manual on ServerView Server Management – Manual for the remote testing and diagnostic system RemoteView – Documentation for boards and drives –...
  • Page 10 Features Introduction The server can optionally be upgraded with a SATA backplane. The SATA hard disk drive modules then have a wireless connection via the SATA interface. This allows hard disk drive modules to be easily plugged in or removed. If the server has a corresponding RAID configuration, defective HDD modules can also be replaced during operation.
  • Page 11 Server management is implemented using the ServerView software supplied combined with PDA (Prefailure Detection and Analyzing) technology from Fujitsu Siemens. PDA reports the threat of a system error or overload at an early stage, allowing preventive measures to be taken.
  • Page 12 With the iRMC (integrated Remote Management Controller) on the system board and the optional remote testing and diagnostic system RemoteView, the PRIMERGY RX100 S4 server can also be maintained and serviced remotely. This enables remote diagnosis for system analysis, remote configuration and remote restart should the operating system or hardware fail.
  • Page 13 Introduction Features RemoteView RemoteView is the remote management solution from Fujitsu Siemens Computers for Intel-based PRIMERGY systems. RemoteView and the relevant hardware components integrated on the system board allow remote monitoring and maintenance as well as fast restoration of operation in the event of errors.

  • Page 14: Notational Conventions

    Notational conventions Introduction Notational conventions The following notational conventions are used in this manual: indicate commands, menu items or software programs. Italics “Quotation marks” indicate names of chapters and terms that need to be emphasized. indicates activities that must be performed in the order Ê...

  • Page 15: Technical Data

    Introduction Technical data Technical data Electrical data Rated voltage range 100 V - 127 V or 200 V - 240 V Frequency 50 Hz - 60 Hz Rated current with basic configuration 100 V - 240 V / 1.94 A - 0.96 A Max.
  • Page 16 Technical data Introduction Mechanical values Width 430 mm Depth 560 mm Height 42.5 mm or 1 HU Weight Approx. 12 kg (depending on configuration). Ventilation clearance At least 200 mm on the front and rear Environmental conditions Environment class 3K2 EN 60721 / IEC 721 Section 3-3 Environment class 2K2 EN 60721 / IEC 721 Section 3-2...

  • Page 17: Installation Steps: Overview

    Installation steps: Overview This chapter contains an overview of the steps necessary to install your server. Links guide you to sections where you can find more detailed information on the individual steps: Ê First of all, it is essential that you familiarize yourself with the safety infor- mation in chapter “Important information”...
  • Page 18 Installation steps: Overview Ê Configure the server and install the desired operating system and applica- tions. The following options are available: – Remote configuration and installation with ServerStart: The ServerStart Disc supplied allows you to conveniently configure the server and install the operating system. Details on how to operate ServerStart, as well as some additional infor- mation, can be found in the “PRIMERGY ServerView Suite - ServerStart”...

  • Page 19: Important Information

    Important information In this chapter you will find essential information regarding safety when working on your server. Safety The following safety instructions are also provided in the manual “Safety notes and other important information”. This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended surroundings, contact your sales outlet or our customer service team.
  • Page 20 Safety Important information Before starting up CAUTION! During installation and before operating the device, observe the instructions on environmental conditions for your device (see section “Technical data” on page 15). If the server has been moved from a cold environment, condensation may form both inside and on the outside of the machine.
  • Page 21 Important information Safety CAUTION! Always connect the server and the attached peripherals to the same power circuit. Otherwise you run the risk of losing data if, for example, the central processing unit is still running but a peripheral device (e.g. memory subsystem) fails during a power outage.
  • Page 22 Safety Important information CAUTION! Only install system expansions that satisfy the requirements and rules governing safety and electromagnetic compatibility and those relating to telecommunication terminals. If you install other expan- sions, they may damage the system or violate the safety regulations. Information on which system expansions are approved for installation can be obtained from our customer service center or your sales outlet.
  • Page 23 Important information Safety Batteries CAUTION! Incorrect replacement of batteries may lead to a risk of explosion. The batteries may only be replaced with identical batteries or with a type recommended by the manufacturer (see the technical manual for the system board under “Literature”...
  • Page 24 Safety Important information Working with CDs/DVDs and CD/DVD drives When working with devices with CD/DVD drives, these instructions must be followed. CAUTION! Only use CDs/DVDs that are in perfect condition in your server's CD/DVD drive, in order to prevent data loss, equipment damage and injury.
  • Page 25 Important information Safety Modules with Electrostatic-Sensitive Devices Modules with electrostatic-sensitive devices are identified by the following sticker: Figure 1: ESD label When you handle components fitted with ESDs, you must always observe the following points: Switch off the system and remove the power plugs from the power outlets before installing or removing components with ESDs.

  • Page 26: Ce Conformity

    CE conformity Important information Other important information: During cleaning, observe the instructions in section “Cleaning the server” on page Keep this operating manual and the other documentation (such as the technical manual, CD) close to the device. All documentation must be included if the equipment is passed on to a third party.
  • Page 27 Consult the dealer or an experienced radio/TV technician for help. Fujitsu Siemens Computers is not responsible for any radio or television inter- ference caused by unauthorized modifications of this equipment or the substi- tution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers.
  • Page 28 FCC Class A Compliance Statement Important information 增大设备与接收器之间的距离。 将设备和接收器连接至不同的电路。 与代理商或有经验的无线电 / 电视技术人员联系，获得有关帮助。 如果擅自修改本设备，或者更换或连接了非 Fujitsu Siemens Computers 指定的 电缆和设备，从而引起任何无线电或电视干扰， Fujitsu Siemens Computers 概 不负责。对由于此类擅自修改、更换或连接而引起的干扰，用户必须自行负责 予以纠正。 将本设备连接至某些和所有可选外围设备或主机设备时，必须使用屏蔽 I/O 电 缆。否则，可能会违反 FCC 和 ICES 规定。 声明： 此为 A 级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况 下，可能需要用户对其干扰采取可行的措施。 TW: 符合 FCC A 類標準聲明...

  • Page 29: Transporting The Server

    Important information Transporting the server 如果擅自修改本設備，或者更換或連接了非 Fujitsu Siemens Computers 指定的 纜線和設備，從而引起任何無線電或電視干擾，Fujitsu Siemens Computers 概 不負責。對由於此類擅自修改、更換或連接而引起的干擾，使用者必須自行負 責予以修正。 將本設備連接至某些和所有可選周邊設備或主機設備時，必須使用屏蔽 I/O 纜 線。否則，可能會違反 FCC 和 ICES 規定。 聲明 此為 A 級產品，在生活環境中，該產品可能會造成無線電干擾。在這種情況 下，可能需要用戶對其干擾採取可行的措施。 Transporting the server CAUTION! Only transport the server in its original packaging or in packaging that protects it from impacts and jolts.

  • Page 30: Rack Installation Instructions

    Rack installation instructions Important information Rack installation instructions When connecting and disconnecting cables, follow the instructions in the “Important information" chapter in the documentation for the corresponding rack. The technical manual for the rack is supplied along with the rack itself. When installing the rack, make sure that the anti-tilt mechanism is correctly fitted.

  • Page 31: Environmental Protection

    Environmental protection Environmental protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu Siemens Computers standard for “environmentally friendly product design and devel- opment”. This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of dismantling and recycling have been taken into account.
  • Page 32 Details regarding the return and recycling of devices and consumables within Europe can also be found in the “Returning used devices” manual, via your local Fujitsu Siemens Computers branch or from our recycling center in Paderborn: Fujitsu Siemens Computers Recycling Center D-33106 Paderborn Tel.

  • Page 33: Hardware Installation

    Hardware installation CAUTION! Follow the safety instructions in chapter “Important information” on page The server should not be exposed to extreme environmental conditions (see section “Technical data” on page 15). Protect it from dust, humidity, and heat. The server must be given time to acclimatize to its operating environment (acclimatization time) before commencing operation.

  • Page 34: Unpacking The Server

    Unpacking the server Hardware installation Unpacking the server CAUTION! Follow the safety instructions in chapter “Important information” on page Do not unpack the server until it is at its installation location. You should retain the original server packaging in case further transportation is necessary.

  • Page 35: Installing/Removing The Server In/From The Rack

    Hardware installation Installing/removing the server in/from the rack Installing/removing the server in/from the rack CAUTION! Follow the safety instructions in chapter “Important information” on page 19 and section “Rack installation instructions” on page The rack can tip over when more than one unit is removed. CAUTION! The server does not have cable management in the rack.

  • Page 36: Rack Requirements

    The power is supplied via the multiple socket outlets fitted in the rack. The main features of the rack systems from Fujitsu Siemens Computers are as follows: PRIMECENTER Rack –...
  • Page 37 Hardware installation Installing/removing the server in/from the rack 3rd party rack Certain general conditions must be met: – Installation dimensions (see the dimensions shown in figure 2 on page 38): Front of rack Rear of rack Rack depth (comparison PRIMECENTER Rack 940/1000 mm) Rack width (comparison PRIMECENTER Rack 700 mm) Clearance for 19”...
  • Page 38 Installing/removing the server in/from the rack Hardware installation – Power supply: For installation in 3rd party racks it must be ensured that the appropriate socket strips are present. Figure 2: Mechanical requirements Operating manual RX100 S4...

  • Page 39: Installation In Primecenter/Datacenter Rack

    Hardware installation Installing/removing the server in/from the rack 4.3.2 Installation in PRIMECENTER/DataCenter Rack For installation in a PRIMECENTER/DataCenter Rack, the following parts are required: – support bracket – one left and one right telescopic rail (assembled) – M5x10 screws with integrated plugwashers General information is provided in the Technical Manual for the PRIME- CENTER and/or DataCenter Rack (see “Literature”...
  • Page 40 Installing/removing the server in/from the rack Hardware installation Remove the outer telescopic rail Figure 4: Remove the outer telescopic rail Ê Extend the telescopic rail fully (1). Ê Press the release spring (2) and remove the server rail. Ê Repeat both steps with the second telescopic rail. No nuts are required to secure the telescopic rails as the fixing holes on the rails are threaded.
  • Page 41 Hardware installation Installing/removing the server in/from the rack Installing the telescopic rail with variable support Figure 5: Fit the left telescopic rail in the PRIMECENTER/DataCenter Rack Ê Position the left-hand rail (1) in the support bracket with the vertical lug (a) in the middle square catch.

  • Page 42: Installation In 3Rd Party Racks

    Installing/removing the server in/from the rack Hardware installation 4.3.3 Installation in 3rd party racks The following parts are required to install the server in 3rd party racks: – one left and one right telescopic rail (assembled) – M5x10 screws with integrated plugwashers Ê...

  • Page 43: Inserting The Server

    Hardware installation Installing/removing the server in/from the rack 4.3.4 Inserting the server Figure 6: Preparing the server Ê Place the server rails on the three screws on both sides of the server and slide the server rails forwards to secure them (1). The safety spring (2) must engage with an audible click.
  • Page 44 Installing/removing the server in/from the rack Hardware installation Figure 7: Inserting the server Ê Push the prepared server into the rails that are attached to the rack until the server rails engage. Ensure that the server is inserted horizontally and is not tilted. Ê...

  • Page 45: Connecting Devices To The Server

    Hardware installation Connecting devices to the server Connecting devices to the server The ports for external devices are on the front and rear of the server. The additional ports available on your server depend on the PCI boards installed. The standard ports on the rear are marked with symbols, and some are color- coded: Figure 8: Ports on the rear 1 Serial port (COM1)

  • Page 46: Connecting The Monitor

    Connecting the server to the mains Hardware installation 4.4.1 Connecting the monitor Ê Plug the data cable for the monitor into the monitor port (4) on the server. Ê Connect the insulated connector on the monitor power cable to a grounded outlet in the rack's socket strip (see also Technical Manual for the rack).

  • Page 47: Instructions For Connecting/Disconnecting Cables

    Hardware installation Instructions for connecting/disconnecting cables Instructions for connecting/disconnecting cables CAUTION! Make sure you read the documentation for the external devices before connecting them. Do not connect or disconnect data cables during a thunderstorm. When removing a cable, always hold it by the plug not by the actual cable.

  • Page 49: Starting Up And Operation

    Starting up and operation CAUTION! Follow the safety instructions in chapter “Important information” on page Controls and displays 5.1.1 Front of server 4 5 6 7 Figure 9: Controls and displays on the front panel (hot plug system) CD/DVD indicator (green) Lights up green when the storage medium is being accessed.
  • Page 50 Controls and displays Starting up and operation ID indicator (blue) Lights up blue when the system has been selected by pressing the ID button (7). To deactivate, press the button again. The ID indicator lights up synchronously with the corresponding display on the rear of the server.
  • Page 51 Starting up and operation Controls and displays Global error indicator (amber) Does not light up when the system is OK. No service incident or critical event has occurred. Flashes amber when a critical event has occurred. Users can check for event details in the BIOS Setup, the system and event log or via ServerView.
  • Page 52 Controls and displays Starting up and operation Hot pluggable hard disk drive indicators Figure 10: Hot pluggable HDD module: Indicators HDD BUSY green – Lit: HDD in active phase (drive active, drive being accessed) – Not lit: HDD inactive HDD FAULT amber –...

  • Page 53: Rear Of Server

    Starting up and operation Controls and displays 5.1.2 Rear of server Indicators on connection panel (global error indicator and ID indicator) Figure 11: Global error indicator and ID indicator 1 Global error indicator (amber) Does not light up when the system is OK. No service incident or critical event has occurred.
  • Page 54 Controls and displays Starting up and operation Indicators on the connection panel (LAN indicators) Figure 12: LAN indicators 1 LAN connection/Active indicator (green) Lights up green if a LAN connection exists. Does not light up if no LAN connection exists. Flashes green when a LAN transfer is in progress.

  • Page 55: Switching The Server On And Off

    Starting up and operation Switching the server on and off Switching the server on and off The indicators and controls for switching on and off can be found in Figure 9 on page 49 or in table 2 on page CAUTION! It nothing appears on the screen but flickering stripes after switching on the server, switch the server off immediately (see chapter...
  • Page 56 Switching the server on and off Starting up and operation Other on/off options In addition to the On/Off button, the server can be switched on and off in the following ways: – Specified switch on time / switch off time The server is switched on or off at a time specified in the ServerView program.

  • Page 57: Configuring The Server

    Starting up and operation Configuring the server Configuring the server This section contains information about configuring the server and installing the operating system. Make sure that the energy saving functions are disabled in the BIOS Setup during server operation. 5.3.1 Hard disk drive write cache By default, the hard disk drive write cache is deactivated.

  • Page 58: Configuration With Serverstart

    Configuring the server Starting up and operation Using Global Array Manager (GAM) The hard disk drive write cache must always have the same setting for all connected hard disk drives. Support for Write Cache is set using the RAID Assist Wizard in the Global Array Manager during RAID configuration.
  • Page 59 Starting up and operation Configuring the server Configuring the onboard SATA controller The server is equipped with an onboard SATA controller, which supports RAID levels 0 and 1 with LSI SATA Software RAID. Configure the controller before you start using ServerStart. The controller has its own configuration utility.

  • Page 60: Configuration Without Serverstart

    Configuring the server Starting up and operation 5.3.3 Configuration without ServerStart Configuring IME (RAID level 1) The server has an onboard SAS controller with “Integrated Mirroring Enhanced” functionality. A separate utility is available to the controller for IME configuration. For further information, refer to the “Integrated RAID for SAS User’s Guide”...

  • Page 61: Cleaning The Server

    Starting up and operation Cleaning the server Installing the operating system Ê Insert the CD for the operating system you want to install. Ê Reboot the server. Ê Follow the instructions on screen and in the manual for the operating system.

  • Page 63: Property And Data Protection

    Property and data protection The lockable rack door protects the server against unauthorized access. To protect your system and data internally against unauthorized access, you can activate the security functions using the BIOS Setup. BIOS Setup security functions The System Security menu in the BIOS Setup offers you various options for protecting your data from unauthorized access.

  • Page 65: Troubleshooting And Tips

    Troubleshooting and tips CAUTION! Follow the safety instructions in the “Safety notes and other important information” manual and in chapter “Hardware installation” on page If a fault occurs, attempt to resolve it using the measures described: – in this chapter, –...

  • Page 66: Server Switches Itself Off

    Server switches itself off Troubleshooting and tips Server switches itself off Server Management has detected an error Ê Check the error list or the ErrorLog file in the ServerView program, and attempt to eliminate the error. Screen remains blank Monitor is switched off Ê...

  • Page 67: Flickering Stripes On Monitor Screen

    Troubleshooting and tips Flickering stripes on monitor screen Flickering stripes on monitor screen CAUTION! Switch off the server immediately. Risk of damaging the server. Monitor does not support the set horizontal frequency Ê Find out which horizontal frequency your monitor screen supports. You will find the horizontal frequency (also known as line frequency or horizontal deflection frequency) in the documentation for your monitor.

  • Page 68: Incorrect Date And Time

    Incorrect date and time Troubleshooting and tips Mouse controller disabled The mouse controller on the system board must be enabled if you are using the mouse supplied. Ê Check in the BIOS Setup that the mouse controller is set to Enabled. Incorrect date and time Ê...

  • Page 69: Hot Pluggable Hard Disk Drives

    Hot pluggable hard disk drives A maximum of two SAS or SATA hard disk drives can be installed in the PRIMERGY RX100 S4 server. There is a "hot pluggable" and a "non-hot pluggable" SATA server version. If your server is a non-hot pluggable SATA server version, this chapter is not relevant to you.

  • Page 70: Handling Hdd Modules

    Handling HDD modules Hot pluggable hard disk drives CAUTION! To prevent damage to the connectors and loss of data, only SATA hard disks may be used in the SATA server version. To prevent damage to the connectors and loss of data, only SAS or only SATA hard disk drives may be used in the SAS server version.
  • Page 71 Hot pluggable hard disk drives Handling HDD modules CAUTION! The HDD module must be acclimatized in its operating environment for a set acclimatization time. Temperature difference (°C) Minimum acclimatization time (operating environment/outside) (hours) Table 6: Acclimatization times for HDD module Ê...

  • Page 72: Installing/Removing Hdd/Dummy Unit

    Handling HDD modules Hot pluggable hard disk drives 8.1.1 Installing/removing HDD/dummy unit Removing the dummy unit Free slots are provided with a dummy unit (an empty assembly bracket) which must be removed before installing an additional HDD module. Figure 13: Removing the dummy unit Ê...
  • Page 73 Hot pluggable hard disk drives Handling HDD modules Unlocking an HDD module Figure 14: Unlocking a hot pluggable HDD module Ê Open the locking mechanism by pressing the locking button (1). If the HDD modules are provided with a transport lock (1 in the figure below) remove this before you open the locking mechanism.
  • Page 74 Handling HDD modules Hot pluggable hard disk drives Installing the HDD module Figure 16: Installing a hot pluggable HDD module Ê With the handle extended, carefully slide the HDD module as far as possible into the free slot (1). Ê Push the handle completely back to its original position (2) until the locking mechanism is engaged.
  • Page 75 Hot pluggable hard disk drives Handling HDD modules Replacing the HDD module If you want to replace a hot pluggable HDD module during operation, proceed as follows: Ê Pull out the HDD module a few centimeters. CAUTION! Under no circumstances should you remove an HDD module while the system is in operation if you are not sure whether the hard disk drive is operated by a RAID controller and belongs to a disk array which is operating at RAID level 1.

  • Page 77: Literature

    Internet as PDF files. The overview page showing the online documentation available on the Internet can be found at the URL: http://manuals.fujitsu-siemens.com. The PRIMERGY server documentation can be accessed using the Industry standard servers navigation option. Safety notes and other important information...
  • Page 78 Literature [12] PRIMERGY ServerView Suite ServerView S2 Server management User manual [13] PRIMERGY ServerView Suite ServerView Server management User manual [14] PRIMERGY ServerView Suite RemoteView User manual [15] ServerView RAID User manual [16] PRIMECENTER Rack Technical manual [17] DataCenter Rack Technical manual [18] Global Array Manager Client Software...

  • Page 79: Index

    Index Data protection 3rd party rack Data security installing in DataCenter Rack, requirements requirements Date, incorrect Delivery note 17, Devices, connecting to server Acclimatization time 33, Disconnecting cables ASR&R Disposal, devices Availability Dummy unit, HDD module 72, BIOS security functions Electrical data update Electromagnetic compatibility 15,...
  • Page 80 Index incorrect time CD/DVD drive no display on monitor global error indicator 51, no mouse pointer HDD busy screen shows flickering HDD fault stripes hot pluggable hard disk drive system does not boot ID indicator 50, FCC statement LAN connection/active Features LAN transfer rate Flash EPROM...
  • Page 81 Index Notational conventions Integrated Mirroring Enhanced SATA RAID controller On/Off button Saving energy Onboard SATA controller Screen Operating system, installation error message Operation flickering Overload remains blank shows flickering stripes Security functions Packaging 31, setup password system password Ports Server keyboard port configuration 12, LAN port...
  • Page 82 Index serial port standards Weight starting up Write cache, enable switches itself off (error) switching off switching on technical data transportation troubleshooting unpacking USB port ventilation clearance weight Server management ServerStart 12, ServerView supported functions Setup password Standards Support bracket Switch off time, definition Switch on time, definition Switching off, server...
  • Page 83 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 85221 Ottobrunn Germany Corrections Fax: (+49) 700 / 372 00000 e-mail: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on PRIMERGY RX100 S4 Server Operating manual RX100 S4...
