KVT-915DVD,925DVD,935DVD
KVT-945DVD,965DVD
QQ
3 7 63 1515 0
KVT-925DVD (E, W type)
Monitor Section
Picture size .............................................................. 6.95 inches wide
Display system ........................................ Transparent TN LCD panel
Drive system ............................................. TFT active matrix system
Number of pixels ............................... 336,960 (480H x 234V x RGB)
Effective pixels ...................................................................... 99.99%
Pixel arrangement .................................... RGB striped arrangement
Back lighting .................................... Cold Cathode Fluorescent Tube
DVD Section
D/A Converter ........................................................................... 24Bit
A/D Converter ........................................................................... 20Bit
Decoder
..... Linear PCM/Dolby Pro Logic II/Dolby digital/dts/MLP/MP3/WMA
Wow & Flutter .............................................. Below Measurable Limit
Frequency response
(Sampling frequency; 192k) ...................................... 20~88,000Hz
(Sampling frequency; 176.4k) ................................... 20~80,000Hz
(Sampling frequency; 96k) ........................................ 20~44,000Hz
(Sampling frequency; 88.2k) ..................................... 20~40,000Hz
(Sampling frequency; 48k) ........................................ 20~22,000Hz
(Sampling frequency;44.1k) ..................................... 20~20,000Hz
Total harmonic distortion (1k) ................................................ 0.003%
Signal to Noise ratio .................................. 100dB (DVD-Audio 192k)
Dynamic range .......................................... 100dB (DVD-Audio 192k)
DISC Format .................. DVD-Audio/DVD-Video/VIDEO-CD/CD-DA
Sampling frequency
TE
L 13942296513
......................... 44.1kHz/48kHz, 88.2kHz/96kHz, 176.4kHz/192kHz
Quantifying bit number ..................................................... 16/20/24bit
DSP Section
4 BAND Parametric equalizer
BAND1 frequency .......................... 60/80/100/120/160/200/250Hz
BAND2 frequency ............................... 315/400/500/630/800/1kHz
BAND3 frequency .......................... 1.25k/1.6k/2k/2.5k/3.15k/4kHz
BAND4 frequency .............................. 5k/6.3k/8k/10k/12.5k/16kHz
Gain ................................................. -9/-7/-5/-3/-2/-1/0/1/2/3/5/7/9dB
Q control .................................................................. 0.25/0.5/1.0/2.0
X'over
High pass filter
Fequency .................................. 30/60/70/80/90/100/120/150Hz
Slope ........................................................................ 12/18/24dB
Low pass filter
Frequency ...................................... 60/70/80/90/100/120/150Hz
Slope ........................................................................ 12/18/24dB
Time alignment ................................................... 0~6.1m (5cm Step)
Channel level .......................................................................... ±10dB
FM Tuner Section
Frequency range (50kHz) ........................................ 87.5~108.0MHz
Usable sensitivity (S/N=26dB) ........................... 9.3dBf (0.7µV/75Ω)
Quieting sensitivity (S/N=46dB) ....................... 15.2dBf (1.6µV/75Ω)
Frequency response (±3.0dB) ....................................... 30Hz~15kHz
S/N (MONO) ............................................................................. 70dB
Selectivity (±400kHz) ....................................................... Over 80dB
Stereo separation .......................................................... 35dB (1kHz)
www
LW Tuner Section
Frequency range (9kHz) ......................................... 153kHz~281kHz
Usable sensitivity .................................................................... 28dBµ
.
MW Tuner Section
Frequency range (9kHz) ....................................... 531kHz~1611kHz
Usable sensitivity .................................................................... 28dBµ
96

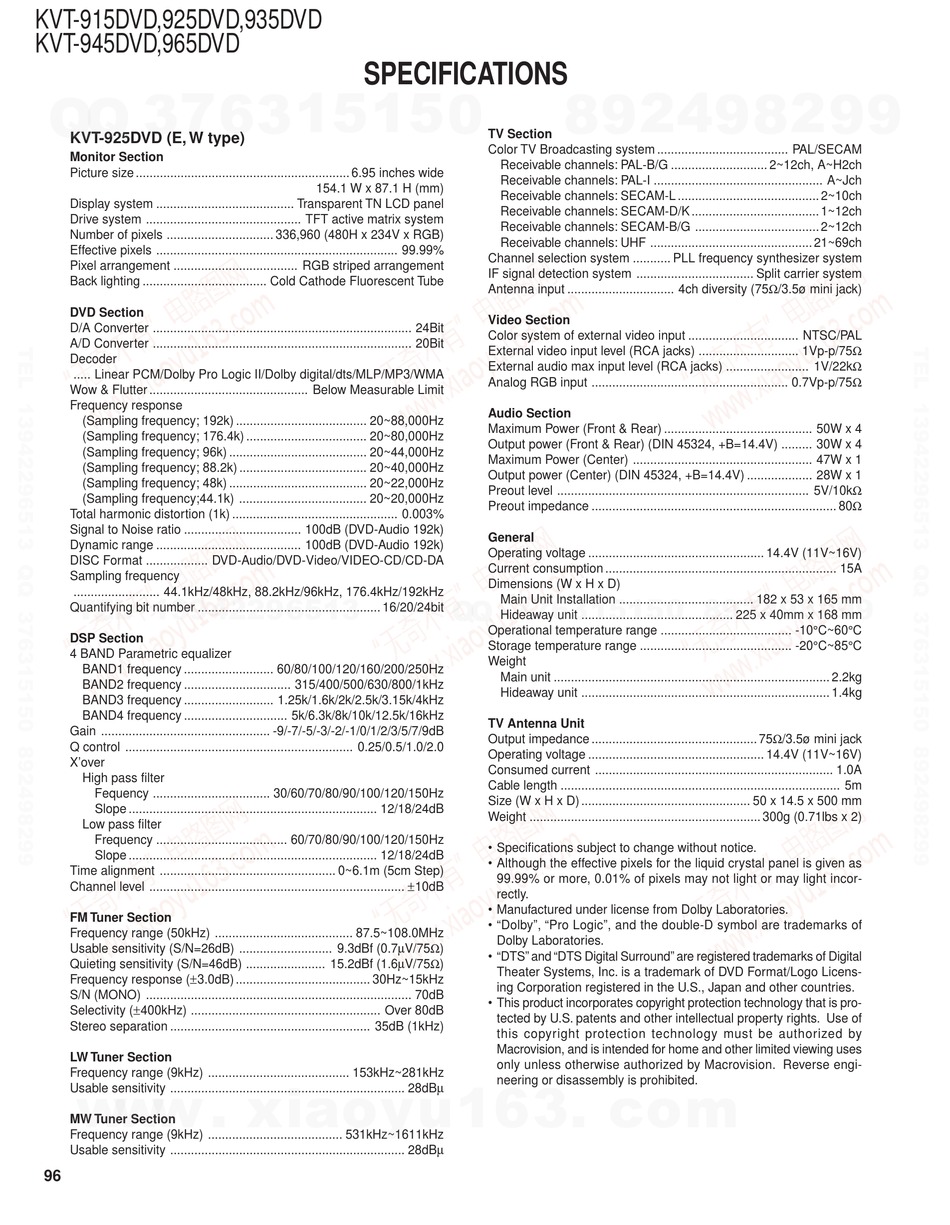

SPECIFICATIONS
154.1 W x 87.1 H (mm)
x ao u163
y
i
2 9
8
TV Section
Color TV Broadcasting system ...................................... PAL/SECAM
Receivable channels: PAL-B/G ............................ 2~12ch, A~H2ch
Receivable channels: PAL-I ................................................. A~Jch
Receivable channels: SECAM-L ......................................... 2~10ch
Receivable channels: SECAM-D/K ..................................... 1~12ch
Receivable channels: SECAM-B/G .................................... 2~12ch
Receivable channels: UHF ............................................... 21~69ch
Channel selection system ........... PLL frequency synthesizer system
IF signal detection system .................................. Split carrier system
Antenna input ............................... 4ch diversity (75Ω/3.5ø mini jack)
Video Section
Color system of external video input ................................ NTSC/PAL
External video input level (RCA jacks) ............................. 1Vp-p/75Ω
External audio max input level (RCA jacks) ........................ 1V/22kΩ
Analog RGB input ......................................................... 0.7Vp-p/75Ω
Audio Section
Maximum Power (Front & Rear) ........................................... 50W x 4
Output power (Front & Rear) (DIN 45324, +B=14.4V) ......... 30W x 4
Maximum Power (Center) .................................................... 47W x 1
Output power (Center) (DIN 45324, +B=14.4V) ................... 28W x 1
Preout level ......................................................................... 5V/10kΩ
Preout impedance ....................................................................... 80Ω
General
Operating voltage ................................................... 14.4V (11V~16V)
Current consumption ................................................................... 15A
Q Q
Dimensions (W x H x D)
3 6 7 1 3 1 5
Main Unit Installation ....................................... 182 x 53 x 165 mm
Hideaway unit ............................................ 225 x 40mm x 168 mm
Operational temperature range ...................................... -10°C~60°C
Storage temperature range ............................................ -20°C~85°C
Weight
Main unit ................................................................................ 2.2kg
Hideaway unit ........................................................................ 1.4kg
TV Antenna Unit
Output impedance ................................................ 75Ω/3.5ø mini jack
Operating voltage ................................................... 14.4V (11V~16V)
Consumed current ..................................................................... 1.0A
Cable length ................................................................................. 5m
Size (W x H x D) ................................................. 50 x 14.5 x 500 mm
Weight ................................................................... 300g (0.71lbs x 2)
• Specifications subject to change without notice.
• Although the effective pixels for the liquid crystal panel is given as
99.99% or more, 0.01% of pixels may not light or may light incor-
rectly.
• Manufactured under license from Dolby Laboratories.
• "Dolby", "Pro Logic", and the double-D symbol are trademarks of
Dolby Laboratories.
• "DTS" and "DTS Digital Surround" are registered trademarks of Digital
Theater Systems, Inc. is a trademark of DVD Format/Logo Licens-
ing Corporation registered in the U.S., Japan and other countries.
• This product incorporates copyright protection technology that is pro-
tected by U.S. patents and other intellectual property rights. Use of
this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses
co
only unless otherwise authorized by Macrovision. Reverse engi-
neering or disassembly is prohibited.
.
