Owner's manual
AA-150.4
MADE IN KOREA
Manual size : 150 x 210mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AA-150.4 and is the answer not in the manual?

Questions and answers

Related Manuals for Ampere Audio AA-150.4

Summary of Contents for Ampere Audio AA-150.4

  • Page 1 Owner's manual AA-150.4 MADE IN KOREA Manual size : 150 x 210mm...

  • Page 2: Installation

    Installation In case you install the amplifiers by yourself, please read owners' manual very carefully. Before you start your installation, please take all steps into consideration. If in doubt, please contact with authorized distributors / dealers to check installation and turn in your car audio systems.

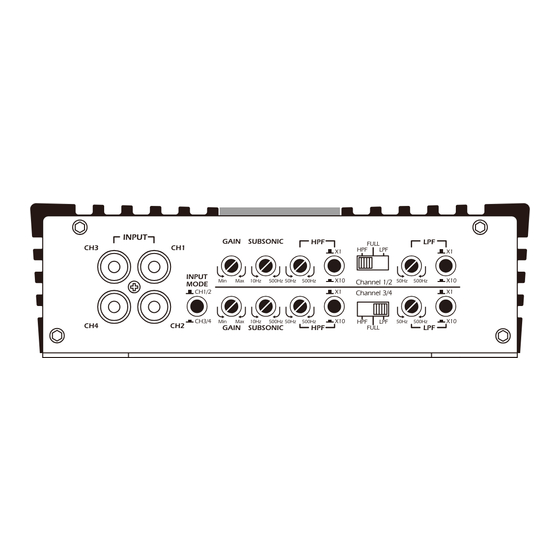

  • Page 3: Panel Layout

    Panel Layout INPUT GAIN SUBSONIC FULL INPUT 10Hz 500Hz 50Hz 500Hz Channel 1/2 50Hz 500Hz MODE CH1/2 Channel 3/4 CH3/4 10Hz 500Hz 50Hz 500Hz 50Hz 500Hz GAIN SUBSONIC FULL 1) INPUT Connect preamp signal cables from head unit to RCA input of the amplifiers. A minimum level input of 0.2V is essential for correct operation.

  • Page 4: Speaker Outputs

    +12V(B+), GND, REM CH3/L CH4/R +12V FUSE CH1/L CH2/R POWER INPUT CH1/2 BRIDGE CH1/L CH2/R CH3/L CH4/R CH3/4 BRIDGE SPEAKER OUTPUT GND (GROUND CONNECTION) For connection to the chassis’ ground. For optimum performance 0 gauge cable is recommended. REM (REMOTE) Connect to switched +12V from the head unit.
  • Page 5 +12V ), GND, REM Connection CH3/L CH4/R +12V FUSE CH1/L CH2/R POWER INPUT CH1/2 BRIDGE CH1/L CH2/R CH3/L CH4/R CH3/4 BRIDGE SPEAKER OUTPUT Recommend fuse rating (See the page 8) GROUND Remote turn on 12V BATTERY HEAD UNIT Keep GROUND of equal length. This drawing is for illustration purposes only! We recommend using 12 AWG speaker cables to obtain increased performance.

  • Page 6: Speaker Connection

    Speaker Connection 2 Channel Bridged CH1-MONO SUBWOOFER CH3/L CH4/R FUSE CH1/L CH2/R Speaker Impedance CH1/2 BRIDGE 4~8 ohms CH1/L CH2/R CH3/L CH4/R CH3/4 BRIDGE CH2-MONO SPEAKER OUTPUT SUBWOOFER 4 Channel Stereo CH3/L CH4/R FUSE CH1/L CH2/R Speaker Impedance CH1/2 BRIDGE CH1/L CH2/R 2~8 ohms...

  • Page 7: Troubleshooting

    Troubleshooting Assure that the Power LED is on, if so please proceed with step # 3, if not, continue with the steps below; 1. Check the in line fuse (s) on the battery’s positive cable, replace if needed. 2. Assure that the Ground is properly attached to the vehichle’s chassis on a clean metal point, tighten or grind the connection point once again.

  • Page 8: Specifications

    : <0.1% Channel Separation : 75dB Input Sensitivity : Variable 200mV~8V (+/- 5%) Dimensions (mm) : 174(W)x52(H)x290(L) Operating Voltage : DC 8.5V~16V Recommend Fuse Rating : 30A x 2 Ampere Audio 17391 Timberland Trail Flint, Texas 75762 MADE IN KOREA...
