OPERATION AND
INSTALLATION MANUAL
For Models:

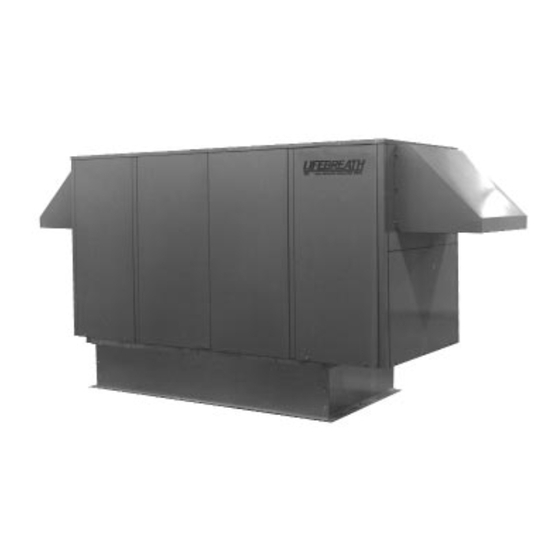

2500IFD
2500EFD
TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION
Installation Date
IMPORTANT - PLEASE READ THIS
MANUAL BEFORE INSTALLING UNIT
CAUTION
Before installation, careful consideration must be given to
how this system will operate if connected to any other piece
of mechanical equipment, i.e. a forced air furnace or air
handler, operating at a higher static. After installation, the
compatibility of the two pieces of equipment must be
confirmed by measuring the airflow's of the Heat Recovery
Ventilator (HRV) Energy Recovery Ventilator (ERV) by
using the balancing procedure found in this manual.
It is always important to assess how the operation of any
HRV/ERV may interact with vented combustion equipment
(ie. Gas Furnaces, Oil Furnaces, Wood Stoves, etc.).
NEVER install a ventilator in a situation where its normal
operation, lack of operation or partial failure may result
in the backdrafting or improper functioning of vented
combustion equipment!!!
Installing Contractor
Telephone / Contact
Serial Number
Model
* LEAVE FOR HOMEOWNER
NOTE: Due to ongoing research and product development, specifications,
ratings and dimensions are subject to change without notice.
TI-59
1203
Advertisement
Table of Contents
Related Manuals for Lifebreath 2500IFD
Summary of Contents for Lifebreath 2500IFD
- Page 1 OPERATION AND INSTALLATION MANUAL For Models: 2500IFD 2500EFD TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION Installation Date IMPORTANT - PLEASE READ THIS MANUAL BEFORE INSTALLING UNIT CAUTION Before installation, careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e.
-
Page 2: Table Of Contents
Exterior (roof mount) Table of Contents Introduction ... 2 Select Correct HRV... 3 Specifications - Model 2500IFD ... 4 Specifications - Model 2500EFD ... 5 Operation Instructions ... 7 Installation Tips ... 7 Remote Controls ... 8 User Adjustable Defrost ... 8 Defrost Control ... -
Page 3: Select Correct Hrv
Selecting the Correct Size HRV Commercial and Institutional Requirements For outdoor air requirements, ASHRAE has produced the Ventilation Standard 62-1989 that is used to determine acceptable ventilation rates. This standard is referenced directly or used as “Good Engineering Practice” in most Code documents or design criteria. Small restaurants, Donut Shops and Fast food stores Seats Employees... -
Page 4: Warranty
MECHANICAL CONTRACTOR: _________________________________________________________________________ Exhaust to Outside Motors (2) Supply to Building Electrical Service Panel* 89.9" SIDE VIEW *NOTE: Removable service access panels on both sides of 2500IFD cabinet. 38.4" Exhaust to 24" outside Supply to 16" building FRONT VIEW Model 2500IFD Supply from Outside 4"... -
Page 5: Side View
SPECIFICATIONS AIR FLOW 2100 cfm (985 L/s) at 1.0"wg ESP PERFORMANCE 70% effective at 2500 cfm (1172 L/s) CORE Modular aluminum sensible heat recovery core. Plate-to-plate type. Slides out of either side of cabinet for service. MOTORS Two single shaft PSC, 3-speed, 208/230V,5.1 amps, 1 ph, 1 hp BLOWERS Two direct-drive centrifugal blowers, one per air stream. -
Page 6: Options & Accessories
Performance 1316 (2800) HIGH SPEED HIGH SPEED 1175 (2500) 1034 (2200) MEDIUM SPEED MEDIUM SPEED 893 (1900) LOW SPEED LOW SPEED 752 (1600) 611 (1300) 470 (1000) 329 (700) 188 (400) 47 (100) 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 (0.1) (0.2) (0.3) (0.4) (0.5) (0.6) (0.7) (0.8) (0.9) (1.0) (1.1) (1.2) (1.3) (1.4) (1.5) Options and Accessories 99-101: CRANK TIMER... -
Page 7: Operation Instructions
Operation Instructions The LIFEBREATH 2500 series HRV is designed tobe operated continuously or intermittently to meet the requirements of the application. Continuous Operation For continuous operation, a simple jumper across the ON/OFF and COMMON jumper terminals is needed. HIGH/LOW speed selection requires another jumper across HIGH/LOW and COMMON;... -
Page 8: Remote Controls
Optional Remote Controls DEHUMIDISTAT VENTILATION CONTROL* LOCATION: Spa or pool area, anywhere that humidity is a concern. (connect 1/unit only) • Ventilation control turns HRV system OFF and ON. • Dehumidistat increases ventilation when required • High speed override switch Red - common / Black - hi/low / Orange - on/off PART NO. -
Page 9: Fan Defrost
HRV (see pg. 7). The 2500IFD must be located in a heated space where the surrounding air temperature does not fall below freezing point. - Page 10 NOTE: Roof curb is one inch smaller than outside dimensions of cabinet 2500IFD * NOTE: When installing your Lifebreath ® HRV, flexible duct connectors should be installed between the HRV and the galvanized ductwork Platform mount (not provided) U channels...
-
Page 11: Roof Curb Assembly Instructions
Roof Curb Assembly Instructions FRAME ASSEMBLY 1. Take one end piece (locking tabs) and one side piece (slots). Stand both pieces vertically on the floor or roof. See Figure 1. 2. Raise slightly the corner of the end piece (locking tabs) and mate with side piece (slots), ensuring that lower locking tab with leading edge is through slot opening. -
Page 12: Drains
The 2500EFD is shipped with 2 weatherhoods inside the cabinet which attach to the outer ends of the cabi- net using bolts provided. The 2500IFD requires hoods to be built elsewhere and provided by the contractor. The 2500EFD has built-in screens to prevent foreign objects from entering into the ductwork through the out- side hoods. -
Page 13: Stale Air Return System
Stale Air Return System The stale air return system is used to draw air from the points in the building where the worst air quality prob- lems occur. Balancing dampers and/or adjustable grilles are recommended on all return air lines which are used during installation to help balance the "draw"... -
Page 14: Balancing Procedure
PITOT TUBE AIR FLOW BALANCING - “Commercial” It is necessary to have balanced air flows in an HRV. The volume of air brought in from the outside must equal the volume of air exhausted by the unit. If the air flows are not properly balanced, then; •... -
Page 15: The Integrated Hvac System
The Integrated HVAC System WARNING: The 2500 is a quiet, efficient, low pressure system. Special care and attention should be given if connecting this unit to any other air handler that may draw more air than the 2500 is designed to accommodate. The HRV has become an integral component of the HVAC system. -
Page 16: Balancing Dampers
The Integrated HVAC System ROOFTOP HEAT/COOL UNIT SUPPLY DUCT DAMPERS OR ADJUSTABLE GRILLES EXHAUST TO HRV ROOF DECK CEILING RETURN AIR PLENUM FRESH AIR HRV UNIT INTAKE STALE AIR EXHAUST DUCT BALANCING DAMPERS BALANCING DAMPERS A - Fresh Air Supply B - Stale Air Exhaust Check design static pressure of air handler to ensure it is... -
Page 17: Wiring Diagram
2500 WIRING DIAGRAM HIGH TIMER SNAP DISK ON/OFF ON/OFF HIGH/LOW HIGH/LOW COMMON COMMON 24 VAC BROWN BROWN SUPPLY MOTOR SUPPLY XFRM1 5 AMP 24 VAC BROWN BROWN EXHAUST MOTOR EXHAUST HIGH 240V L1 L2 240 VAC 15 AMPS TI-109 07/97... -
Page 18: Ladder Diagram
2500 LADDER DIAGRAM 240 Volt C1-1 C1-2 High C2-1 C2-2 C3-1 C3-2 High C4-1 C4-2 XFMRI ON/OFF HIGH/LOW SNAP DISK TM1-1 R2-1 R1-1 R3-1 R4-1 R3-1 R3-1 R3-1 Exhaust Motor Supply Motor... -
Page 19: Customers
NUTECH , are excluded from this warranty. If you feel that the LIFEBREATH please contact NUTECH BRANDS INC. 457-1904 or fax 519-457-1676 to find the name of your nearest dealer in order to repair the product.
