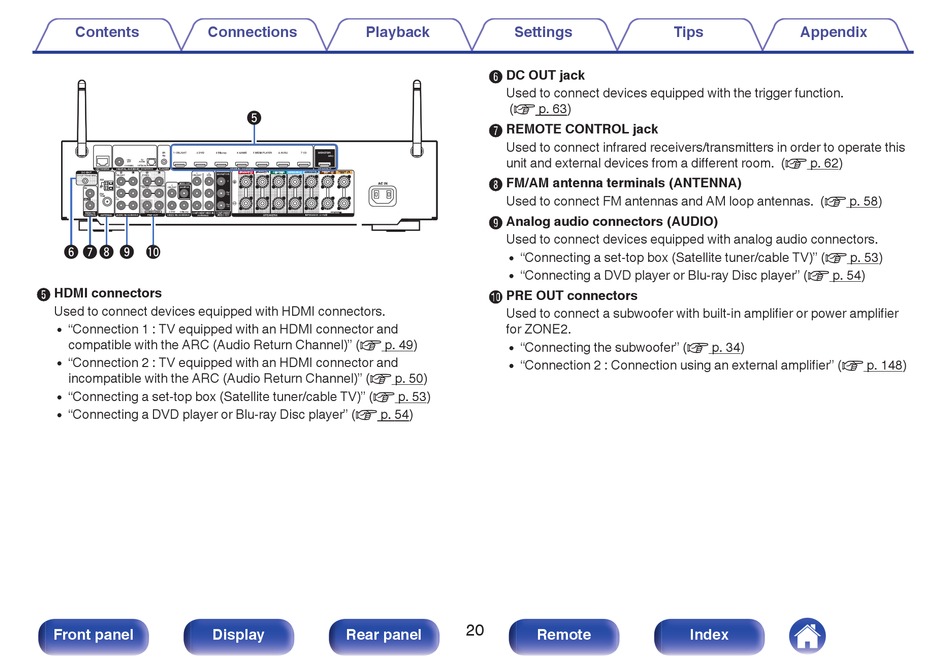

Marantz NR1606 Owner's Manual page 20

Contents Connections
y u i o Q0
E HDMI connectors
Used to connect devices equipped with HDMI connectors.
"Connection 1 : TV equipped with an HDMI connector and
0
compatible with the ARC (Audio Return Channel)" (v p. 49)
"Connection 2 : TV equipped with an HDMI connector and
0
incompatible with the ARC (Audio Return Channel)" (v p. 50)
"Connecting a set-top box (Satellite tuner/cable TV)" (v p. 53)
0
"Connecting a DVD player or Blu-ray Disc player" (v p. 54)
0
Front panel Display
Playback
t
Rear panel
Settings
F DC OUT jack
Used to connect devices equipped with the trigger function.
(v p. 63)
G REMOTE CONTROL jack
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 62)
H FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 58)
I Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
"Connecting a set-top box (Satellite tuner/cable TV)" (v p. 53)
0
"Connecting a DVD player or Blu-ray Disc player" (v p. 54)
0
J PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier
for ZONE2.
"Connecting the subwoofer" (v p. 34)
0
"Connection 2 : Connection using an external amplifier" (v p. 148)
0
20
