- Page 1 OWER VAILABILITY Nfinity ™ Power System ANUAL 208/240V 60Hz 4 to 16 kVA...
-
Page 3: Table Of Contents
MPORTANT AFETY NSTRUCTIONS ............2 LOSSARY OF YMBOLS NTRODUCTION... - Page 4 Service Tools for Liebert Global Services Engineers ....... . 30...
-
Page 5: Save These Instructions
This UPS is designed for use on a properly grounded (earthed), 208/240 VAC, 60 Hz supply and is to be installed by qualified personnel. Electromagnetic Compatibility—The Nfinity™ UPS complies with the limits for a Class A digital device, pursuant to Part 15 of FCC rules. These limits provide reasonable protection against harmful interference in a commercial environment. -
Page 6: Glossary Of Symbols
LOSSARY OF YMBOLS Risk of electrical shock Indicates caution followed by important instructions AC input AC output Requests the user to consult the manual Indicates the unit contains a valve-regulated lead acid battery Recycle DC voltage Equipment grounding conductor Bonded to ground AC voltage Standby No telecommunication connection... -
Page 7: Introduction

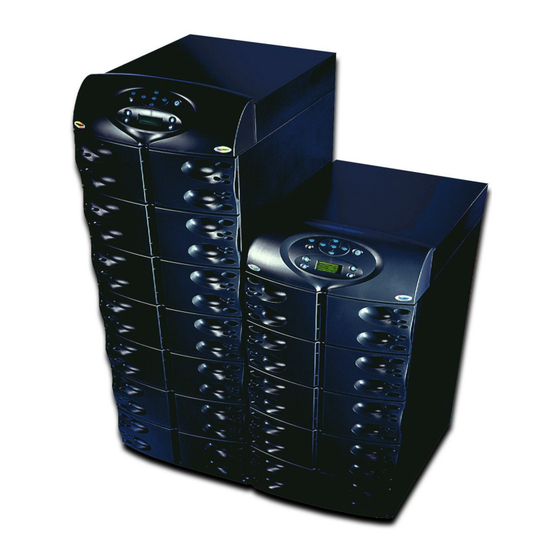

1.1.1 System Description The Liebert Nfinity Power System is a modular UPS available in 8 & 12 bay frames. It is intended for use with workstations, servers, network, telecom and other sensitive electronic equipment. It pro- vides continuous, high-quality AC power to your equipment, protecting it from any power disturbance due to blackouts, brownouts, surges or noise interference. -
Page 8: Figure 1 Front And Back Views (12 Bay Model Shown)
8 bay 12 bay Control REPO Switch (SW2) Connection Nfinity weight and dimensions Max Weight - lb (kg) W x D x H - in. (mm) 855 (388) 20 x 28 x 40 (508 x 711 x 1016) 1176 (534) -
Page 9: Modes Of Operation
Modes of Operation INPUT FILTER INTERFACE Normal Mode The Power Module rectifiers derive power from a utility AC source and supply regulated DC power to the inverter. The module’s inverter regenerates precise AC power to supply the connected equipment. The battery charger is in the Power Module and maintains a float-charge on the batteries. Backup Mode When AC utility fails, the connected equipment is supplied power by the inverter, which obtains energy from the Battery Modules. -
Page 10: Major Components
Nfinity operates. 1.3.1 Unit Frame The front of the Nfinity consists of a series of plastic bezels. By grasping these bezels from the left and right sides and pulling straight out, you can remove the bezel to reveal the Battery / Power Module bays. -
Page 11: Power Module
Under normal operation, the Green Status LED will blink continuously and the Yellow Fault LED will be off. For any condition other than this, check 4.0 - Troubleshooting. NOTE Nfinity is shipped with each battery module secured to the frame by two shipping screws. These screws should be removed prior to start-up. Battery Module... -
Page 12: Installation
NSTALLATION Inspection Upon receiving the UPS, examine the packaging for any signs of mishandling or damage. If any dam- age is noted, call your local dealer or Liebert representative and/or notify your carrier. 2.1.1 Environment NOTE Operating in temperatures above 77°F (25°C) will reduce battery life. The UPS environment must be free of conductive contaminants and excessive moisture (water and condensation), flammable vapors, chemical fumes, corrosive gases and liquids. -
Page 13: Unloading
Unloading 2.2.1 Unloading the UPS CAUTION This UPS is very heavy (see weight in Table 1). At least two people should assist in unloading it from the pallet. 1. Use a ratchet or wrench, 1/2" (13mm), to remove the four mounting bolts from the front and rear pallet brackets. -
Page 14: Stationary Mounting
5. Once the UPS is in the desired location, adjust the leveling feet to secure its position. 2.2.2 Stationary Mounting Additional stability can be added by bolting the mounting brackets (used in shipping) to the floor, as shown below left. Shipping Brackets Used for Stationary Mounting For greater stability, use a higher-grade bolt. -
Page 15: Cable Installation
Cable Installation 2.3.1 Wiring Preparation WARNING Please read this section thoroughly before attempting to install wiring to this unit. This UPS should be installed by a qualified / certified electrician. Removing the Cover Plates On the back Remove Cover Plates of the UPS, cover plates are over the... -
Page 16: Input Wiring (Tb1)
3 & 4 Use only the connections listed above. Other connections will produce nonstandard voltages. NOTE The Nfinity UPS contains an isolation transformer that generates a neutral conductor for the connected equipment. The UPS is a separately derived source and contains a neutral to ground bonding jumper. -
Page 17: Connecting To External Panel Boards
2.3.2 Connecting to External Panel Boards The following instructions are also shipped attached to the rear of the unit. INPUT CABLING AND PROTECTION Table Below Applies to 4-16kVA Scalable Systems: Stand-alone UPS or UPS equipped with a Maintenance Bypass Cabinet (Without Transformer) Input Voltage –... -
Page 18: Output Cabling
UPS Output Terminal Block (TB3) If connected equipment operates at 208VAC only, use a single-phase panel board connected to the UPS as follows. Setup 1 - 208 VAC Max output current = 77A Grounding Electrode Conductor (Field connection must be made) Connected Equipment Ground If connected equipment is a combination of 208 VAC and 120 VAC, use a three-phase panel board connected to... -
Page 19: Repo Connection
2.3.3 REPO Connection The Nfinity is equipped with a Remote Emergency Power Off (REPO) connection. NOTE A jumper is factory installed between pins 1 & 2 to disable the Control Switch (SW2). This will prevent the unit from being started during installation. This jumper must be removed in order to start the unit. -
Page 20: Communications
COM2 - Serial Nfinity is able to communicate via Liebert proprietary protocol. This communication port can be used for serial communication with Liebert MultiLink software. For more detailed information, please see the MultiLink software documentation on the CD shipped with the Nfinity. The pin-out configuration of the DB-9 connector is: 2.4.2... -
Page 21: Operating
Fault/Warning LED Alarm Silence Button Buttons Refer to the legend below to properly navigate the Nfinity User Interface. - Navigates cursor on display menus Down Escape - Returns to previous display screen Enter - Selects displayed information... -
Page 22: Status Led Modes
Status LED Modes UPS is Off or Initializing UPS is On, Utility is Good and Output is Off UPS is On, Utility is Good and Output is On (Normal Operation) UPS is On, Utility is Bad and Output is On (On Battery Operation) UPS is On, Utility is Bad and Output is Off... -
Page 23: Operating Procedures
Operating Procedures 3.4.1 Start-Up and Initialization Follow these steps to start up the UPS. 1. Ensure the manual bypass switch is in UPS position. Close Input Circuit Breaker (CB1) and close the Control Enable Switch (SW2). You should see the following on the LCD display window: UPS Initializing Please wait... -
Page 24: Main Menu
Main Menu After initialization, the status of the UPS, review the event log and active alarms, configure your UPS and even receive instructions on replacing modules. The Main Menu is divided into eight sub-menus as shown below: UPS Status UPS Status Present Load Redundant Status Battery Status... -
Page 25: Ups Status Screen
3.5.1 UPS Status Screen From the Main Menu the user may select UPS Status and press the user may access any information on the present condition of the UPS. Note the chart below when reviewing the UPS. Present Load On Mains/Utility Output: kVA xx.x Output: kW xx.x Output: pf xx.x... -
Page 26: Ups Configuration Screen
Remote Shutdown External Battery Bypass Alarm Mode Intelli-Battery Ca. Air Filter Reminder Guarantee Shutdown Review Settings menu options Service Contact Service Contact Liebert Corp. www.liebert.com Auto Restart Auto Restart Mode: Disable Batt % Delay UPS Shutdown Delay UPS Shutdown Delay... -
Page 27: Ups Configuration
Starting from the Main Menu, locate and press UPS Configuration. From the UPS Configuration screen, select the Change Settings option. You may configure Nfinity from a large variety of selec- tions. Items indicated by an asterisk (*) are the selected settings. -
Page 28: Screen Contrast
Auto Battery Test: Configure when and how often the Nfinity’s automatic battery test will run. This test is designed to ensure battery system integrity and provide early warning of problems. Auto Battery Test Interval Start Day Start Time Interval Batt Test Interval... -
Page 29: Phone Number
Set Date/Time: Allows user to enable/disable DST (Daylight Saving Time), change the Day, Date and Time setting on Nfinity. When enabled, the time will automatically adjust to Daylight Saving Time. Set Time/Date DST Mode Set Time/Date DST Mode DST Mode... - Page 30 Bypass Alarm Mode: Allows the user to enable/dis- able alarm, indicating that the bypass is not quali- fied. Bypass Alarm Mode > Enable Disable Intelli-Battery Ca.: Allows the user to enter the quantity of intelligent battery cabinets installed. Enter Intelli- Battery cabinet count Air Filter Reminder: Allows the user to set a warn-...
-
Page 31: Ups Configuration Screen - Service Mode Menu
UPS Configuration Screen - Service Mode Menu Service Mode contains site identification information about the UPS system. The data is entered by Liebert Global Services (LGS). To view the data, go to the Main Menu, select UPS Configuration and press . -
Page 32: Event Log
3.5.5 Active Alarms Alarms affecting the Nfinity can be viewed at the Active Alarms screen. To access the screen, go to the Main Menu, select Active Alarms and press... -
Page 33: Module Replacement
3.5.7 Module Replacement The user interface also supplies instructions for removing and replacing modules. From the Main Menu, access the module replacement screen and select the type of module. Refer to the screens below: Control Module w/ Redundant Cntl Mod Replacement 1. -
Page 34: Service Tools For Liebert Global Services Engineers
3.5.8 Service Tools for Liebert Global Services Engineers The Service Tools option is intended for use by Liebert Global Services engineers or Liebert-trained engineers to carry out certain tests and clear failures. These are advanced menus, entering changes may adversely affect UPS operation. From the Main Menu, shown below left, select Service Tools and... -
Page 35: Troubleshooting
Lie- bert representative at the number listed on the back of this manual. User Interface Text Main Control Failure The Nfinity system has detected a System Control Module failure. Power Module Fail The Nfinity system has detected a Power Module failure. - Page 36 • Add a redundant System Control Module so that the load is not dropped. Transfer UPS to manual bypass and contact Liebert Global Services. Verify that the UPS’s bypass source is qualified (amplitude and frequency). Verify that the configuration voltage and frequency settings are properly selected.
-
Page 37: Module Led Indication
System is OFF. Module is initializing (max 30 seconds*). Normal Operation Module is in start-up FLASHING qualification mode or module warning. ** Module failed and is off-line. FLASHING Abnormal operation, re-insert module. If this persists, contact Liebert Global Services at 1-800-543-2378. FLASHING... -
Page 38: Module Replacement
Module Replacement Follow the instructions below when replacing or adding a Control, Battery or Power Module to the system. To order additional modules, contact your Liebert representative or call 1-800-LIEBERT. 4.3.1 Removing Modules 1. Remove bezel cover of appropriate module. -
Page 39: Adding Or Replacing Modules
Adding or Replacing Modules NOTE Power Modules must be installed in the top half of the Nfinity frame. Battery Modules can be installed in any bay of the UPS frame. 1. Lift module to appropriate bay, resting end of module on bay shelf. -
Page 40: Maintenance
5.1.1 Proper Care Keeping your Liebert Nfinity UPS operating properly is imperative to optimal performance and life of the unit. It is recommended that a certified technician perform preventive and corrective mainte- nance. Liebert Global Services (LGS) is dedicated to ensuring the highest level of performance and unmatched support for your Nfinity UPS. -
Page 41: Specifications
Product Warranty Registration To register for warranty protection: • Visit the Quick Links section of our Web site at: http://www.liebert.com • Click on Product Warranty Registration and fill in the form. If you have any questions, please contact us at:... - Page 42 Specifications...
-
Page 44: Power Availability
