Xray T2 Instruction Manual

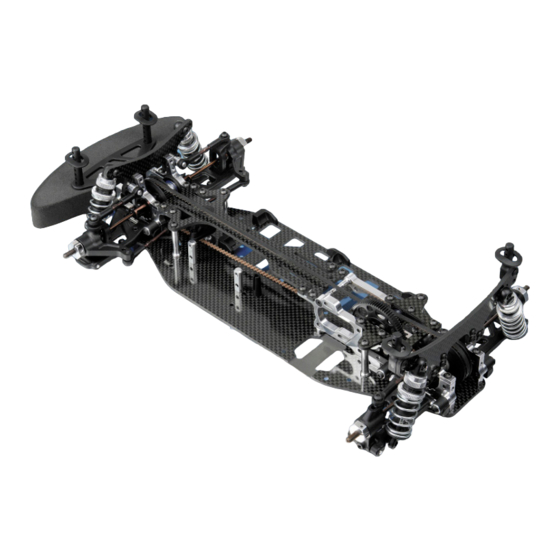

1/10 luxury touring car
Hide thumbs Also See for T2:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2 and is the answer not in the manual?

Questions and answers

Related Manuals for Xray T2

Summary of Contents for Xray T2

  • Page 2: Before You Start

    If for some reason you decide the T2 is not what you wanted If you do not fulfi ll these requirements, please return the kit in unused and or expected, do not continue any further.
  • Page 3 Therefore we ask you, if at all possible, to purchase • For the best performance, it is very important that great care is taken to ensure XRAY products at your hobby dealer and give them your support like we do. If the free movement of all parts.

  • Page 4: Symbols Used

    CONTENTS 14-17 FRONT & REAR TRANSMISSION WARNINGS 18-19 STEERING TOOLS AND ACCESSORIES 20-21 SHOCK ABSORBERS 22-24 FRONT & REAR ASSEMBLY BALL DIFFERENTIAL & FRONT MULTI-DIFF 25-27 8-10 FINAL ASSEMBLY FRONT & REAR SUSPENSION 11-13 CENTRAL TRANSMISSION SYMBOLS USED Part bags used Assemble in the specified Assemble left and right Pay attention here...
  • Page 5 T2 ALU SUSP . ADJUST. BULKHEAD REAR LOWER LEFT The XRAY T2 comes partially pre-assembled. Before starting assembly, disassemble the chassis parts, noting the position and orientation of the parts, particularly the bulkheads. Keep the parts, including the screw hardware, close at hand. In the assembly steps that follow, each section begins with a parts list. Parts indicated with are from the previously disassembled chassis parts in section 0.
  • Page 6 DIFF WASHER 17x23x1 (2) 30 5102 XRAY MULTI-DIFF™ T1FK'05, T2 93 0508 BALL-BEARING MR85ZZ 5x8x2.5 (2) 30 5112 MULTI-DIFF MAIN AXLE T1FK‘05, T2 96 3030 CONE WASHER ST 3x8x0.5 (10) 30 5121 MULTI-DIFF LOCKING AXLE - HUDY SPRING STEEL 96 6080...
  • Page 7 ™ BALL DIFFERENTIAL & FRONT MULTI-DIFF DO NOT TIGHTEN THE DIFF COMPLETELY THE DIFF MUST BE BROKEN IN PROPERLY ! IMPORTANT: When you build the differential, do not tighten it fully initially; the differential needs to be broken in properly. When you build the diff tighten it very gently.

  • Page 8: Front & Rear Suspension

    T2 REAR SUSPENSION PIVOT PIN (2) 30 2017 T2 ALU SUSP . ADJUST. BULKHEAD FRONT LOWER 30 3017 T2 ALU SUSP . ADJUST. BULKHEAD REAR LOWER RIGHT 30 3027 T2 ALU SUSP . ADJUST. BULKHEAD REAR LOWER LEFT 90 3306...

  • Page 9: Initial Position

    2. FRONT & REAR SUSPENSION 903306 SFH M3x6 MOTOR MOUNT BULKHEAD 903308 SFH M3x8 MOTOR MOUNT SHIM 3x6x2mm 3x6mm 3x8mm 3x6mm REAR ARMS REAR LEFT ARM REAR RIGHT ARM 2.0mm 901308 SB M3x8 INITIAL POSITION INITIAL POSITION 4x8mm 901408 SB M4x8 3x8mm LEFT REAR ARM COMPLETE ASSEMBLY...
  • Page 10 2. FRONT & REAR SUSPENSION DETAIL 3x7.5x1.5mm 303122 REAR RIGHT ARM SHIM 3x6x1 303123 3x6x1mm SHIM 3x6x2 3x18mm 3x6x2mm 303134 REAR LEFT ARM SHIM 3x7.5x1.5 3x7.5x1.5mm DETAIL 3x16mm Use these suspension holders for initial assembly 902316 SH M3x16 51.5 mm 2x 1:1 Roll Center Position: Roll Center Position:...
  • Page 11 30 3041 T2 ALU REAR BULKHEAD BRACE 90 3308 HEX SCREW SFH M3x8 (10) 30 3042 T2 REAR UPPER DECK 2.5MM GRAPHITE - CNC MACHINED 94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2) 30 3094 T2 SHOCK TOWER REAR 3.0MM GRAPHITE...
  • Page 12 Insert composite bushings perfectly straight in bulkheads so the bearings spin freely. If the bearings do not spin freely, reinstall the composite bushings properly. XRAY Multi-Diff not included in US kit. The US kit includes 941015 front ball-differential. BB 10x15x4...
  • Page 13 3. CENTRAL TRANSMISSION 902306 SH M3x6 DETAIL 902306 Position the rear top deck inside of the rear drive belt SH M3x6 903306 SFH M3x6 903308 SFH M3x8 3x8mm 3x8mm 3x6mm 902306 SH M3x6...
  • Page 14 T2 STEEL STEERING BUSHING (2+2) 30 7221 T2 FRONT ARM PIVOT PIN (2) 30 2345 T2 COMPOSITE C-HUB FRONT BLOCK, RIGHT - 4° DEG. 30 7321 T2 REAR ARM PIVOT PIN (2) 30 2346 T2 COMPOSITE C-HUB FRONT BLOCK, LEFT - 4° DEG.
  • Page 15 4. FRONT & REAR TRANSMISSION 902205 SH M2x5 940510 BB 5x10x4 COMPLETE ASSEMBLY 1R = RIGHT SUSPENSION BLOCK 1° OUTBOARD TOE-IN 981210 1L = LEFT SUSPENSION BLOCK 1° OUTBOARD TOE-IN P 2x12 LEFT STEERING BLOCK = RIGHT STEERING BLOCK 902205 SH M2x5 COMPLETE ASSEMBLY 940510...

  • Page 16: Rear View

    4. FRONT & REAR TRANSMISSION 303141 SHIM 3x5x1 307455 PB 5mm "1R" 901304 SB M3x4 902306 SH M3x6 3x5x1mm "1L" 902312 SH M3x12 TIGHTEN GENTLY DETAIL STEP After you tighten the screw into the upright, pull the linkage upward so the ball joint "snaps" onto the pivot ball.

  • Page 17: Front View

    4. FRONT & REAR TRANSMISSION 307455 PB 5mm 901304 SB M3x4 "4R" 902306 SH M3x6 "4L" 902314 SH M3x14 TIGHTEN GENTLY DETAIL STEP After you tighten the screw into the upright, pull the linkage upward so the ball joint "snaps" onto the pivot ball.
  • Page 18 307455 902310 930407 FACTORY ASSEMBLED 302551 30 1177 T2 ADJ. UPPER DECK 2.5MM GRAPHITE - MULTI-FLEX TECHNOLOGY™ 30 6512 T2 ALU TOP DECK MOUNT FRONT (2) 30 2503 T2 SERVO SAVER (SET) 30 7455 T2 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
  • Page 19 5. STEERING 307455 PB 5mm F = Futaba, Robe K = KO, JR, Airtronics, Sanwa Splines for servo on this side 902310 SH M3x10 902305 SH M3x5 3x5mm 902306 SH M3x6 TAB TO FRONT 903306 SFH M3x6 TAB TO FRONT 930407 BB 4x7x2.5 FRONT...

  • Page 20: Shock Absorbers

    T2 HARDENED SHOCK SHAFT (2) Properly functioning shocks are very important to the performance of your car. This XRAY shock set contains parts to build four externally-adjustable or non-adjustable shocks. Both adjustable and non-adjustable shocks feature XRAY's unique keying system that positively locks the pistons to the shock rods.
  • Page 21 INCORRECT CORRECT ! IMPORTANT USE ONLY special T2 ball-joints (part #308316). HINT: Pre-thread the ball joint using an M3 screw. DO NOT USE ball joints on nylon parts tree. WARNING! Be careful not to pre-thread too far, since the ball joint may split or the plastic threads may strip out 1.

  • Page 22: Front & Rear Assembly

    T2 FOAM BUMPER 90 2306 HEX SCREW SH M3x6 (10) 90 3308 HEX SCREW SFH M3x8 (10) 30 8301 T2 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 90 3310 HEX SCREW SFH M3x10 (10) 903308 SFH M3x8 903310 SFH M3x10...
  • Page 23 7. FRONT & REAR ASSEMBLY 903308 SFH M3x8 981212 P 2x12 INITIAL POSITION 902308 SH M3x8 981212 P 2x12...
  • Page 24 308301 98 1212 PIN 2x12 (10) 30 1332 T2 REAR BODY MOUNT SET 6MM 30 8301 T2 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2) 90 2306 HEX SCREW SH M3x6 (10) 90 2308 HEX SCREW SH M3x8 (10) 902306 SH M3x6...

  • Page 25: Final Assembly

    305716~34 PINION GEAR ALU HARD COATED - SHORT (OPTION) 30 6131 SET OF BATTERY BACKSTOPS 90 2306 HEX SCREW SH M3x6 (10) 30 6163 T2 6-CELL GRAPHITE BATTERY STRAP (SET) - (OPTION) 90 2308 HEX SCREW SH M3x8 (10) 30 6200 ALU SERVO MOUNT (2) 90 3306...
  • Page 26 8. FINAL ASSEMBLY Adjust the motor so the pinion meshes with the spur gear properly. Make sure the gear mesh is not too tight. 902306 There should be a small amount of play between the SH M3x6 teeth of the pinion gear and spur gear. PINION (NOT INCLUDED) DETAIL...
  • Page 27 8. FINAL ASSEMBLY TIRES & INSERTS (NOT INCLUDED) WARNING! Follow the adhesive manufacturer's instructions for proper use and safety. Wear proper eye and hand protection. 6-CELL INLINE BATTERY PACK (NOT INCLUDED) 960040 N M4 963041 ST 4x12 DETAIL FIBRE TAPE (NOT INCLUDED) Make sure the wheel nuts are very tight, so the DETAIL...
