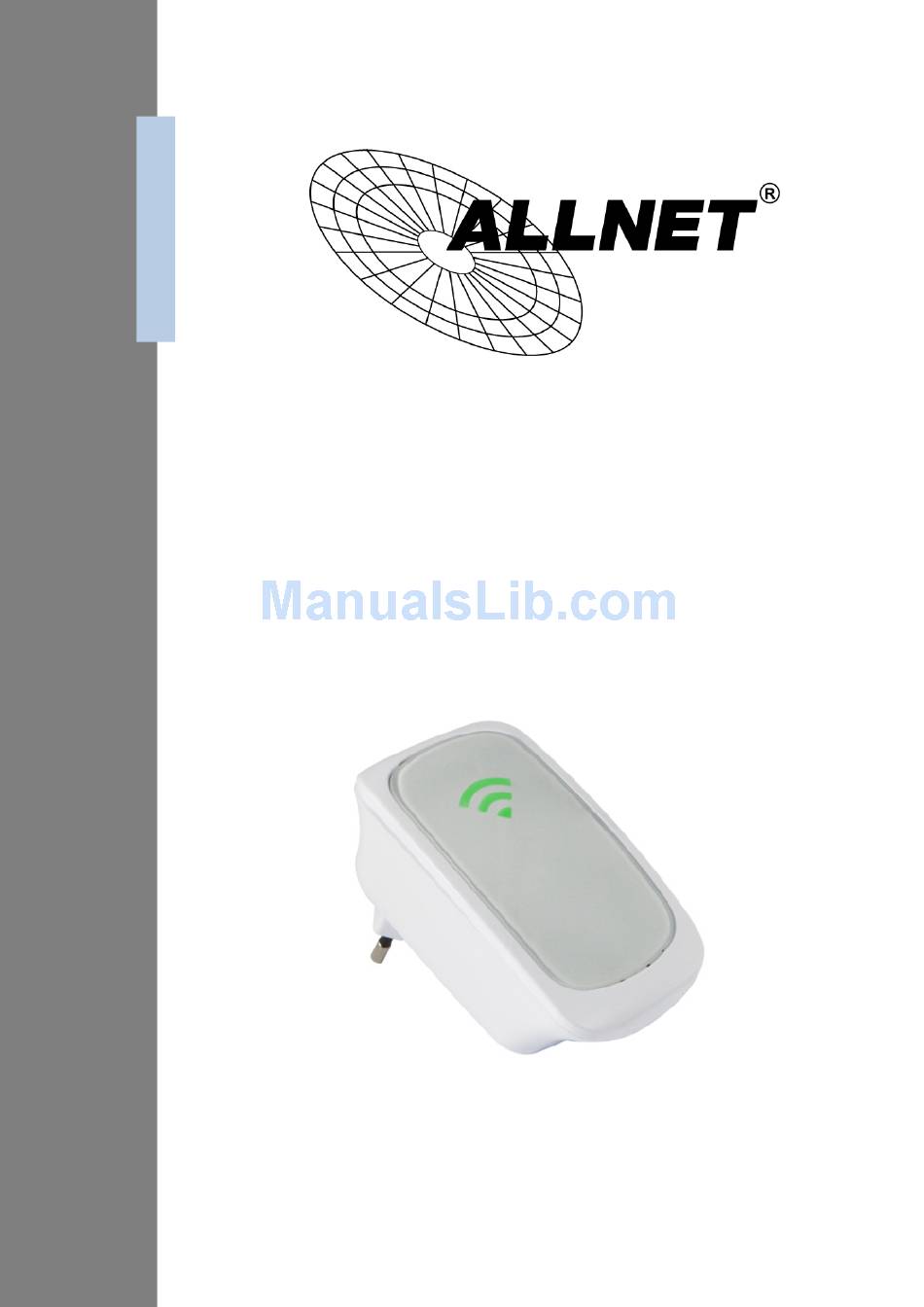

- Page 1 ALL0237R Wireless N 300Mbit Access Point/Repeater User´s Manual...
-
Page 2: Table Of Contents
Wireless Repeater ..................20 Wireless Access Point ................22 Wireless Bridge ..................23 WPS ......................24 Configure ALL0237R to Wireless Router via WPS ........24 Configure ALL0237R to Wireless Client via WPS ........24 Safety Precautions ................26 Page 2 of 27... - Page 3 Wireless Repeater ..................20 Wireless Access Point ................22 Wireless Bridge ..................23 WPS ......................24 Configure ALL0237R to Wireless Router via WPS ........24 Configure ALL0237R to Wireless client via WPS ........24 Safety Precautions ................26 Page 3 of 27...
-
Page 4: About The Device
WiFi Network ALL0237R supports robust 802.11n technology with up to 300Mbps data transfer rate. The extender can take an existing 802.11n wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. -
Page 5: Minimum System Requirements
Ethernet network adapter Or Wireless network adapter Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models. ALL0237R Ethernet cable Easy Start Guide Resource CD Device Overview... -
Page 6: Top Panel
DESCRIPTION LED RRSI 3 BARS Connected 95% and above RSSI (Excellent) 2 BARS Connected 55-94% RSSI (Recommended) 1 BAR Connected 10-54% RSSI (Weak) Top Panel Button LABEL DESCRIPTION Connect ALL0237R to any WPS capable devices BUTTON Page 6 of 27... -
Page 7: Bottom Panel
User Manual Bottom Panel Ethernet Port Reset Button LABEL DESCRIPTION Press the Reset button for 5 seconds to restore the device to default factory RESET settings ETHERNET Connect to computers/Ethernet devices PORT Page 7 of 27... -
Page 8: Accessing The User Interface
User Manual ALLNET ALL0237R Accessing the User Interface To access the User Interface open a Web browser (Ex: Internet Explorer, Firefox or G.chrome) and type http://192.168.1.1 in the address bar and press enter. Quick Connect Press Quick Connect icon to scan for available wireless within the area. -
Page 9: Setup
User Manual Setup Mode of Operation Repeater Configure your device as a wireless repeater to extend the wireless coverage of your wireless router. Access Point Configure your device as an access point to provide wireless network Bridge Configure your device as a Bridge to act as wireless client to your network device Page 9 of 27... -
Page 10: Security Mode
User Manual ALLNET ALL0237R SSID Here you can set the name of your wireless network. Select the option Disable on Broadcast SSID allow you to hide the wireless network name. Security Mode Select from different encryption type on the list to be used to provide security to your wireless network from unauthorized users. -
Page 11: Wireless
User Manual Wireless Wireless Basic Settings Enable Wireless Enable or Disable wireless capability Broadcast SSID Set option to disable to hide your wireless network (Enable by default) SSID Here you can enter the name of your wifi network Wireless Mode This option allows you to select the type of wireless standard you want to allow to connect to your wireless network. -
Page 12: Wireless Security Settings
Set this option to enable or disable WPS (Wifi Protected Setup) feature on this device Enrollee PIN Enter this PIN to wireless client that will be connecting to ALL0237R repeater to automatically configure the wireless device. Registrar PIN Here you can enter the WPS-PIN of wireless clients and click apply for the ALL0237R to allow access and configure your wireless client device automatically Note: WPS will work only for WPA-PSK, WPA2-PSK and WPA/WPA2 encryption. -
Page 13: Mac Filter Settings
User Manual MAC Filter Settings This feature will provide additional protection to your wireless network. It allows or denies wireless clients from accessing through the ALL0237R with the use of the MAC address which is unique for every network devices. Policy... -
Page 14: System
User Manual ALLNET ALL0237R Where can I find the MAC address of my wireless client? On the Command Prompt type ipconfig/all to show all the network adapter(s) that are available. System Device Information Page 14 of 27... -
Page 15: Lan Configuration
LAN Configuration Device IP address Shows the device’s current IP address Note: Change this IP address if you are using two ALL0237R on the same network to avoid IP address conflict within your network. You may configure the 2 unit with IP address ex: 192.168.1.2... -
Page 16: Configuration Settings
User Manual ALLNET ALL0237R Configuration Settings Backup Settings Allow you to save the current configuration of ALL0237R. Default file name for the backup file will be “RT2880_Settings.dat”. Click Apply to start saving your configuration. Update Here you can load the saved configuration of your ALL0237R. Click browse and load the saved settings by clicking on the apply button. -
Page 17: Firmware Upgrade
Updating the firmware a. Connect an Ethernet cable between ALL0237R and computer b. Open web browser and type http://192.168.1.1 to access the user interface c. Click on Setup and select firmware under the sub menu Page 17 of 27... -
Page 18: System Password
Click on the Browse button and locate and open the firmware for ALL0237R and click Apply to start the update. Note: It is recommended to only use firmware which is officially release by ALLNET, Using third party firmware will void the warranty of the device. -
Page 19: Configuring The Device
User Manual Configuring the Device Placement of the Wireless Repeater is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet loss. -
Page 20: Wireless Repeater
ALLNET ALL0237R Wireless Repeater a. Plug your ALL0237R to a power outlet, switch it ON and connect the Ethernet cable between your ALL and Computer b. Launch web browser and you will be directed to the User Interface (In case it does not open type 192.168.1.1 and hit enter) - Page 21 User Manual SETUP DIAGRAM (REPEATER) Wireless Devices Page 21 of 27...
-
Page 22: Wireless Access Point
User Manual ALLNET ALL0237R Wireless Access Point Setup your ALL0237R as an access point to provide wireless network to router that doesn’t have wireless feature. Plug your ALL0237R to a power outlet Connect an Ethernet cable between the ALL0237R and Computer... -
Page 23: Wireless Bridge
TV, to the Ethernet port of the ALL0237R. a. Plug in and turn ON your ALL0237R b. Connect the Ethernet cable between your computer and ALL0237R c. Launch a web browser. You will be directed to the user interface d. Click on Setup and set Mode of Operation to Bridge e. -
Page 24: Wps
ALLNET ALL0237R SETUP DIAGRAM (BRIDGE) WPS or Wifi Protected Setup makes it easier for you to connect your ALL0237R to your wireless router and ALL0237R to your wireless devices with a push of a button. (WPS feature must be enabled and must be supported on the wireless router and... - Page 25 User Manual Page 25 of 27...
-
Page 26: Safety Precautions
User Manual ALLNET ALL0237R Safety Precautions Pluggable equipment must be installed near to an easily accessible socket outlet. Do not open, service, or change any component. Only qualified technical specialists are allowed to service the equipment. Observe safety precautions to avoid electric shock. - Page 27 CE-Declaration of Conformity For the following equipment: Germering, 7th of December, 2012 ALLNET Wireless N 300Mbit Access Point/Repeater ALL0237R The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device.
