LifeSpan VIPER Owner's Manual
  1. Manuals
  2. Brands
  3. LifeSpan Manuals
  4. Treadmill
  5. VIPER
  6. Owner's manual

LifeSpan VIPER Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

VIPER OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual
for future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPER and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan VIPER

Summary of Contents for LifeSpan VIPER

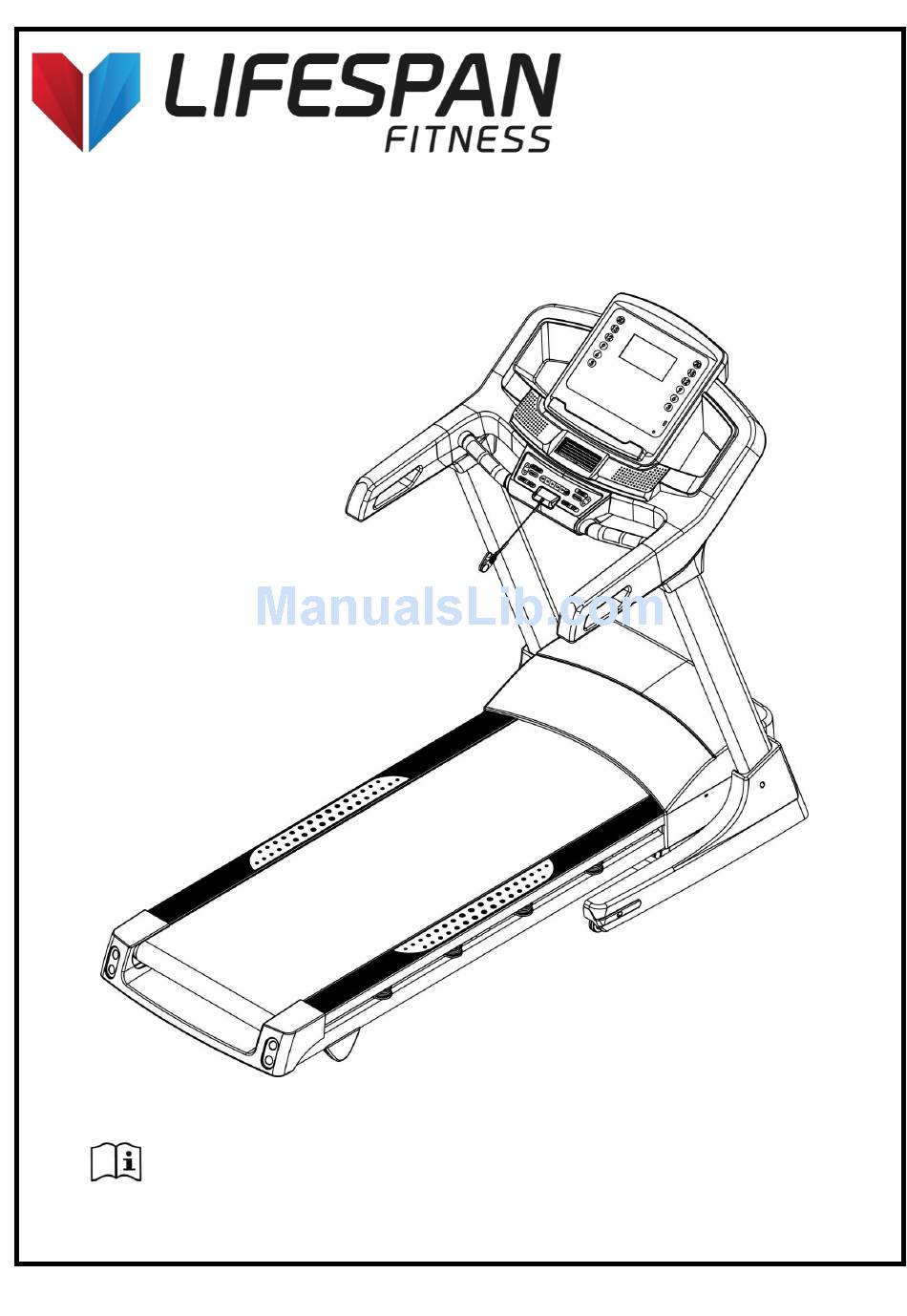

  • Page 1 VIPER OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INFORMATION IMPORTANT OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS OPERATION GUIDE MAINTENANCE INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST TROUBLE SHOOTING GUIDE WARRANTY PROGRAM EXERCISE CHART VIPER...

  • Page 3: Important Safety Instructions

    Keep the cord away from heated surfaces.  Do not operate where aerosol spray products are being used or where oxygen is being administered. Sparks from the motor may ignite a highly gaseous environment.  Never drop or insert any object into any openings. VIPER...
  • Page 4 All fixings should be checked before the equipment is used.  All literature relating to the use of the equipment should be retained for future reference.  Allowed operating temperature: 5-40°C Remove the safety key after use to prevent unauthorized treadmill operation. VIPER...

  • Page 5: Important Electrical Information

    Always hold on to handrail while making control changes.  A safety key is provided with this machine. Remove the safety key will stop the walking belt immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display. VIPER...

  • Page 6: Assembly Instructions

    Description Specification Description Specification Qty Main frame Bolt M8*20 Allen Wrench S=13\14\15mm Bolt M8*55 5#Allen Wrench Lock washer 6#Allen Wrench Screw ST4.2*19 Screw ST4.2*20 Left base cover Standard Power Line Right base cover Safety key Mp3 Wire ASSEMBLY TOOLS: VIPER...
  • Page 7 Using the 5# Allen wrench, attach the Computer frame to the Left and Right Upright securely with Bolt M8*20(66) and Lock washer(82). Note: Please do not damage the upright cover and press the connect wire in upright when pushing up VIPER...
  • Page 8 Note: Support the upright with your hand to avoid it falling down and causing injury. STEP 4: 1. Attach the computer bracket on right upright with the 5# Allen wrench (13), M8*20 bolt (67) and lock washer (86). 2. Repeat above step to assemble the left side. VIPER...
  • Page 9 VIPER...
  • Page 10 2. Attach the base cover (31) to the base frame（2）using screw driver (12), ST4.2*20 Bolt (88) and bolt (75). 3. Repeat above steps to assemble the left side. STEP 6: 1. Connect the power cord (53) onto main frame. VIPER...
  • Page 11 STEP 7: 1. Place the safety key (49) onto the computer. VIPER...

  • Page 12: Folding Instructions

    The base frame will descend automatically. (Please keep people and any pets away the machine during descent) Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/cP9NtFHfWlc http://www.youtube.com/user/treadmillsvideos VIPER...

  • Page 13: Operation Guide

    3. Time window: displays workout time 4. Distance window: displays workout distance 5. Calorie window: displays calories burnt 6. Pulse window: displays pulse (Calorie and pulse data is an estimate intended for reference only. Not suitable for medical purposes.) VIPER...
  • Page 14 8. “INCLINE: 3, 6, 9, 12, 15, 20” Incline adjustment quick buttons. 9. “FAN”: Turns the fan ON/OFF 10. “VOL+”: Increases volume during USB memory stick playback 11. “VOL-”: Decreases volume during USB memory stick playback : Track selection buttons : Mute Button VIPER...
  • Page 15 20 segments, the program will end, slowing the treadmill down to a stop. During program operation speed incline can still be adjusted but upon reaching the next segment, these values will be automatically adjusted to the program defaults. Built-in program data is listed in the following table. VIPER...

  • Page 16: Program Chart

    INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE VIPER...
  • Page 17 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED VIPER...
  • Page 18 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE VIPER...
  • Page 19 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED VIPER...
  • Page 20 20 time segments. Press MODE to setup the first time segment. Adjust speed using “SPEED+”, “SPEED–”. Adjust incline using “INCLINE+”, “INCLINE -”. Press MODE to finish and enter next time segment. After finishing the VIPER...
  • Page 21 When in the HP1/HP2/HP3 display interface, press the start key to select a HRC program. The system will automatically recommend HRC parameters available to users. Default parameters: "HP1" program: Maximum operating speed: 8.0km/h, 30 years of age, default target heart value of VIPER...
  • Page 22 1 level every 10 seconds, until the incline limit is reached. Actual heart rate Incline will decrease by 1 level every 10 seconds, until minimum is greater than incline is reach or the target heart rate is reached. (speed is target heart rate controlled by the user) VIPER...
  • Page 23 167 18 166 19 165 20 164 21 163 22 162 23 161 24 160 25 159 26 158 27 157 28 156 29 155 30 154 31 153 32 152 33 151 34 150 35 149 36 148 37 VIPER...
  • Page 24 124 61 123 62 122 63 121 64 120 65 119 66 118 67 117 68 116 69 115 70 114 71 113 72 112 73 111 74 110 75 109 76 108 77 107 78 106 79 105 80 VIPER...
  • Page 25 Place both hands on the hand sensors for 5 seconds, and the window will display your body fat data. Input parameter display and setting limits PARAMETERS ARRANGEMENT DESCRIPTION 01--02 01= MALE 02= FEMALE 10—99 YEARS HEIGHT 100—200 CM WEIGHT 30—180 KGS FA（BMI） RESULT ≤19 UNDER WEIGHT 20--25 NORMAL WEIGHT 25--29 OVER WEIGHT ≥30 OBESE VIPER...
  • Page 26 Pressing STOP once during your workout will pause your workout and slow your machine to a stop. After 5 minutes, the computer will display “PRESS START TO RESUME OR STOP TO END”. Press “stop” twice to stop the machine and end the workout. Press “stop” three times for the machine to return to IDLE mode. VIPER...
  • Page 27 11. CALORIE CALCULATION FORMULA: 70.3×V(Km/h)×t(h)×(1+?%) When incline is 0, 7.3kc is lost. VIPER...

  • Page 28: Maintenance Instructions

    General Care  Check parts for wear before use.  Pay particular attention to the fixing knobs and make sure they are tight.  Always replace the mat if worn and any other defective parts. VIPER...

  • Page 29: Belt/Deck/Roller Lubrication

    3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before relubricating is necessary. Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/cP9NtFHfWlc http://www.youtube.com/user/treadmillsvideos VIPER...

  • Page 30: How To Check The Running Mat For Proper Lubrication

    If the surface is slick when touched, then no further lubrication is needed. If the surface is dry to the touch, apply a suitable silicone lubricant. We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be purchased directly from us or any hardware store.

  • Page 31: Adjusting The Running Belt

    To adjust the tightness of the belt: Turn the treadmill off. Turn both the left and right adjusting bolts 1/4 turn clockwise. Repeat until the belt correctly tightens. See Picture C If the belt is over tightened, simply do the opposite to loosen. VIPER...
  • Page 32 2 inches. However this is a rough reference and not all treadmills are the same. Some treadmills that have longer belts may give different measurements for correct belt tightness. Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening. Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/vllsamTSvvA http://www.youtube.com/user/treadmillsvideos VIPER...

  • Page 33: Replacing Motor Brushes

    2. You’ll find the motor brush held in with a clip, with from the sides. the lead plugged in. 4a. Hold the clip out of the way with a screwdriver or 3. Pull the clip out from its position. similar object. Keep the screwdriver in this position until step 9. VIPER...
  • Page 34 8. Slide the new motor brush into the slot. 9a. Release the clip back into its position. 9b. If your motor uses a push clip, replace the push clip by pushing it inwards and then down so that it engages the catch. VIPER...
  • Page 35 12. You have now successfully replaced the motor brushes. We also recommend that you remove any dirt and dust from your treadmill motor fan using a vacuum cleaner before replacing the cover. VIPER...

  • Page 36: Exploded Diagram

    8. EXPLODED DIAGRAM VIPER...
  • Page 37 VIPER...

  • Page 38: Parts List

    Motor bottom cover ST4.2*20 Bolt Left handle bar Foot pad Right handle bar Incline Motor IPAD rack DC Motor Fan blade Computer top cover Filter Control board Inductor Computer bottom cover ST4.2*12 CE fix board Oil Bottle Wind scooper VIPER...
  • Page 39 Earth wire Computer up wire Connecting rod Computer bottom wire Non-slip pad Safety key Light sensor MP3 wire optional Spring bottom cover Spring top cover Spring cushion VIPER...

  • Page 40: Trouble Shooting Guide

    2. the safety pipe is broken or has fallen off; after pressing START 3. motor wire is not properly connected button 4. IGBT on bottom control board is burnt out. Test the above reasons and change the relevant part. VIPER...
  • Page 41 VIPER...

  • Page 42: Warranty

    Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs Warranty and Support: Please email us at support@lifespanfitness.com.au for all warranty or support issues. For all warranty or support related enquiries an email must be sent before contacting us via any other means. VIPER...
  • Page 43 Hand Pulse Technology Lifespan Fitness Treadmills come equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.
  • Page 44 VIPER...

Table of Contents
