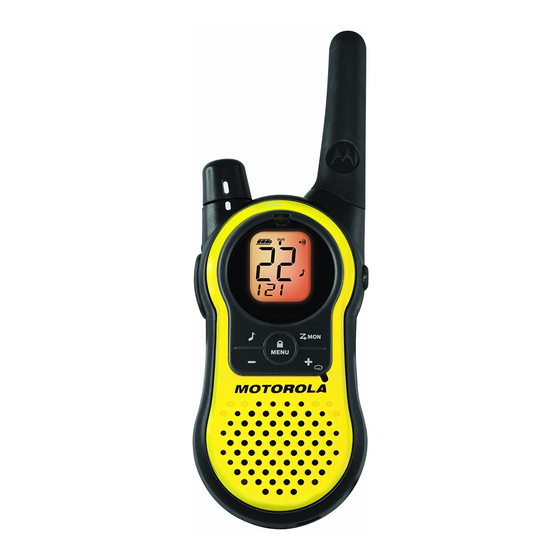

Motorola MH230CLR User Manual

Body-Worn Operation
To maintain compliances with FCC/Health Canada RF exposure
®
guidelines if you wear a radio on your body when transmitting
always place the radio in a Motorola-supplied or approved clip
holder, holster, case or body harness for this product. Use of non-
Two-Way Radio
Motorola-approved accessories may exceed FCC/Health Canada RF
User's Guide exposure guidelines.
If you do not use one of the Motorola-supplied or approved body-
worn accessories and are not using the radio held in the normal
use position, ensure the radio and its antenna are at least 1 inch
( 2.5 cm) from your body when transmitting.
Data Operation
If applicable, when using any data feature of the radio with or
without an accessory cable, position the radio and its antenna at
least one inch ( 2.5 cm) from the body.
Approved Accessories
• 53724: Remote Speaker with Push-to-Talk Microphone
• 53725: Headset with Swivel Boom Microphone
• 53727: Earbud with Push-to-Talk Microphone
• 53728: Flexible Ear Receiver
• 56320: Earpiece with Boom Microphone
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately shielded,
designed or otherwise configured for electromagnetic compatibility.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
KEM ML14190 02 MH230CLR
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including
interference that may cause undesired operation.
For More Information
IC Canada
For further information, you may contact Motorola Solutions, Inc.
The term "IC:" before the equipment certification number only
at 0-800-201-442.
signifies that the Industry Canada technical specifications were met.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts,
turn off your radio in any facility where posted notices instruct you
to do so. Hospitals or health care facilities may be using equipment
that is sensitive to external RF energy.
Aircraft
Safety and General Information
When instructed to do so, turn off your radio when onboard an
Important Information on Safe and Efficient Operation
aircraft. Any use of a radio must be in accordance with applicable
regulations per airline crew instructions.
Read This Information Before Using Your Radio.
Medical Devices – Pacemakers
The information provided in this document supersedes the general
The Advanced Medical Technology Association recommends that
safety information in user guides published prior to December 1, 2002.
a minimum separation of 6 inches (15 cm) be maintained between a
Transmit and Receive Procedure
handheld wireless radio and a pacemaker. These recommendations
Your two-way radio contains a transmitter and a receiver. To control are consistent with the independent research by and
recommendations of the U.S. Food and Drug Administration.
your exposure and ensure compliance with the general population/
uncontrolled environment exposure limits, always adhere to the
People with pacemakers should:
following procedure:
• ALWAYS keep the radio more than 6 inches (15 cm) from their
• Transmit no more than 50% of the time.
pacemaker when the radio is turned ON.
• To receive calls, release the PTT button.
• Not carry the radio in the breast pocket.
• To transmit (talk), press the Push to Talk (PTT) button.
• Use the ear opposite the pacemaker to minimize the potential
Transmitting 50% of the time, or less, is important because the radio for interference.
generates measurable RF energy exposure only when transmitting
• Turn the radio OFF immediately if there is any reason to suspect
(in terms of measuring standards compliance).
that interference is taking place.
Exposure to Radio Frequency Energy
Medical Devices – Hearing Aids
Your Motorola two-way radio complies with the following RF energy
Some digital wireless radios may interfere with some hearing aids.
exposure standards and guidelines:
In the event of such interference, you may want to consult your
hearing aid manufacturer to discuss alternatives.
• United States Federal Communications Commission, Code of
Federal Regulations; 47CFR part 2 sub-part J. Medical Devices – Other
• American National Standards Institute (ANSI)/Institute of If you use any other personal medical device, consult the
Electrical and Electronic Engineers (IEEE) C95. 1-1992.
manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist you
• Institute of Electrical and Electronics Engineers (IEEE) C95.
in obtaining this information.
1-1999 Edition.
Safety and General Use While Driving
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998.
Check the laws and regulations regarding the use of radios in the
area where you drive, and always obey them. If you do use your
• Ministry of Health (Canada) Safety Code 6. Limits of Human
Exposure to Radiofrequency Electromagnetic Fields in the radio while driving, please:
Frequency Range from 3 KHz to 300 GHz, 1999.
• Give full attention to driving and to the road.
• Australian Communications Authority Radiocommunications
• Use hands-free operation, if available.
(Electromagnetic Radiation—Human Exposure) Standard, 2003.
• Pull off the road and park before making or answering a call if
• ANATEL ANNEX to Resolution No. 303 of July 2, 2002.
driving conditions so require.
• ANATEL ANNEX to Resolution No. 533 of September 10, 2009.
The use of a two-way radio while engaged in activities requiring
concentration may cause distraction or otherwise impair your ability
To ensure optimal radio performance and make sure human
exposure to radio frequency electromagnetic energy is within the to safely participate in such activities. Always use technology safely.
guidelines set forth in the above standards, always adhere to the
Do not place a portable radio in the area over an air bag or in the
following procedures.
air bag deployment area. Air bags inflate with great force. If a
Portable Radio Operation and EME Exposure portable radio is placed in the air bag deployment area and the air
bag inflates, the radio may be propelled with great force and cause
Antenna Care
serious injury to occupants of the vehicle.
Use only the supplied or an approved replacement antenna.
Potentially Explosive Atmospheres
Unauthorized antennas, modifications, or attachments could
Turn off your radio prior to entering any area with a potentially
damage the radio and may violate FCC regulations.
explosive atmosphere. Only radio types that are especially qualified
Do NOT hold the antenna when the radio is "IN USE." Holding the
should be used in such areas as "Intrinsically Safe." Do not remove,
antenna affects its effective range.
install or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in
bodily injury or even death. Chile - MH230CLR
Note: The areas with potentially explosive atmospheres referred to
Servicio de Banda Local UHF frequency use is subject to SUBTEL
above include fueling areas such as below decks on boats, fuel or Resolution 1261/52/4710. A license is required for use in Chile. To
obtain a Banda Local end-user license:
chemical transfer or storage facilities, areas where the air contains
chemicals or particles (such as grain, dust or metal powders) and
1. Fill out the required application form to request Local Band
any other area where you would normally be advised to turn off your
vehicle engine. Areas with potentially explosive atmospheres are service.
a. It is available on the SUBTEL website: http://www.subtel.cl/
often—but not always—posted.
prontus_subtel/site/artic/20070102/pags/20070102123616.html
Blasting Caps and Areas
b. It is also available at the SUBTEL offices:
To avoid possible interference with blasting operations, turn off your
Subsecretaría de Telecomunicaciones
radio when you are near electrical blasting caps, in a blasting area,
Unidad de Licencias y Permisos
or in areas posted "Turn off two-way radios." Obey all signs and
Lorenzo Gotuzzo N°124, piso 6
instructions.
Santiago, Chile
Operational Cautions
Tel. (56-2) 421 3634
Antennas
2. Present this form with your ID at the above location.
Do not use any portable radio that has a damaged antenna. If a
3. Consult the SUBTEL offices for applicable fees.
damaged antenna comes into contact with your skin, a minor burn
can result.
For more information, consult SUBTEL at www.subtel.cl or call their
Batteries
offices at the telephone number listed above.
All batteries can cause property damage and/or bodily injury such as
Channel
burns if a conductive material—like jewelry, keys or beaded chains—
1
touch exposed terminals. The conductive material may complete an
2
electrical circuit (short circuit) and become quite hot. Exercise care in
handling any charged battery, particularly when placing it inside a
3
pocket, purse or other container with metal objects.
4
Exercise care when removing NiMH or AAA batteries. Do not use
5
sharp or conductive tools to remove either of these batteries.
6
Battery Charger Safety Instructions: 7
Save these Instructions
8
9
1. Do not expose the charger to rain or snow.
10
2. Do not operate or disassemble the charger if it has received a
11
sharp blow, or has been dropped or damaged in any way.
12
3. Never alter the AC cord or plug provided with the unit. If the
plug will not fit the outlet, have the proper outlet installed by a 13
qualified electrician. An improper condition can result in a risk 14
of electric shock.
15
4. To reduce the risk of damage to the cord or plug, pull the plug
16
rather than the cord when disconnecting the charger from the
17
AC receptacle.
18
5. To reduce the risk of electric shock, unplug the charger from the
19
outlet before attempting any maintenance or cleaning.
20
6. Use of an attachment not recommended or sold by Motorola
may result in a risk of fire, electric shock or personal injury.
7. Make sure the cord is located so it will not be stepped on,
tripped over or subjected to damage or stress.
8. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in a
risk of a fire and/or electric shock. If an extension cord must be
used, make sure that:
• The pins on the plug of the extension cord are the same
Volume
number, size and shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical
condition.
• The extension cord size is 18 AWG for lengths up to 100 feet,
Push to Talk
and 16 AWG for lengths up to 150 feet.
9. The supply cord of the AC adaptor cannot be replaced. If the
cord is damaged, call customer service at the appropriate
number listed in the Warranty section.
Call Tone
Changes or modifications, not expressly approved by Motorola, may
void the user's authority granted by the local regulatory agency to
operate this radio and should not be made. To comply with local
regulatory requirements, transmitter adjustments should be made
Speaker
only by or under the supervision of a person certified as technically
qualified to perform transmitter maintenance and repairs in the
private land mobile and fixed services as certified by an
organization representative of the user of those services.
Mini-USB
Replacement of any transmitter component (crystal, semiconductor,
Charging Port
etc.) not authorized by the local agency's equipment authorization
for this radio could violate local government regulatory rules.
Note:
• Use of this outside the country where it was intended to be
distributed is subject to government regulations and may be
prohibited.
Licensing Information
Your radio channels operate within the range of free use frequencies
and do not require a license from your local regulatory agency to
use the radio. (Refer to the Channels and Frequencies table.
Channels and Frequencies Display Screen Guide
Numbers
for Channel,
Call Tone
Numbers
for Codes
- Battery Meter
- Channel Power
Indicator (see
Menu Options)
- Lock
- Talk Confirmation
Tone (Roger Beep)
Frequency in MHZ Channel Frequency in MHZ
- Noise Filtering
462.5500 21 467.6125
462.5625 22 467.6250
*This feature is not available in Chile
462.5750 23 467.6375
462.5875 24 467.6500
462.6000 25 467.6625
Getting Started
462.6125 26 467.6750
462.6250 27 467.6875 Installing the Batteries
462.6375 28 467.7000 Each radio uses 1 NiMH rechargeable battery pack or 3 AAA
462.6500 29 467.7125 alkaline batteries and beeps when the batteries are low.
462.6625 30 467.7250 Installing NiMH Rechargeable Battery Pack
462.6750 31 467.8125
1. Turn the radio off.
462.6875 32 467.8250
2. With the back of the radio facing you, lift the battery cover latch
462.7000 33 467.8375 up and remove the cover.
462.7125 34 467.8500
3. Remove the battery pack from the clear plastic bag. (Do not
462.7250 35 467.8625 disassemble or unwrap the battery pack.)
467.5500 36 467.8750
4. Insert the NiMH battery pack with the diagram facing you.
467.5625 37 467.8875
5. Reposition the battery cover and press down to secure.
467.5750 38 467.9000
Installing the Three AAA Alkaline Batteries
467.5875 39 467.9125
1. Turn the radio off.
467.6000 40 467.9250
2. With the back of the radio facing you, lift the battery cover latch
up and remove the cover.
3. Insert the three AAA alkaline batteries with + and - polarity as
Control Buttons
shown inside.
4. Reposition the battery cover and press down to secure.
Radio Battery Meter
The radio battery icon shows the radio battery charge level, from
full to empty . When the radio has one segment left, the
radio chirps periodically or after releasing
Menu/Lock
Removing the NiMH Battery Pack
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Remove the NiMH battery pack by pulling the ribbon attached to
Accessory Jack
the battery.
4. Reposition the battery cover and press down to secure.
Scan/Monitor Removing the Three AAA Batteries
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Gently remove each battery by easing each battery out individually.
Scroll/Weather 4. Reposition the battery cover and press down to secure.
Notes
• Exercise care when removing NiMH or AAA batteries. Do not
use sharp or conductive tools to remove either of these batteries.
Microphone
• Remove the batteries before storing your radio for extended
periods of time. Batteries corrode over time and may cause
permanent damage to your radio.
Using the Battery Charger
The battery charger provides drop-in charging convenience for
NiMH batteries and can be placed on any flat surface, such as a
desk or workbench. Charge the NiMH battery overnight (at least
16 hours) before using it for the first time. After the initial charge,
an empty battery is fully charged within 14 hours.
1. Follow the steps above to install a NiMH Battery Pack.
2. Plug the AC power supply cord into the jack on the desk stand.
3. Plug the AC power supply into a standard wall outlet.
4. With a radio facing forward, slide it into one of the charging
pockets.
5. When charging in the battery charger, the red light on the
charger base will glow continuously.
Using the mini-USB Charging Connector
The mini-USB charging connector is a handy port that allows you to
conveniently charge your NiMH battery pack. This is an alternative
to charging your NiMH battery pack in the Battery Charger desk
stand using the AC wall adaptor and especially useful when used
while traveling.
Available mini-USB charging options: (Optional Accessories)
1. Wall travel charger
On/Off for each
- 2. Vehicle charger
feature
3. Mini-USB computer cable
If using a computer, the computer must be turned on.
- Scan
This and other accessories (sold separately) are available for
your radio. For more information, visit our Web site at
- Call Tone, www.motorolasolutions.com/talkabout or shop.giantintl.com.
Keypad Tone
1. Plug your mini-USB cable or charger into a power source as is
appropriate for your accessory.
- Weather Alert *
2. Plug the cable into the mini-USB port on the bottom of your radio.
3. An empty battery will be fully charged in 14 hours.
- Hands-Free Use
4. The LED indicator light on the radio will glow to indicate that the
Without
battery is charging.
Accessories
Notes
• The light will remain red after the NiMH battery pack is fully
- Hands-Free Use charged.
With Accessories
• When moving between hot and cold temperatures, do not
charge the NiMH battery pack until the battery temperature
acclimates (usually about 20 minutes).
• For optimal battery life, remove the radio from the charger within
16 hours. Do not store the radio while connected to the charger.
• If the radio is kept on while charging, the charging time will be
extended.
• Even though the charger is connected, you may not be able to
transmit a message if the battery is completely empty
Allow time for the battery to charge to 1 bar before
attempting to transmit a message.
Attaching and Removing the Belt Clip
1. Attach belt clip to pocket or belt strap.
2. Align the belt clip post with the hole in the back of the radio.
3. Gently push until the clip clicks in place.
To Remove
1. Push down on the release tab at the top of the belt clip to
release the catch.
2. Pull the belt clip away from the back of the radio.
Turning your Radio On and Off
Turn clockwise to turn the radio on and counterclockwise to
turn the radio off.
1. In the ON position, the radio chirps and briefly shows all feature
icons available on the radio.
2. The display screen then shows the current channel, code and
all features that are enabled.
Setting the Volume
(Low Battery Alert).
Press and hold for three seconds while rotating
reach a comfortable listening level.
1. Rotate clockwise to increase the volume.
2. Rotate counterclockwise to decrease the volume.
Do not hold the radio close to your ear. If the volume is set to an
uncomfortable level, it could hurt your ear.
Talking and Listening
To communicate, all radios in your group must be set to the same
channel and Interference Eliminator Code.
1. To talk, press and hold .
2. When you are finished talking, release .
For maximum clarity, hold the radio two to three inches away from
your mouth and speak directly into the microphone. Do not cover
the microphone while talking.
Talk Range
Your radio is designed to maximize performance and improve
transmission range. Do not use the radios closer than five feet apart.
Monitor Button
Pressing and holding for three seconds allows you to listen to
the volume level of the radio when you are not receiving. This allows
you to adjust the volume, if necessary. You can also press
check for activity on the current channel before you talk.
Push to Talk Timeout Timer
To prevent accidental transmissions and save battery life, the radio
emits a continuous warning tone and stops transmitting if you
press for 60 continuous seconds.
Continued on back
.
until you
to
MH230CLR
