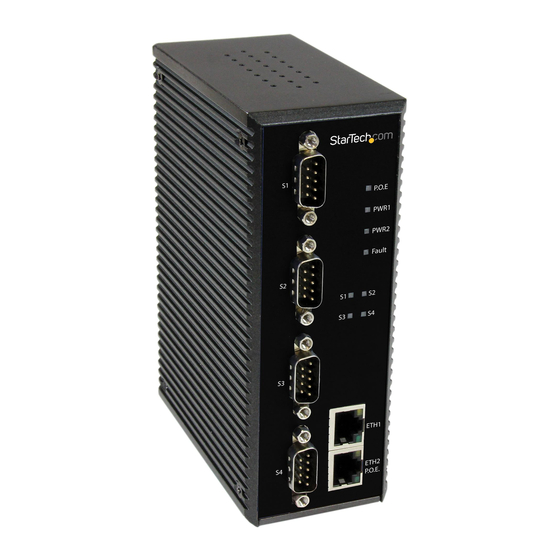

Industrial 4 Port RS232/422/485 to Dual
Ethernet Serial Device Server - PoE PD
NETRS42348PD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/22/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com NETRS42348PD
Summary of Contents for StarTech.com NETRS42348PD

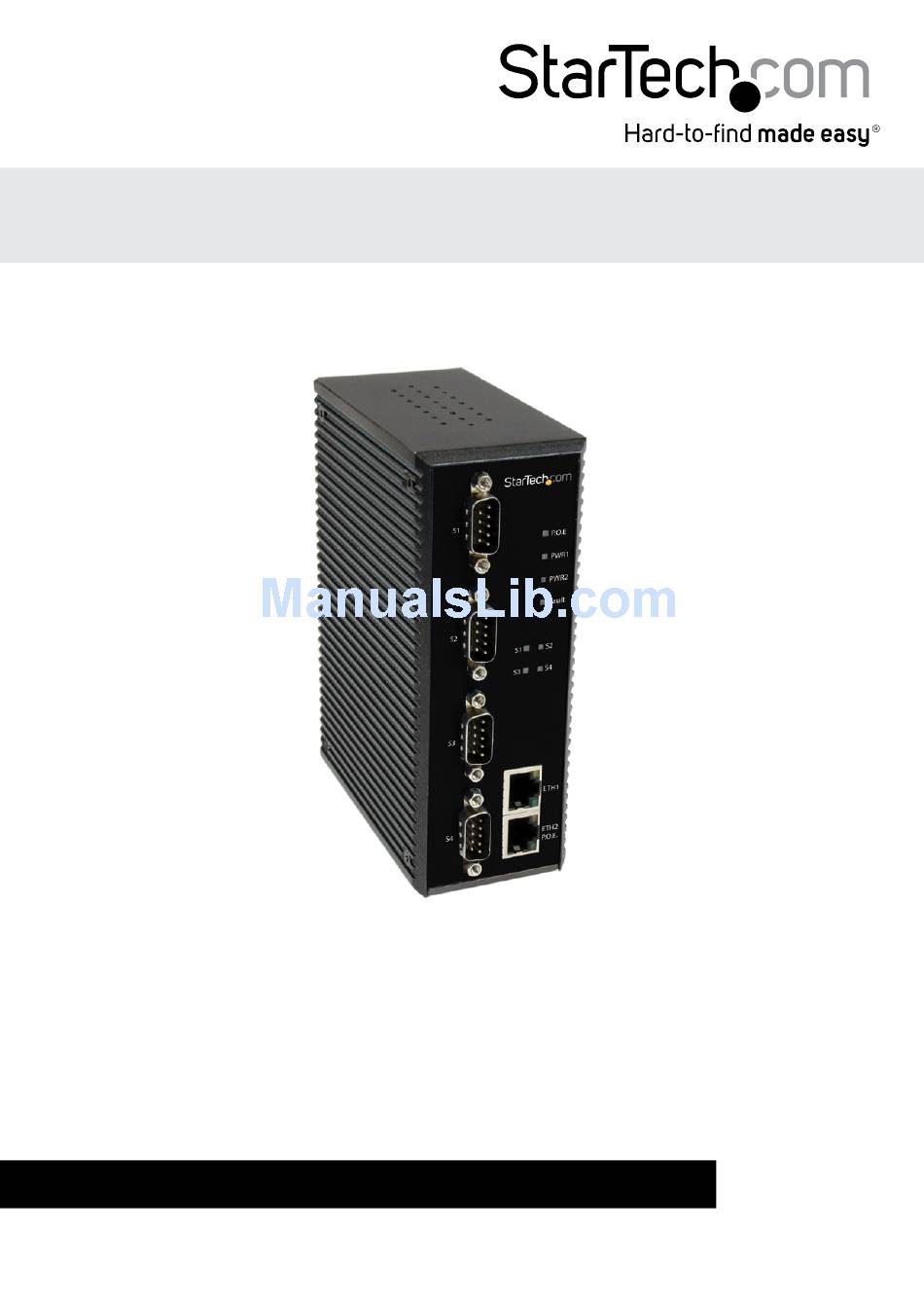

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/22/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Terminal Block Power Connector ......................2 DB-9 Connector Pinout ........................... 2 Introduction ....................3 Packaging Contents ..........................3 System Requirements ..........................3 Installation ....................4 Hardware Installation ..........................4 Software Installation ..........................5 Operation .............................. -
Page 4: Product Diagram
Product Diagram Front View PoE LED LED for PWR1 LED for PWR2 LED for Fault Indicator LED for Serial Port Status DB-9 Serial Ports LED for 10Base-T Connection on Ethernet Port 10/100Base-T Ethernet Ports (ETH 2 supports PoE) LED for 100Base-T Connection on Ethernet Port Instruction Manual... -
Page 5: Terminal Block Power Connector
Terminal Block Power Connector The device server can be powered using a PoE connection, or using the Terminal Block connector as outlined below. DB-9 Connector Pinout Pin# RS 232 RS 422 RS 485 (4 wire) RS 485 (2 wire) RXD- RXD- RXD+ RXD+... -
Page 6: Introduction
Introduction Packaging Contents • 1x Serial Device Server Unit • 1x DIN Rail Kit • 1x Wall-Mount Kit/ Screws • 2x RJ-45 Dust Covers • 1x Quick Installation Guide • 1x Software CD System Requirements • Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), Windows® Server 2012, 2008 R2, 2003(32/64) Instruction Manual... -
Page 7: Installation
Installation Hardware Installation The server can be installed on a DIN rail or it can be wall-mounted. Installation on a DIN-Rail: 1. Tilt the unit, making sure that the metal spring located at the back is positioned on top of the DIN rail. 2. -
Page 8: Software Installation
“Startech_V1.0_xxxxxxx” 3. Follow the on-screen instructions to complete the installation. Operation For full operating instructions, please visit www.startech.com/NETRS42348PD 1. Start the DS-Tool, allow the install of the driver 2. Allow access to the DS-Tool on the Windows Firewall Instruction Manual... - Page 9 3. Once the utility opens, click the “Broadcast” button to detect the device server. The default IP address of device is “192.168.10.2”. 4. Once detected, click the checkbox beside the device you would like to configure, then click the “Add” button to configure your desired IP settings (Static / DHCP). To add a virtual COM port, please use the VCOM Wizard and follow the steps.
-
Page 10: Specifications
Specifications Interface Serial Ports ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, Supported Protocols DNS, SNMP MIB II, HTTPS, SSH 4x DB-9 male, 1x RJ-45 Connectors 1x Power over Ethernet RJ-45 1x 6pin Terminal Block 2x Ethernet Link, P.O.E, PWR1,PWR2, fault, LED Indicator(s) S1, S2, S3, S4 Supported Serial Protocols... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
