Luma EC45S Owner's Manual

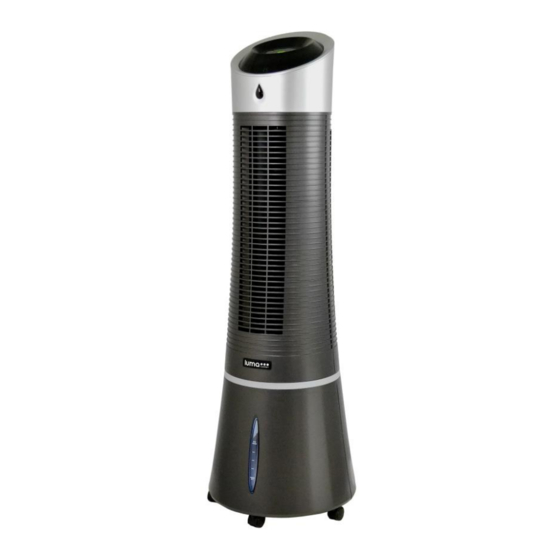

Luma comfort ec45s evaporative cooler
Hide thumbs Also See for EC45S:
Table of Contents

Advertisement

Quick Links

.
Because you're not like everybody else
E
C
VAPORATIVE
OOLER
EC 45 S
O
'
M
WNER
S
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC45S and is the answer not in the manual?

Questions and answers

Related Manuals for Luma EC45S

Summary of Contents for Luma EC45S

  • Page 1 Because you’re not like everybody else VAPORATIVE OOLER EC 45 S ’ WNER ANUAL...
  • Page 2 Our goal is to ensure that every Luma Comfort customer is 100% satisfied with their product. If you have any questions or concerns regarding your product, or if you would simply like to share an idea with us, please feel free to contact us.

  • Page 3: Table Of Contents

    ONTENTS Important Safety Information ................4 Get To Know Your Evaporative Cooler ............. 5 Product Benefits ..................5 Parts List...................... 5 Parts Diagram ....................6 Operating Instructions ..................7 Set Up......................7 Filling the Water Tank .................. 7 Using the Ice Pack ..................8 The Control &...

  • Page 4: Important Safety Information

    13. If the evaporative cooler will not be in use, empty the tank of any remaining water. 14. If the cooler’s plug or power cord is damaged, do not attempt to repair the components yourself. Please contact Luma Comfort’s customer service hotline at 1-866-737-6390 or have the unit examined by an authorized service provider.

  • Page 5: Get To Know Your Evaporative Cooler

    VAPORATIVE OOLER RODUCT ENEFITS  Designed to cool smaller areas such as single rooms, office cubicles and personal spaces  Sleek, modern design makes it an attractive addition to your home  Tower body shape saves space  High-efficiency, rigid cooling pad holds more water ...

  • Page 6: Parts Diagram

    ARTS IAGRAM Control panel 6. Caster 10. Power cord 2. Display panel Dustproof air 11. Water tank Remote control filter knob receiver 8. Cooling pad 12. Ice pack 4. Air louvers slot 13. Remote control Water level 9. Water tank indicator www.LumaComfort.com...

  • Page 7: Operating Instructions

    Do not fill the tank above the MAX water level line or below the MIN water level line. The approximate tank size of the EC45S is 1.6 gallons (6 liters).

  • Page 8: Using The Ice Pack

    SING THE The Luma Comfort EC45S tower evaporative cooler includes an optional ice pack for added cooling. Place the ice pack in the freezer until frozen. Do not open the ice pack or ingest its contents. 2. Open the water tank and put the ice pack into one of the water tank’s chambers.
  • Page 9 After the tank is filled with water, connect the evaporative cooler to a power outlet. The unit will beep twice, indicating that the power source is connected. The cooler will be in standby mode at this time. ON/SPEED & OFF Buttons Press the ON/SPEED button to turn on the evaporative cooler.
  • Page 10 Natural Mode – Indicated by the palm tree icon on the display panel, this setting will automatically vary the airflow speed between low, medium and high. Natural Mode Sleep Mode – Indicated by the moon icon on the display panel, this setting will gradually lower the speed at different intervals, depending on the selected fan speed.

  • Page 11: Using The Remote Control

    SING THE EMOTE ONTROL The Luma Comfort EC45S is equipped with a remote control. A CR2032 3V coin-type replacement battery is included for your convenience. To put the battery inside the remote control, insert a coin into the slot located on the back of the remote control and turn it as directed on the remote control.

  • Page 12: Exterior Cleaning

    XTERIOR LEANING Use a soft cloth and a mild soap and warm water solution to clean the unit’s exterior. Do not use harsh cleaners, gasoline, paint thinner, benzene, etc., as these substances can damage the evaporative cooler. 2. Thoroughly dry all of the cooler’s parts with a soft cloth before reconnecting the unit to the power supply.

  • Page 13: Water Tank Cleaning

    ATER LEANING The water tank should be emptied regularly to ensure hygienic use. To empty the tank: Unlock and pull open the water tank. 2. Place a small dish beneath the extended water tank. Remove the white plug from the bottom of the water tank to allow water to drain out into the dish.

  • Page 14: Technical Support

    ECHNICAL UPPORT Luma Comfort is committed to providing a premier service experience. If you are experiencing any technical issues with your product related to either setup or operation, please contact our product support team at 1-866-737-6390 or support@lumacomfort.com. RODUCT PECIFICATIONS...

  • Page 15: Troubleshooting

    ROUBLESHOOTING Problem Possible Cause(s) Possible Solution There is no a. The power cord is not a. Check to make sure the airflow. plugged in. plug is plugged into an outlet. The unit should beep twice once the power supply is connected.

  • Page 16: Warranty

    Luma Comfort products are warranted to be free from defects in workmanship or materials for one (1) year from the date of purchase. If the product is found to be defective within this period, Luma Comfort, at its sole option, will repair or replace any components that fail during normal operation.
