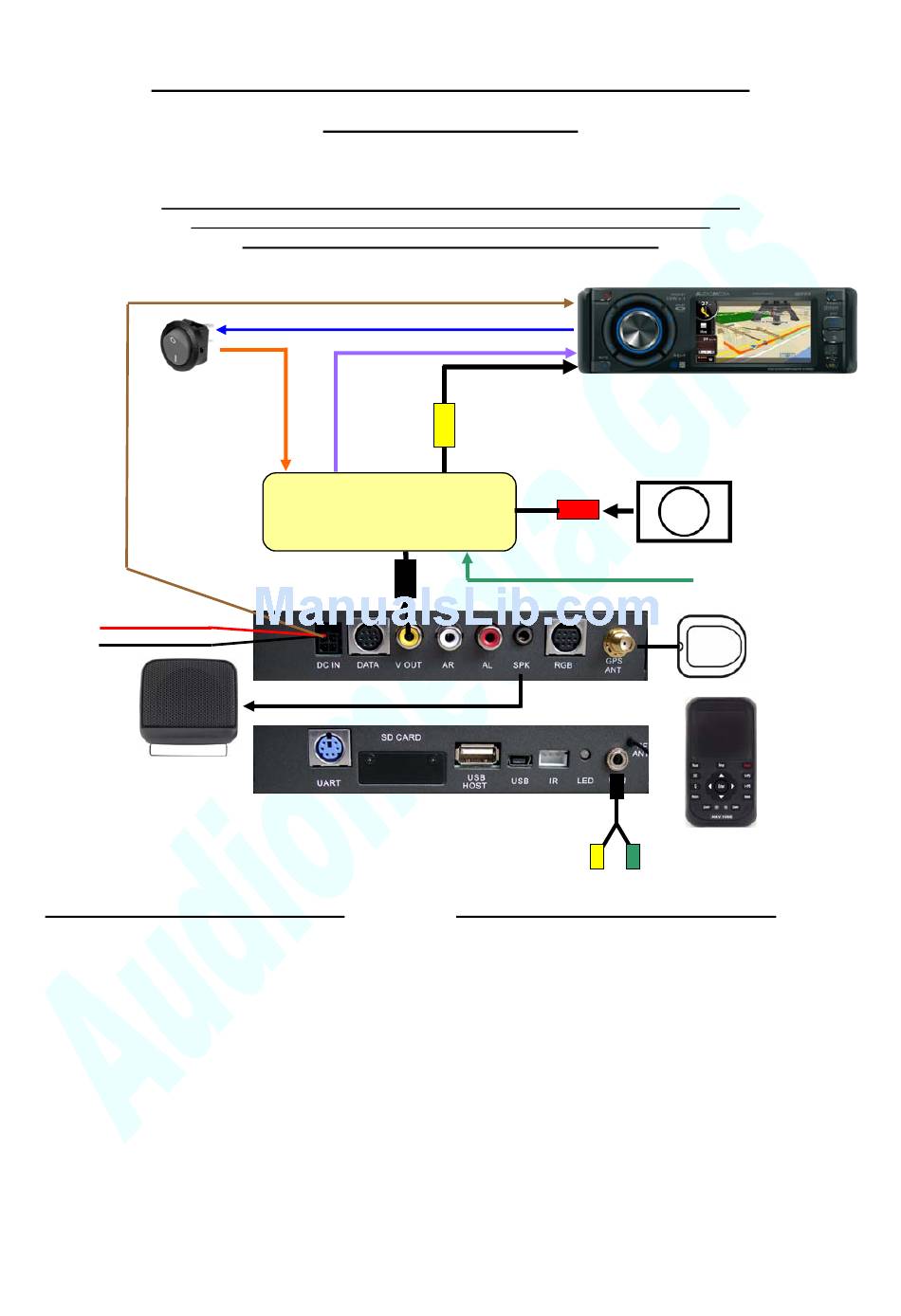

NAV108E
Universal KIT navi with audio enterntainment (type 1)
It is possible to listen to the main source, radio, CD, TV, SD etc during the navigation with the map shown on
AudioMedia compatibility:
AMV368RVD/AMV367RVD/AMV308RVD/AMV208RVD/AMV108RVD
+12V Acc
- Ground
Functioning VRX578/479RUSB:
Start: external rear camera switch
Vocal guidance: external speaker
Audio entertainment: Radio, TV, CD, DVD:
Connection: Rear camera input
Control: Touch pad remote control
Manuale d'uso- User's manual – Instrucciones para el uso
Control with RF remote control
(With automatic rear camera)
AMV398DD/AMV358DD/AMV588DD/AMV477VD
Clarion compatibility: VRX578RUSB/VRX479RUSB
Remote output (amplifiers switch)
Rear camera switch
AM RV108
Optional – to buy separetly
Clarital S.p.A Reggio Emilia – Italy www.clarital.it
the monitor.
Tel mute input
Rear camera input
For automatic rear camera installation only.
It's not needed without automatic rear-camera
+12V backup lights
2
Video in 1 -
Menù settings VRX578/479RUSB:
Press ADJ button and on the monitor:
Select "MONITOR"
Select "CAMERA INT"
Set "ON"
Press ADJ button and on the monitor:
Select "MONITOR"
Select "CAMERA WARNING"
Set "OFF"
Press ADJ button and on the monitor:
Select "GENERAL"
Select "TEL SWITCH"
Set "MUTE"
ref. 548-88
AM RV108
Rear camera
GPS Antenna
