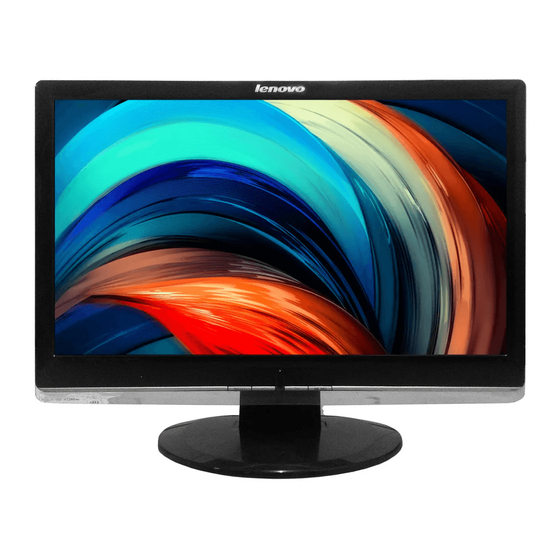

- Page 1 D1960 Wide LCD Monitor User’s Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ABOUT THIS GUIDE------------------------------------------------------------------------1 NATIONAL CONVENTIONS---------------------------------------------------------------1 FCC NOTICE --------------------------------------------------------------------------------- 2 PRECAUTIONS ------------------------------------------------------------------------------- 3 SETUP THE STAND AND BASE ------------------------------------------------------- 4 ADJUSTING VIEWING ANGLE ---------------------------------------------------------- 4 ATTACHING THE CABLES --------------------------------------------------------------- 5 WALL MOUNTING -------------------------------------------------------------------------- 6 SETTING THE OPTIMAL RESOLUTION ---------------------------------------------- 7 EXTERNAL CONTROLS ------------------------------------------------------------------ 7 OSD SETTINGS ---------------------------------------------------------------------------- 8 DCB ADJUSTMENT ------------------------------------------------------------------------ 9... -
Page 3: About This Guide
About This Guide This guide describes the monitor’s features, setup, and operation. lnformation in this document is subject to change without notice. The sections are as follows: • Safety Instructions: lists safety information. • Setup: describes the initial setup process. •... -
Page 4: Fcc Notice
FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Precautions
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards Read and follow these precautions when connecting and using your computer monitor: PRECAUTIONS • Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. -
Page 6: Setup The Stand And Base
Setup the stand and base Please setup or remove the base following below steps. Adjusting Viewing Angle • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. •... -
Page 7: Attaching The Cables
Attaching the Cables Cable Connections On Back of Monitor and Computer Turn off your computer before performing the procedure below. 1. Connect the power cable to the AC port on the back of the monitor. 2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. -
Page 8: Wall Mounting
Wall Mounting Preparing to Install An Optional Wall Mounting Arm This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps: 1. Remove the base. 2. Follow the manufacturer’s instructions to assemble the wall mounting arm. 3. -
Page 9: Setting The Optimal Resolution
Setting the Optimal Resolution The recommended resolution for this monitor is 1366 by 768. To setup the monitor to this resolution, follow the steps below. 1. Click START. 2. Click SETTINGS. 3. Click CONTROL PANEL. 4. Double click DISPLAY. 5. Click SETTINGS. 6. -
Page 10: Osd Settings
OSD Settings • Press the MENU-button to activate the OSD window. • Press+ or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press or again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it. -
Page 11: Dcb Adjustment
DCB Adjustment What is DCB? Dynamic Color Boost (DCB) is an advanced color adjustment technology. Through analyzing RGB signals, DCB creates more vivid and natural images to suit various color environment needs. DCB has two types of color enhancers: “Color Boost” and “Picture Boost” . DCC: Dynamic color control ICM: Intelligent color management... - Page 12 ) How to use Color Boost? Five color-enhancement settings: To accommodate various display needs, Color Boost also offers 5 different color enhancement modes: Full Enhance, Natural Skin, Green Field, Sky Blue, and Auto-Detect. Please go to the fourth icon labeled “Color Boost” in the OSD menu and select one of the five settings you desire to be turned on.
- Page 13 Nature Skin: When “Natural Skin” is turned on, the red and yellow colors are enriched automatically, thus presents human skin with more natural and truer colors. “Natural Skin” setting is ideal for viewing human portrait and detailed skin texture. Green Field: When “Green Field”...
- Page 14 Sky Blue: When”Sky Blue” is turned on, the color blue is being fine-tuned so that the sky or ocean landscape will look more vivid and in-depth. “Sky Blue” setting is ideal for viewing sky and ocean images. Auto Detect: When “Auto Detect” is turned on, every pigment will be detected and self-adjusted to render a lively picture.
- Page 15 ) How to use Picture Boost? Users can change the color settings of a self-selected zone on the screen. The size and position of the selected zone can also be adjusted. “Picture Boost” is located in the fifth icon labeled “Picture Boost”...
-
Page 16: Image Adjustment
Image Adjustment Luminance Adjust Range Brightness 0-100 Contrast 0-100 Standard Text Internet Game Movie Esports Gamma1 Gamma Gamma2 Gamma3 Image Setup Clock 0-100 0-100 Focus H-Position 0-100 V-Position 0-100 Color Temperature Warm 6500K Normal 7300K Cool 9300K sRGB User-B User-G User-R User User-Y... -
Page 17: Led Indicators
Notes: 1)If the product has only one signal input, the item of “Input Select” is disable to adjust. LED Indicators Status Full Power Mode Active-off Mode LED Color Green or Blue Orange or red... -
Page 18: Problems And Solutions
Problems and Solutions Problem and Questions Power LED is Not ON No Plug & Play Picture is Fuzzy and has Ghosting Shadowing Problem Picture Bounces, Flickers or Wave Pattern is Present in the Picture Monitor is Stuck in Active Off- Mode Missing one of the primary colors (RED, GREEN or BLUE) -
Page 19: Specifications
Specifications Model Number Driving system Viewable Image Size Pixel Pitch LCD Panel Vídeo Separate Sync. Display Color Dot Clock Horizontal scan range Horizontal scan Size (Maximum) Vertical scan range Vertical scan Size (Maximum) Optimal present resolution Highest preset resolution Resolution Plug &... -
Page 20: Preset Display Modes
EPA ENERGY STAR ® ENERGY STAR® is a U.S registered mark. As an ENERGY STAR® Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Preset Display Modes STAND 640 x 480 @60Hz 640 x 480 @67Hz 640 x 480 @72Hz 640 x 480 @75Hz Dos-mode... -
Page 21: Pin Assignments
Pin Assignments D-Sub pins DVI-D pins Pin No. Signal Name TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock DDC Data N.C. Plug and Play Plug & Play DDCB Feature This monitor is equipped with VESA DDC2B capabilities accordiling to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
