The Atomic Projection Alarm features atomic time accuracy, indoor and outdoor temperature on a stylish,
colorful and easy-to-read display. Time and/or outdoor temperature can be projected on a wall or ceiling.
Use the integrated USB charging port to charge your devices when the Projection Alarm is plugged into a
power outlet.
Atomic Projection Alarm
Atomic Projection Alarm
Model 616-146 | Instruction Manual
Outdoor Temperature Transmitter: TX141
1
Advertisement
Table of Contents
Related Manuals for La Crosse 616-146
Summary of Contents for La Crosse 616-146
-

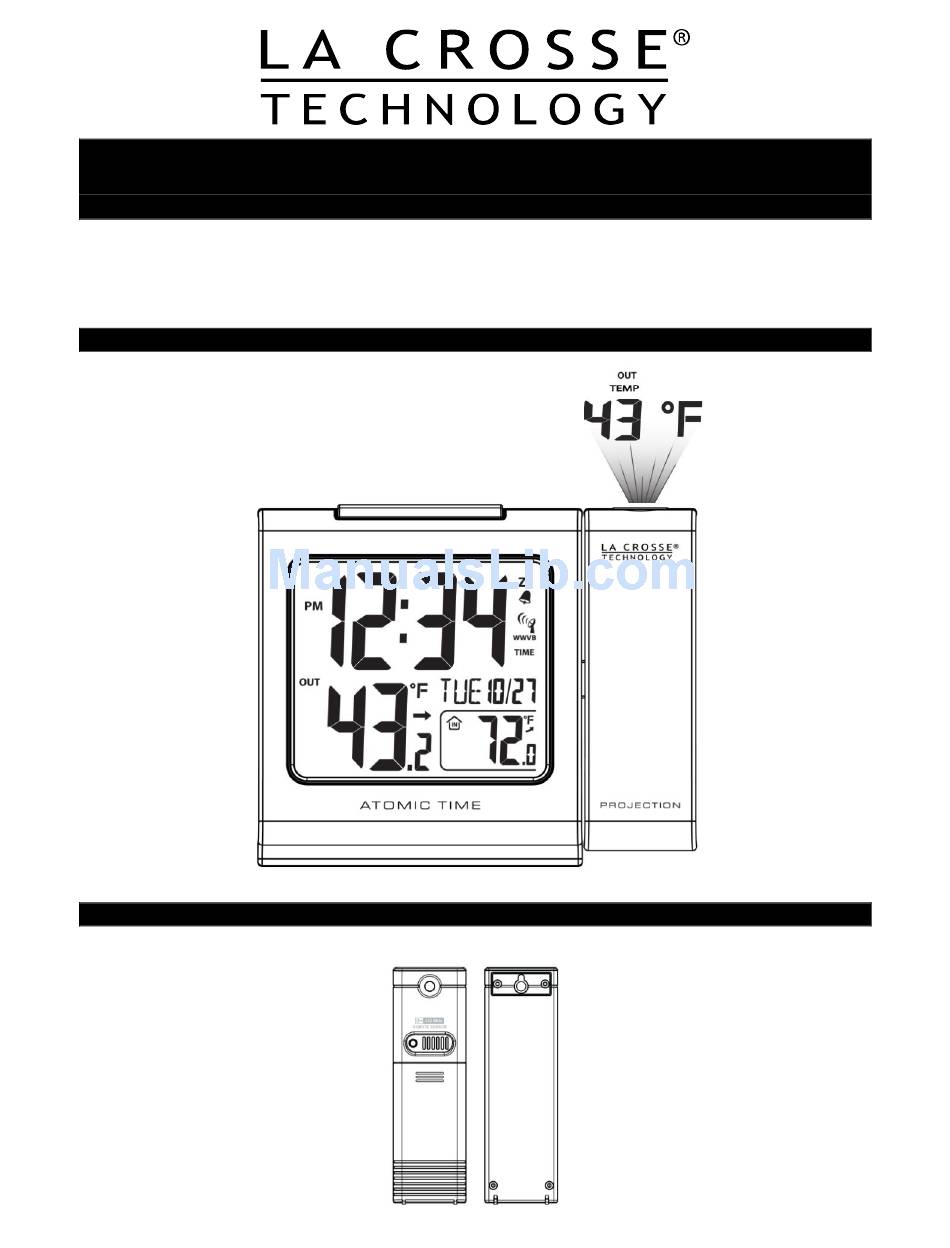

Page 1: Atomic Projection Alarm
Atomic Projection Alarm with Indoor and Outdoor Temperature Model 616-146 | Instruction Manual The Atomic Projection Alarm features atomic time accuracy, indoor and outdoor temperature on a stylish, colorful and easy-to-read display. Time and/or outdoor temperature can be projected on a wall or ceiling. -
Page 2: Table Of Contents
Battery Operation A/C Power Rotate Projection Change Projection Mode USB Charge Port Temperature Trend Icons Low Battery Icon Position Outdoor Transmitter Position Projection Alarm Care and Maintenance Specifications Accuracy Warranty FCC Statement 616-146 5V A/C Adapter 2-AAA batteries TX141 2-AA batteries... -
Page 3: Features
Features Projects time & outdoor temp. on wall or ceiling Projection rotates in 90 degree increments Projection options: (1) Default: toggle between time and temp., (2) time only or (3) temperature only Time zones: Atlantic Time (AST), Eastern Time (EST), Central Time (CST), Mountain Time (MST), Pacific Time (PST), Alaskan Time (AKT) &... -
Page 4: Power The Projection Alarm
Power the Projection Alarm The Projection Alarm can be powered by the 5-volt A/C adapter or by 2 AAA batteries. A/C power adapter Insert enclosed 5-volt A/C power adapter into a wall outlet, then into the Projection Alarm. Battery Compartment 5-Volt a/c adapter Optional Battery Operation 1. -
Page 5: Wwvb Radio-Controlled Time
WWVB Radio-controlled Time The NIST radio station, WWVB, is located in Ft. Collins, Colorado and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the Projection Alarm. However, due to the nature of the Earth’s Ionosphere, reception is very limited during daylight hours. -
Page 6: Program Menu
Button Press and Release Functions Hold 2 seconds SET/°C/°F Move through program menu (setup) Enter program menu, set time, Select temperature in °C/°F date, etc. (setup) ALARM Once: View Alarm Alarm set Twice: Activate or Deactivate Alarm +/TEMP 1 step forward (setup) Search for Sensor Fast advance (setup) -/TIME... -
Page 7: Daylight Saving Time Indicator
3. Confirm with the SET button and move to Daylight Saving Indicator. Daylight Saving Indicator DST will default to the ON position as most of the country observes the DST change. If you live in an area does not observe the DST change, switch this to the OFF position. 1. -
Page 8: Alarm Set
Alarm Set Hold the ALARM button for 5 seconds to enter the alarm time set mode. 1. The alarm hour digit will flash. 2. Press and release the +/TEMP or -/TIME buttons to select the hour. 3. Press and release the SET button to set the minutes. The minute digits will flash. -
Page 9: Usb Charge Port
Projection Arm Rotation: The projection arm can be rotated 180 degrees to view the projection on the wall or ceiling. USB Charge Port The integrated USB charging port (on back) will charge your smart phone, camera or other devices when the Projection Alarm is plugged into a power outlet with the included 5V A/C adapter. -
Page 10: Position Projection Alarm
protected area, at least 6 feet from the ground to avoid damage and ensure accurate readings. The transmitter is water resistant, not waterproof and should not be placed anywhere it will become submerged in water or subject to standing water or snow. Choose a location for the transmitter that is within range of the Projection Alarm and under an overhang for accuracy. -
Page 11: Accuracy
Alkaline Batteries: -20°F to 140°F (-28.8°C to 60°C) Lithium Batteries: -40°F to 140°F (-40°C to 60°C) Temperatures below - 20°F (-28.8°C) require Lithium batteries in the outdoor sensor. Distance: 200 feet (60 meters) RF 433MHz (open air) Interval: About every 50 seconds Power Atomic Projection Alarm: 5-volt A/C power adapter (included) -
Page 12: Warranty
Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. -
Page 13: Fcc Statement
FCC Statement This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) the device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
