Philex 27793RG SLX digiTop User Manual

Features Include:
• High performance British designed signal reception & processing
4G ready - a built in filter removes any signals received from 4G mobile phone
•
transmitters which would cause interference & channel loss on TVs
High gain and low noise built-in amplifier
•
• Suitable for Digital/HD TV reception in strong signal areas
• Receives all locally available digital TV signals
• High gloss piano black finish
• Upright or lay-flat positioning
• Choice of USB or mains powering for signal amplifier
• Supplied with 1.5m USB lead and USB mains adaptor

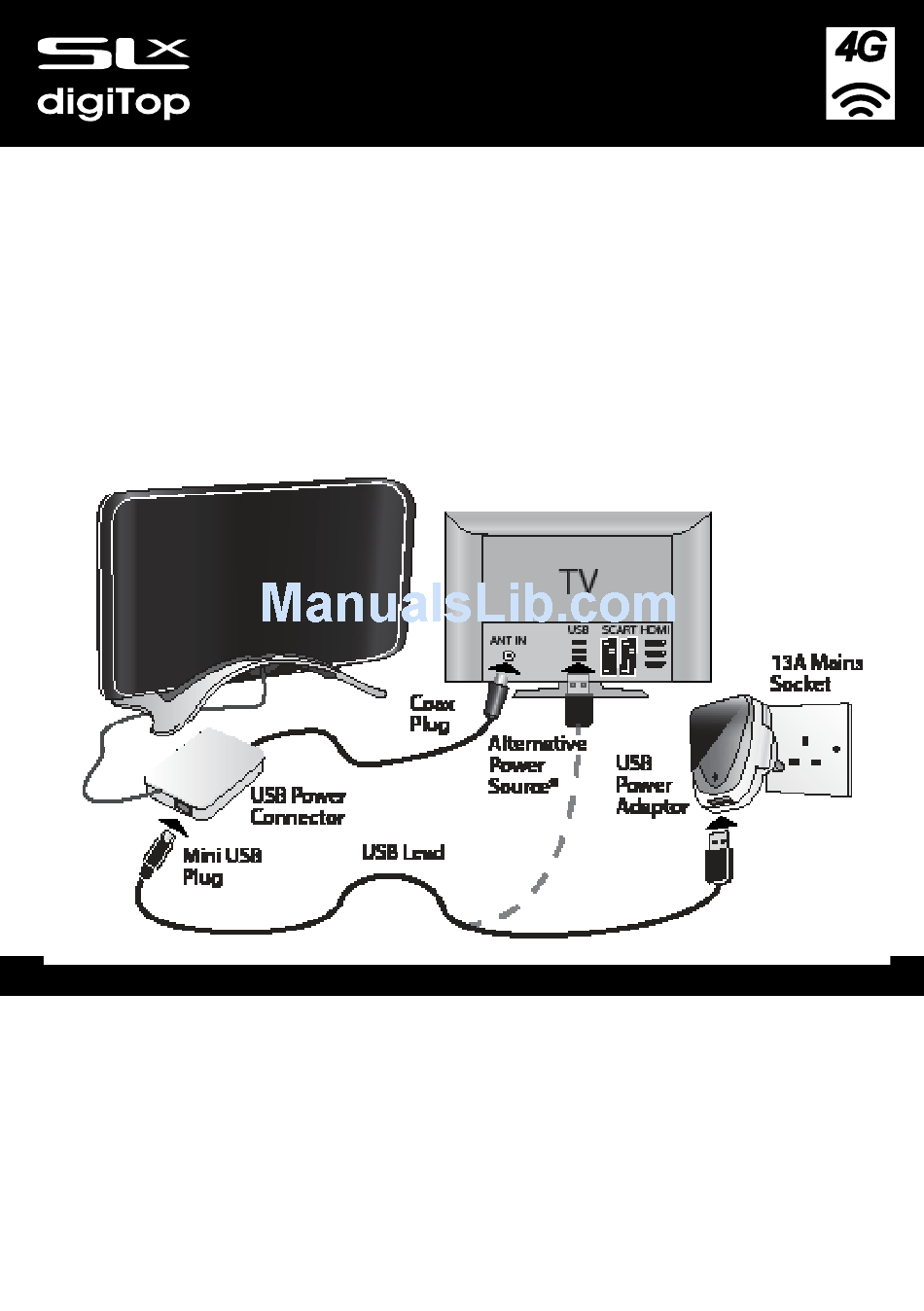

Fig. 1

Installation Instructions

1. Plug the mini USB plug on the USB lead supplied into the USB power connector, plug the other end
into the USB power adaptor which is then plugged into a mains socket as shown in Fig. 1.
*Alternatively the USB lead can be powered by any unused USB socket on a TV (available on most
recent TVs) or computer.
2. If your TV has a built-in digital tuner, connect your aerial to the RF input on your TV using the
integrated coax cable supplied.
Alternatively you can use your aerial to provide TV signals to Freeview™ boxes, PVRs, VCRs and other
set top boxes. Connect the coax plug on your aerial lead to the ANT IN socket on your set top box and
connect the set top box to your TV using an HDMI, SCART or RF lead as appropriate (follow your set top
box instructions).
Pro Flat Amplified Indoor Aerial
User GUIde 27793rG
Ready
