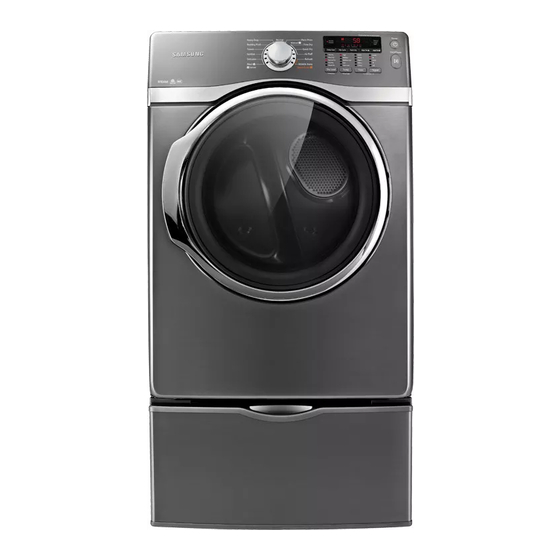

Samsung DV405 Series User Manual
Gas and electric dryer
Hide thumbs
Also See for DV405 Series:
- User manual (136 pages) ,
- Technical information (41 pages) ,
- User manual (132 pages)
Table of Contents
Advertisement
Quick Links
Gas and Electric Dryer
This manual is made with 100% recycled paper.
DV405ETPAWR-03021F-06_EN.indd 1
DV405ETPAWR-03021F-06_EN.indd 1
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
please register your product at or
parts,
contact
www.samsung.com/register
1-800-SAMSUNG (726-7864)
DV405*
DV395*
DV393*
DV398*
2013-03-15
2013-03-15
12:15:10
12:15:10
Advertisement
Table of Contents
Related Manuals for Samsung DV405 Series
Summary of Contents for Samsung DV405 Series
-
Page 1: User Manual
Gas and Electric Dryer user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service or accessory please register your product at or parts, contact www.samsung.com/register 1-800-SAMSUNG (726-7864) DV405ETPAWR-03021F-06_EN.indd 1... -
Page 2: Sanitize Cycle
42 minutes! Giving you time for more important things in life. 7. Energy Saving Samsung dryers are super energy efficient. You can dry up to 3.01 pounds of laundry with 1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically drying your clothes the most efficient way. -
Page 3: Safety Instructions
Congratulations on your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features. - Page 4 safety instructions IMPORTANT SAFTY INSTRUCTION WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: WARNING 1. Read all instructions before using this appliance. 2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
-
Page 5: What To Do If You Smell Gas
WHAT TO DO IF YOU SMELL GAS: • Do not try to light any appliance. • Do not turn on the appliance. • Do not touch any electrical switch. • Do not use any phone in your building. • Clear the room, building or area of all occupants. •... - Page 6 Do not sit on top of the dryer. Because of continuing product improvements, Samsung reserves the right to change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
-
Page 7: Table Of Contents
contents INSTALLING YOUR DRYER installation requirements THE DRYER EXTERIOR Ducting requirements Important to installer Location considerations Alcove or closet installation Mobile home installation Exhausting Gas requirements Electrical requirements Grounding Electrical connections Replacement parts and accessories Tools Needed For Installation Installation - General procedure Final installation checklist Dryer Exhaust Tips Door Reversal... -
Page 8: Installing Your Dryer
installing your dryer INSTALLATION REQUIREMENTS Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup, adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer, you are responsible. -
Page 9: Ducting Requirements
DUCTING REQUIREMENTS • Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. • Do not use a smaller duct. • Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation. Lint accumulation should be cleaned regularly. •... -
Page 10: Important To Installer
installing your dryer If the new dryer is installed into an existing exhaust system you must make sure: • The exhaust system meets all local, state, and national codes. • That a flexible plastic duct is not used. • To Inspect and clean all lint buildup from inside the existing duct. •... -
Page 11: Alcove Or Closet Installation
ALCOVE OR CLOSET INSTALLATION MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS: Sides – 1 in / 25 mm Top – 17 in / 432 mm Rear – 5 in / 127 mm Closet Front – 2 in / 51 mm If the washer and dryer are installed together, the closet front must have at least a 72 in²... - Page 12 installing your dryer With optional pedestal base or stacking kit Required Dimensions for Installation With Pedestal 51.7 in. (131.4 cm) to clear open door 39 in. (99.1 cm) 53.6 in. (136.2 cm) 5 in. 341.1 in. 27 in. (86.5 cm) (12.7 cm) (68.6 cm) 2.5 in.
-
Page 13: Mobile Home Installation
A minimum of 72 in² (465 cm²) of unobstructed space is required. Call 1-800-SAMSUNG (726-7864) for information on purchasing the Floor Anchoring Kit as an accessory. All mobile home installations must be exhausted to the outside with the exhaust duct termination securely fastened to the mobile home structure, using materials that will not support combustion. -
Page 14: Gas Requirements
installing your dryer GAS REQUIREMENTS Use only natural or LP (liquid propane) gases. THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA). Gas dryers are equipped with a burner vent for use with natural gas. -
Page 15: Electrical Requirements
ELECTRICAL REQUIREMENTS The wiring diagram is located on the back of the dryer. • Improperly connecting the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is WARNING properly grounded. -
Page 16: Electrical Connections
installing your dryer ELECTRICAL CONNECTIONS Before operating or testing, follow all grounding instructions in the Grounding section. An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. Gas models – U.S. and Canada A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is required. -
Page 17: Replacement Parts And Accessories
REPLACEMENT PARTS AND ACCESSORIES If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864). TOOLS NEEDED FOR INSTALLATION Gather the required tools and parts before starting the installation. -
Page 18: Installation - General Procedure
installing your dryer INSTALLATION - GENERAL PROCEDURE For proper installation, we recommend that you hire a qualified installer. Read these instructions completely before you begin the installation. To install the dryer, follow these steps: 1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side- by-side so you have easy access to both appliances. - Page 19 6. Review the Electrical Requirements section, then follow the 3 Wire system connection instructions (Step 7) or 4 Wire system instructions (Step 8) below. 7. Three Wire system instructions: A. External ground connector B. Neutral grounding wire (green/yellow) C. Center silver-colored terminal block screw D.
-
Page 20: Final Installation Checklist
installing your dryer U.S. MODELS: Risk of Electric Shock: WARNING All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. -
Page 21: Dryer Exhaust Tips
DRYER EXHAUST TIPS Plastic or non-metal flexible duct presents a potential fire hazard. WARNING 1. Make sure your dryer is installed properly so it exhausts air easily. 2. Use a 4” diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws. -
Page 22: Door Reversal
installing your dryer DOOR REVERSAL 1. Unplug the power cord. 8. Reinsert the screw in the other hole. 2. Remove two door hinge screws. 3. Lift the door and remove 4. Remove a screw on the 9. Reinsert the screw (Step Frame Front 4) on the Frame Front 5. -
Page 23: Connecting The Inlet Hose
CONNECTING THE INLET HOSE Method1 - Using the Y Connector and Long Hose The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses. 1. Turn off the cold water faucet. 2. -
Page 24: Operating Instructions, Tips
operating Instructions, tips To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFTY INSTRUCTION before operating this appliance. WARNING OVERVIEW OF THE CONTROL PANEL DV405* DV398* DV395* DV393* To select a cycle, rotate the Cycle Selector dial to the desired cycle. The indicator light by the cycle name will illuminate. - Page 25 Load should be under 3 pounds. The Wool cycle of this machine has been approved by Woolmark company for Total-Easy-Care Wool products, M0913 (DV405). The DV393,DV395 and DV398 models are not endorsed by The Woolmark Company. Sanitize - Sanitizes garments by infusing high temperature heat deep into the fabric during the drying cycle.
-
Page 26: Child Lock
operating Instructions, tips To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles, press the Dry Level button. An indicator light will illuminate next to the desired dryness level. Press the button repeatedly to scroll through the settings. Larger or bulkier loads may Dry Level require the Very Dry or More Dry setting for complete dryness. -
Page 27: Drum Light
DRUM LIGHT Lights the dryer drum while the dryer is running. Turning On and Off To turn on or turn off the Drum Light, press and hold the Temp. button for 3 seconds. (DV405) If you want to set or release the Drum Light, press both the Dry Level and Temp. buttons simultaneously. -
Page 28: Vent Sensor
Instructions, tips VENT SENSOR Your Samsung dryer is equipped with a Vent Sensor, which detects and notifi es you when it is time to clean the ductwork. Keep your dryer safe and effi cient by cleaning the ducts when prompted. -
Page 29: Smart Care
Smart Care app. Downloading the Smart Care App • Download the Samsung Laundry App into your mobile phone from the Android market or Apple App store. (Search word : Samsung Smart Washer/Dryer) Precautions when using Smart Care •... -
Page 30: Rack Dry
operating Instructions, tips RACK DRY Installing the drying rack 1. Open the dryer door. 2. Position the drying rack in tumbler, placing the front lip of the drying rack on the top of the lint filter. 3. Place the rear legs in the two recessed areas of the dryer’s back wall then push down the middle of the drying rack to fix it in place. -
Page 31: Clean The Lint Filter
CLEAN THE LINT FILTER • After each load. • To shorten drying time. • To operate more energy efficiently. Do not operate your dryer without the lint filter in place. Filter Frame Front Door LOAD THE DRYER PROPERLY • Place only one washload in your dryer at a time. •... -
Page 32: Care And Cleaning
care and cleaning CONTROL PANEL Clean with a soft, damp cloth. Do not use abrasive substances. Do not spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately. -
Page 33: Special Laundry Tips
special laundry tips SPECIAL LAUNDRY TIPS Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions are not available, use the following information as a guide. Bedspreads & Comforters • Follow the care label instructions or dry on the Normal cycle and High temperature. -
Page 34: Troubleshooting
troubleshooting CHECK THESE POINTS IF YOUR DRYER… PROBLEM SOLUTION Doesn’t run. • Make sure the door is latched shut. • Be sure the power cord is plugged into a live electrical outlet. • Check the home’s circuit breaker and fuses. •... -
Page 35: Information Codes
If the problem continues, call for service. Electronic Control Problem (Over Call for service. Voltage Error) Electronic Control Problem Call for service. (Communication Error) For any codes not listed above, call 1-800-SAMSUNG (726-7864). troubleshooting _35 DV405ETPAWR-03021F-06_EN.indd Sec12:35 DV405ETPAWR-03021F-06_EN.indd Sec12:35 2013-03-15 2013-03-15 12:15:24... -
Page 36: Appendix
appendix FABRIC CARE CHART The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying, and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. -
Page 37: Protecting The Environment
PROTECTING THE ENVIRONMENT This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. -
Page 38: Cycle Chart
appendix CYCLE CHART : factory setting, : selectable) Functions Max Load Cycle Recommended Item Size Sensor Dry Level Normal Cottons, Work clothes, Linen, Mixed loads Normal dry Heavy Duty Heavy fabrics such as jean, Corduroys, Heavywork clothes Normal dry Shirts, Synthetic fabrics, Knits, Wrinkle-free cottons, Perm Press Normal dry... - Page 39 Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States.
- Page 40 SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 41 Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada.
- Page 42 SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 43 note DV405ETPAWR-03021F-06_EN.indd 43 DV405ETPAWR-03021F-06_EN.indd 43 2013-03-15 2013-03-15 12:15:25 12:15:25...
- Page 44 1-800-SAMSUNG (726-7864) www.samsung.com/ca_fr (French) Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. Code No. DC68-03021F-06_EN DV405ETPAWR-03021F-06_EN.indd 44 DV405ETPAWR-03021F-06_EN.indd 44...
