Notice
CORRECTION
SERVICE FLASH
FOR RoHS
Please add this notice to the Service manual listed below.
Category : Megapixel Camera
Model Name

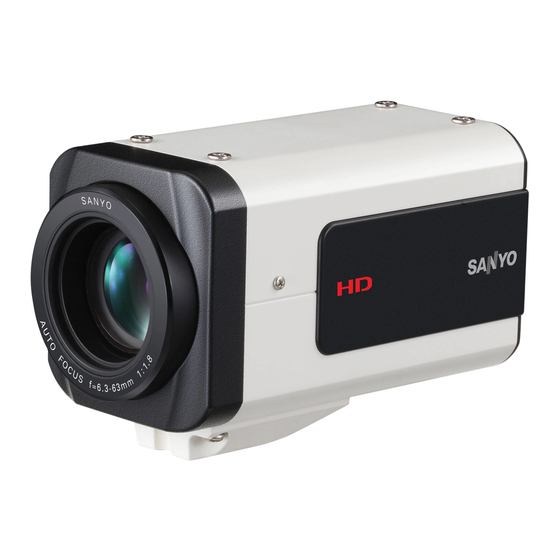

VCC-HD4600P
VCC-HD4600
VCC-HD4600PC SM5310801
The reason of change.
A : Misprint
E : Deletion
REASON: D (Design)
The CA-9 circuit board which has been installed to the CA-2 circuit board since the commencement of production
has had its functions transferred to other circuit boards, and the CA-9 circuit board has been abolished.
Because the CA-9 circuit board has been abolished, the CA-2 circuit board and the CA-5 circuit board have been
changed.
The circuit boards manufactured before the changes and the ones manufactured after the changes are not
interchangeable.
This notice is included with circuit boards which have been manufactured after the change.
VCC-HD4600P :
Please refer to this Notice for the set since Serial number
VCC-HD4600 :
Please refer to this Notice for the set since Serial number
VCC-HD4600PC :
Please refer to this Notice for the set since Serial number
Please refer to Service Manual ( SM5310801 ) for other sets.
CONTENTS
SPECIFICATIONS .............................................3
1. DISASSEMBLY ..............................................5
2. ADJUSTMENT ...............................................9
3. PARTS LIST ................................................16
RoHS
This product does not contain any hazardous substances prohibited by the RoHS Directive.
WARNING
You are requested to use RoHS compliant parts for maintenance or repair.
You are requested to use lead-free solder.
L5DH2/XE,US-Z,C-Z,XE-C1F,XE-C8F,US-C1F,US-C8F,C-C1F (R)
117 410 00, 01, 03, 117 460 00, 10, 01, 11, 03
PRODUCTION CHANGE
ADD INFORMATION
Reference No.
SM5310801
SM5310801
B : Quality Reliability
F : Addition
SANYO Electric Co., Ltd.
Osaka,Japan
Destination
Europe, U.K., Southeast Asia
U.S.A., Canada, Brazil, Taiwan
China
C : Standardization
G : Multiple Use
49370401 or later .
FILE No.
Date : Jul.
D : Design
49370479 or later .
51350001 or later .
Reference No. SM5310801-02
2010

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Sanyo VCC-HD4600P

Summary of Contents for Sanyo VCC-HD4600P

  • Page 1: Table Of Contents

    This product does not contain any hazardous substances prohibited by the RoHS Directive. WARNING You are requested to use RoHS compliant parts for maintenance or repair. You are requested to use lead-free solder. SANYO Electric Co., Ltd. L5DH2/XE,US-Z,C-Z,XE-C1F,XE-C8F,US-C1F,US-C8F,C-C1F (R) Osaka,Japan Reference No. SM5310801-02...
  • Page 2 WARNING Do not use solder containing lead. This product has been manufactured using lead-free solder in order to help preserve the environment. Because of this, be sure to use lead-free solder when carrying out repair work, and never use solder containing lead.

  • Page 3: Specifications

    Backlight compensation : Multi-spot evaluative metering, center-weighted evaluative metering, masking, face detection Electronic sensitivity boosting : Auto (32 x max) or Off Electronic shutter : 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-HD4600P, VCC-HD4600PC) Electronic shutter : 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-HD4600)
  • Page 4 Network Image/ video compression : H.264/ JPEG Video size (H.264) : (16:9) 1920x1080, 1280x720, 640x360, 320x180 Video size (H.264) : (4:3) 1600x1200, 1280x960, 1024x768, 640x480, 320x240 Video size (JPEG) : (16:9) 1920x1080, 1280x720, 1024x576, 640x360 Video size (JPEG) : (4:3) 2288x1712,1600x1200, 1280x960, 1024x768, 800x600, 640x480, 320x240 Picture quality : QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE Picture quality : BITRATE mode: User-specified bit rate...

  • Page 5: Disassembly

    1. DISASSEMBLY 1-1. REMOVAL OF CABINET AND COVER 1. Connector (Power) 2. Cover, SD 3. Two screws 3 x 8 When assembling, tighten the screws order. A 4. Mounting + Cover mounting 5. Two screws 3 x 4 When assembling, tighten the screws order. A 6.
  • Page 6 1-2. REMOVAL OF HOLDER 1. Two heat sinks 2. Spacer heat 4 3. Spacer heat 3 4. Spacer heat 4 5. Spacer heat 3 6. Screw 2 x 4 7. Two screws 2 x 4 When assembling, tighten the screws order. A 8.
  • Page 7 1-4. REMOVAL OF CA-2 BOARD AND CA-4 BOARD 1. Connector (CN951) 12. Heat sink 2. Connector (CN952) 13. Two screws 2.6 x 12 3. Connector (CN141) 14. Holder fan 4. Two screws 2 x 4 15. Motor fan 5. Connector (CN104) 16.
  • Page 8 1-5. BOARD LOCATION CA-4 Board CA-6 Board CA-5 Board CA-8 Board CA-3 Board CA-2 Board...

  • Page 9: Adjustment

    Chroma meter VJ8-0192 4. L5DH2 is selected with Model Code. Spare lump (pattern box) VJ8-0191 5. EX (VCC-HD4600P), US (VCC-HD4600) or C (VCC- HD4600PC) is selected with Factory Mode. Collimator VJ8-0260 6. PAL (VCC-HD4600P, VCC-HD4600PC) or NTSC (VCC- Spare lump (collimator) VJ8-0282 HD4600) is selected with Video Mode.
  • Page 10 2-5. Adjustment Adjusting method: 1. Timer Quartz Adjustment 1. It turns on power while pushing the button and the Adjustment location: CT351 (CA-5) SET button of the CA-5 board. Measuring location: CL351 (CA-5) 2. Set the camera so that it becomes center of the screen in Measuring equipment: Frequency counter the collimator.(Tele and Wide) Subject: No designation...
  • Page 11 3. Lens Adjustment (1m) Dsc Calibration Infinity calibration : Copy AF_I_WIDE: 24 AF_I_MID1: 23 AF_I_MID2: 23 AF_I_MID3: 23 AF_I_MID4: 14 AF_I_MID5: 5 AF_I_MID6: -4 AF_I_TELE: -15 QR_Z_WIDE: -86 QR_F_I_WIDE: 131 Siemens QR_F_I_TELE: -304 200 cm 100 ± 1.0 cm star chart QR_Z_AORI: -86 Camera QR_F_I_AORI: 131...
  • Page 12 Adjustment location: AWB of computer screen Measuring location: Computer screen Adjustment value determination is effectuated using below val- Measuring equipment: Pattern box ues. Preparation: Adjusting method: The adjustment values fulfill the conditions below, they are 1. It turns on power while pushing the button and the determined as within specifications.
  • Page 13 5. CMOS (CCD) White Point Defect Detect Adjustment 7. Privacy Masking Adjustment Adjustment location: CCD Defect of computer screen Measuring location: Computer screen Measuring equipment: Note: If readjusting after it has already been adjusted, wait for 15 minutes or more for the unit to cool down first. Adjustment method: 1.
  • Page 14 8. Gyro Offset Adjustment Adjustment location: EIS Adj of computer screen Measuring location: Computer screen, Privacy mask Measuring equipment: Tele Note: Do not shake the camera while gyro offset is being Privacy Mode adjusted. There is no gyro gain adjustment. Adjustment method: Wide 1.
  • Page 15 2-6. Overwriting firmware from the calibration software Preparation: PC with overwriting firmware copied to the preferred folder in the HD. Data: 3L1xxxxx.BIN (xxxxx: version) Overwriting method: 1. It turns on power while pushing the button and the SET button of the CA-5 board. 2.

  • Page 16: Parts List

    613 221 0577 DEC,BUTTON-L5DH2 7002 613 184 1659 CUSHION BAG 6011 613 221 2052 SPACER,HEAT TRANSFER L5DH 7004 613 203 8522 LABEL RECYCLE,VCC-HD4600P ONLY 6012 613 220 9656 COVER,RIGHT-L5DH2 6016 613 221 7880 HEAT,SINK PW-L5DH2 6017 613 221 9334 ADHESIVE COVER R-L5DH2...
  • Page 17 NJ505 NJ502 5002 5008 NJ509 NJ506 NJ501 5011 NJ506 NJ604 6009 NJ607 6006 6011 NJ501 NJ606 5001 NJ608 6011 6005 6023 6016 6017 6007 6008 6004 NJ606 6022 6019 6021 6022 6021 5004 NJ603 6012 NJ606 5101 5003 5201 5202 NJ503 5006 NJ507...
  • Page 18 LOCATION PARTS NO. DESCRIPTION CABINET & CHASSIS PARTS 2 6002 613 220 9557 HOLDER,LENS L-L5DH2 6003 613 220 9564 HOLDER,LENS R-L5DH2 6010 613 221 0980 HEAT,SINK-L5DH2 6011 613 221 2052 SPACER,HEAT TRANSFER L5DH 6015 613 221 7873 HOLDER,FAN-L5DH2 6018 613 221 3158 HEAT SINK RUB CA4-L5DB2 8000 613 222 3423...
  • Page 19 NJ605 NJ612 6003 NJ609 NJ609 NJ601 NJ601 NJ603 NJ810 6010 NJ611 6011 8001 6002 6015 NJ610 M0001 6018 8000 NJ602 L5DH2/XE_CAB2...

  • Page 20: Electrical Parts

    ELECTRICAL PARTS Note: 1. Materials of Capacitors and Resistors are abbreviated as follows ; Resistors Capacitors MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor AL-SOLID Aluminum Solid Capacitor NP-ELECT...
  • Page 21 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION C1022 303 338 0309 CERAMIC 0.1U K 10V C3022 303 376 9401 CERAMIC 1U K 6.3V C1023 303 338 0309 CERAMIC 0.1U K 10V C3023 303 376 9401 CERAMIC 1U K 6.3V C1025 303 338 0309 CERAMIC...
  • Page 22 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION R1030 301 226 5405 MT-GLAZE 56 JA 1/16W R1116 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R1031 301 226 5405 MT-GLAZE 56 JA 1/16W R1121 301 262 2307 MT-GLAZE 1.0K DC 1/16W R1032 301 226 1506 MT-GLAZE 0.000 ZA 1/16W...
  • Page 23 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION R5205 301 275 5906 MT-GLAZE 10 DD 1/16W Q2504 305 137 2003 TR 2SA1576A-R R5206 301 224 9504 MT-GLAZE 2.2K JA 1/16W Q2505 305 137 2003 TR 2SA1576A-R R5207 301 224 8903 MT-GLAZE 100K JA 1/16W Q4101 305 204 6200...
  • Page 24 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION (CAPACITORS) R2544 301 225 3808 MT-GLAZE 1.5K JA 1/16W C2508 303 338 0309 CERAMIC 0.1U K 10V R2545 301 225 3808 MT-GLAZE 1.5K JA 1/16W C2514 303 338 0309 CERAMIC 0.1U K 10V R2546 301 225 3808 MT-GLAZE 1.5K JA 1/16W...
  • Page 25 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION R4319 301 240 9601 MT-GLAZE 680K JA 1/16W IC605 410 716 2708 IC NT5TU32M16CG-25C,BGA (N.S.P) R4320 301 226 1506 MT-GLAZE 0.000 ZA 1/16W 410 691 4803 IC MT47H32M16HR-25E ,BGA (N.S.P) R4321 301 225 1507 MT-GLAZE 3.9K JA 1/16W IC606 410 716 2708...
  • Page 26 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION L6802 645 059 7596 IMPEDANCE,90 OHM P C6044 303 409 3406 CERAMIC 0.1U K 16V L6851 945 048 5757 IMPEDANCE,120 OHM P C6045 303 409 3406 CERAMIC 0.1U K 16V L6852 945 048 5757 IMPEDANCE,120 OHM P C6046 303 409 3406...
  • Page 27 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION R6041 301 105 7902 MT-GLAZE 0.000 ZA 1/16W R3505 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R6042 301 105 7902 MT-GLAZE 0.000 ZA 1/16W R3507 301 226 1506 MT-GLAZE 0.000 ZA 1/16W R6043 301 105 7902 MT-GLAZE 0.000 ZA 1/16W...
  • Page 28 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION R6142 301 224 8804 MT-GLAZE 100 JA 1/16W CN603 645 076 4110 SOCKET,PWB-PWB 40P(N.S.P) R6143 301 224 8804 MT-GLAZE 100 JA 1/16W CN604 645 092 8185 SOCKET,CARD(SD)12P(N.S.P) R6144 301 224 9009 MT-GLAZE 10K JA 1/16W CN605 645 093 2762...
  • Page 29 LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION C2701 303 323 6309 CERAMIC 0.1U K 16V R2624 301 328 1305 MT-GLAZE 75 JA 1/10W C2702 303 384 6409 CERAMIC 4.7U K 6.3V R2700 301 105 0705 MT-GLAZE 100K JA 1/16W C2703 303 323 6309 CERAMIC...

  • Page 30: Circuit Diagrams & Printed Wiring Boards

    CIRCUIT DIAGRAMS & PRINTED WIRING BOARDS TABLE OF CONTENTS OVERALL WIRING, BLOCK DIAGRAM & CIRCUIT DIAGRAMS Page OVERALL WIRING OVERALL CIRCUIT BLOCK DIAGRAM CA-1 BOARD CMOS IMAGE SENSOR CA-2 BOARD (DM-A) SYSTEM ASIC CA-2 BOARD (DM-B) LENS DRIVER & POWER CA-2 BOARD (SY-A) SYSTEM CONTROL CA-3 BOARD POWER CA-4 BOARD GYRO SENSOR...
  • Page 31 NOTES: 1. All resistance values in "OHMS" unless otherwise noted. (K=1,000 ; M=1,000,000) 2. All capacitance values in "µF" unless otherwise noted. p=pico farad ; n=nano farad ; µ ,u or U=micro farad 3. All inductance values in "µH" unless otherwise noted. µ...

  • Page 32: Overall Wiring, Block Diagram & Circuit Diagrams

    OVERALL WIRING, BLOCK DIAGRAM & CIRCUIT DIAGRAMS OVERALL WIRING CA-1 CA-4 DM-A CN201 CN106 CN603 CN304 CN202 TMDS SHLD2 COMP_VIDEO COMP_VIDEO ENC_CLK ENC_CLK TMDS DATA2+ ENC_Y7 ENC_Y7 CA-5 TMDS DATA2- ENC_Y6 ENC_Y6 CVBS_OUT_ASIC_H CVBS_OUT_ASIC_H CA-6 TMDS SHLD1 HD_IN HD_IN ENC_Y5 ENC_Y5 TMDS DATA1+ VAC70_IN...

  • Page 33: Overall Circuit Block Diagram C4

    OVERALL CIRCUIT BLOCK DIAGRAM CN102 CA-2 CVBS_OUT_ASIC_H, ASIC_CVBS_OUT IC263 CN103 IC262 CN281 VIDEO VD OUT SWITCH DRIVER IC261 JK201 ENCODER IC982 AUDIO OUT IC191 X1001 CN201 USB HUB 30.000MHz HDMI CA-6 HDMI CA-4 CONTROLLER DRIVER IC201 JK202 AUDIO IN CN202 USBD2+ USBD1+ M_USBD+...

  • Page 34: Board Cmos Image Sensor

    CA-1 BOARD CMOS IMAGE SENSOR CA-1 C1-40700/L5DH2-XE CCDCK VOLTAGE: POWER ON XCLR TGVD TGHD CCDSD L9001 TO CA-2 (DM-A) FBMH1608HL601 CN104 1608 L9002 FBMH1608HL601 1608 L9003 FBMH1608HM601 D_GND 1608 AFEDN5 AFEDN5 AFEDP5 AFEDP5 AFECKN AFECKN A_GND AFECKP AFECKP D_GND ADCK D_GND CCDEN C9002...

  • Page 35: Board (Dm-A) System Asic

    CA-2 BOARD (DM-A) SYSTEM ASIC 1.8V(CS)_ON 3.0V(CS)_ON 1.8V(I/O)_ON TO CA-2 (DM-B) DM-A D1-41000/L5DH2-XE-01 VOLTAGE: POWER ON R1008 A_VDD1.8 0;1/16Z 1.8V(VDD) L1004 A_VDD1.2 R1032 DDR SDRAM FBMH1608HL600 0;1/16Z TO CA-2 VDD1.2 1.8V(VDD) 1.8V(VDD) 1.8V(VDD) (DM-B) 1608 IC102 VDD1.2 VDD1.2 A_VDD3 K4X51323PG-8GC8 3.3V(AL) QXXAGB058---N TO CA-2...
  • Page 36 CA-2 BOARD (DM-A) SYSTEM ASIC [UPPER-LEFT] 1.8V(CS)_ON 3.0V(CS)_ON 1.8V(I/O)_ON TO CA-2 (DM-B) R1008 A_VDD1.8 0;1/16Z 1.8V(VDD) L1004 A_VDD1.2 FBMH1608HL600 TO CA-2 VDD1.2 1.8V(VDD) 1.8V(VDD) (DM-B) 1608 A_VDD3 VDD1.2 VDD1.2 3.3V(AL) TO CA-2 3.3V(AL) 3.3V(AL) L1003 Q1104 FBMH1608HL600 (DM-B),(SY-A) UPA650TT-A 1608 AD25 AC25 AL26...
  • Page 37 CA-2 BOARD (DM-A) SYSTEM ASIC [UPPER-RIGHT] DM-A D1-41000/L5DH2-XE-01 VOLTAGE: POWER ON R1032 DDR SDRAM 0;1/16Z 1.8V(VDD) IC102 K4X51323PG-8GC8 QXXAGB058---N VDDQ DQP31 DQP16 DQ31 DQ16 C1007 VSSQ DQS20 0.1;B DQP17 DQS21 VDDQ DQ17 DQS21 DQP29 DQP18 DQ29 DQ18 DQS22 DQS22 DQP30 DQ30 VSSQ DQS23...
  • Page 38 H=1.35 AFEDP10 SDIP10 LENS_SCLK AFEDN7 SDIN7 LENS_SDI AFEDP7 SDIP7 LENS_SDO AFEDN6 SDIN6 SHUTTER+ AFEDP6 SDIP6 DGND FPIOUT CA-2 BOARD (DM-A) SYSTEM ASIC [LOWER-LEFT] ZPIOUT TO CA-1 CN901 TO CA-2 (DM-B) SYSTEM ASIC CN101 RESET UV0_M UV1_M UV2_M UV3_M UV4_M AA11 UV5_M AA12 UV6_M...
  • Page 39 DBAP0 DQS9 DQS6 DBAP0 DBAP1 DQS10 DBAP1 DQ10 VSSQ ZDWEP DQS3 zDWEP VSSQ GENSEL_D5 ZCASP DQS11 DQS4 zCASP DQ11 GENSEL_NT ZRASP DQS12 zRASP DQ12 VDDQ ZDCSP DQS1 zDCSP VDDQ CA-2 BOARD (DM-A) SYSTEM ASIC [LOWER-RIGHT] DCKEP IC107 DQS13 DQS2 DCKEP DQ13 AK8128B QAK8128B----P...

  • Page 40: Board (Dm-B) Lens Driver & Power

    CA-2 BOARD (DM-B) LENS DRIVER & POWER DM-B D2-41000/L5DH2-XE-01 VOLTAGE: POWER ON 5.0V(AL) TO CA-2 (SY-A) 3.3V(AL) CN951 3.3V(AL) HALL_IN+ HALL_IN+ TO CA-2 (DM-A),(SY-A) HALL_OUT+ HALL_OUT+ HALL_IN- HALL_IN- HALL_OUT- HALL_OUT- 1.8V(VDD) TO CA-2 (DM-A) N.C.(GND) DRIVE+ R9501 4.3;1/10F DRIVE+ DRIVE+ R9502 DRIVE- DRIVE-...

  • Page 41: Board (Sy-A) System Control

    CA-2 BOARD (SY-A) SYSTEM CONTROL R3034 0;1/8Z 3.3V(AL) TO CA-2 (DM-A),(DM-B) ZSREQ TO CA-2 (DM-A) ZBOOT_COMREQ SY-A R3043 47K;1/16J R3089 Y1-41000/L5DH2-XE-01 100K;1/16J VOLTAGE: POWER ON R3038 47K;1/16J 3.3V(AL) NEAR NEAR WIDE WIDE OPEN TELE TO CA-2 (DM-B) OPEN TELE HD_IN HD_IN VAC70_IN R3040...

  • Page 42: Board Power

    CA-3 BOARD POWER D4001 DE5S6M 3.3V(AL) L4001 FBMH3225HM102N D4002 TO CA-2 (DM-B) SJPB-L6 F4001 D4083 CN521 CN401 3.5A125V PS2701A-1-F3 R4320 D4003 0;1/16Z CN421 SJPB-L6 POWER_FAIL POWER_FAIL AC24V/+ 3.3V(AL) L4002 FBMH3225HM102N AC24V/- C4203 R4203 F.GND IC401 D4004 470P;CH 10;1/16J XC61CN1502N D4203 DE5S6M DE5S6M POWER IN...

  • Page 43: Board Gyro Sensor

    CA-4 BOARD GYRO SENSOR CA-8 BOARD EDL CA-8 CA-4 IC141 BU30TA2WNVX R1401 QBU30TA2WNVXG 2.2;1/16J VOUT C8-41000/L5DH2-XE C4-41000/L5DH2-XE STBY VOLTAGE: POWER ON CN141 A_GND A_GND A_GND VSENSE VSENSE HSENSE HSENSE HSCON HSCON 3.3V(AL) C1404 CN881 0.068;B C1407 4.7;B 1 2 3 4 GYRO 2125 H=0.95 A_GND...

  • Page 44: Board (Dm-C) Codec

    CA-5 BOARD (DM-C) CODEC CN304 ENC_CLK ENC_CLK ENC_Y7 ENC_Y7 ENC_Y6 ENC_Y6 ENC_Y5 ENC_Y5 ENC_Y4 ENC_Y4 ENC_Y3 ENC_Y3 ENC_Y2 ENC_Y2 CN606 OG-603070 ENC_Y1 ENC_Y1 L6205 ENC_Y0 ENC_Y0 BLM18PG121SN1 5.0V(AL) 3.3V(MOB) R6209 A_MCLK ENC_UV7 ENC_UV7 Q6202 DTC114EUA 0;1/16Z ENC_UV6 ENC_UV6 ENC_UV5 ENC_UV5 ENC_UV4 ENC_UV4 C6204...
  • Page 45 CA-5 BOARD (DM-C) CODEC [UPPER-LEFT] CN304 ENC_CLK ENC_CLK ENC_Y7 ENC_Y7 ENC_Y6 ENC_Y6 ENC_Y5 ENC_Y5 ENC_Y4 ENC_Y4 ENC_Y3 ENC_Y3 ENC_Y2 ENC_Y2 ENC_Y1 ENC_Y1 L6205 BLM18PG121SN1 ENC_Y0 ENC_Y0 5.0V(AL) 3.3V(MOB) R6209 A_MCLK ENC_UV7 ENC_UV7 Q6202 0;1/16Z DTC114EUA ENC_UV6 ENC_UV6 ENC_UV5 ENC_UV5 ENC_UV4 ENC_UV4 C6204 AUDIO...
  • Page 46 CA-5 BOARD (DM-C) CODEC [UPPER-RIGHT] CN606 OG-603070 L6205 BLM18PG121SN1 5.0V(AL) 3.3V(MOB) R6209 A_MCLK Q6202 0;1/16Z DTC114EUA C6204 AUDIO 10;B L6203 CODEC DVDD BLM18PG121SN1 0;1/16Z A_BCK SVSS BICK R6202 C6205 0.1;B A_LRCLK R6203 SVDD Q6201 560;1/16J A_IDAT DTC343TK AOUT IC621 SDTO R6205 AK4633VN(CCTV) C6203...
  • Page 47 0;1/16Z VPIXCLK_MOB VID0_PIXCLK USB_AGND TO CA-2 (DM-A) VID0_VSYNC USB_AGND UV7_MOB R6050 0;1/16Z CN106 VID1_D7 USB_ACGND UV6_MOB R6051 0;1/16Z VID1_D6 USB_DGND UV5_MOB R6052 0;1/16Z VID1_D5 CN303 CA-5 BOARD (DM-C) CODEC [LOWER-LEFT] UV4_MOB R6053 0;1/16Z CODEC VID1_D4 UV3_MOB R6054 0;1/16Z VID1_D3 L6010 RESET UV2_MOB R6055...
  • Page 48 0;1/16Z DDR_DQS2 VPIXCLK_MOB VID0_PIXCLK USB_AGND DDR_GND DDR_DQS3 DDR_DQS3 VID0_VSYNC USB_AGND DDR_GND DDR_DQM0 L6018 L6019 UV7_MOB R6050 0;1/16Z DDR_DQM0 BLM18PG121SN1 BLM18PG121SN1 VID1_D7 USB_ACGND DDR_GND DDR_DQM1 1.8V(MOB) 1.8V(MOB) UV6_MOB R6051 0;1/16Z DDR_DQM1 VID1_D6 USB_DGND DDR_GND DDR_DQM2 IC605 IC606 DDR_DQM2 UV5_MOB R6052 0;1/16Z NT5TU32M16CG-25C(CCTV) NT5TU32M16CG-25C(CCTV) VID1_D5...

  • Page 49: Board (Dm-D) Ethernet Phy & Power

    CA-5 BOARD (DM-D) ETHERNET PHY & POWER CN681 OG-363050 T6801 SI-52008-F R6801 C6804 49.9;1/16F 10;B YELLOW R6802 49.9;1/16F GREEN L6801 DLP11SN900SL2 X6851 1CT:1CT 25.000MHz L6802 R6803 49.9;1/16F DLP11SN900SL2 D6803 RSBC6.8CS R6804 49.9;1/16F 1CT:1CT R6862 1M;1/16J D6804 RSBC6.8CS R6806 10;1/10D VDDIO_3.3 VDDIO_3.3 F5004 TO LAN...

  • Page 50: Board Hdmi Driver

    CA-6 BOARD HDMI DRIVER CA-6 C6-41000/L5DH2-XE TO HDMI 1.8V(VDD) VOLTAGE: POWER ON CN201 CN202 TMDS SHLD2 TMDSDATA2+ TMDS DATA2+ ENC_CLK ENC_CLK TMDSDATA2- TMDS DATA2- ENC_Y7 TMDS SHLD1 ENC_Y6 TMDS DATA1+ TMDSDATA1+ ENC_Y5 TMDS DATA1- C1907 TMDSDATA1- ENC_Y4 TMDS SHLD0 R1903 ENC_Y3 0;1/16Z TMDSDATA0+...

  • Page 51: Printed Wiring Boards (P.w.b.)

    PRINTED WIRING BOARDS (P.W.B.) CA-1 P.W.B. (SIDE A) CA-2 P.W.B. (SIDE A) CL325 CL324 JK202 1AC4B10H4001AA CN101 CN106 JK202 CL186 CL187 CL186 CN106 R1013 CN101 SIDE-A CL101 CL320 Q1004 CL322 CL321 CL320 C1005 L1003 CL104 R1039 C1001 R1016 C1121 R1121 C1060 C1029 CL108...
  • Page 52 CA-3 P.W.B. (SIDE A) CA-4 P.W.B. (SIDE A) IC142 D2501 CN451 cam1 1AC4B10H4100BA IC412 CN451 D4112 C4510 cam4 R4111 SIDE-A R4112 C1405 PWB,CA4 C4103 C4509 CL4105 R4108 C4508 R4504 R4503 C4511 IC141 C4105 C4002 R4505 R4502 R1401 R4107 C4505 IC141 T4001 C4504 R4501...
  • Page 53 CA-5 P.W.B. (SIDE A) CA-6 P.W.B. (SIDE A) CN351 CN304 CN351 CN202 CL363 CN304 CN501 CL365 CL365 R3501 R3502 PWB,CA6 CL363 D6828 PWB,CA5 C3523 CN202 C7516 C5005 IC752 IC752 R3543 CL366 CL193 CL193 CL190 D6823 R3542 R3547 CL190 R6305 CL366 C6004 R3521 R6132...
