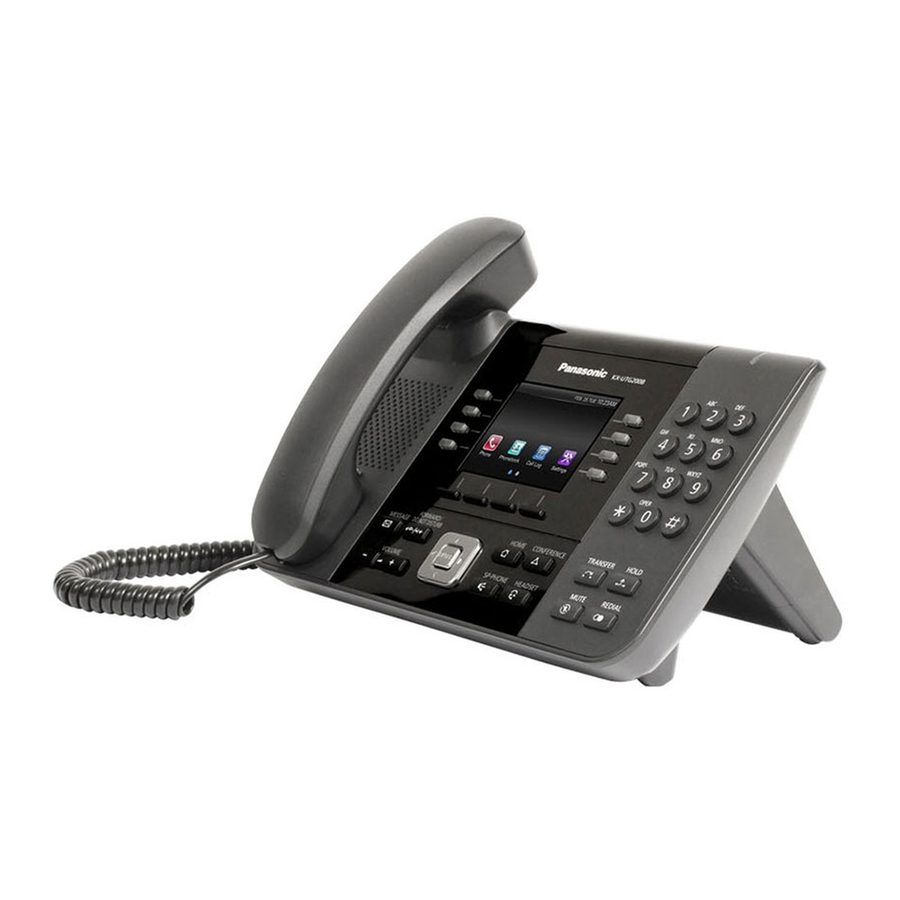

<KX-UTG300>
Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
KX-UTG200/KX-UTG300: Software File Version 03.131 or later
Document Version 2015-01

Administrator Guide

KX-UTG200
Model No.
KX-UTG300

SIP Phone

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-UTG200

Summary of Contents for Panasonic KX-UTG200

  • Page 1: Administrator Guide

    SIP Phone KX-UTG200 Model No. <KX-UTG300> KX-UTG300 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. KX-UTG200/KX-UTG300: Software File Version 03.131 or later Document Version 2015-01...

  • Page 2: Related Documentation

    Conventions Used in This Manual • In descriptions of settings performed on the unit, "select" refers to either touching the screen (KX-UTG300 only) or pressing [ ] or [ ] (KX-UTG300 and KX-UTG200) to select items displayed on the screen. •...
  • Page 3 Introduction Notes • The screen shots shown in this guide are provided for reference only, and may differ from the screens displayed on your PC. Document Version 2015-01 Administrator Guide...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1 Initial Setup .....................27 Setup ..........................28 1.1.1 Factory Defaults ......................28 1.1.2 Basic Network Setup ......................28 1.1.3 Overview of Programming ....................30 1.1.4 Phone User Interface Programming ................30 1.1.5 Web User Interface Programming ..................31 1.1.5.1 Password for Web User Interface Programming ............31 1.1.5.2 Before Accessing the Web User Interface ..............31 1.1.5.3...
  • Page 5 Table of Contents Phone User Interface Programming ................64 3.1.1 Phone User Interface Feature List .................64 3.1.2 Direct Commands ......................65 3.1.3 Port Mirroring Settings ....................66 3.1.4 Disabling the Touch Screen ...................66 3.1.5 Exporting phone user interface settings .................66 4 Web User Interface Programming ............67 Web User Interface Setting List ..................68 Status ..........................86 4.2.1...
  • Page 6 Table of Contents IP Address Mode ......................96 Signal Prefer Mode ....................96 Media Prefer Mode ....................96 4.3.2 IPv4 Network Settings ....................97 4.3.2.1 Connection Settings ....................97 IP Connection Mode ....................97 DNS Connection Mode .....................97 4.3.2.2 Static Settings ......................98 Static IP Address ......................98 Subnet Mask ......................98 Default Gateway .......................98 DNS1 ........................99...
  • Page 7 Table of Contents Authentication Password ..................111 4.3.7.3 Proxy Server Settings ....................111 Enable Proxy ......................111 Proxy Server Address .....................111 Proxy Server Port ....................111 4.3.8 Global Address Detection .....................111 4.3.8.1 STUN Server ......................112 STUN Server Address ....................112 STUN Server Port ....................112 STUN Interval ......................112 System ...........................113 4.4.1 Web Language ......................113...
  • Page 8 Table of Contents Registrar Server Address ..................123 Registrar Server Port ....................123 Proxy Server Address .....................124 Proxy Server Port ....................124 Presence Server Address ..................124 Presence Server Port ....................124 4.5.1.4 Outbound Proxy Server .....................125 Outbound Proxy Server Address ................125 Outbound Proxy Server Port ...................125 4.5.1.5 SIP Service Domain ....................125 Service Domain .......................125...
  • Page 9 Table of Contents RTCP Enable ......................134 RTCP-XR ........................134 4.5.3.4 Jitter Buffer ........................135 Maximum Delay ......................135 Minimum Delay .......................135 Initial Delay ......................135 4.5.3.5 DTMF .........................136 DTMF Type ......................136 DTMF Relay ......................136 Telephone-event Payload Type ................136 4.5.3.6 Call Hold ........................136 Supports RFC 2543 (c=0.0.0.0) ................136 4.5.3.7 CODEC Preferences ....................137 G722 (Enable) ......................137...
  • Page 10 Table of Contents Return Code When DND ..................147 Return Code When Refuse ..................148 Auto Answer ......................148 4.6.2.4 Call Forward ......................149 Unconditional (Enable Call Forward) ..............149 Unconditional (Phone Number) ................149 Busy (Enable Call Forward) ..................150 Busy (Phone Number) ....................150 No Answer (Enable Call Forward) ................151 No Answer (Phone Number) ...................152 No Answer (Ring Count) ..................152 4.6.3...
  • Page 11 Table of Contents 4.6.7.2 Hotline ........................164 Enable Hotline ......................164 Phone Number ......................164 Delay Time (0-10) ....................164 4.6.7.3 Multicast Paging ......................164 Enable Multicast Paging ..................164 Send Paging Timeout .....................165 Disconnect Paging Timeout ..................165 Paging Codec ......................165 Paging DND ......................165 Address (No. 1-10) ....................165 Port (No.
  • Page 12 Table of Contents 4.7.3.1 Hide Number Settings ....................176 Enable Hide Number (Caller ID Blocking) ..............176 4.7.4 Broadsoft Settings [Simultaneous Ring] ...............176 4.7.4.1 Simultaneous Ring Settings ..................177 Enable Simultaneous Ring ..................177 Do not ring my Simultaneous Ring Numbers if I'm already on a call ......177 Phone Number (1-10) .....................177 Answer confirmation required (1-10) ..............177 4.7.5...
  • Page 13 Table of Contents Enable DHCP Option 160 ..................187 Enable DHCP Option 159 ..................188 Enable DHCP Option 66 ..................188 Enable DHCPv6 Sub Option 1 ................188 Cyclic Auto Resync ....................188 Resync Interval .......................188 Header Value for Resync Event ................189 4.8.6.2 Resync Configuration Files ..................189 4.8.7 Management Server .....................189 4.8.7.1...
  • Page 14 Table of Contents 4.9.1.4 Log Level Settings .....................198 All ..........................198 CENTRAL .......................198 DHCPv4 ........................198 DHCPv6 ........................199 FHAL ........................199 HTTP Server ......................200 HTTP CGI .......................200 I18N ........................200 IPPS ........................201 LLDPCDP .......................201 MCABBER_CLIENT ....................201 MCU ........................202 MMI .........................202 NETWORK_CONTROL ..................203 PCU ........................203 PJCU-1 ........................203 PJCU-2 ........................204 PJCU-3 ........................204...
  • Page 15 Table of Contents 4.9.5.1 Sniffer Log .........................217 Enable Log ......................217 4.9.6 Status Message ......................218 4.9.7 Make Call ........................218 4.9.7.1 Make Call ........................218 Line No........................218 Phone Number ......................219 4.9.7.2 Current Call List (Have at least one call) ..............219 Number ........................219 Status ........................219 Duration ........................220 5 Configuration File Programming ............221...
  • Page 16 Table of Contents KEM_VERSION ......................252 KEM_FILE_PATH ......................252 KEM_UPGRADE_AUTO ...................252 5.4.5 Firmware Update Settings ....................253 FIRM_UPGRADE_ENABLE ..................253 FIRM_VERSION ......................253 FIRM_FILE_PATH .....................253 FIRM_UPGRADE_AUTO ..................254 FIRM_UPGRADE_SUPPORT_IMAGE_MODE ............254 5.4.6 Provisioning Settings ....................255 PROVISION_ENABLE ....................255 OPTION160_ENABLE ....................255 OPTION159_ENABLE ....................255 OPTION66_ENABLE ....................256 IPV6_SUB_OPTION_ENABLE .................256 SIPPNP_ENABLE .....................256 CFG_FILE_KEY ......................257 CFG_FILE_KEY_LENGTH ..................257 CFG_CYCLIC ......................257...
  • Page 17 Table of Contents SNMP_SYS_LOCATION ...................267 SNMP_SET_ACTIVATION_TIMER ................267 Network Settings ......................268 5.5.1 IP Settings ........................268 DHCP_ENABLE ......................268 DHCP_DNS_ENABLE ....................268 STATIC_IP_ADDR ....................268 STATIC_SUBNET_MASK ..................269 STATIC_DEFAULT_GATEWAY ................269 STATIC_DNS1_SVR ....................269 STATIC_DNS2_SVR ....................270 DHCP_INFORM_ENABLE ..................270 HOST_NAME ......................270 5.5.2 IPv6 Settings ........................270 IP_ADDR_MODE ......................270 ALLOW_AUTO_CFG ....................271 IP_MODE_PREF_SIGNAL ..................271 IP_MODE_PREF_MEDIA ..................271 IPV6_PRIVACY ......................271...
  • Page 18 Table of Contents HTTP_PROXY_SVR_ADDR ..................281 HTTP_PROXY_SVR_PORT ..................281 WEB_LANGUAGE ....................281 WEB_SERVER_PORT ....................282 WEB_SERVER_CLOSE_TIMER ................282 5.5.8 Time Adjust Settings ....................282 NTP_MODE .......................282 NTP_ADDR .......................282 TIME_SYNC_INTVL ....................282 TIME_QUERY_INTVL ....................283 5.5.9 STUN Settings ......................283 STUN_SERV_ADDR ....................283 STUN_SERV_PORT ....................283 STUN_REFRESH_INTVL ..................283 5.5.10 LDAP Settings ......................284 LDAP_SERVER ......................284 LDAP_PORT ......................284 LDAP_SEARCH_BASE_DN ..................284...
  • Page 19 Table of Contents DEFAULT_LANGUAGE ....................293 EXTENSION_PIN ......................294 POUND_KEY_DELIMITER_ENABLE ...............294 NO_OPERATION_TIMER ..................294 URL_DIALING_ENABLE ...................294 SCREEN_SAVE_TIMER ...................295 RECORDING_ENABLE ....................295 CID_DATA_PRIORITY_ENABLE ................295 DISABLE_FACTORY_RESET_FROM_ADMIN ............295 BLF_DATA_FROM_FLEX_KEY ................296 DIR_CMD_FACTORY_RESET .................296 DIR_CMD_ENABLE_EMBEDDED_WEB ..............296 DIR_CMD_ENABLE_PORT_MIRROR ..............296 DIR_CMD_DISABLE_TOUCH_SCREEN ..............296 DEFAULT_ACCESS_LEVEL ..................297 5.6.3 Instant Message & Presence ..................297 IM_PRESENCE_ENABLE ..................297 5.6.4 Distinctive Ring ......................297 SUPPORT_DISTINCTIVE_RING ................297...
  • Page 20 Table of Contents DIAL_TONE4_GAIN ....................305 DIAL_TONE4_RPT ....................306 DIAL_TONE4_TIMING ....................306 REORDER_TONE_FRQ ...................306 REORDER_TONE_GAIN ..................306 REORDER_TONE_RPT ...................307 REORDER_TONE_TIMING ..................307 HOLD_TONE_FRQ ....................307 HOLD_TONE_GAIN ....................307 HOLD_TONE_RPT ....................308 HOLD_TONE_TIMING ....................308 HOLD_ALARM_FRQ ....................308 HOLD_ALARM_GAIN ....................308 HOLD_ALARM_RPT ....................309 HOLD_ALARM_TIMING ....................309 CW_TONE1_FRQ .....................309 CW_TONE1_GAIN ....................309 CW_TONE1_RPT .....................309 CW_TONE1_TIMING ....................310 BELL_CORE_PATTERN1_TIMING ................310 BELL_CORE_PATTERN2_TIMING ................310 BELL_CORE_PATTERN3_TIMING ................311...
  • Page 21 Table of Contents INBANDDTMF_VOL ....................318 5.8.3 All Lines - Call Control Settings ..................318 RETURN_VOL_SET_DEFAULT_ENABLE ...............318 SIP_PASSWD_CHECK_SPECIAL_CHAR ...............319 Per Line Settings ......................319 5.9.1 Per Line - VoIP ......................319 CODEC_ENABLE_G722 ...................319 CODEC_ENABLE_PCMA ..................319 CODEC_ENABLE_G726_32 ..................320 CODEC_ENABLE_G729A ..................320 CODEC_ENABLE_PCMU ..................320 CODEC_PRIORITY_G722 ..................320 CODEC_PRIORITY_PCMA ..................320 CODEC_PRIORITY_G726_32 ..................321 CODEC_PRIORITY_G729A ..................321 CODEC_PRIORITY_PCMU ..................321...
  • Page 22 Table of Contents FWD_NO_ANSWER_ENABLE .................332 FWD_NO_ANSWER_NUMBER ................332 FWD_NO_ANSWER_TIMEOUT ................333 PARK_ENABLE ......................333 PARK_CODE ......................333 PARK_RETRIEVE_ENABLE ..................333 PARK_RETRIEVE_CODE ..................333 PICKUP_ENABLE .....................334 PICKUP_CODE ......................334 GPICKUP_ENABLE ....................334 GPICKUP_CODE ......................334 DPICKUP_ENABLE ....................334 DPICKUP_CODE ......................335 TALK_PACKAGE ......................335 HOLD_PACKAGE .....................335 EMERGENCY_NUMBER ..................335 ACD_ENABLE ......................336 ACD_CCSTATUS_ENABLE ..................336 ACD_REASONCODE_ACTIVE[1-10] ...............336 ACD_REASONCODEAME[1-10] ................336 ACD_REASONCODE_VALUE[1-10] ................337 HOTELING_ENABLE ....................337...
  • Page 23 Table of Contents PORT_PUNCH_INTVL ....................346 SIP_ADD_RPORT .....................346 SIP_STUN_ENABLE ....................346 SIP_RTP_KA_INTVL ....................347 SIP_SUBS_EXPIRE ....................347 SUB_RTX_INTVL ......................347 REG_RTX_INTVL .....................347 SIP_PRIVACY ......................348 SIP_OUTPROXY_ADDR ..................348 SIP_OUTPROXY_PORT ...................348 SIP_TRANSPORT .....................348 SIP_ANM_DISPNAME ....................349 SIP_ANM_USERNAME ....................349 SIP_ANM_HOSTNAME ....................349 SIP_DETECT_SSAF ....................349 SIP_TIMER_B ......................350 SIP_TIMER_D ......................350 SIP_TIMER_F ......................350 SIP_TIMER_H ......................350 SIP_TIMER_J ......................351 SIP_ADD_TRANSPORT_UDP .................351 SIP_RESPONSE_CODE_DND .................351...
  • Page 24 Table of Contents LOG_LEVEL_IPPS ....................358 LOG_LEVEL_LLDPCDP ...................358 LOG_LEVEL_MCABBER_CLIENT ................358 LOG_LEVEL_MCU ....................359 LOG_LEVEL_MMI .....................359 LOG_LEVEL_NETWORK_CONTROL ..............359 LOG_LEVEL_PCU ....................359 LOG_LEVEL_PJCU_[0-5] ..................359 LOG_LEVEL_PROVISION ..................360 LOG_LEVEL_SIP_PNP .....................360 LOG_LEVEL_SWITCH_CONF .................360 LOG_LEVEL_UPGRADER ..................360 LOG_LEVEL_CONFIGSYS ..................361 LOG_LEVEL_DCM ....................361 LOG_LEVEL_FDT .....................361 LOG_LEVEL_NTP .....................361 LOG_LEVEL_FILESAVER ..................361 LOG_LEVEL_FOS ....................362 LOG_LEVEL_FOX_DNS ...................362 LOG_LEVEL_FOX_FTPC ..................362 LOG_LEVEL_FOX_NET ...................362 LOG_LEVEL_SUU ....................363...
  • Page 25 Table of Contents 8 Appendix ....................391 Revision History ......................392 8.1.1 12.1.1 Software File Version 02.110 ................392 8.1.2 14.11.1 Software File Version 03.111 ................395 8.1.3 14.11.1 Software File Version 03.131 ................397 Index......................399 Document Version 2015-01 Administrator Guide...
  • Page 26 Table of Contents Administrator Guide Document Version 2015-01...

  • Page 27: Initial Setup

    Section 1 Initial Setup This section provides an overview of the setup procedures for the unit. Document Version 2015-01 Administrator Guide...

  • Page 28: Setup

    1.1.2 Basic Network Setup 1.1 Setup 1.1.1 Factory Defaults Many of the settings for this unit have been configured before the unit ships. Where possible, these settings are configured with the optimum or most common values for the setting. For example, the port number of the SIP (Session Initiation Protocol) server is set to "5060".

  • Page 29: Configuring The Network Settings Of The Unit

    For details about the individual network settings that can be configured via the unit, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). For details about configuring network settings via the Web user interface, see 4.3.1 Basic Network Settings.

  • Page 30: Overview Of Programming

    1.1.4 Phone User Interface Programming You can change the settings directly from the unit. For details about the operations, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). For details about additional features available with direct commands, see Section 3 Phone User Interface Programming.

  • Page 31: Web User Interface Programming

    1.1.5 Web User Interface Programming 1.1.5 Web User Interface Programming After connecting the unit to your network, you can configure the unit’s settings by accessing the Web user interface from a PC connected to the same network. For details, see Section 4 Web User Interface Programming.

  • Page 32: Opening/Closing The Web Port

    To access the Web user interface, you must open the unit’s Web port beforehand. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). For details about additional features available with direct commands, see Section 3 Phone User Interface Programming.

  • Page 33: Accessing The Web User Interface

    1.1.5 Web User Interface Programming Password Account Target User Password Restrictions (default) (default) User End users user userpass • When logged in as User, you can change the password for the User account (® see 4.4.3 User Password). • The password can consist of 6 to 16 ASCII characters (case-sensitive) (®...

  • Page 34: Controls On The Window

    • The screen shots shown are taken from the Web user interface of the KX-UTG300 (or, in some cases, KX-UTG200), so the model name may differ from that shown on your PC. • Actual default values may vary depending on your phone system dealer.

  • Page 35: Entering Characters

    1.1.5 Web User Interface Programming Configuration Screen Clicking a menu displays the corresponding configuration screen, which contains the actual settings, grouped into sections. For details, see 4.2 Status to 4.8.10.5 Restart. Entering Characters In the Web user interface, when specifying a name, message, password, or other text item, you can enter any of the ASCII characters displayed in the following table.

  • Page 36: Other Network Settings

    1.1.6 Other Network Settings Result Message Description Get Fail! Hide Number: HTTP Connection failed Get Fail! The operation failed because a network error occurred during the data Simultaneous Ring: HTTP transmission. Connection failed Get Fail! Anywhere: HTTP Connection failed Get Fail! Remote Office: Server Busy Get Fail! Hide Number: Server Busy...

  • Page 37: Lldp

    1.2.1 Reset 1.1.6.3 LLDP The LLDP (Link Layer Discovery Protocol) is a vendor-neutral link layer protocol used by network devices for advertising their identity, capabilities, and neighbors in a LAN. It also used for getting the VLAN information from the switch in the network environment the unit is connected to. 1.2 Reset 1.2.1 Reset 1.2.1.1 Resetting to Factory Default (Factory Setting)

  • Page 38: Phonebook

    1.3.3 Enterprise phonebook (optional) On the Home screen, select Select "Reset", and then press [ENTER]. Select "Exclude Network Settings", and then press [ENTER]. Select 1.3 Phonebook Three types of phonebooks can be used with the unit: Local phonebook, LDAP phonebook, and Enterprise phonebook.

  • Page 39: Provisioning

    Section 2 Provisioning This section explains how to use provisioning to configure phones. Document Version 2015-01 Administrator Guide...

  • Page 40: What Is Provisioning

    2.2 Provisioning URL Settings 2.1 What is Provisioning? Provisioning is a mechanism that allows the phone to configure itself by retrieving the required settings from a central provisioning server. This enables mass deployment to be done easily and quickly. There are two steps required to perform provisioning of the device. Step 1: Obtaining Provisioning URL setting This step involves obtaining the URL of the provisioning server either manually or automatically, and downloading the initial configuration file.

  • Page 41: Automatic Discovery Of The Provisioning Url

    2.2.1 Automatic Discovery of the Provisioning URL – FQDN Examples When the filename is not specified, the phone adds {MODEL}.cfg to the end of the URL. Specified URL Result – – http://10.0.0.2 http://10.0.0.2/{MODEL}.cfg – – http://10.0.0.2/ http://10.0.0.2/{MODEL}.cfg – – http://provisioning.com http://provisioning.com/{MODEL}.cfg –...

  • Page 42: Dhcp Option 160/159/66

    2.2.1 Automatic Discovery of the Provisioning URL Examples SIP Phone SIP Server Provisioning Server SUBSCRIBE (multicast) 200 OK NOTIFY Provisioning URL: http://x.x.x.x/{MODEL}.cfg Body http://x.x.x.x/{MODEL}.cfg HTTP GET x.x.x.x/{MODEL}.cfg Download the configuration file Conditions • If SIP PnP is enabled, the device sends a multicast SIP SUBSCRIBE message each time it starts up and waits a maximum of 5 seconds for a response.

  • Page 43: Dhcpv6 Sub-Option

    If the provisioning URL cannot be obtained via SIP PnP or DHCP, it can be obtained via a redirection server. Redirection server is a service provided by Panasonic that allows retrieval of the provisioning URL from Panasonic's redirection servers in order to start provisioning.
  • Page 44 2.2.1 Automatic Discovery of the Provisioning URL The following illustration depicts an overview of how redirection server is used. SIP Server Provisioning Server Panasonic Redirection Server Carrier Customer Connect to the Internet SIP Phone HTTP GET {mac}.cfg HTTP GET {MODEL}.cfg HTTP GET Config{MAC}.cfg...

  • Page 45: Manual Configuration Of The Provisioning Url

    2.2.2 Manual Configuration of the Provisioning URL Connect to the SIP server 2.2.2 Manual Configuration of the Provisioning URL 2.2.2.1 Web User Interface, Phone User Interface If the automatic discovery of the provisioning server address is unavailable, the end user or administrator may use the local interface to manually configure the provisioning server.

  • Page 46: Processing Flow Of Provisioning Url Setting Selection

    DHCP option 66 is provisioning URL via was successful? enabled? DHCP option 66? Send request to Received Is there a Panasonic redirection provisioning URL in reply? local configuration server file? Apply the settings from Start downloading the the configuration file...

  • Page 47: Configuration File

    If it has been received, go to step 8. If it has not been received, go to the next step. If none of the above steps could be applied, the device sends an HTTP request to the Panasonic redirection server.
  • Page 48 2.4.1 Configuration File Format XML Hierarchy Level table The following table shows the XML hierarchy level for different categories of parameters used in configuration files. For details about the parameters allowed in each category, see 5.1 Configuration File Parameter List. XML Hierarchy Level Category Reference...
  • Page 49 2.4.1 Configuration File Format XML Hierarchy Level Category Reference EthernetPort Ethernet Port 5.5.5 Ethernet Settings Port Settings CDP Settings 5.5.4 CDP Settings LLDP LLDP-MED 5.5.3 LLDP-MED Settings Settings VLAN VLAN Settings 5.5.12 VLAN Settings IP Settings 5.5.1 IP Settings IPv6 IPv6 Settings 5.5.2 IPv6 Settings...
  • Page 50 2.4.1 Configuration File Format XML Hierarchy Level Category Reference Button KEM1 5.6.10 KEM1 idx="n", (KX-UTA336 (KX-UTA336 where n=1-36 Add-on Add-on Key KeyModule 1) Module 1) Button Button Settings Settings KEM2Buttons Button KEM2 5.6.11 KEM2 idx="n", (KX-UTA336 (KX-UTA336 where n=1-36 Add-on Add-on Key KeyModule 2) Module 2) Button...
  • Page 51 PANASIPPhoneConfig/Device/Phone/MPageGroups/MPageGroup idx="n", where n = 1-10 • PANASIPPhoneConfig/Device/Lines/Line idx="n"/Voip, PANASIPPhoneConfig/ Device/Lines/Line idx="n"/CallCtrl, and PANASIPPhoneConfig/Device/Lines/Line idx="n"/Sip, where n = 1 to the maximum line number. – KX-UTG200 maximum line number: 4 – KX-UTG300 maximum line number: 6 Document Version 2015-01 Administrator Guide...

  • Page 52: Flexible Enabling/Disabling Of Parameters

    2.4.2 Flexible Enabling/Disabling of Parameters Example PANASIPPhoneConfig/Device/Lines/Line idx="n"/Sip <PANASIPPhoneConfig> <Device> <Lines> <Line idx="1"> <SIP> <!-- Add per line sip settings here --> </SIP> </Line> </Lines> </Device> </PANASIPPhoneConfig> Example <PANASIPPhoneConfig> <Initial> <Certs> <CFG_ROOT_CERTIFICATE_PATH1></CFG_ROOT_CERTIFICATE_PATH1> <CFG_ROOT_CERTIFICATE_PATH2></CFG_ROOT_CERTIFICATE_PATH2> <CFG_ROOT_CERTIFICATE_PATH3></CFG_ROOT_CERTIFICATE_PATH3> </Certs> <CfgFiles> <CFG_STANDARD_FILE_PATH>http://prov.com/Config{MAC}.cfg</CFG_STANDARD_FILE_PATH> <CFG_PRODUCT_FILE_PATH>http:/prov.com/Config{MODEL}.cfg</CFG_PRODUCT_FILE_PATH> <CFG_MASTER_FILE_PATH>http://prov.com/ConfigCom.cfg</CFG_MASTER_FILE_PATH> </CfgFiles> </Initial>...

  • Page 53: Device Configuration File Types

    IP addresses of the DNS and NTP servers managed by your phone system dealer, etc. These settings are applied to all devices. Example of the master configuration file’s URL: http://prov.example.com/Panasonic/ConfigCommon.cfg Product configuration file Used to configure settings that are required for a particular model. This (Common to all devices of the configuration file is used by all the devices of the same model type.

  • Page 54: Priority Given To Each Programming Method

    (Unique to each device) phone number, user ID, password, etc. Example of a standard configuration file’s URL: http://prov.example.com/Panasonic/Config{MAC}.cfg (The corresponding device’s MAC address is used in place of "MAC".) 2.4.4 Priority Given to Each Programming Method Settings that can be configured via provisioning can also be configured via web programming and phone programming.

  • Page 55: Access Level Control Of Configuration Parameters

    2.4.6 Access Level Control of Configuration Parameters Example of the NOTIFY message sent from the SIP server: NOTIFY sip:1234567890@sip.example.com SIP/2.0 Via: SIP/2.0/UDP xxx.xxx.xxx.xxx:5060;branch=abcdef-ghijkl From: sip:prov@sip.example.com To: sip:1234567890@sip.example.com Date: Thu, 1 Jan 2014 01:01:01 GMT Call-ID: 123456-12345678912345678 CSeq: 1 NOTIFY Contact: sip:xxx.xxx.xxx.xxx:5060 Event: check-sync Content-Length: 0 For more information about the related parameters...

  • Page 56: Processing Flow Of Configuration File Download Sequence

    2.5 Processing Flow of Configuration File Download Sequence Access level control example The following is an example of access levels configured for various parameters. Note that the areas in red indicate the configured access levels. <PANASIPPhoneConfig> <Device> <System> <LoginAcc> <ADMIN_ID perm=”RW” access=”A”>admin</ADMIN_ID> <ADMIN_PASS perm=”RW”...

  • Page 57: Secure Provisioning

    2.6.1 Using Encryption When Transferring Configuration Files 2.6 Secure Provisioning 2.6.1 Using Encryption When Transferring Configuration Files This method involves transferring the configuration files in a encrypted format, where a symmetric key is used to encrypt and decrypt the file. Provisioning Server Requirements In order to use this method, the server must be designed to comply with the following process in regards to how the server gives the device its key and how the key is changed.

  • Page 58: Using Https When Transferring Configuration Files

    2.6.2 Using HTTPS When Transferring Configuration Files The device is now switched to encryption mode, and it downloads the encrypted version of the standard configuration file again by changing the file extension to ".enc". SIP Phone Provisioning Server HTTP GET x.x.x.x/{MODEL}.cfg Download the initial configuration file HTTP GET x.x.x.x/Config{MAC}.cfg...
  • Page 59 2.6.2 Using HTTPS When Transferring Configuration Files Parameter Purpose CFG_ROOT_CERTIFICATE_PATH1 Used to load a Root CA certificate that is either self-signed or from a trusted CA to the device Note • If a new Root CA certificate has been loaded using this parameter, the newly loaded Root CA certificate will be used to authenticate the server certificate instead of using the built-in Root CA certificate.

  • Page 60: Firmware Updates

    2.7.2 Updating the KX-UTA336 Add-on Key Module's Firmware • CFG_ROOT_CERTIFICATE_PATH2 (Page 241) • CFG_ROOT_CERTIFICATE_PATH3 (Page 241) 2.7 Firmware Updates 2.7.1 Updating the Unit’s Firmware After configuring the firmware update settings in the device configuration file, firmware will be updated after provisioning.

  • Page 61: Dhcp Provisioning

    2.8 DHCP Provisioning 2.8 DHCP Provisioning The following illustration depicts an overview of DHCP provisioning. SIP Phone DHCP Server Carrier Provisioning Server Carrier SIP Server DHCP Request DHCP ACK http://prov.com/utg200/{MODEL}.cfg Carrier’s provisioning server URL HTTP GET {MODEL}.cfg HTTP GET Config{MAC}.cfg HTTP GET Config{MODEL}.cfg HTTP GET ConfigCommon.cfg SIP REGISTER...
  • Page 62 2.8 DHCP Provisioning Administrator Guide Document Version 2015-01...

  • Page 63: Phone User Interface Programming

    Section 3 Phone User Interface Programming This section explains how to configure the unit by entering direct commands through the phone user interface. Document Version 2015-01 Administrator Guide...

  • Page 64: Phone User Interface Feature List

    To enter direct commands, use the dial keys and soft buttons on the unit. For details about the other available features, settings and key operations on the phone user interface, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). 3.1.1 Phone User Interface Feature List The available phone user interface features differ depending on the user level of the user using the unit.

  • Page 65: Direct Commands

    3.1.2 Direct Commands Access Level Main Menu Item Sub Menu Item Speed/Duplex ü Embedded Web ü ü Port Mirroring ü ü HTTP Authentication ü Provisioning ü Multicast Paging ü ü Application Settings — ü ü Network Test — ü ü Change Level —...

  • Page 66: Port Mirroring Settings

    3.1.5 Exporting phone user interface settings 3.1.3 Port Mirroring Settings Port mirroring is used for network monitoring and debugging purposes. You can enable port mirroring by performing the procedure below from the unit. To enable port mirroring On the Home screen, select Press [#][5][9][0].
  • Page 67 Section 4 Web User Interface Programming This section provides information about the settings available in the Web user interface. Document Version 2015-01 Administrator Guide...

  • Page 68: Web User Interface Setting List

    4.1 Web User Interface Setting List 4.1 Web User Interface Setting List The following tables show all the settings that you can configure from the Web user interface and the access levels. For details about each setting, see the reference pages listed. For details about setting up Web user interface programming, see 1.1.5 Web User Interface Programming.
  • Page 69 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Network Status Network Status MAC Address ü ü Page 88 Ethernet Link Status (LAN ü ü Page 88 Port) Ethernet Link Status (PC Port) ü ü Page 88 IP Address Mode ü...
  • Page 70 4.1 Web User Interface Setting List Network Access Level Menu Item Section Title Setting Ref. Basic Network Connection Settings Host Name ü Page 96 Settings IP Address Mode ü ü Page 96 Signal Prefer Mode ü ü Page 96 Media Prefer Mode ü...
  • Page 71 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Ethernet Port Link Speed/Duplex LAN Port ü Page 103 Settings Mode PC Port ü Page 103 LLDP Settings Enable LLDP ü Page 103 LLDP-MED Interval Timer ü...
  • Page 72 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Global Address STUN Server STUN Server Address ü Page 112 Detection STUN Server Port ü Page 112 STUN Interval ü Page 112 The access levels are abbreviated as follows: U: User;...
  • Page 73 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Time Adjust Synchronization Synchronization by NTP ü ü Page 117 Settings Synchronization Interval ü ü Page 118 NTP Server Address ü ü Page 118 Time Zone ü...
  • Page 74 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Outbound Proxy Server Outbound Proxy Server ü Page 125 Address Outbound Proxy Server Port ü Page 125 SIP Service Domain Service Domain ü Page 125 SIP Source Port Source Port ü...
  • Page 75 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. VoIP Settings Max Connection Max Connection ü Page 133 [Line 1]–[Line n] Quality of Service (QoS) RTP Packet QoS (DSCP) ü Page 134 RTCP Packet QoS (DSCP) ü...
  • Page 76 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. DTMF DTMF Type ü Page 136 DTMF Relay ü Page 136 Telephone-event Payload ü Page 136 Type Call Hold Supports RFC 2543 ü Page 136 (c=0.0.0.0) CODEC Preferences G722 Enable...
  • Page 77 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. International Call Prefix ü Page 141 Country Calling Code ü Page 141 National Access Code ü Page 141 Hold Recall Timer ü ü Page 141 Default Line Page 142 ü...
  • Page 78 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Call Forward Unconditional Enable Call Forward ü ü Page 149 Phone Number ü ü Page 149 Busy Enable Call Forward ü ü Page 150 Phone Number Page 150 ü...
  • Page 79 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Tone Settings Dial Tone Tone Frequencies ü Page 158 Tone Timings ü Page 159 Busy Tone Tone Frequencies ü Page 159 Tone Timings ü Page 159 Ringing Tone Tone Frequencies Page 160...
  • Page 80 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. LDAP LDAP Enable LDAP ü Page 168 LDAP Server Address ü Page 168 LDAP Server Port ü Page 168 LDAP Authentication ID ü Page 169 LDAP Authentication Page 169 ü...
  • Page 81 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Broadsoft Simultaneous Ring Enable Simultaneous Ring ü ü Page 177 Settings Settings Do not ring my Simultaneous ü ü Page 177 [Simultaneous Ring Numbers if I'm already on Ring] a call Phone Number (1-10)
  • Page 82 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Export Web Configuration – ü Page 182 Configuration File Web Updated – ü Page 182 Configuration Provision Configuration File Type ü Page 183 Firmware Firmware Maintenance Enable Firmware Update ü...
  • Page 83 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. SNMP v1/v2c SNMP RO Community ü Page 191 SNMP v3 SNMP Security User ü Page 192 SNMP Auth Type ü Page 192 SNMP Auth Password ü Page 192 SNMP Encrypt Type Page 192...
  • Page 84 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Upload Settings Upload log file to server ü ü Page 196 Upload log server ü ü Page 196 Upload log base file name ü ü Page 196 Upload file name append ü...
  • Page 85 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. PJCU-6 (KX-UTG300) ü ü Page 205 PROVISION ü ü Page 206 SIP_PNP ü ü Page 206 SWITCH_CONF ü ü Page 206 UPGRADER Page 207 ü ü CONFIGSYS ü...

  • Page 86: Version Information

    4.2.1 Version Information Access Level Menu Item Section Title Setting Ref. Make Call Make Call Line No. ü ü Page 218 Phone Number ü ü Page 219 Current Call List (Have Number ü ü Page 219 at least one call) Status ü...

  • Page 87: Operating Bank

    4.2.2 Network Status Operating Bank Description Indicates the storage area of the firmware that is currently operating (reference only). Value Range • Bank1 • Bank2 Default Value Not applicable. Firmware Version (Bank1) Description Indicates the Bank1 firmware version (reference only). Value Range Firmware version ("APPUTG300B_nn.nnn"/"APPUTG200B_nn.nnn"...

  • Page 88: Mac Address

    4.2.2 Network Status Clicking [Refresh] updates the information displayed on the screen. 4.2.2.1 Network Status MAC Address Description Indicates the MAC address of the unit (reference only). Value Range Default MAC address (example: 00:80:F0:AB:CD:EF) Default Value Not applicable. Ethernet Link Status (LAN Port) Description Indicates the current connection status of the Ethernet LAN port (reference only).

  • Page 89: Ip Address Mode

    4.2.2 Network Status Default Value Not applicable. IP Address Mode Description Indicates whether the unit uses IPv4 addresses, IPv6 addresses, or both (reference only). Value Range • Dual stack • IPv4 only • IPv6 only Default Value Dual stack Connection Mode Description Indicates whether the IP address of the unit is assigned automatically (DHCP) or manually (static) (reference only).
  • Page 90 4.2.2 Network Status Default Value Not applicable. DNS1 Description Indicates the specified IP address of the primary DNS server (reference only). Note • If the primary DNS server address is not specified, this field will be left blank. Value Range IP address of the primary DNS1 server Default Value Not applicable.

  • Page 91: Ipv6 Prefix Length

    4.2.2 Network Status IPv6 Prefix Length Description Indicates the IPv6 prefix length (reference only). Value Range NULL, 1–128 Default Value Not applicable. IPv6 Default Gateway Description Indicates the specified IPv6 address of the default gateway for the network (reference only). Value Range IPv6 address of the default gateway Default Value...

  • Page 92: Ieee802.1X Status

    (reference only). Note • The available line number varies depending on the type of the unit being used. Value Range • Line 1–Line 4 (for KX-UTG200) • Line 1–Line 6 (for KX-UTG300) Default Value Not applicable. Administrator Guide Document Version 2015-01...

  • Page 93: Phone Number

    4.2.4 QoS Status Phone Number Description Indicates the currently assigned phone numbers (reference only). Note • The corresponding field is blank if a line has not yet been leased or if the unit has not been configured. Value Range Max. 32 digits Default Value Not applicable.

  • Page 94: Voice Quality

    4.2.4 QoS Status Clicking [Refresh] updates the information displayed on the screen. 4.2.4.1 QoS Status Codec Description Indicates the codec used for QoS (reference only). Value Range • G711 • G722 • G729 Default Value Not applicable. MOS-CQ Description Indicates the mean opinion score for conversational quality (reference only).

  • Page 95: Basic Network Settings

    4.3.1 Basic Network Settings Value Range • 1–5 Note • Refer to the following for voice quality values. – 5: Perfect. Like face-to-face conversation or radio reception. – 4.5: Network or toll quality. – 4: Good. Imperfections can be perceived, but sound is clear.

  • Page 96: Connection Settings

    4.3.1 Basic Network Settings 4.3.1.1 Connection Settings Host Name Description Specifies the host name for the unit to send to the DHCP server. Note • This setting is available only when [IP Connection Mode] is set to [DHCP]. Value Range Max.

  • Page 97: Ipv4 Network Settings

    4.3.2 IPv4 Network Settings 4.3.2 IPv4 Network Settings This screen allows you to change the IPv4 settings. 4.3.2.1 Connection Settings IP Connection Mode Description Specifies whether the unit has a static IP address or receives its address from a DHCP server. Value Range •...

  • Page 98: Static Settings

    4.3.2 IPv4 Network Settings 4.3.2.2 Static Settings Static IP Address Description Specifies the IP address of the unit. Note • This setting is available only when [IP Connection Mode] is set to [Static]. Value Range Max. 15 characters ("n.n.n.n" [n=0–255], except "0.0.0.0", "255.255.255.255", "127.0.0.1", etc.) Default Value Not stored.
  • Page 99 4.3.2 IPv4 Network Settings DNS1 Description Specifies the IP address of the primary DNS server. Note • This setting is available only when [IP Connection Mode] is set to [Static]. Value Range Max. 15 characters ("n.n.n.n" [n=0–255], except "0.0.0.0", "255.255.255.255", "127.0.0.1", etc.) Default Value Not stored.

  • Page 100: Ipv6 Network Settings

    4.3.3 IPv6 Network Settings 4.3.3 IPv6 Network Settings This screen allows you to change the IPv6 settings. 4.3.3.1 Connection Settings IPv6 Connection Mode Description Specifies whether the unit has a static IP address or receives its address from a DHCP server. Value Range •...

  • Page 101: Enable Ipv6 Privacy

    4.3.3 IPv6 Network Settings Value Range • • Default Value Configuration File Reference ALLOW_AUTO_CFG (Page 271) Enable IPv6 Privacy Description Enables or disables IPv6 privacy. • Value Range • Default Value Configuration File Reference IPV6_PRIVACY (Page 271) 4.3.3.2 Static Settings Static IPv6 Address Description Specifies the IPv6 address of the unit.
  • Page 102 To access it again, you need to correct the speed/duplex settings or perform IP Reset through phone user interface programming. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Administrator Guide Document Version 2015-01...

  • Page 103: Link Speed/Duplex Mode

    4.3.4 Ethernet Port Settings 4.3.4.1 Link Speed/Duplex Mode LAN Port Description Selects the connection mode (link speed and duplex mode) of the LAN port. • Value Range Auto Negotiation • 1000 Mbps/Full Duplex • 100 Mbps/Full Duplex • 100 Mbps/Half Duplex •...

  • Page 104: Lldp-Med Interval Timer (5-3600S)

    4.3.4 Ethernet Port Settings LLDP-MED Interval Timer (5-3600s) Description Specifies the interval, in seconds, between sending each LLDP frame. Value Range 5–3600 Default Value Configuration File Reference LLDP_INTERVAL (Page 275) 4.3.4.3 CDP Settings Enable CDP Description Selects whether to enable or disable sending and receiving CDP frames.

  • Page 105: Vlan Settings

    4.3.4 Ethernet Port Settings 4.3.4.4 VLAN Settings Enable IP Phone VLAN Description Selects whether to use the VLAN feature to perform VoIP communication securely. Note • You should specify "Yes" for only one of "VLAN", "LLDP" or "CDP". • If "Yes" is specified for two or more of the parameters above, the settings are prioritized as follows: "VLAN"...

  • Page 106: Ieee802.1X Settings

    4.3.5 IEEE802.1X Settings PC VLAN ID Description Specifies the VLAN ID for the PC. Note • You cannot set this parameter if [Enable IEEE802.1X] is set to [Yes]. Value Range NULL, 0–4094 Default Value Configuration File Reference PC_VLAN_ID (Page 287) 4.3.5 IEEE802.1X Settings This screen allows you to configure settings relating to the IEEE 802.1X networking protocol.

  • Page 107: Authentication Password

    4.3.6 Certificate Information Value Range • EAP-MD5 • EAP-TLS • EAP-FAST • EAP-PEAP-GTC • EAP-PEAP-MSCHAPv2 • EAP-TTLS-GTC • EAP-TTLS-MSCHAPv2 Default Value EAP-MD5 Configuration File Reference IEEE8021X_AUTH_PRTCL (Page 277) Authentication ID Description Specifies the authentication ID required for IEEE 802.1X authentication. Value Range Max.

  • Page 108: Built-In Device Certificate

    4.3.6 Certificate Information Item Explanation State or Province Name Shows the state or province of the issuer. Locality Name Shows the locality name of the issuer. Organization Name Shows the organization name of the issuer. Organizational Unit Name Shows the organizational unit name of the issuer. Common Name Shows the common name of the issuer.

  • Page 109: Http Client Settings

    4.3.7 HTTP Client Settings Updated Device Certificate Click [Detail] to show detailed information about the updated device certificate. Click [Delete] to delete the updated device certificate. Updated Device Key Click [Delete] to delete the updated device key. Updated Server Root CA 1 Click [Detail] to show detailed information about the updated server root CA 1.

  • Page 110: Http Version

    4.3.7 HTTP Client Settings 4.3.7.1 HTTP Client Settings HTTP Version Description Selects which version of the HTTP protocol to use for HTTP communication. • Value Range HTTP/1.0 • HTTP/1.1 Note • For this unit, it is strongly recommended that you select [HTTP/ 1.0].

  • Page 111: Proxy Server Settings

    4.3.8 Global Address Detection Authentication Password Description Specifies the password for the User account. If set, this password must be entered to access the Web user interface at the User access level. Value Range Max. 127 characters Default Value Not stored. 4.3.7.3 Proxy Server Settings Enable Proxy Description...

  • Page 112: Stun Server

    4.3.8 Global Address Detection Note • If the unit is connected directly to the Internet, you do not need to configure Global Address Detection. 4.3.8.1 STUN Server STUN Server Address Description Specifies the IP address or FQDN of the STUN server. Value Range Max.

  • Page 113: Web Language

    4.4.2 Administrator Password 4.4 System This section provides detailed descriptions about all the settings classified under the [System] tab. 4.4.1 Web Language This screen allows you to select the language used for the Web user interface. 4.4.1.1 Web Language Language Description Selects the language used for the Web user interface.

  • Page 114: Administrator Password

    4.4.3 User Password 4.4.2.1 Administrator Password Current Password Description Specifies the current password to use to authenticate the Administrator account when logging in to the Web user interface. Value Range 6–16 characters (except ", &, ', :, <, >, and space) Default Value Not stored.
  • Page 115 4.4.3 User Password Note • For security reasons, the characters entered for the password are masked by special characters, which differ depending on the Web browser. 4.4.3.1 User Password Current Password Description Specifies the current password to use to authenticate the User account when logging in to the Web user interface.

  • Page 116: Web Server Settings

    4.4.4 Web Server Settings Value Range 6–16 characters (except ", &, ', :, <, >, and space) Note • This value must be the same as the value entered in [New Password]. Default Value Not stored. Configuration File Reference USER_PASS (Page 245) 4.4.4 Web Server Settings This screen allows you to change the Web server settings.

  • Page 117: Port Close Timer

    4.4.5 Time Adjust Settings Port Close Timer Description Specifies the length of time, in minutes, to keep the Web port open when there has been no communication between the unit and the PC. If the specified length of time elapses without any communication, the Web port closes automatically.

  • Page 118: Synchronization Interval

    4.4.5 Time Adjust Settings Value Range • Disable • DHCP Options • Static Note • Even if you select [DHCP Options] or [Static], this feature will not function properly if the NTP server address setting is invalid. Default Value Disable Configuration File Reference NTP_MODE (Page 282) Synchronization Interval...

  • Page 119: Dst Offset

    4.4.5 Time Adjust Settings Default Value Configuration File Reference DST_ENABLE (Page 246) DST Offset Description Specifies the amount of time, in minutes, to change the time when [Enable DST (Enable Summer Time)] is set to [Yes]. Value Range 0–720 Default Value Configuration File Reference DST_OFFSET (Page 246) 4.4.5.3 Start Day and Time of DST...

  • Page 120: End Day And Time Of Dst

    4.4.5 Time Adjust Settings Default Value Sunday Configuration File Reference DST_START_DAY_OF_WEEK (Page 247) Week Description Selects the number of the week on which DST (Summer Time) starts. Value Range • • • • • Last Default Value Configuration File Reference DST_START_ORDINAL_DAY (Page 247) Time Description...
  • Page 121 4.5 VoIP Using the 2 following settings, specify on which day of the selected month DST (Summer Time) ends. For example, to specify the second Sunday, select [Second] and [Sunday]. Description Selects the day of the week on which DST (Summer Time) ends. •...

  • Page 122: Sip Settings [Line 1]–[Line N

    4.5.1 SIP Settings [Line 1]–[Line n] This screen allows you to change the SIP settings that are specific to each line. The number of lines available varies depending on the phone being used, as follows: • KX-UTG200: 1–4 • KX-UTG300: 1–6 4.5.1.1 Line 1...

  • Page 123: Sip Uri

    4.5.1 SIP Settings [Line 1]–[Line n] 4.5.1.2 Phone Number Phone Number Description Specifies the phone number to use as the user ID required for registration to the SIP registrar server. Note • When registering using a user ID that is not a phone number, you should use the [SIP URI] setting.

  • Page 124: Presence Server Address

    4.5.1 SIP Settings [Line 1]–[Line n] Value Range 1–65535 Default Value 5060 Configuration File Reference SIP_RGSTR_PORT (Page 341) Proxy Server Address Description Specifies the IP address or FQDN of the SIP proxy server. Value Range Max. 127 characters Default Value Not stored.

  • Page 125: Outbound Proxy Server

    4.5.1 SIP Settings [Line 1]–[Line n] 4.5.1.4 Outbound Proxy Server Outbound Proxy Server Address Description Specifies the IP address or FQDN of the SIP outbound proxy server. Value Range Max. 127 characters Default Value Not stored. Configuration File Reference SIP_OUTPROXY_ADDR (Page 348) Outbound Proxy Server Port Description Specifies the port number to use for communication with the SIP...

  • Page 126: Sip Authentication

    4.5.1 SIP Settings [Line 1]–[Line n] Default Value 5060 (for Line 1) 5070 (for Line 2) 5080 (for Line 3) 5090 (for Line 4) 5100 (for Line 5) 5110 (for Line 6) Configuration File Reference SIP_SRC_PORT (Page 340) 4.5.1.7 SIP Authentication Authentication ID Description Specifies the authentication ID required to access the SIP server.

  • Page 127: Srv Lookup Prefix For Udp

    4.5.1 SIP Settings [Line 1]–[Line n] Value Range • • Note • If you select [Yes], the unit will perform a DNS SRV lookup for a SIP registrar server, SIP proxy server, SIP outbound proxy server, or SIP presence server. If you select [No], the unit will not perform a DNS SRV lookup for a SIP registrar server, SIP proxy server, SIP outbound proxy server, or SIP presence server.

  • Page 128: Timer Settings

    4.5.1 SIP Settings [Line 1]–[Line n] Value Range • • • Default Value Configuration File Reference SIP_TRANSPORT (Page 348) 4.5.1.11 Timer Settings T1 Timer Description Selects the default interval, in milliseconds, between transmissions of SIP messages. For details, refer to RFC 3261. Value Range •...

  • Page 129: Timer D (Milliseconds)

    4.5.1 SIP Settings [Line 1]–[Line n] Timer D (milliseconds) Description Specifies the value of SIP timer D (wait time for answer resending), in milliseconds. For details, refer to RFC 3261. Value Range 0, 250–64000 Default Value 5000 Configuration File Reference SIP_TIMER_D (Page 350) Timer F (milliseconds) Description...

  • Page 130: Sip Extensions

    4.5.1 SIP Settings [Line 1]–[Line n] Default Value Configuration File Reference DSCP_SIP (Page 342) 4.5.1.13 SIP extensions Supports 100rel (RFC 3262) Description Selects whether to add the option tag 100rel to the "Supported" header of the INVITE message. For details, refer to RFC 3262. Value Range •...

  • Page 131: Supports Rport (Rfc)

    4.5.1 SIP Settings [Line 1]–[Line n] Supports Rport (RFC 3581) Description Selects whether to add the 'rport' parameter to the top Via header field value of requests generated. For details, refer to RFC 3581. Value Range • • Default Value Configuration File Reference SIP_ADD_RPORT (Page 346) STUN...

  • Page 132: Voip Settings

    4.5.2 VoIP Settings 4.5.2 VoIP Settings This screen allows you to change the VoIP settings that are common to all lines. 4.5.2.1 RTP Settings RTP Packet Time Description Selects the interval, in milliseconds, between transmissions of RTP packets. Value Range •...

  • Page 133: Voip Settings [Line 1]–[Line N

    4.5.3 VoIP Settings [Line 1]–[Line n] This screen allows you to change the VoIP settings that are specific to each line. The number of lines available varies depending on the phone being used, as follows: • KX-UTG200: 1-4 • KX-UTG300: 1–6 4.5.3.1 Max Connection...

  • Page 134: Rtp Packet Qos (Dscp)

    4.5.3 VoIP Settings [Line 1]–[Line n] 4.5.3.2 Quality of Service (QoS) RTP Packet QoS (DSCP) Description Selects the DSCP level of DiffServ applied to RTP packets. Value Range 0–63 Default Value Configuration File Reference DSCP_RTP (Page 322) RTCP Packet QoS (DSCP) Description Selects the DSCP level of DiffServ applied to RTCP packets.

  • Page 135: Jitter Buffer

    4.5.3 VoIP Settings [Line 1]–[Line n] 4.5.3.4 Jitter Buffer Maximum Delay Description Specifies the maximum delay, in 10-millisecond units, of the jitter buffer. Value Range 3–50 (´ 10 ms) Note • This setting is subject to the following conditions: – This value must be greater than [Initial Delay] –...

  • Page 136: Dtmf Type

    4.5.3 VoIP Settings [Line 1]–[Line n] 4.5.3.5 DTMF DTMF Type Description Selects the method for transmitting DTMF (Dual Tone Multi-Frequency) tones. • Value Range Inband • RTP Event (2833) • None Note • If you select RTP Event (2833), DTMF tones will be sent via 2833 event.

  • Page 137: Codec Preferences

    4.5.3 VoIP Settings [Line 1]–[Line n] Value Range • • Note • If you select [Yes], the "c=0.0.0.0" syntax will be set in SDP when sending a re-INVITE message to hold the call. If you select [No], the "c=x.x.x.x" syntax will be set in SDP. Default Value Configuration File Reference RFC2543_HOLD_ENABLE (Page 325)

  • Page 138: G729A (Priority)

    4.5.3 VoIP Settings [Line 1]–[Line n] Default Value Configuration File Reference CODEC_PRIORITY_PCMA (Page 320) G726–32 (Enable) Description Selects whether to enable the G.726-32 codec for voice data transmission. Value Range • • Default Value Configuration File Reference CODEC_ENABLE_G726_32 (Page 320) G726–32 (Priority) Description Specifies the numerical order usage priority for the G.726-32 codec.

  • Page 139: G729A (Annexb)

    4.5.3 VoIP Settings [Line 1]–[Line n] G729A (Annexb) Description Selects whether to enable the G.729A B Annex codec for voice data transmission. Value Range • • Default Value Configuration File Reference CODEC_ANNEXB_G729A (Page 321) PCMU (Enable) Description Selects whether to enable the PCMU codec for voice data transmission. •...

  • Page 140: Call Control

    4.6.1 Call Control 4.6 Telephone This section provides detailed descriptions about all the settings classified under the [Telephone] tab. 4.6.1 Call Control This screen allows you to configure various call features that are common to all lines. 4.6.1.1 Call Control Inter-digit Timeout Description Specifies the length of time, in seconds, within which subsequent digits...

  • Page 141: International Call Prefix

    4.6.1 Call Control Configuration File Reference MACRODIGIT_TIM (Page 288) International Call Prefix Description Specifies the number to be shown in the place of the first "+" symbol when the phone number for incoming international calls contains "+". Value Range Max. 8 characters (consisting of 0–9, *, and #) Default Value Not stored.

  • Page 142: Call Rejection Phone Numbers

    Note • The available line number may vary depending on the type of the unit being used. Value Range 1–4 (for KX-UTG200) 1–6 (for KX-UTG300) Default Value Configuration File Reference DEFAULT_LINE (Page 293) 4.6.1.2 Call Rejection Phone Numbers 1–30...

  • Page 143: Display Name

    4.6.2 Call Control [Line 1]–[Line n] • KX-UTG300: 1–6 4.6.2.1 Call Control Display Name Description Specifies the name to display as the caller on the other party’s phone when you make a call. Value Range Max. 24 characters Note • You can use Unicode characters for this setting.

  • Page 144: Voice Mail Access Number

    4.6.2 Call Control [Line 1]–[Line n] Value Range • • Default Value Configuration File Reference VM_SUBSCRIBE_ENABLE (Page 326) Voice Mail Access Number Description Specifies the phone number used to access the voice mail server. Note • Your phone system must support voice mail. Value Range Max.

  • Page 145: Feature Key Synchronization

    4.6.2 Call Control [Line 1]–[Line n] Feature Key Synchronization Description Selects whether to synchronize the feature key settings, configured via the Web user interface or phone user interface, between the unit and the portal server that is provided by your phone system dealer. Note •...

  • Page 146: Moh Server Uri

    4.6.2 Call Control [Line 1]–[Line n] Default Value Not stored. Configuration File Reference RESOURCELIST_URI (Page 330) MoH Server URI Description Specifies the Uniform Resource Identifier string for a MoH (Music on Hold) server. Value Range Max. 195 characters Default Value Not stored.

  • Page 147: Call Features

    4.6.2 Call Control [Line 1]–[Line n] 4.6.2.3 Call Features Block Caller ID Description Selects whether to make calls without transmitting the phone number to the called party. Note • Availability depends on your phone system. • Value Range • Default Value Configuration File Reference BLOCK_CALLER_ID (Page 330) Block Anonymous Call...

  • Page 148: Return Code When Refuse

    4.6.2 Call Control [Line 1]–[Line n] Value Range 400–699 Default Value Configuration File Reference SIP_RESPONSE_CODE_DND (Page 351) Return Code When Refuse Description Specifies the return code sent when the unit refuses a call. Value Range 400–699 Default Value Configuration File Reference SIP_RESPONSE_CODE_CALL_REJECT (Page 351) Auto Answer Description...

  • Page 149: Call Forward

    4.6.2 Call Control [Line 1]–[Line n] 4.6.2.4 Call Forward Unconditional (Enable Call Forward) Description Selects whether to forward all incoming calls to a specified destination. Note • If Do Not Disturb has been enabled on the server, the server rejects incoming calls and the unit does not receive any calls, even if you have selected [Yes] for this setting.

  • Page 150: Busy (Phone Number)

    4.6.2 Call Control [Line 1]–[Line n] Default Value Not stored. Configuration File Reference FWD_UNCONDITIONAL_NUMBER (Page 331) Busy (Enable Call Forward) Description Selects whether to forward incoming calls to a specified destination when the line is in use. Note • If Do Not Disturb has been enabled on the server, the server rejects incoming calls and the unit does not receive any calls, even if you have selected [Yes] for this setting.

  • Page 151: No Answer (Enable Call Forward)

    4.6.2 Call Control [Line 1]–[Line n] Value Range • Max. 32 characters for phone number format • Max. 127 characters for URL format (except ", &, ', @, ;, <, >, and space) Note • You cannot leave this field empty if [Busy (Enable Call Forward)] is set to [Yes].

  • Page 152: No Answer (Ring Count)

    4.6.2 Call Control [Line 1]–[Line n] No Answer (Phone Number) Description Specifies the phone number of the destination to forward calls to when a call is not answered after it has rung a specified number of times. Note • If you change this setting when [Feature Key Synchronization] is set to [Yes], the change to this setting is not immediately applied on this screen.

  • Page 153: Flexible Button Settings

    4.6.3 Flexible Button Settings 4.6.3 Flexible Button Settings This screen allows you to configure various features for each flexible button. For more details, see 6.3 Flexible Buttons. 4.6.3.1 Flexible Button Settings Type (No. 1–24) Description Selects the feature to be assigned to each flexible button. Value Range •...

  • Page 154: Flexible Button Settings (Kem) (Kx-Utg300 Only)

    4.6.4 Flexible Button Settings (KEM) (KX-UTG300 only) Parameter (No. 1–24) Description Specifies the necessary values for the features assigned to flexible buttons. Value Range • Max. 32 characters for phone number format • Max. 127 characters for URL format (except ", &, ', ;, <, >, and space) Default Value <Blank>...
  • Page 155 4.6.4 Flexible Button Settings (KEM) (KX-UTG300 only) 4.6.4.1 KEM 1 Type (No. 1–36) Description Specifies the button type. Value Range • <Blank> • One-Touch • Default Value <Blank> Configuration File Reference KEM1_BUTTON_FACILITY_ACT (Page 313) Line (No. 1-36) Description Selects the line to be assigned to each button. Value Range •...
  • Page 156 4.6.4 Flexible Button Settings (KEM) (KX-UTG300 only) Configuration File Reference KEM1_BUTTON_FACILITY_LABEL (Page 313) 4.6.4.2 KEM 2 Type (No. 1–36) Description Specifies the button type. • Value Range <Blank> • One-Touch • Default Value <Blank> Configuration File Reference KEM2_BUTTON_FACILITY_ACT (Page 314) Line (No.

  • Page 157: Bluetooth (Kx-Utg300 Only)

    4.6.5 Bluetooth (KX-UTG300 only) Value Range Max. 32 characters Note • You can use Unicode characters for this setting. Default Value <Blank> Configuration File Reference KEM2_BUTTON_FACILITY_LABEL (Page 314) 4.6.5 Bluetooth (KX-UTG300 only) This screen allows you to enable or disable Bluetooth settings. 4.6.5.1 Bluetooth Enable Bluetooth Description...

  • Page 158: Tone Settings

    4.6.6 Tone Settings 4.6.6 Tone Settings This screen allows you to configure the dual-tone frequencies and ringtone patterns of each tone. 4.6.6.1 Dial Tone Tone Frequencies Description Specifies the dual-tone frequencies, in hertz, of dial tones using 2 whole numbers separated by a comma. Value Range 1–9 characters 0, 200–2000 (0: No tone)

  • Page 159: Tone Timings

    4.6.6 Tone Settings Tone Timings Description Specifies the pattern, in milliseconds, of dial tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note • The unit will not play the tone for the duration of the first value, play it for the duration of the second value, stop it for the duration of the third value, play it again for the duration of the fourth value, and so on.

  • Page 160: Ringing Tone

    4.6.6 Tone Settings Default Value 60,500,440 Configuration File Reference BUSY_TONE_TIMING (Page 304) 4.6.6.3 Ringing Tone Tone Frequencies Description Specifies the dual-tone frequencies, in hertz, of ringback tones using 2 whole numbers separated by a comma. Value Range 1–9 characters 0, 200–2000 (0: No tone) Default Value 440,480 Configuration File Reference...

  • Page 161: Reorder Tone

    4.6.6 Tone Settings Tone Timings Description Specifies the pattern, in milliseconds, of stutter dial tones to notify that a voice mail is waiting, using up to 22 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note •...

  • Page 162: Telephone Settings

    Description Specifies the Personal Identification Number (PIN) of the extension. This is used to lock access to the call log and phonebook list. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Value Range Max.

  • Page 163: Number Matching Lower Digit

    4.6.7 Telephone Settings Number Matching Lower Digit Description Specifies the minimum number of digits with which to match a phonebook entry with an incoming call's caller ID. To specify exact matching of entire numbers only, specify "0". Value Range 0–15 Default Value Configuration File Reference NUMBER_MATCHING_LOWER_DIGIT (Page 292)

  • Page 164: Enable Hotline

    4.6.7 Telephone Settings 4.6.7.2 Hotline Enable Hotline Description Specifies whether the hotline feature is enabled or disabled. When enabled, the unit dials the programmed phone number automatically when the handset is lifted, the speakerphone button is pressed, etc. Value Range •...

  • Page 165: Send Paging Timeout

    4.6.7 Telephone Settings Send Paging Timeout Description Specifies the send paging timeout for multicast paging. Value Range 0–86400, 0: Forever Default Value Configuration File Reference MPAGE_SEND_TIMER (Page 298) Disconnect Paging Timeout Description Specifies the disconnect paging timeout for multicast paging. Value Range 1–10 Default Value...

  • Page 166: Port (No)

    4.6.8 Phonebook Configuration File Reference MPAGE_ADDR (Page 299) Port (No. 1-10) Description Specifies the port used for multicast paging. Value Range 1–65535 Default Value 60000 Configuration File Reference MPAGE_PORT (Page 299) Priority (No. 1-10) Description Specifies the priority used for multicast paging. Value Range 1–11 Default Value...

  • Page 167: Import Phonebook

    4.6.8 Phonebook Note • If the existing phonebook data has an entry with the same name and phone number as an imported entry, the imported entry is not added as a new entry. 4.6.8.1 Import Phonebook File Name Description Specifies the path of the file to import from the PC. Value Range No limitation Note...

  • Page 168: Enable Ldap

    4.6.9 LDAP 4.6.9 LDAP This screen allows you to change the LDAP settings. 4.6.9.1 LDAP Enable LDAP Description Specifies whether LDAP is enabled or disabled. Value Range • • Default Value Configuration File Reference LDAP_ENABLE (Page 284) LDAP Server Address Description Specifies the address (in dotted-decimal notation or FQDN) used when accessing the LDAP server.

  • Page 169: Ldap Authentication Id

    4.6.9 LDAP Default Value Configuration File Reference LDAP_PORT (Page 284) LDAP Authentication ID Description Specifies the authentication ID used when accessing the LDAP server. Value Range Max. 127 characters Default Value Not stored. Configuration File Reference LDAP_USER_DN (Page 285) LDAP Authentication Password Description Specifies the password used when accessing the LDAP server.

  • Page 170: Call Log

    4.6.11 Ringtone 4.6.10 Call Log This screen allows you to export call logs for each line assigned to the unit. 4.6.10.1 Export Call Log Click [Export] to export the call log for the corresponding line. The phone number and VoIP status of each line is also displayed.

  • Page 171: Screen Saver

    4.6.12 Screen Saver 4.6.11.1 Ringtone Ringtone allows users to select music files stored on your PC and import them to the unit as ringtones for each line. The imported music file would be applied to a line if its ringtone setting is configured to "Automatic". If a line's ringtone setting is configured to "Automatic"...

  • Page 172: Wait Time

    4.6.13 Distinctive Ring 4.6.12.1 Screen Saver Wait Time Description Specifies the length of time, in minutes, within the next operation must be done. When this timer expires, the unit will enter screen save mode. Value Range 0-10 (0: Disable) Default Value Configuration File Reference SCREEN_SAVE_TIMER (Page 295) 4.6.12.2 List...

  • Page 173: Call Dial Pattern (No)

    4.7.1 Application 4.6.13.2 Distinctive Ring Call Dial Pattern (No. 1-9) Description Specifies a call dial pattern, such as specific phone numbers that control which numbers can matched to the incoming caller ID. Value Range Max. 1024 characters Default Value [2-9]11|0T|011xxx.T|[0-1][2-9]xxxxxxxxx|[2-9]xxxxxxxxx|[2-9]xxxT Ringtone (No.

  • Page 174: Application Server

    4.7.1 Application Default Value Configuration File Reference XMLAPP_ENABLE (Page 315) Application Server Description Specifies the application. Value Range • Broadsoft • Switchvox Default Value Broadsoft Configuration File Reference XMLAPP_SERVER_TYPE (Page 315) 4.7.1.2 Service Settings Service URL Description Specifies the URL used when accessing the specified application. Value Range Max.

  • Page 175: Broadsoft Settings [Remote Office

    4.7.2 Broadsoft Settings [Remote Office] 4.7.2 Broadsoft Settings [Remote Office] This screen allows you to change the Broadsoft Remote Office settings. 4.7.2.1 Remote Office Settings Enable Remote office Description Specifies whether Remote Office is enabled or disabled. Remote Office allows the user to use an off-site phone, such as a home phone, cell phone, hotel room phone, etc., as a business phone.

  • Page 176: Hide Number Settings

    4.7.4 Broadsoft Settings [Simultaneous Ring] 4.7.3 Broadsoft Settings [Hide Number] This screen allows you to change the Broadsoft Hide Number settings. 4.7.3.1 Hide Number Settings Enable Hide Number (Caller ID Blocking) Description Specifies whether the hide number feature of Remote Office is enabled or disabled.

  • Page 177: Simultaneous Ring Settings

    4.7.4 Broadsoft Settings [Simultaneous Ring] 4.7.4.1 Simultaneous Ring Settings Enable Simultaneous Ring Description Specifies whether the simultaneous ring feature of Remote Office is enabled or disabled. • Value Range • Default Value Do not ring my Simultaneous Ring Numbers if I'm already on a call Description Specifies whether the phone numbers specified for the simultaneous ring feature ring when the user is already on a call.

  • Page 178: Broadsoft Settings [Anywhere

    4.7.5 Broadsoft Settings [Anywhere] 4.7.5 Broadsoft Settings [Anywhere] This screen allows you to change the Broadsoft Anywhere settings. 4.7.5.1 Anywhere Settings Alert all locations for Click-to-Dial calls Description Specifies whether all locations are alerted for click-to-dial calls. • Value Range •...

  • Page 179: Enable Diversion Inhibitor

    4.7.5 Broadsoft Settings [Anywhere] Description Description Indicates the description configured for the location. Value Range 0-128 Default Value Not applicable. 4.7.5.3 Phone Number Enable this Location (1-10) Description Specifies whether each location is enabled or disabled. Value Range • • Default Value Phone Number (1-10) Description...

  • Page 180: Use Broadworks-Based Call Control Services

    4.7.6 Branding Settings Value Range • • Default Value Use BroadWorks-based Call Control Services Description Specifies whether BroadWorks-based call control services are used. Value Range • • Default Value 4.7.6 Branding Settings This screen allows you to change the Branding settings. 4.7.6.1 Branding Settings Logo URL Description...

  • Page 181: Import Configuration File

    4.8.1 Import Configuration File Configuration File Reference XMLAPP_WALLPAPER_URL (Page 316) 4.8 Maintenance This section provides detailed descriptions about all the settings classified under the [Maintenance] tab. 4.8.1 Import Configuration File This screen allows you to import web user interface configuration settings and provisioning configuration settings.

  • Page 182: Export Configuration File

    4.8.2 Export Configuration File Value Range • Standard • Product • Master • Initial Default Value Standard File Name Description Displays the name of the provisioning configuration file selected to be imported. Note • Click [Choose File] to select the file to be imported and then click [Import] to import it.

  • Page 183: Firmware Maintenance

    4.8.3 Firmware Maintenance 4.8.2.3 Provision Configuration Click [Export] to export the provisioning configuration file. File Type Description Selects the type of provisioning configuration file to be exported. Value Range • Standard • Product • Master • Initial Default Value Standard 4.8.3 Firmware Maintenance This screen allows you to perform firmware updates automatically or manually.

  • Page 184: Firmware File Url

    4.8.4 Local Firmware Update Firmware File URL Description Specifies the URL where the firmware file is stored. Note • This setting is available only when [Enable Firmware Update] is set to [Yes]. • Changing this setting may require restarting the unit. Value Range Max.

  • Page 185: Kem Firmware Update

    4.8.6 Provisioning Maintenance 4.8.5 KEM Firmware Update This screen allows you to manually update the firmware of the KX-UTA336 Add-on Key Module from a PC by clicking [Update Firmware]. Note • After the firmware has been successfully updated, the KX-UTA336 Add-on Key Module will restart automatically.

  • Page 186: Enable Provisioning

    4.8.6 Provisioning Maintenance Note • Each unit can accept up to 3 configuration files. For details about provisioning, see Section 2 Provisioning . 4.8.6.1 Provisioning Maintenance Enable Provisioning Description Selects whether the unit is automatically configured by downloading the configuration files from the provisioning server of your phone system. •...

  • Page 187: Enable Sip Pnp

    4.8.6 Provisioning Maintenance Value Range Max. 1024 characters Default Value Not stored. Configuration File Reference USR_PROV_SVR_URL (Page 259) Authentication ID Description Specifies the authentication ID required to access the provisioning server. Value Range Max. 127 characters (except ", &, ', @, ;, <, >, and space) Default Value Not stored.

  • Page 188: Enable Dhcpv6 Sub Option

    4.8.6 Provisioning Maintenance Enable DHCP Option 159 Description Specifies whether the unit can use DHCP option 159 to discover the URL of the provisioning server. Value Range • • Default Value Configuration File Reference OPTION159_ENABLE (Page 255) Enable DHCP Option 66 Description Specifies whether the unit can use DHCP option 66 to discover the URL of the provisioning server.

  • Page 189: Header Value For Resync Event

    4.8.7 Management Server Value Range 1–40320 Default Value 10080 Configuration File Reference CFG_CYCLIC_INTVL (Page 258) Header Value for Resync Event Description Specifies the value of the "Event" header sent from the SIP server to the unit so that the unit can access the configuration files on the provisioning server.
  • Page 190 4.8.8 SNMP Default Value Not stored. Configuration File Reference ACS_URL (Page 260) Authentication ID Description Specifies the authentication ID required to access the management server. Value Range Max. 255 characters (except ", &, ', @, ;, <, >, and space) Default Value Not stored.

  • Page 191: Enable Snmp

    4.8.8 SNMP 4.8.8.1 SNMP Enable SNMP Description Specifies whether SNMP is enabled or disabled. Value Range • • Default Value Configuration File Reference SNMP_ENABLE (Page 265) SNMP Manager IP Description Specifies the IP address of the SNMP manager. Value Range Max.

  • Page 192: Snmp V

    4.8.8 SNMP Configuration File Reference SNMP_COMMUNITY_STRING (Page 265) 4.8.8.3 SNMP v3 SNMP Security User Description Specifies the SNMP v3 user. Value Range Max. 32 characters Default Value Not stored. Configuration File Reference SNMP_SECURITY_USER (Page 266) SNMP Auth Type Description Specifies the authentication type for SNMP. Value Range •...

  • Page 193: Snmp Security Level

    4.8.10 Reset & Restart Default Value Not stored. Configuration File Reference SNMP_ENCRYPT_PASSWORD (Page 267) SNMP Security Level Description Specifies the security level for SNMP. Value Range • noAuthNoPriv • authNoPriv • authPriv Default Value noAuthNoPriv Configuration File Reference SNMP_SECURITY_LEVEL (Page 266) 4.8.9 SSH This screen allows you to enable or disable the SSH settings.

  • Page 194: Reset Excluding Private Settings

    4.8.10 Reset & Restart Notice • After resetting the settings, the unit will restart even if it is being accessed through the phone user interface, or on calls. Note • If you have changed the default password for the Administrator account and successfully reset the settings (the message "Save Complete!"...

  • Page 195: Log Settings

    4.9.1 Log Settings 4.9 Diagnostic This screen allows you to export a file containing reports on various unit details and activities. 4.9.1 Log Settings This screen allows you to change the log settings. 4.9.1.1 General Settings Log to standard output Description Enables or disables output of logs to the standard output.

  • Page 196: Upload Period

    4.9.1 Log Settings 4.9.1.2 Upload Settings Upload log file to server Description Specifies whether the log file is uploaded to a file server. Value Range • • Default Value Upload log server Description Specifies the URL of the file server where the log file will be uploaded. Value Range Max.

  • Page 197: Syslog Server

    4.9.1 Log Settings Value Range • • Default Value 4.9.1.3 Syslog Settings Report log to sysLog server Description Specifies whether the log is reported to a sysLog server. Value Range • • Default Value SysLog server Description Specifies the URL of the sysLog server. Value Range Max.
  • Page 198 4.9.1 Log Settings 4.9.1.4 Log Level Settings Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL CENTRAL Description Specifies the type/severity of items that are logged.
  • Page 199 4.9.1 Log Settings Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL DHCPv6 Description Specifies the type/severity of items that are logged. Value Range • VERB •...

  • Page 200: Http Server

    4.9.1 Log Settings HTTP Server Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL HTTP CGI Description Specifies the type/severity of items that are logged.
  • Page 201 4.9.1 Log Settings Default Value • WARN • • FATAL IPPS Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN •...
  • Page 202 4.9.1 Log Settings Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL Description Specifies the type/severity of items that are logged. Value Range • VERB •...
  • Page 203 4.9.1 Log Settings NETWORK_CONTROL Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL Description Specifies the type/severity of items that are logged. Value Range •...
  • Page 204 4.9.1 Log Settings Default Value • WARN • • FATAL PJCU-2 Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN •...

  • Page 205: Pjcu-5 (Kx-Utg300 Only)

    4.9.1 Log Settings Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL PJCU-5 (KX-UTG300 only) Description Specifies the type/severity of items that are logged. Value Range •...
  • Page 206 4.9.1 Log Settings PROVISION Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL SIP_PNP Description Specifies the type/severity of items that are logged. Value Range •...
  • Page 207 4.9.1 Log Settings Default Value • WARN • • FATAL UPGRADER Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN •...
  • Page 208 4.9.1 Log Settings Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL Description Specifies the type/severity of items that are logged. Value Range • VERB •...
  • Page 209 4.9.1 Log Settings FILESAVER Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL Description Specifies the type/severity of items that are logged. Value Range •...
  • Page 210 4.9.1 Log Settings Default Value • WARN • • FATAL FTPC Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN •...
  • Page 211 4.9.1 Log Settings Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL PHONE_BOOK Description Specifies the type/severity of items that are logged. Value Range • VERB •...
  • Page 212 4.9.1 Log Settings Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL XML_APP Description Specifies the type/severity of items that are logged. Value Range •...
  • Page 213 4.9.1 Log Settings Default Value • WARN • • FATAL TR-069 Description Specifies the type/severity of items that are logged. Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN •...

  • Page 214: Log Display

    4.9.2 Log Display Value Range • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL 4.9.2 Log Display This screen allows you to display the selected logs. 4.9.2.1 Filter Modules Description Specifies the modules displayed in the log.
  • Page 215 4.9.2 Log Display Value Range • • CENTRAL • DHCPv4 • DHCPv6 • FHAL • HTTP Server • HTTP CGI • I18N • IPPS • LLDPCDP • MCABBER_CLIENT • • • NETWORK_CONTROL • • PJCU-0 • PJCU-1 • PJCU-2 • PJCU-3 •...
  • Page 216 4.9.3 Log Dump Classes Description Specifies the classes of items displayed in the log. Value Range • • VERB • • • STATE • TIMEOUT • SEMA • WARN • • FATAL Default Value • WARN • • FATAL 4.9.2.2 Log Description Displays the content of the log.

  • Page 217: System Dump

    4.9.5 Sniffer Dump 4.9.4 System Dump This screen allows you to export the running information for system dump. 4.9.4.1 Running Information Click [Export] to export a system dump of running information. 4.9.5 Sniffer Dump This screen allows you to enable and disable sniffer dump as well as export sniffer dump information. 4.9.5.1 Sniffer Log Enable Log Description...

  • Page 218: Status Message

    Specifies the line to be used when making a call. Note • The available line number varies depending on the type of the unit being used. Value Range • Line 1–Line 4 (for KX-UTG200) • Line 1–Line 6 (for KX-UTG300) Default Value Not applicable. Administrator Guide Document Version 2015-01...

  • Page 219: Current Call List (Have At Least One Call)

    4.9.7 Make Call Phone Number Description Specifies the phone number to be called. Value Range • Max. 32 characters for phone number format • Max. 127 characters for URL format (except ", &, ', :, <, >, and space) Default Value Not stored.
  • Page 220 4.9.7 Make Call Duration Description Shows the duration of the current call. Value Range hh:mm:ss (hours: minutes: seconds) Default Value Not applicable. Administrator Guide Document Version 2015-01...

  • Page 221: Configuration File Programming

    Section 5 Configuration File Programming This section provides information about the configuration parameters used in the configuration files. Document Version 2015-01 Administrator Guide...

  • Page 222: Configuration File Parameter List

    5.1 Configuration File Parameter List 5.1 Configuration File Parameter List The following tables show all the parameters that can be programmed using configuration file programming. For details about each parameter, see the reference pages listed. For details about configuration file specifications, see 2.4.3 Device Configuration File Types (Page 53). Certificate Settings Category Parameter Name...
  • Page 223 5.1 Configuration File Parameter List Category Parameter Name Ref. System Time Settings TIME_ZONE Page 245 DST_ENABLE Page 246 DST_OFFSET Page 246 DST_START_MONTH Page 247 DST_START_ORDINAL_DAY Page 247 DST_START_DAY_OF_WEEK Page 247 DST_START_TIME Page 248 DST_STOP_MONTH Page 248 DST_STOP_ORDINAL_DAY Page 249 DST_STOP_DAY_OF_WEEK Page 249 DST_STOP_TIME Page 249...
  • Page 224 5.1 Configuration File Parameter List Category Parameter Name Ref. CFG_FILE_KEY_LENGTH Page 257 CFG_CYCLIC Page 257 CFG_CYCLIC_INTVL Page 258 CFG_RTRY_INTVL Page 258 CFG_RESYNC_TIME Page 258 CFG_RESYNC_FROM_SIP Page 258 USR_PROV_SVR_URL Page 259 USR_PROV_SVR_AUTH_ID Page 259 USR_PROV_SVR_AUTH_PASSWORD Page 259 SIPPNP_MULTICAST_ADDR Page 260 SIPPNP_PORT Page 260 Certificate Settings CLIENT_CERTIFICATE_PATH...

  • Page 225: Network Settings

    5.1 Configuration File Parameter List Category Parameter Name Ref. ANNEX_G_STUN_MIN_KEEP_ALIVE Page 264 SNMP Settings SNMP_ENABLE Page 265 SNMP_TRUST_IP Page 265 SNMP_PORT Page 265 SNMP_COMMUNITY_STRING Page 265 SNMP_SECURITY_USER Page 266 SNMP_SECURITY_LEVEL Page 266 SNMP_AUTH_TYPE Page 266 SNMP_AUTH_PASSWORD Page 266 SNMP_ENCRYPT_TYPE Page 267 SNMP_ENCRYPT_PASSWORD Page 267 SNMP_SYS_LOCATION...
  • Page 226 5.1 Configuration File Parameter List Category Parameter Name Ref. IPV6_STATIC_IP_ADDR Page 272 IPV6_STATIC_IP_PREFIX_LEN Page 272 IPV6_STATIC_DEFAULT_GATEWAY Page 273 IPV6_STATIC_DNS1_SERVER Page 273 IPV6_STATIC_DNS2_SERVER Page 273 LLDP_TRAFFIC_TO_PC_PORT LLDP-MED Settings Page 274 LLDP_ASSTID Page 274 LLDP_POWER_PRIORITY Page 274 LLDP_ENABLE Page 275 LLDP_INTERVAL Page 275 LLDP_WAIT_TIME_FOR_FAST_START Page 275 CDP Settings...
  • Page 227 5.1 Configuration File Parameter List Category Parameter Name Ref. WEB_SERVER_CLOSE_TIMER Page 282 NTP Settings NTP_MODE Page 282 NTP_ADDR Page 282 TIME_SYNC_INTVL Page 282 TIME_QUERY_INTVL Page 283 STUN_SERV_ADDR STUN Settings Page 283 STUN_SERV_PORT Page 283 STUN_REFRESH_INTVL Page 283 LDAP Settings LDAP_SERVER Page 284 LDAP_PORT Page 284...
  • Page 228 5.1 Configuration File Parameter List Category Parameter Name Ref. NATIONAL_ACCESS_CODE Page 289 HOLD_RECALL_TIM Page 290 AUTO_ANS_RING_TIM Page 290 ONHOOK_TRANSFER_ENABLE Page 290 KEY_PAD_TONE Page 290 ENDCALL_TRANSFER_ENABLE Page 291 FOLLOW_SERVER_BELLCORE Page 291 BUSY_ON_CALL_END Page 291 REORDER_TONE_TIM Page 291 DIRECT_TRANSFER_ENABLE Page 291 DND_HARD_KEY_ENABLE Page 292 REJECT_CALL_NUMBER[1-30] Page 292...
  • Page 229 5.1 Configuration File Parameter List Category Parameter Name Ref. Distinctive Ring SUPPORT_DISTINCTIVE_RING Page 297 CALL_DIAL_PATTERN[1-9] Page 297 DISTINCTIVE_RING_TONE[1-9]_DIS_NAME Page 298 All Multicast Groups - Multicast MPAGE_ENABLE Page 298 Paging MPAGE_SEND_TIMER Page 298 MPAGE_CODEC Page 298 MPAGE_DISC_TIM Page 299 MPAGE_DND_ENABLE Page 299 Per Multicast Group - Multicast MPAGE_ADDR Page 299...
  • Page 230 5.1 Configuration File Parameter List Category Parameter Name Ref. DIAL_TONE4_FRQ Page 305 DIAL_TONE4_GAIN Page 305 DIAL_TONE4_RPT Page 306 DIAL_TONE4_TIMING Page 306 REORDER_TONE_FRQ Page 306 REORDER_TONE_GAIN Page 306 REORDER_TONE_RPT Page 307 REORDER_TONE_TIMING Page 307 HOLD_TONE_FRQ Page 307 HOLD_TONE_GAIN Page 307 HOLD_TONE_RPT Page 308 HOLD_TONE_TIMING Page 308...

  • Page 231: Xml Settings

    5.1 Configuration File Parameter List Category Parameter Name Ref. KEM1_BUTTON_FACILITY_LINE Page 313 KEM2 (KX-UTA336 Add-on Key KEM2_BUTTON_FACILITY_ACT Page 314 Module 2) Button Settings KEM2_BUTTON_FACILITY_ARG Page 314 KEM2_BUTTON_FACILITY_LABEL Page 314 KEM2_BUTTON_FACILITY_LINE Page 314 XML Settings Category Parameter Name Ref. XML Application Settings XMLAPP_ENABLE Page 315 XMLAPP_USERID...
  • Page 232 5.1 Configuration File Parameter List Category Parameter Name Ref. CODEC_ENABLE_PCMA Page 319 CODEC_ENABLE_G726_32 Page 320 CODEC_ENABLE_G729A Page 320 CODEC_ENABLE_PCMU Page 320 CODEC_PRIORITY_G722 Page 320 CODEC_PRIORITY_PCMA Page 320 CODEC_PRIORITY_G726_32 Page 321 CODEC_PRIORITY_G729A Page 321 CODEC_PRIORITY_PCMU Page 321 CODEC_ANNEXB_G729A Page 321 DSCP_RTP Page 322 DSCP_RTCP Page 322...
  • Page 233 5.1 Configuration File Parameter List Category Parameter Name Ref. DIAL_PLAN Page 328 DIAL_PLAN_NOT_MATCH_ENABLE Page 328 SHARED_CALL_ENABLE Page 328 CALLPARK_SUBSCRIBE_ENABLE Page 329 FEATURE_KEY_SYNCHRO_ENABLE Page 329 RESOURCELIST_URI Page 330 CW_ENABLE Page 330 BLOCK_CALLER_ID Page 330 BLOCK_ANONYMOUS_CALL Page 331 DND_ENABLE Page 331 FWD_UNCONDITIONAL_ENABLE Page 331 FWD_UNCONDITIONAL_NUMBER Page 331...
  • Page 234 5.1 Configuration File Parameter List Category Parameter Name Ref. ACD_REASONCODEAME[1-10] Page 336 ACD_REASONCODE_VALUE[1-10] Page 337 HOTELING_ENABLE Page 337 MOH_SERVER_URI Page 337 XFER_WHEN_END_LOCAL_CONF Page 337 AUTO_KEY_ASSIGNMENT Page 337 AUTO_ANS_ENABLE Page 338 Per Line - SIP Settings PHONE_NUMBER Page 338 SIP_URI Page 338 LINE_ENABLE Page 339 SIP_USER_AGENT...
  • Page 235 5.1 Configuration File Parameter List Category Parameter Name Ref. SIP_PRSNC_PORT Page 346 PORT_PUNCH_INTVL Page 346 SIP_ADD_RPORT Page 346 SIP_STUN_ENABLE Page 346 SIP_RTP_KA_INTVL Page 347 SIP_SUBS_EXPIRE Page 347 SUB_RTX_INTVL Page 347 REG_RTX_INTVL Page 347 SIP_PRIVACY Page 348 SIP_OUTPROXY_ADDR Page 348 SIP_OUTPROXY_PORT Page 348 SIP_TRANSPORT Page 348...

  • Page 236: Diagnostic Settings

    5.1 Configuration File Parameter List Category Parameter Name Ref. REFER_TO_IP_FMT_ON_XFER Page 353 REFER_TO_IP_FMT_ON_CONF Page 354 SIP_ADD_ROUTE Page 354 Diagnostic Settings Category Parameter Name Ref. Log Settings - General LOG_TERMINAL_DISP_ENABLE Page 354 LOG_TO_FILE_ENABLE Page 355 LOG_FILE_SIZE Page 355 Log Settings - Upload LOG_UPLOAD_FILE_ENABLE Page 355 LOG_UPLOAD_SERVER_ADDR...

  • Page 237: General Information On The Configuration Files

    (as the title of the table), value format, description, permitted value range, default value of each parameter, phone user interface reference, and Web user interface reference. Note • Configuration file templates and other information about configuration files are provided at the Panasonic website: http://www.panasonic.com/sip Document Version 2015-01 Administrator Guide...

  • Page 238: Characters Available For String Values

    5.2.2 Characters Available for String Values Parameter Name This is the system-predefined parameter name and cannot be changed. Value Format Each parameter value is categorized into Integer, Boolean, or String. Some parameters require a composite form such as "Comma-separated Integer" or "Comma-separated String". •...

  • Page 239: Xml Formatting Basics

    5.2.3 XML Formatting Basics Available ASCII characters are shown in the following table: 5.2.3 XML Formatting Basics Configuration parameters are stored in an XML format. The following are guidelines for using XML. – XML files have a in hierarchical structured that uses elements and attributes to identify the structure and content of data.
  • Page 240 5.3.1 Certificate Settings 5.3 Certificate Settings 5.3.1 Certificate Settings CLIENT_CERTIFICATE_PATH Value Format String Description Specifies the URL of the device certificate. Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 127 characters. –...
  • Page 241 5.3.1 Certificate Settings Description Specifies the URL of the root certificate. When this parameter is specified, the Embedded root certificate is ignored. This setting should only be placed in the initial configuration file. Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>"...
  • Page 242 5.3.2 Configuration File Settings Value Range Max. 1024 characters Default Value Empty string 5.3.2 Configuration File Settings CFG_STANDARD_FILE_PATH Value Format String Description Specifies the URL of the standard configuration file, which is used when every unit needs different settings. Note •...
  • Page 243 5.3.2 Configuration File Settings Description Specifies the URL of the product configuration file, which is used when all units with the same model number need the same settings. Note • When you change this setting, set "PROVISION_ENABLE" to "Y" at the same time. Value Range Max.

  • Page 244: Login Account Settings

    5.4.1 Login Account Settings Value Range Max. 1024 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 127 characters. – "<password>" must be less than 127 characters. – "<user>:<password>@" may be empty. –...

  • Page 245: System Time Settings

    5.4.2 System Time Settings ADMIN_PASS Value Format String Description Specifies the password to use to authenticate the Administrator account when logging in to the Web user interface. Value Range 6–16 characters (except ", &, ', :, <, >, and space) Default Value adminpass Web User Interface Reference...
  • Page 246 5.4.2 System Time Settings Value Range -720–780 Note • Only the following values are available: -720 (GMT -12:00), -660 (GMT -11:00), -600 (GMT -10:00), -540 (GMT -09:00), -480 (GMT -08:00), -420 (GMT -07:00), -360 (GMT -06:00), -300 (GMT -05:00), -240 (GMT -04:00), -210 (GMT -03:30), -180 (GMT -03:00), -120 (GMT -02:00), -60 (GMT -01:00), 0 (GMT), 60 (GMT +01:00), 120 (GMT +02:00), 180 (GMT +03:00), 210 (GMT +03:30), 240 (GMT +04:00), 270...
  • Page 247 5.4.2 System Time Settings Value Range 0–720 Note • This parameter is usually set to "60". Default Value Web User Interface Reference DST Offset (Page 119) DST_START_MONTH Value Format Integer Description Specifies the month in which DST (Summer Time) starts. Note •...
  • Page 248 5.4.2 System Time Settings Description Specifies the day of the week on which DST (Summer Time) starts. Note • This parameter is disabled when the "LOCAL_TIME_ZONE_POSIX" parameter is specified. Value Range 0–6 – 0: Sunday – 1: Monday – 2: Tuesday –...
  • Page 249 5.4.2 System Time Settings DST_STOP_ORDINAL_DAY Value Format Integer Description Specifies the number of the week on which DST (Summer Time) ends. The actual end day is specified in "DST_STOP_DAY_OF_WEEK". For example, to specify the second Sunday, specify "2" in this parameter, and "0"...
  • Page 250 5.4.3 Syslog Settings Description Specifies the end time of DST (Summer Time) in minutes after 12:00 Note • This parameter is disabled when the "LOCAL_TIME_ZONE_POSIX" parameter is specified. Value Range 0–1439 Default Value Web User Interface Reference Time (Page 121) LOCAL_TIME_ZONE_POSIX Value Format String...

  • Page 251: Kem (Kx-Uta336 Add-On Key Module) Update Settings

    5.4.4 KEM (KX-UTA336 Add-on Key Module) Update Settings SYSLOG_PORT Value Format Integer Description Specifies the port number of the syslog server. Value Range 1–65535 Default Value SYSLOG_SERVER_ENABLE Value Format Boolean Description Specifies whether to enable syslog. Value Range • Y/Yes (Enable syslog) •...
  • Page 252 5.4.4 KEM (KX-UTA336 Add-on Key Module) Update Settings KEM_VERSION Value Format String Description Specifies the target KEM version (e.g. n.nnn [n=0-9]). Value Range Not applicable. Default Value Empty string KEM_FILE_PATH Value Format String Description Specifies the URL where the KEM file is stored. Value Range Max.

  • Page 253: Firmware Update Settings

    5.4.5 Firmware Update Settings 5.4.5 Firmware Update Settings FIRM_UPGRADE_ENABLE Value Format Boolean Description Specifies whether to perform firmware updates when the unit detects a change in the firmware version. Note • Changing this setting may require restarting the unit. • Local firmware updates from the Web user interface (®...
  • Page 254 5.4.5 Firmware Update Settings Value Range Max. 1024 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>". – "<user>" must be less than 127 characters. – "<password>" must be less than 127 characters. – "<user>:<password>@" may be empty. –...

  • Page 255: Provisioning Settings

    5.4.6 Provisioning Settings Value Range – 0: Dual mode (normal and single images can be upgraded) – 1: Single image only (only single images can be upgraded) – 2: Normal image (non-single image) only (only normal images can be upgraded) Default Value 0 (Dual mode) 5.4.6 Provisioning Settings...
  • Page 256 5.4.6 Provisioning Settings Description Specifies whether to enable the device to look for the Provisioning URL in DHCP option 159. Note • If the Provisioning URL provided by DHCP option 159 does not specify a filename, the unit will append the filename from DHCP option67 first if provided.
  • Page 257 5.4.6 Provisioning Settings Value Range • Y/Yes (Enable SIP PnP) • N/No (Disable SIP PnP) Default Value Web User Interface Reference Enable SIP PnP (Page 187) CFG_FILE_KEY Value Format String Description Specifies the encryption key (password) used to decrypt configuration files.
  • Page 258 5.4.6 Provisioning Settings CFG_CYCLIC_INTVL Value Format Integer Description Specifies the interval, in minutes, between periodic checks for updates of the configuration files. Value Range 1–40320 Default Value 10080 Web User Interface Reference Resync Interval (Page 188) CFG_RTRY_INTVL Value Format Integer Description Specifies the period of time, in minutes, that the unit will retry checking for an update of the configuration files after a configuration file access...
  • Page 259 5.4.6 Provisioning Settings Description Specifies the value of the "Event" header sent from the SIP server to the unit so that the unit can access the configuration files on the provisioning server. Value Range Max. 15 characters Note • An empty string is not allowed. Default Value check-sync Web User Interface Reference...

  • Page 260: Management Server Settings

    5.4.7 Management Server Settings Description Specifies the authentication password used to access the provisioning server. Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication Password (Page 187) SIPPNP_MULTICAST_ADDR Value Format String...
  • Page 261 5.4.7 Management Server Settings Default Value Empty string Web User Interface Reference Authentication ID (Page 190) ACS_PASS Value Format String Description Specifies the user password for the Auto-Configuration Server for using TR-069. Value Range Max. 255 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference...
  • Page 262 5.4.7 Management Server Settings Description Specifies the time (UTC) to determine when the CPE will initiate the periodic Inform method calls. Note • Each Inform call must occur at this reference time plus or minus an integer multiple of the "PERIODIC_INFORM_INTERVAL". This "PERIODIC_INFORM_TIME"...
  • Page 263 5.4.7 Management Server Settings Description Specifies whether or not the CPE can use STUN. This applies only to the use of STUN in association with the ACS to allow UDP Connection Requests. Value Range • Y/Yes (Enable) • N/No (Disable) Default Value ANNEX_G_STUN_SERV_ADDR Value Format...
  • Page 264 5.4.7 Management Server Settings Value Range Max. 256 characters (except ", &, ', :, <, >, and space) Default Value Empty string ANNEX_G_STUN_PASS Value Format String Description Specifies the STUN password to be used in computing the MESSAGE-INTEGRITY attribute used in Binding Requests (only if message integrity has been requested by the STUN server).

  • Page 265: Snmp Settings

    5.4.8 SNMP Settings 5.4.8 SNMP Settings SNMP_ENABLE Value Format Boolean Description Specifies whether to enable SNMP agent for remote management. Value Range • Y/Yes (Enable SNMP) • N/No (Disable SNMP) Default Value Web User Interface Reference Enable SNMP (Page 191) SNMP_TRUST_IP Value Format String...
  • Page 266 5.4.8 SNMP Settings Default Value Empty string Web User Interface Reference SNMP RO Community (Page 191) SNMP_SECURITY_USER Value Format String Description Specifies the SNMP v3 user. Value Range Max. 32 characters Default Value Empty string Web User Interface Reference SNMP Security User (Page 192) SNMP_SECURITY_LEVEL Value Format Integer...
  • Page 267 5.4.8 SNMP Settings SNMP_ENCRYPT_TYPE Value Format Integer Description Specifies the SNMP v3 encryption type. • Value Range 0: DES • 1: AES Default Value Web User Interface Reference SNMP Encrypt Type (Page 192) SNMP_ENCRYPT_PASSWORD Value Format String Description Specifies the SNMP v3 encryption password. Note •...

  • Page 268: Ip Settings

    5.5.1 IP Settings 5.5 Network Settings 5.5.1 IP Settings DHCP_ENABLE Value Format Boolean Description Specifies whether to assign the IP address automatically (DHCP) or manually (static). • Value Range Y/Yes (Assign IP automatically (DHCP)) • N/No (Assign IP manually (use "STATIC_IP_ADDR", "STATIC_SUBNET_MASK"...
  • Page 269 5.5.1 IP Settings Default Value Empty string STATIC_SUBNET_MASK Value Format String Description Specifies the subnet mask for the unit. Note • This setting is available only when "DHCP_ENABLE" is set to "N". • When you specify this parameter, you must specify "STATIC_IP_ADDR"...

  • Page 270: Ipv6 Settings

    5.5.2 IPv6 Settings Default Value Empty string STATIC_DNS2_SVR Value Format String Description Specifies the IP address of the secondary DNS server. Note • This setting is available only when "DHCP_ENABLE" is set to "N". Value Range Max. 15 characters (IP address in dotted-decimal notation) Default Value Empty string DHCP_INFORM_ENABLE...
  • Page 271 5.5.2 IPv6 Settings Web User Interface Reference IP Address Mode (Page 89) ALLOW_AUTO_CFG Value Format Boolean Description Specifies whether to allow IPv6 auto configuration. Value Range • Y/Yes (Enable IPv6 auto configuration) • N/No (Disable IPv6 auto configuration) Default Value IP_MODE_PREF_SIGNAL Value Format Integer...
  • Page 272 5.5.2 IPv6 Settings IPV6_DHCP_ENABLE Value Format Boolean Description Specifies whether to assign the IPv6 address automatically (DHCPv6) or manually (static). Value Range • Y/Yes (Assigns IPv6 addresses automatically (DHCPv6)) • N/No IPv6 addresses are assigned manually (use IPV6_STATIC_IP_ADDR, IPV6_STATIC_IP_PREFIX_LEN, and IPV6_STATIC_DEFAULT_GATEWAY) Default Value IPV6_DHCP_DNS_ENABLE...
  • Page 273 5.5.2 IPv6 Settings Description Specifies the prefix length of the IPv6 address for the unit. Note • This setting is available only when "IPV6_DHCP_ENABLE" is set to "N". • When you specify this parameter, you must specify "IPV6_STATIC_IP_ADDR" and "IPV6_STATIC_DEFAULT_GATEWAY" together in a configuration file.
  • Page 274 5.5.3 LLDP-MED Settings Description Specifies the DNS2 server IPv6 address for the unit. Note • This setting is available only when "IPV6_DHCP_ENABLE" is set to "N". Value Range Max. 39 characters (IPv6 address) Default Value Empty string 5.5.3 LLDP-MED Settings LLDP_TRAFFIC_TO_PC_PORT Value Format Boolean...
  • Page 275 5.5.4 CDP Settings LLDP_ENABLE Value Format Boolean Description Selects whether to use LLDP. • Value Range Y/Yes (Enable LLDP) • N/No (Disable LLDP) Default Value Web User Interface Reference Enable LLDP (Page 103) LLDP_INTERVAL Value Format Integer Description Specifies the interval, in seconds, between sending each LLDP frame. Value Range 5-3600 Default Value...
  • Page 276 5.5.5 Ethernet Port Settings CDP_ENABLE Value Format Boolean Description Selects whether to use CDP. • Value Range Y/Yes (Enable CDP) • N/No (Disable CDP) Default Value Web User Interface Reference Enable CDP (Page 104) CDP_INTERVAL Value Format Integer Description Specifies the interval, in seconds, between sending each CDP frame. Value Range 5-3600 Default Value...
  • Page 277 5.5.6 IEEE 802.1X Settings Description Specifies the speed of the switch port. Value Range • 0: auto negotiation • 1: 10M Half • 2: 10M Full • 3: 100M Half • 4: 100M Full • 5: 1000M Full Default Value 0 (auto negotiation) PC_PORT_SPEED_DUPLEX Value Format...

  • Page 278: Http Settings

    5.5.7 HTTP Settings Value Range 0–6 – 0: EAP-MD5 – 1: EAP-TLS – 2: EAP-FAST – 3: EAP-PEAP-GTC – 4: EAP-PEAP-MSCHAPV2 – 5: EAP-TTLS-GTC – 6: EAP-TTLS-MSCHAPV2 Default Value Web User Interface Reference Authentication Protocol (Page 106) IEEE8021X_USER_ID Value Format String Description Specifies the authentication ID required for IEEE 802.1X...
  • Page 279 5.5.7 HTTP Settings Value Range • Y/Yes (Web port is always open) • N/No (Web port is closed [can be opened temporarily through phone user interface programming]) Notice • If you want to set to "Y", please fully recognize the possibility of unauthorized access to the unit through the Web user interface and change this setting at your own risk.
  • Page 280 5.5.7 HTTP Settings Value Range Max. 64 characters Note • An empty string is not allowed. • If "{mac}" is included in this parameter, it will be replaced with the unit’s MAC address in lower-case. • If "{MAC}" is included in this parameter, it will be replaced with the unit’s MAC address in upper-case.
  • Page 281 5.5.7 HTTP Settings HTTP_AUTH_PASSWORD Value Format String Description Specifies the authentication password for HTTP downloading. Value Range 0-127 Default Value Empty string HTTP_ENABLE_PROXY Value Format Boolean Description Specifies whether to enable proxy or not for HTTP downloading. Value Range • Y/Yes (Enable proxy) •...
  • Page 282 5.5.8 Time Adjust Settings WEB_SERVER_PORT Value Format Integer Description Specifies port number of HTTP web server. Value Range 80, 1024-49151 Default Value WEB_SERVER_CLOSE_TIMER Value Format Integer Description Specifies how long (minutes) to close HTTP server if no operation on web page. Value Range 1-1440 Default Value...

  • Page 283: Stun Settings

    5.5.9 STUN Settings Description Specifies the interval, in seconds, to resynchronize after having detected no reply from the NTP server. Value Range 10–86400 Default Value TIME_QUERY_INTVL Value Format Integer Description Specifies the interval, in seconds, between synchronizations with the NTP server. Value Range 10–86400 Default Value...

  • Page 284: Ldap Settings

    5.5.10 LDAP Settings Default Value Web User Interface Reference STUN Interval (Page 112) 5.5.10 LDAP Settings LDAP_SERVER Value Format String Description Specifies the IP address or host name of the LDAP server. Note • The format of the IP address must be in dotted-decimal notation or FQDN.
  • Page 285 5.5.11 Certificate Settings Description Specifies whether to enable the LDAP feature. Value Range • Y/Yes (Enable LDAP) • N/No (Disable LDAP) Default Value Web User Interface Reference Enable LDAP (Page 168) LDAP_USER_DN Value Format String Description Specifies the user DN required to access the LDAP server. Value Range Max.
  • Page 286 5.5.12 VLAN Settings CERT_ROOT_CA_APP_SPECIFY_2 Value Format String Description Specifies the applications which can use the Server Root CA 2 (imported from provisioning) to do the security authentication. Value Range Max. 32 characters Note • Comma separated strings must be used. Only specify the following applications.

  • Page 287: Ssh Settings

    5.5.13 SSH Settings PC_VLAN_ENABLE Value Format Boolean Description Specifies whether to enable PC VLAN. • Value Range Y/Yes (Enable PC VLAN) • N/No (Disable PC VLAN) Default Value Web User Interface Reference Enable PC VLAN (Page 105) IP_PHONE_VLAN_ID Value Format Integer Description Specifies the Phone VLAN ID.

  • Page 288: Call Control Settings

    5.6.1 Call Control Settings Value Range Max. 64 characters Default Value panasonic SSH_ACCESS_DISABLE Value Format Boolean Description Specifies whether to disable SSH access. Value Range • Y/Yes (Enable SSH) • N/No (Disable SSH) Default Value Web User Interface Reference Enable SSH (Page 193) 5.6 Telephone Settings...
  • Page 289 5.6.1 Call Control Settings Description Specifies the length of time, in seconds, that the unit waits when a "T" or "t" has been entered in the dial plan. Value Range 1–15 Default Value Web User Interface Reference Timer for Dial Plan (Page 140) INTERNATIONAL_ACCESS_CODE Value Format String...
  • Page 290 5.6.1 Call Control Settings HOLD_RECALL_TIM Value Format Integer Description Specifies the duration of the hold recall timer. If set to "0", the function is disabled. Value Range 0–240 (0: Disable) Default Value Web User Interface Reference Hold Recall Timer (Page 141) AUTO_ANS_RING_TIM Value Format Integer...
  • Page 291 5.6.1 Call Control Settings ENDCALL_TRANSFER_ENABLE Value Format Boolean Description Specifies if users can press the end call soft key to complete the transfer. Value Range • Y/Yes (Enable End call transfer) • N/No (Disable End call transfer) Default Value FOLLOW_SERVER_BELLCORE Value Format Boolean Description...
  • Page 292 5.6.2 Telephone Settings Value Range • Y/Yes (Directly transfers the call.) • N/No (Displays a dialog box and lets the users decide how to handle the call.) Default Value DND_HARD_KEY_ENABLE Value Format Boolean Description Specifies whether to allow users to set the FWD/DND feature on phone user interface.
  • Page 293 Value Format Integer Description Specifies the line for default FB and selected line. Note • The KX-UTG200 has a maximum of 4 lines. • The KX-UTG300 has a maximum of 6 lines. Value Range 1–6 Default Value Web User Interface Reference...
  • Page 294 Description Specifies the PIN (Personal Identification Number) of the extension. This is used to lock access to the call log and phonebook list. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Value Range Max.
  • Page 295 5.6.2 Telephone Settings SCREEN_SAVE_TIMER Value Format Integer Description Specifies the length of time, in minutes, within the next operation must be done. When this timer expires, the unit will enter screen save mode. Value Range 0, 0-10 Default Value Web User Interface Reference Wait Time (Page 172) RECORDING_ENABLE Value Format...
  • Page 296 5.6.2 Telephone Settings BLF_DATA_FROM_FLEX_KEY Value Format Boolean Description Specifies whether to first show auto BLF data from the available flexible keys. Value Range • Y/Yes (First show auto BLF data from phone available flexible keys.) • N/No (First show auto BLF data from the KEM.) Default Value DIR_CMD_FACTORY_RESET Value Format...

  • Page 297: Distinctive Ring

    5.6.4 Distinctive Ring DEFAULT_ACCESS_LEVEL Value Format Integer Description Specifies the default access level for the phone user interface. Value Range • 0: User • 1: Admin • 2: Carrier Default Value 5.6.3 Instant Message & Presence IM_PRESENCE_ENABLE Value Format Boolean Description Specifies whether to enable or disable IM&P feature on the unit.
  • Page 298 5.6.5 All Multicast Groups - Multicast Paging DISTINCTIVE_RING_TONE[1-9]_DIS_NAME Value Format String Description Specifies different ring tone. Value Range Ringtone 1-9 Default Value Ringtone 1 5.6.5 All Multicast Groups - Multicast Paging MPAGE_ENABLE Value Format Boolean Description Specifies whether to enable Paging. Value Range •...
  • Page 299 5.6.6 Per Multicast Group - Multicast Paging MPAGE_DISC_TIM Value Format Integer Description Specifies the length of time, in seconds, within which the unit cannot receive pages. When this timer expires, the incoming page will finish. Value Range 1–10 Default Value Web User Interface Reference Disconnect Paging Timeout (Page 165) MPAGE_DND_ENABLE...

  • Page 300: Hotline Settings

    5.6.7 Hotline Settings Web User Interface Reference Port (No. 1-10) (Page 166) MPAGE_PRIORITY Value Format Integer Description Specifies the priority of the group/channel. Note • 1 is high priority. • 3 is priority for voice call. • (1 > 2 > voice call > 4 > ... > 11) Value Range 1–11 Default Value...
  • Page 301 5.6.8 Tone Settings Value Range • Y/Yes (Enable hotline) • N/No (Disable hotline) Default Value Web User Interface Reference Enable Hotline (Page 164) HOT_LINE_NUMBER Value Format String Description Specifies the hotline number. Value Range • Max. 32 characters for phone number format •...
  • Page 302 5.6.8 Tone Settings Description Specifies the gain, in decibels, of Dial Tone 1. Value Range (-80)–0 Default Value DIAL_TONE1_RPT Value Format Boolean Description Specifies whether Dial Tone 1 is repeated. • Value Range Y/Yes (Repeat) • N/No (No Repeat) Default Value DIAL_TONE1_TIMING Value Format Comma-separated Integer...
  • Page 303 5.6.8 Tone Settings Value Range (-80)–0 Default Value DIAL_TONE2_RPT Value Format Boolean Description Specifies whether Dial Tone 2 is repeated. Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value DIAL_TONE2_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of Dial Tone 2 using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 304 5.6.8 Tone Settings Default Value BUSY_TONE_RPT Value Format Boolean Description Specifies whether the busy tone is repeated. Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value BUSY_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of busy tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 305 5.6.8 Tone Settings Default Value RINGBACK_TONE_RPT Value Format Boolean Description Specifies whether the ringback tone is repeated. Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value RINGBACK_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of ringback tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 306 5.6.8 Tone Settings Value Range (-80)–0 Default Value DIAL_TONE4_RPT Value Format Boolean Description Specifies whether Dial Tone 4 (stutter-type dial tone) is repeated. Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value DIAL_TONE4_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of Dial Tone 4 (stutter dial tones) to notify that a voice mail is waiting, using up to 22 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 307 5.6.8 Tone Settings Description Specifies the gain, in decibels, of the reorder tone. Value Range (-80)–0 Default Value REORDER_TONE_RPT Value Format Boolean Description Specifies whether the reorder tone is repeated. • Value Range Y/Yes (Repeat) • N/No (No Repeat) Default Value REORDER_TONE_TIMING Value Format Comma-separated Integer...
  • Page 308 5.6.8 Tone Settings Value Range (-80)–0 Default Value HOLD_TONE_RPT Value Format Boolean Description Specifies whether the hold tone is repeated. Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value HOLD_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of the hold tone using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 309 5.6.8 Tone Settings HOLD_ALARM_RPT Value Format Boolean Description Specifies whether the hold alarm is repeated. • Value Range Y/Yes (Repeat) • N/No (No Repeat) Default Value HOLD_ALARM_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of the hold alarm using up to 10 whole numbers (on 1, off 1, on 2, off 2…) separated by commas.
  • Page 310 5.6.8 Tone Settings Value Range • Y/Yes (Repeat) • N/No (No Repeat) Default Value CW_TONE1_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of call waiting tone 1 using up to 10 whole numbers (on 1, off 1, on 2, off 2…) separated by commas. Value Range 0–16000 (0: Infinite time) Note...
  • Page 311 5.6.9 Flexible Button Settings BELL_CORE_PATTERN3_TIMING Value Format Comma-separated Integer Description Specifies the cadence, in milliseconds, of pattern ID 3, described in the LSSGR, GR-506-CORE, "Signaling for Analog Interfaces" section 14, using up to 8 whole numbers (on 1, off 1, on 2, off 2…) separated by commas.
  • Page 312 5.6.9 Flexible Button Settings Description Specifies a particular Facility Action for the flexible button. No facility action will be taken for the button if the string is empty or invalid. Value Range 0–2 – 0: Empty – 1: ONETOUCH – 2: BLF Default Value Web User Interface Reference...
  • Page 313 5.6.10 KEM1 (KX-UTA336 Add-on Key Module 1) Button Settings 5.6.10 KEM1 (KX-UTA336 Add-on Key Module 1) Button Settings KEM1_BUTTON_FACILITY_ACT Value Format Integer Description Specifies a particular Facility Action for the flexible button on KEM1. No facility action will be taken for the button if the string is empty or invalid. Value Range 0–2 –...
  • Page 314 5.6.11 KEM2 (KX-UTA336 Add-on Key Module 2) Button Settings Default Value 5.6.11 KEM2 (KX-UTA336 Add-on Key Module 2) Button Settings KEM2_BUTTON_FACILITY_ACT Value Format Integer Description Specifies a particular Facility Action for the flexible button on KEM2. No facility action will be taken for the button if the string is empty or invalid. Value Range 0–2 –...

  • Page 315: Xml Application Settings

    5.7 XML Application Settings Value Range • 0: Disable • 1-6: Line 1-6 Default Value 5.7 XML Application Settings XMLAPP_ENABLE Value Format Boolean Description Selects whether to enable the XML application feature. Value Range • Y/Yes (Enable XML application) • N/No (Disable XML application) Default Value Web User Interface Reference...
  • Page 316 5.7 XML Application Settings Value Range 0–1 – 0: Broadsoft – 1: Switchvox Default Value Web User Interface Reference Application Server (Page 174) XMLAPP_SERVICEURL Value Format String Description Specifies the Broadsoft KSI service URL, such as "http(s)://<host:port>/ com.broadsoft.xsi-actions/v2.0/user/<userid>/". Value Range Max.

  • Page 317: All Lines Settings

    5.8.2 All Lines - VoIP Settings 5.8 All Lines Settings 5.8.1 All Lines - Codec Settings CODEC_G729_PARAM Value Format Boolean Description Specifies whether to add an attribute line, "a=fmtp:18 annexb=no", to SDP when the codec is set to "G729A". Value Range •...
  • Page 318 5.8.3 All Lines - Call Control Settings Web User Interface Reference Maximum RTP Port Number (Page 132) RTP_PTIME Value Format Integer Description Specifies the interval, in milliseconds, between transmissions of RTP packets. Value Range • • • Default Value Web User Interface Reference RTP Packet Time (Page 132) OUTBANDDTMF_VOL Value Format...
  • Page 319 5.9.1 Per Line - VoIP SIP_PASSWD_CHECK_SPECIAL_CHAR Value Format Boolean Description Specifies whether to check the special character for SIP authentication password. Note • If "SIP_PASSWD_CHECK_SPECIAL_CHAR" is set to "Y", blank spaces and the following characters are not allowed: " & ' : < > •...
  • Page 320 5.9.1 Per Line - VoIP CODEC_ENABLE_G726_32 Value Format Boolean Description Specifies whether to enable G726_32 codec. • Value Range Y/Yes (Enable) • N/No (Disable) Default Value Web User Interface Reference G726–32 (Enable) (Page 138) CODEC_ENABLE_G729A Value Format Boolean Description Specifies whether to enable G729A codec. Value Range •...
  • Page 321 5.9.1 Per Line - VoIP Description Specifies the priority order for PCMA codec. Value Range Default Value Web User Interface Reference PCMA (Priority) (Page 137) CODEC_PRIORITY_G726_32 Value Format Integer Description Specifies the priority order for G726_32 codec. Value Range Default Value Web User Interface Reference G726–32 (Priority) (Page 138) CODEC_PRIORITY_G729A...
  • Page 322 5.9.1 Per Line - VoIP Web User Interface Reference G729A (Annexb) (Page 139) DSCP_RTP Value Format Integer Description Selects the DSCP level of DiffServ applied to RTP packets. Value Range 0–63 Default Value Web User Interface Reference RTP Packet QoS (DSCP) (Page 134) DSCP_RTCP Value Format Integer...
  • Page 323 5.9.1 Per Line - VoIP Web User Interface Reference Maximum Delay (Page 135) MIN_DELAY Value Format Integer Description Specifies the minimum delay, in 10-millisecond units, of the jitter buffer. Value Range 1 or 2 (´ 10 ms) Note • This setting is subject to the following conditions: –...
  • Page 324 5.9.1 Per Line - VoIP RTCPXR_ENABLE Value Format Boolean Description Selects whether to enable RTCPXR. • Value Range Y/Yes (Enable RTCPXR) • N/No (Disable RTCPXR) Default Value Web User Interface Reference RTCP-XR (Page 134) RTP_CLOSE_ENABLE Value Format Boolean Description Specifies whether to enable processing to close held RTP sockets. Value Range •...
  • Page 325 5.9.1 Per Line - VoIP Description Specifies the RFC 2833 payload type for DTMF tones. Note • This setting is available only when "DTMF_MODE" is set to "Y". Value Range 96–127 Default Value Web User Interface Reference Telephone-event Payload Type (Page 136) RFC2543_HOLD_ENABLE Value Format Boolean...
  • Page 326 5.9.2 Per Line - Call Control Settings RTCPXR_IN_SDP_ENABLE Value Format Boolean Description Specifies whether to enable/disable RTCPXR in SDP. • Value Range Y/Yes (Enable RTCPXR in SDP) • N/No (Disable RTCPXR in SDP) Default Value VAD_ENABLE Value Format Boolean Description Specifies whether VAD (Voice activity detection) is enabled or disabled.
  • Page 327 5.9.2 Per Line - Call Control Settings Description Specifies whether to send the SUBSCRIBE request to a voice mail server. Note • Your phone system must support voice mail. Value Range • Y/Yes (Send the SUBSCRIBE request) • N/No (Do not send the SUBSCRIBE request) Default Value Web User Interface Reference Send SUBSCRIBE to Voice Mail Server (Page 143)
  • Page 328 5.9.2 Per Line - Call Control Settings Description Specifies the phone number used to access the voice mail server. Note • Your phone system must support voice mail. Value Range Max. 32 characters (except ", &, ', ;, <, >, and space) Default Value Empty string Web User Interface Reference...
  • Page 329 5.9.2 Per Line - Call Control Settings Description Specifies whether to enable the Shared Call feature of the SIP server, which is used to share one line among the units. Note • You cannot set both "SHARED_CALL_ENABLE" and "FEATURE_KEY_SYNCHRO_ENABLE" to "Y" at the same time. •...
  • Page 330 5.9.2 Per Line - Call Control Settings Web User Interface Reference Feature Key Synchronization (Page 145) RESOURCELIST_URI Value Format String Description Specifies the Uniform Resource Identifier string for the resource list, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:user@example.com".
  • Page 331 5.9.2 Per Line - Call Control Settings BLOCK_ANONYMOUS_CALL Value Format Boolean Description Specifies whether to reject incoming calls that do not show the caller’s number. Value Range • Y/Yes (Enable reject anonymous call) • N/No (Disable reject anonymous call) Default Value Web User Interface Reference Block Anonymous Call (Page 147) DND_ENABLE...
  • Page 332 5.9.2 Per Line - Call Control Settings FWD_BUSY_ENABLE Value Format Boolean Description Specifies whether to forward incoming calls to a specified destination when the line is in use. Value Range • Y/Yes (Enable call forward when line in use) • N/No (Disable call forward when line in use) Default Value Web User Interface Reference...
  • Page 333 5.9.2 Per Line - Call Control Settings FWD_NO_ANSWER_TIMEOUT Value Format Integer Description Specifies the number of times that an incoming call rings until the call is forwarded (0: no ring). Value Range 0, 2–20 Default Value Web User Interface Reference No Answer (Ring Count) (Page 152) PARK_ENABLE Value Format...
  • Page 334 5.9.2 Per Line - Call Control Settings Default Value Empty string PICKUP_ENABLE Value Format Boolean Description Specifies whether to show soft key for call pick up. Value Range • Y/Yes (Show soft key for Call Pick Up) • N/No (Do not show soft key for Call Pick Up) Default Value PICKUP_CODE Value Format...
  • Page 335 5.9.2 Per Line - Call Control Settings Value Range • Y/Yes (Show soft key for Directed Call Pick Up) • N/No (Do not show soft key for Directed Call Pick Up) Default Value DPICKUP_CODE Value Format String Description Specifies the code sent when the directed call pick up soft key is being pressed.
  • Page 336 5.9.2 Per Line - Call Control Settings Value Range Max. 32 characters Default Value Empty string ACD_ENABLE Value Format Boolean Description Specifies whether to enable the ACD function. Value Range • Y/Yes (Enable ACD function) • N/No (Disable ACD function) Default Value ACD_CCSTATUS_ENABLE Value Format...
  • Page 337 5.9.2 Per Line - Call Control Settings ACD_REASONCODE_VALUE[1-10] Value Format String Description Specifies the value of the reason code when user change the ACD state to unavailable. Value Range Max. 32 characters Default Value Empty string HOTELING_ENABLE Value Format Boolean Description Specifies whether to enable the Hoteling event.
  • Page 338 5.9.3 Per Line - SIP Settings Value Range • Y/Yes (Automatically assigns the BLF button when the unit receives BLF data) • N/No (Does not automatically assign the BLF button and users are not aware of the BLF information) Default Value AUTO_ANS_ENABLE Value Format Boolean...
  • Page 339 5.9.3 Per Line - SIP Settings Value Range Max. 195 characters (except ", &, ', :, ;, <, >, and space) Default Value Empty string Web User Interface Reference SIP URI (Page 123) LINE_ENABLE Value Format Boolean Description Specifies whether a line is enabled or disabled. •...
  • Page 340 5.9.3 Per Line - SIP Settings SIP_PASS Value Format String Description Specifies the authentication password used to access the SIP server. Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication Password (Page 126) SIP_SRC_PORT Value Format...
  • Page 341 5.9.3 Per Line - SIP Settings Web User Interface Reference Proxy Server Port (Page 124) SIP_RGSTR_ADDR Value Format String Description Specifies the IP address or FQDN of the SIP registrar server. Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string Web User Interface Reference...
  • Page 342 5.9.3 Per Line - SIP Settings REG_INTERVAL_RATE Value Format Integer Description Specifies the percentage of the "expires" value after which to refresh registration by sending a new REGISTER message in the same dialog. Value Range 1–100 Default Value SIP_SESSION_TIME Value Format Integer Description Specifies the length of time, in seconds, that the unit waits before...
  • Page 343 5.9.3 Per Line - SIP Settings SIP_TIMER_T2 Value Format Integer Description Specifies the maximum interval, in seconds, between transmissions of SIP messages. For details, refer to RFC 3261. Value Range • • • • • Default Value Web User Interface Reference T2 Timer (Page 128) SIP_TIMER_T4 Value Format...
  • Page 344 5.9.3 Per Line - SIP Settings SIP_FOVR_MAX Value Format Integer Description Specifies the maximum number of servers (including the first [normal] server) used in the fail-over process. Value Range 1–4 Default Value SIP_DNSSRV_ENA Value Format Boolean Description Specifies whether to request the DNS server to translate domain names into IP addresses using the SRV record.
  • Page 345 5.9.3 Per Line - SIP Settings Description Specifies a prefix to add to the domain name when performing a DNS SRV lookup using TCP. Note • This setting is available only when "SIP_DNSSRV_ENA" is set to "Y". Value Range Max. 32 characters Default Value _sip._tcp.
  • Page 346 5.9.3 Per Line - SIP Settings Web User Interface Reference Presence Server Address (Page 124) SIP_PRSNC_PORT Value Format Integer Description Specifies the port number to use for communication with the SIP presence server. Value Range 1 - 65535 Default Value 5060 Web User Interface Reference Presence Server Port (Page 124)
  • Page 347 5.9.3 Per Line - SIP Settings Value Range • Y/Yes (Enable STUN) • N/No (Disable STUN) Default Value Web User Interface Reference STUN (Page 131) SIP_RTP_KA_INTVL Value Format Integer Description Specifies the interval, in seconds, for sending RTP Keep Alive packets to the unit in order to maintain the NAT binding information (0: Disable).
  • Page 348 5.9.3 Per Line - SIP Settings Default Value SIP_PRIVACY Value Format Boolean Description Specifies whether to add the "Privacy" header to SIP messages. Value Range • Y/Yes (Add the "Privacy" header) • N/No (Do not add the "Privacy" header) Default Value SIP_OUTPROXY_ADDR Value Format String...
  • Page 349 5.9.3 Per Line - SIP Settings SIP_ANM_DISPNAME Value Format String Description Specifies the text string to set as the display name in the "From" header when making anonymous calls. Value Range Max. 64 characters Default Value Anonymous SIP_ANM_USERNAME Value Format String Description Specifies the text string to set as the user name in the "From"...
  • Page 350 5.9.3 Per Line - SIP Settings Web User Interface Reference Enable SSAF (SIP Source Address Filter) (Page 131) SIP_TIMER_B Value Format Integer Description Specifies the value of SIP timer B (INVITE transaction timeout timer), in milliseconds. For details, refer to RFC 3261. Value Range 250–64000 Default Value...
  • Page 351 5.9.3 Per Line - SIP Settings SIP_TIMER_J Value Format Integer Description Specifies the value of SIP timer J (wait time for non-INVITE request resending), in milliseconds. For details, refer to RFC 3261. Value Range 0, 250–64000 Default Value 5000 Web User Interface Reference Timer J (milliseconds) (Page 129) SIP_ADD_TRANSPORT_UDP Value Format...
  • Page 352 5.9.3 Per Line - SIP Settings Description Specifies whether INVITE/SUBSCRIBE will also follow the REGISTER Failover result. Value Range • Y/Yes (INVITE/SUBSCRIBE will follow the REGISTER Failover result.) • N/No (INVITE/SUBSCRIBE will not follow the REGISTER Failover result.) Default Value SIP_403_REG_SUB_RTX Value Format Boolean...
  • Page 353 5.9.3 Per Line - SIP Settings Default Value SIP_2NDPROXY_ADDR Value Format String Description Specifies the IP address of the secondary SIP proxy server. Value Range Max. 127 characters Default Value Empty string SIP_2NDPROXY_PORT Value Format Integer Description Specifies the port number to use for communication with the secondary SIP proxy server.
  • Page 354 5.10.1 Log Settings - General Value Range • Y/Yes (If the server's address is FQDN, use the translated IP address in Refer-To header to send the REFER packet) • N/No (Use the original server setting (Refer-To header may bring the FQDN).) Default Value REFER_TO_IP_FMT_ON_CONF Value Format...
  • Page 355 5.10.2 Log Settings - Upload LOG_TO_FILE_ENABLE Value Format Boolean Description Specifies whether to write log data to file • Value Range Y/Yes (Write log data to file) • N/No (Do not write log data to file) Default Value LOG_FILE_SIZE Value Format Integer Description Specifies the max size (KB) of log file.
  • Page 356 5.10.3 Log Settings - Log Level Default Value Empty string (if empty, it will use the MAC String as the base file name) LOG_UPLOAD_FILE_NAME_APPEND_MODE Value Format Integer Description Specifies whether to append time or serial number to the base file name to generate the upload file name.
  • Page 357 5.10.3 Log Settings - Log Level LOG_LEVEL_DHCPV4 Value Format Integer Description Specifies the debug level of the DHCPv4 module. Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_DHCPV6...
  • Page 358 5.10.3 Log Settings - Log Level Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_I18N Value Format Integer Description...
  • Page 359 5.10.3 Log Settings - Log Level LOG_LEVEL_MCU Value Format Integer Description Specifies the debug level of the mcu module. Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_MMI...
  • Page 360 5.10.3 Log Settings - Log Level Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_PROVISION Value Format Integer Description...
  • Page 361 5.10.3 Log Settings - Log Level LOG_LEVEL_CONFIGSYS Value Format Integer Description Specifies the debug level of the configuration system module. Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_DCM...
  • Page 362 5.10.3 Log Settings - Log Level Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_FOS Value Format Integer Description...
  • Page 363 5.10.3 Log Settings - Log Level LOG_LEVEL_SUU Value Format Integer Description Specifies the debug level of the suu module, including suu tftp and HTTP. Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL)
  • Page 364 5.10.3 Log Settings - Log Level Description Specifies the debug level of the xml application module. Value Range 1-4095 • 4095 means all levels: VERB | IN | OUT | STATE | TIMEOUT | SEMA | WARN | ERR | FATAL Default Value 448 (WARN | ERR | FATAL) LOG_LEVEL_8021X...

  • Page 365: Log Settings - Log Display

    5.10.4 Log Settings - Log Display Default Value 448 (WARN | ERR | FATAL) 5.10.4 Log Settings - Log Display LOG_FILTER_MODULE_NAME Value Format String Description Specifies the module name for filtering for displaying of log data. Value Range 0-512 characters ("all" means all modules) •...
  • Page 366 5.10.4 Log Settings - Log Display Administrator Guide Document Version 2015-01...

  • Page 367: Useful Telephone Functions

    Section 6 Useful Telephone Functions This section explains phone number settings, dial plan, and phonebook import/export function. Document Version 2015-01 Administrator Guide...

  • Page 368: Phonebook Import And Export

    6.1 Phonebook Import and Export 6.1 Phonebook Import and Export This section explains how to import and export phonebook data. Phonebook data of the unit includes names and phone numbers. Phonebook data on the unit can be exported, edited with editor tools, and imported again. You can use the phonebook import and export functions as follows.

  • Page 369: Import/Export File Format

    6.1.1 Import/Export Operation Import/Export File Format The file format used for importing and exporting the phonebook data is "CSV (Comma-separated Value)". The text data can be edited using any text editing software that supports UTF-16 encoding with a BOM and little endian byte ordering.

  • Page 370: Dial Plan

    6.2 Dial Plan Note • Make sure that the import source or unit is in standby mode. • The import source or unit must be specified at the time of import/export. The imported data is added to the existing phonebook data. –...

  • Page 371: Dial Plan Settings

    6.2.1 Dial Plan Settings [Dial Plan Flowchart] When a user dials a single digit on a unit, the following sequence of events begins. A user dials a single digit on the unit. The unit stores each digit dialed before the inter-digit timer expires.

  • Page 372: Available Values For The Dial Plan Field

    6.2.1 Dial Plan Settings For details about available characters for the dial format, see Available Values for the Dial Plan Field in this section. Select [Yes] or [No] for [Call Even If Dial Plan Does Not Match]. • If you select [Yes], the call will be made even if the user dials a phone number that does not match the dial format in [Dial Plan].
  • Page 373 6.2.1 Dial Plan Settings Element Available Value Description Macro Timer T, t Example: "1x.T" If the dialed phone number begins with "1", the call is made after a lapse of "T" seconds. • The value of "T" or "t" can be configured through the Web user interface (®...

  • Page 374: Dial Plan Example

    6.2.1 Dial Plan Settings Dial Plan Example The following example shows dial plans containing character sequences separated by "|". Example: "[2346789]11|01[2-9]x.|[2-9]xxxxxxxxx" Complete Match: Example: "[2346789]11|01[2-9]x.|[2-9]xxxxxxxxx" • If the dialed phone number is "211", "911" and so on, the call is made immediately. Example: "[2346789]11|01[2-9]x.|[2-9]xxxxxxxxx"...

  • Page 375: Flexible Buttons

    This feature may not be supported on your phone system. The following types of flexible buttons are available: Button Description Lamp Indication (KX-UTG200 only) One-Touch Used to access a desired party or system – feature using the One-Touch Dialing feature.
  • Page 376 6.3.1 Flexible Button Settings Icon Description Indicates a BLF flexible button is subscribing. Indicates a BLF flexible button is idle. Indicates a BLF flexible button is busy. Indicates a BLF flexible button is alert. Indicates a call with BLF flexible button is parked. Using Flexible Buttons with the KX-UTA336 Add-on Key Module (KX-UTG300 only) The optional KX-UTA336 (also referred to as "KEM") allows 36 additional flexible buttons (3 pages of 12) to...
  • Page 377 6.3.1 Flexible Button Settings [Setting Example] The following screen shows an example of setting flexible buttons. Description: • Button 1 is set to make calls to a certain destination using the One-Touch Dialing feature. • Button 2 is set to show the status of a certain extension. It can also be used to call that extension and transfer calls to it.

  • Page 378: Logo And Wallpaper Settings

    6.4 Logo and Wallpaper Settings 6.4 Logo and Wallpaper Settings Logos and wallpapers can be used to customize the display of the unit. The logo and wallpaper are displayed on the Home screen of the unit. ServiceObjBackground XML objects are used to obtain logo and wallpaper information.
  • Page 379 Image format: – JPG or PNG • Maximum logo display area (the logo image must be within the specified area): – KX-UTG200: 720 x 230 pixels – KX-UTG300: 280 x 110 pixels • Maximum wallpaper resolution: – KX-UTG200: 800 x 425 pixels –...
  • Page 380 6.4 Logo and Wallpaper Settings PointX: 0 PointY: 0 PointX: 140 Point Y: 50 XML Object: ServiceObjBackground The following is an example of the XML content. <ServiceObjBackground> <Action>add or Remove image</Action> <PointX>the position of logo image</PointX> <PointY>the position of logo image</PointY> <Img>Image URL</Img>...
  • Page 381 6.4 Logo and Wallpaper Settings <Action>3</Action> <Img>http://172.20.70.170/wallpaper.jpg</Img> </ServiceObjBackground> Document Version 2015-01 Administrator Guide...
  • Page 382 6.4 Logo and Wallpaper Settings Administrator Guide Document Version 2015-01...

  • Page 383: Troubleshooting

    Section 7 Troubleshooting This section provides information about troubleshooting. Document Version 2015-01 Administrator Guide...
  • Page 384 7.1 Troubleshooting 7.1 Troubleshooting If you still have difficulties after following the instructions in this section, disconnect the unit from the AC outlet, then connect the AC adaptor again. If using PoE, disconnect the LAN cable, then connect the LAN cable again. General Use Problem Cause/Solution...
  • Page 385 7.1 Troubleshooting Making/Answering Calls, Intercom Problem Cause/Solution The unit does not ring. • Check the VoIP status in the Web user interface and confirm that each line is registered properly (® see To check the setting status in the Web user interface in this section).

  • Page 386: Checking The Status Of The Unit

    7.1 Troubleshooting Time Problem Cause/Solution The time is not correct. • In the Web user interface, you can set NTP synchronization and DST (Summer Time) control to adjust the time automatically (® see 4.4.5 Time Adjust Settings). • If the time is still incorrect even after setting NTP synchronization, check the firewall and port forwarding settings on the router (®...
  • Page 387 7.2.1 Log Settings 7.2 Diagnostic Settings The [Diagnostic] tab (® see Page 195) of the web user interface contains applications that can be used to gather system information about the unit in the form of logs. 7.2.1 Log Settings General Settings General Settings (®...
  • Page 388 7.2.4 System Dump to the Syslog server. Syslog servers can manage analysis and debugging of messages from various devices and platforms. Related configuration file parameters • SYSLOG_ADDR (Page 250) • SYSLOG_PORT (Page 251) • SYSLOG_SERVER_ENABLE (Page 251) • SYSLOG_SEVERITY (Page 251) Log Level Settings Log Level Settings (®...

  • Page 389: Qos Status (Voice Quality Monitoring)

    7.5 SSH Settings (Debug Settings) 7.2.5 Sniffer Dump Sniffer Dump (® see Page 217) is used to capture packets on the network and export them for analysis. For details about the Sniffer Dump function, consult your phone system dealer. 7.3 QoS Status (Voice Quality Monitoring) QoS Status (®...
  • Page 390 7.5 SSH Settings (Debug Settings) Administrator Guide Document Version 2015-01...
  • Page 391 Section 8 Appendix Document Version 2015-01 Administrator Guide...

  • Page 392: Revision History

    8.1.1 12.1.1 Software File Version 02.110 8.1 Revision History 8.1.1 12.1.1 Software File Version 02.110 New Contents • 4.2.1 Version Information → KEM1 Version (Page 87) → KEM2 Version (Page 87) • 4.3.6 Certificate Information (Page 107) • 4.3.8 Global Address Detection →...
  • Page 393 8.1.1 12.1.1 Software File Version 02.110 • 5.4.7 Management Server Settings (Page 260) • 5.4.8 SNMP Settings (Page 265) • 5.5.12 VLAN Settings (Page 286) • 5.5.9 STUN Settings → STUN_REFRESH_INTVL (Page 283) • 5.6.1 Call Control Settings → ENDCALL_TRANSFER_ENABLE (Page 291) →...
  • Page 394 8.1.1 12.1.1 Software File Version 02.110 → Minimum RTP Port Number (Page 132) → Maximum RTP Port Number (Page 132) • 4.6.2.2 Dial Plan → Dial Plan (Page 146) • 4.6.4.1 KEM 1 → Type (No. 1–36) (Page 155) → Parameter (No.
  • Page 395 8.1.2 14.11.1 Software File Version 03.111 8.1.2 14.11.1 Software File Version 03.111 New Contents • 4.6.13 Distinctive Ring → 4.6.13.1 Enable Distinctive Ring (Page 172) → 4.6.13.2 Distinctive Ring (Page 173) • 4.8.2 Export Configuration File → 4.8.2.2 Web Updated Configuration (Page 182) •...
  • Page 396 8.1.2 14.11.1 Software File Version 03.111 • 5.5.5 Ethernet Port Settings (Page 276) • 5.5.7 HTTP Settings → HTTP_AUTH_ID (Page 280) → HTTP_AUTH_PASSWORD (Page 281) → HTTP_ENABLE_PROXY (Page 281) → HTTP_PROXY_SVR_ADDR (Page 281) → HTTP_PROXY_SVR_PORT (Page 281) → WEB_LANGUAGE (Page 281) →...
  • Page 397 8.1.3 14.11.1 Software File Version 03.131 Changed Contents • 4.6.10 Call Log → 4.6.10.1 Export Call Log (Page 170) • 4.6.7.3 Multicast Paging → Port (No. 1-10) (Page 166) • 4.8.1 Import Configuration File → 4.8.1.2 Provision Configuration (Page 181) •...
  • Page 398 8.1.3 14.11.1 Software File Version 03.131 Administrator Guide Document Version 2015-01...
  • Page 399 Index Document Version 2015-01 Administrator Guide...
  • Page 400 Index BELL_CORE_PATTERN2_TIMING Numerics BELL_CORE_PATTERN3_TIMING 1–30 BELL_CORE_PATTERN4_TIMING BELL_CORE_PATTERN5_TIMING BLF_DATA_FROM_FLEX_KEY Block Anonymous Call Access Level 32, 68 Block Caller ID Access Levels (IDs and Passwords) 31, 32 BLOCK_ANONYMOUS_CALL Accessing the Web User Interface BLOCK_CALLER_ID ACD_CCSTATUS_ENABLE Bluetooth ACD_ENABLE Branding Settings ACD_REASONCODE_ACTIVE[1-10] Broadsoft Settings [Anywhere] ACD_REASONCODE_VALUE[1-10] Broadsoft Settings [Hide Number] ACD_REASONCODEAME[1-10]...
  • Page 401 Index CFG_RESYNC_TIME Delay Time (0-10) CFG_ROOT_CERTIFICATE_PATH1 Description CFG_ROOT_CERTIFICATE_PATH2 Description (1-10) CFG_ROOT_CERTIFICATE_PATH3 DHCP Server CFG_RTRY_INTVL DHCP_DNS_ENABLE CFG_STANDARD_FILE_PATH DHCP_ENABLE Characters Available for String Values DHCP_INFORM_ENABLE Checking the Status of the Unit DHCPv4 CID_DATA_PRIORITY_ENABLE DHCPv6 Classes Diagnostic 83, 195 CLIENT_CERTIFICATE_PATH Diagnostic Settings 236, 354 CLIENT_KEY_PATH Dial Plan 146, 370, 371...
  • Page 402 Index DST_START_DAY_OF_WEEK Exclude Network Settings DST_START_MONTH Exclude Private Settings DST_START_ORDINAL_DAY Export Button DST_START_TIME Export Call Log DST_STOP_DAY_OF_WEEK Export Configuration File DST_STOP_MONTH Export Phonebook 167, 369 DST_STOP_ORDINAL_DAY Exporting phone user interface settings DST_STOP_TIME Extension PIN DTMF EXTENSION_PIN DTMF Relay DTMF Type DTMF_MODE Factory Defaults 28, 37...
  • Page 403 Index GPICKUP_ENABLE Inter-digit Timeout International Call Prefix INTERNATIONAL_ACCESS_CODE IP Address Header Value for Resync Event IP Address Mode 89, 96 Hide Number Settings IP Connection Mode Hold Recall Timer IP Phone VLAN ID 91, 105 HOLD_ALARM_FRQ IP Settings 225, 268 HOLD_ALARM_GAIN IP_ADDR_MODE HOLD_ALARM_RPT...
  • Page 404 Index LOG_LEVEL_DCM LOG_LEVEL_DHCPV4 Label (No. 1-10) LOG_LEVEL_DHCPV6 Label Name (No. 1–24) LOG_LEVEL_FDT Label Name (No. 1–36) 155, 156 LOG_LEVEL_FHAL LAN Port LOG_LEVEL_FILESAVER LAN_PORT_SPEED_DUPLEX LOG_LEVEL_FOS Language LOG_LEVEL_FOX_DNS Language Selection LOG_LEVEL_FOX_FTPC LDAP LOG_LEVEL_FOX_NET LDAP Authentication ID LOG_LEVEL_HTTP_CGI LDAP Authentication Password LOG_LEVEL_HTTP_SVR LDAP phonebook (optional) LOG_LEVEL_I18N LDAP Search Base LOG_LEVEL_IPPS...
  • Page 405 Index Minimum Delay Outbound Proxy Server Port Minimum RTP Port Number Outline Overview of Programming Model Modules MoH Server URI Paging Codec MOH_SERVER_URI Paging DND Month 119, 120 Parameter (No. 1–24) MOS_LQ Parameter (No. 1–36) 155, 156 MOS-CQ PARK_CODE MPAGE_ADDR PARK_ENABLE MPAGE_CODEC PARK_RETRIEVE_CODE...
  • Page 406 Index Provisioning Settings 223, 255 RTCPXR_IN_SDP_ENABLE Proxy Server Address 111, 124 RTP Keep Alive Interval Proxy Server Port 111, 124 RTP Packet QoS (DSCP) Proxy Server Settings RTP Packet Time RTP Settings RTP_CLOSE_ENABLE RTP_PORT_MAX QoS Status 93, 94 RTP_PORT_MIN Quality of Service (QoS) 129, 134 RTP_PTIME Running Information...
  • Page 407 Index SIP_PNP SRV lookup Prefix for UDP SSAF ® SIP Source Address Filter SIP_PRIVACY 131, 349 SIP_PRSNC_ADDR SIP_PRSNC_PORT SSH Settings 227, 287 SIP_PRXY_ADDR SSH_ACCESS_DISABLE SIP_PRXY_PORT SSH_PASSWORD SIP_RESPONSE_CODE_CALL_REJECT SSH_USER_NAME SIP_RESPONSE_CODE_DND Standard Configuration File SIP_RGSTR_ADDR Start Day and Time of DST SIP_RGSTR_PORT Static IP Address SIP_RINGIN_TIMER Static IPv6 Address...
  • Page 408 Index TCP/IP Settings (DHCP or Static IP Address Version Information Assignment) VLAN Settings 105, 227, 286 Technical Support VM_NUMBER Telephone VM_SUBSCRIBE_ENABLE Telephone Settings 162, 227, 228, 288, 292 Voice Mail Access Number Telephone Tab 76, 140 Voice Quality Telephone-event Payload Type VoIP TELEVENT_PAYLOAD VoIP Settings...
  • Page 409 Notes Document Version 2015-01 Administrator Guide...
  • Page 410 Notes Administrator Guide Document Version 2015-01...
  • Page 411 Notes Document Version 2015-01 Administrator Guide...
  • Page 412 Copyright: This material is copyrighted by Panasonic System Communications Company of North America, and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Communications Company of North America.
