Summary of Contents for Panasonic LightPen3
-
Page 1: Operating Instructions

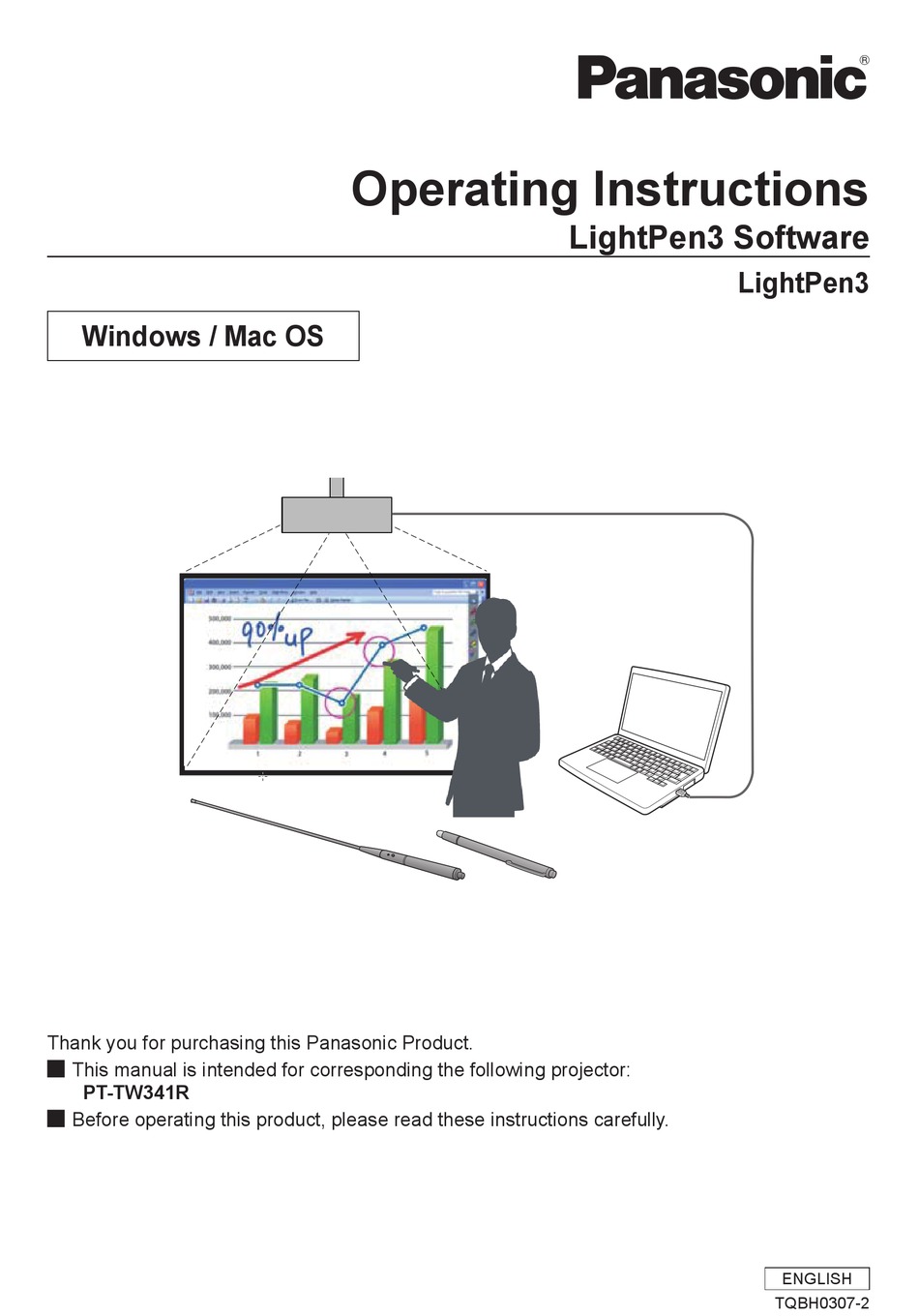

Operating Instructions LightPen3 Software LightPen3 Windows / Mac OS Thank you for purchasing this Panasonic Product. This manual is intended for corresponding the following projector: PT-TW341R Before operating this product, please read these instructions carefully. ENGLISH TQBH0307-2... -
Page 2: Table Of Contents
Contents (continued) Introduction · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 For Windows ·... -
Page 3: Introduction
During the PowerPoint slide show mode, you can use the Pen or the Pointer to draw directly on the projection screen and save it in the PC. ■ The Contents of the CD-ROM Relating the LightPen3 software in the CD-ROM, the following table contents are also included besides these instructions. SP6 Driver LightPen3 Software ×... -
Page 4: For Windows
For Windows For Windows (continued) System requirements In order for the SPDriver6 and the LightPen3 software to work properly, the computer system must meet the follow- ing requirements. Microsoft Windows Vista 32 bit Windows 7 32/64 bit Windows 8 32/64 bit Intel Core 2 Duo 2.0 GHz or more... -
Page 5: Interactive Functions Initial Settings
First, carry out the calibration for the projector sensor to accurately recognize the position of the projected screen. ■ Start the Software 1) Connect the computer to the projector via a USB cable. • The SPdriver6 icon in the taskbar becomes from red to green. 2) Click "Start"→"All Programs"→"LightPen"→"LightPen3"→"LightPen3" from the desktop. - Page 6 For Windows (continued) Or double click the shortcut icon of "LightPen3" from the desktop. • Tool bar appears on the right of the screen. Tool bar : SPdriver6 icon : Mouse icon ■ Select the operation mode of cursor 3) Click the SPdriver6 icon on the taskbar and select "Mouse Mode" or "Touch Mode"...
- Page 7 For Windows (continued) • If the auto calibration fails, the error message will appear. Please perform the auto calibration again. • Before performing the auto calibration again, please check the following situations. 1. Turn off the lights to darken the surroundings and reduce the reflection of external light to the projection screen.
-
Page 8: How To Use The Interactive Functions
To change the background to the whiteboard mode. Previous page To return to the previous page. Next page To go to the next page. Editing tool To edit the drawn pictures or lines. On-Screen Keyboard To display the On-Screen Keyboard. Exit To exit LightPen3. - Page 9 For Windows (continued) ■ For "Mouse mode" and "Pen mode" Mouse mode Pen mode : Mouse icon : Pen icon ● Mouse mode The "Mouse mode" is active immediately after Startup. Use a Pen or a Pointer to move the mouse cursor. •...
- Page 10 For Windows (continued) • If you use the Pen or the Pointer to click a little space left to the projection screen edge, the tool bar will move to the left. • If you use the Pen or the Pointer to click a little space right to the projection screen edge, the tool bar will move to the right.
- Page 11 For Windows (continued) Full-screen mode Tool bar Divided-screen mode Tool bar ● Function of the tool bar for dual Pen Icon Description Name Red Pen To draw with a red pen. Green Pen To draw with a green pen. Blue Pen To draw with a blue pen.
- Page 12 For Windows (continued) Note • You can draw with a combination of the color and thickness of the Pen. In the tool bar, the background of the color and thick- ness of the selected Pen displays bright. ■ Whiteboard tool Select the "Whiteboard tool"...
- Page 13 For Windows (continued) ■ Editing tool Select the icon to display the following "Editing tool" bar and select the necessary functions of the editing work. ● Functions of Editing bar Editing tool bar Icon Description Name Object selecting, To select, to move, to scale the object that you moving, scaling draw.
-
Page 14: Tool
For Windows (continued) ● Curtain mode Select the icon to change the entire screen to black. Exit button Cursor Place the cursor on the up, down, left or right button and the cursor will change to an arrow, drag the arrows to adjust the black curtain size. - Page 15 To select the page you want to project from the list of slide show page. Exit To exit the slide show mode. Note • When you exit "Slide show mode", the PowerPoint ® Tool will automatically disappear. • The LightPen3 PowerPoint ® Tool only support the PowerPoint 2003 or its higher version.
-
Page 16: To Exit The Software And Driver
For Windows (continued) To exit the Software and Driver ■ If you want to exit the LightPen3 from the tool bar Select the icon (exit icon) from the tool bar. ■ If you want to exit the LightPen3 from the taskbar... -
Page 17: For Mac
• The LightPen3 software may not work properly depending on the Mac OS version. In this case, please update to the latest version of Mac OS version before using the LightPen3 software. [For example: Please update from v10.7.2 to v10.7.5.] Even all the requirements are meet, there is not guaranteed operations for all computers. - Page 18 For Mac OS (continued) : SP6 Driver icon : Mouse icon Tool bar ■ Perform the Calibration of the camera 3) Click the SP6 Driver icon on the menu bar. 4) Select the pop-up "Calibration". • Manual calibration screen displays. ...
-
Page 19: How To Use The Interactive Function
To change the background to the whiteboard mode. Previous page To return to the previous page. Next page To go to the next page. Editing tool To edit the drawn pictures or lines. On-Screen Keyboard To display the On-Screen Keyboard. Exit To exit LightPen3. - Page 20 For Mac OS (continued) ■ For “Mouse mode” and “Pen mode” : SP6 Driver icon : Mouse icon Mouse mode Pen mode ● Mouse mode The “Mouse mode” is active immediately after Startup. Use a Pen or a Pointer to move the mouse cursor. •...
- Page 21 For Mac OS (continued) simply using the Pen or the Pointer to click a little space up above or below the projection screen edge. • The Pen color was the last selected color when using “Pen mode“. ■ Position changing and Displaying / Hiding of the tool bar You can change the position of the tool bar or switch to display or hide of the tool bar.
- Page 22 For Mac OS (continued) ■ Whiteboard tool Select the “Whiteboard tool” icon to make the wallpaper of the PC screen white. The (previous page) and the (next page) icons are replaced by the (wallpaper selection) and the (white wallpaper) icons. (1) Select the icon to open the following window where you can choose the wallpaper that you want to use.
-
Page 23: To Exit The Software And Driver
You can write text to a document via the “Mouse mode”. To exit the Software and Driver ■ If you want to exit the LightPen3 from the tool bar 1) Select the icon (exit icon) from the tool bar. -
Page 24: About Sp6 Driver
■ To restart SP6 Driver Double-click the “SP6 Driver.app” on the desktop. To uninstall the Software and Driver 1) Drag or drop the “SP6 Driver.app” and the “LightPen3.app” from the desktop to the recycle bin. 2) Select the “Empty trash” for the “Finder” menu. -
Page 25: Troubleshooting
USB cable. When the computer is restarted from standby mode, LightPen3 does not work. When a computer is put into standby mode, its USB ports might be shut down. Quit the LightPen3 program once and then restart it. The tip of the Pointer and the mouse cursor position are not the same. - Page 26 Troubleshooting (continued) Under manual calibration, you can not proceed to next step even by clicking the cross mark. (1) Check the followings. z Is the Pen or Pointer have enough battery charge? z Is the tip of the Pointer or Pen in shadow on the screen? If the sensor cannot detect the LED in the tip of the Pointer or Pen, it will not function.
-
Page 27: Trademarks
• Unauthorized use or reproduction of part or all of this product software and manuals is strictly prohibited. • Panasonic cannot be held liable for any effects resulting from the use of this product software and manuals. • Panasonic reserves the right to revise this product software specifications and manual contents without notice.
